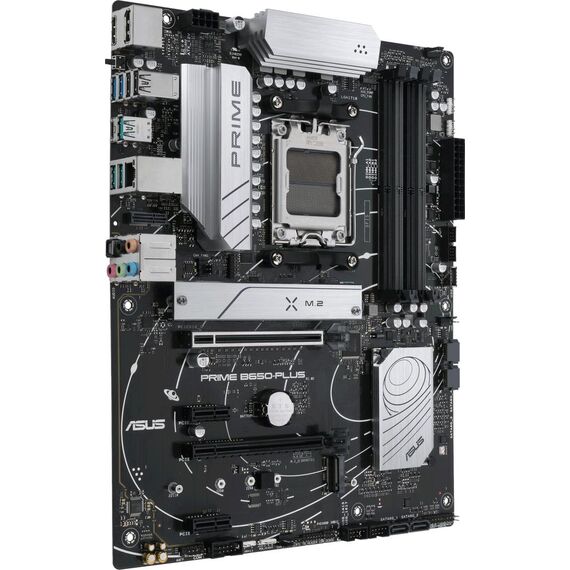

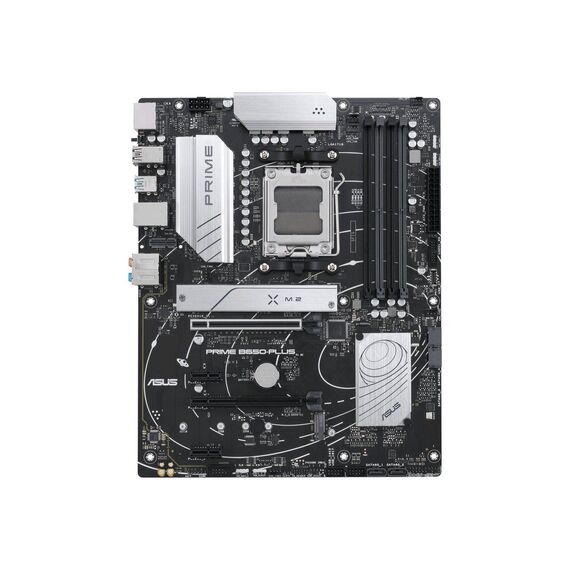

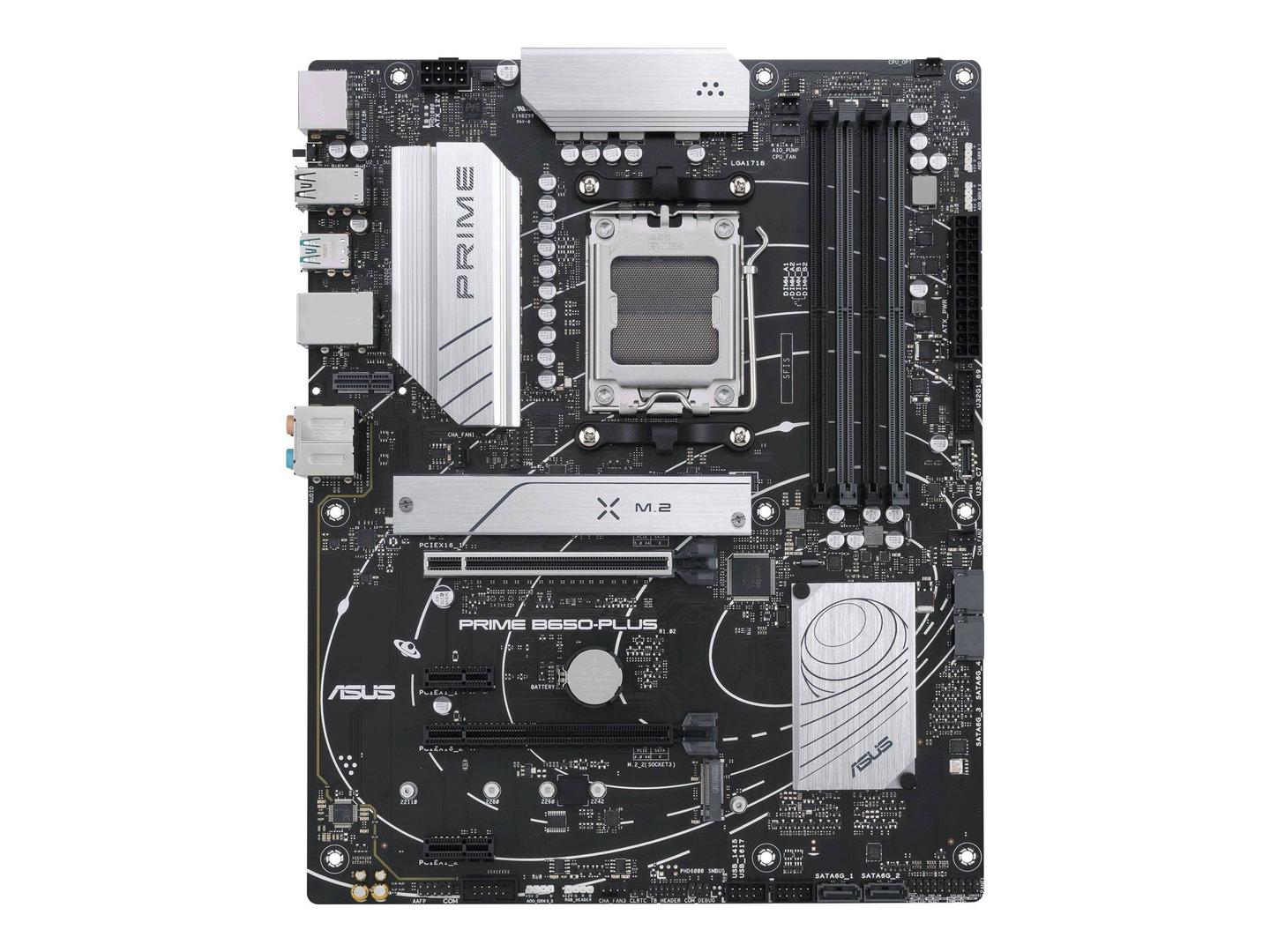

ASUS Prime B650-Plus-CSM / Motherboard / ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1BS0-M0EAYC

Product Features

• CPU performance boost
  AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
• All-around energy efficiency
  The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
• Precise digital power control
  The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
• M.2 heatsink
  The M.2 heatsink is flexible, which can take care of the M.2 1 or M.2 2 slot, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
• VRM heatsinks and thermal pads
  VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
• Robust power design
  Stable power is essential to extract every last bit of performance out of AMD processors. The PRIME B650-PLUS-CSM is geared to cater to the demands of these high-core-count CPUs.
• DDR5 performance enhancement
  Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650-PLUS-CSM, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.
• ASUS OptiMem II
  Revisions to the motherboard's trace routing provide the latest processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.
• PCIe 5.0 M.2 support
  PRIME B650-PLUS-CSM offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, enabling quicker boot-up and app load times with OS or application drives.
• PCIe 4.0 slot
  Prime B650 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
• USB 3.2 Gen 2 Type-C

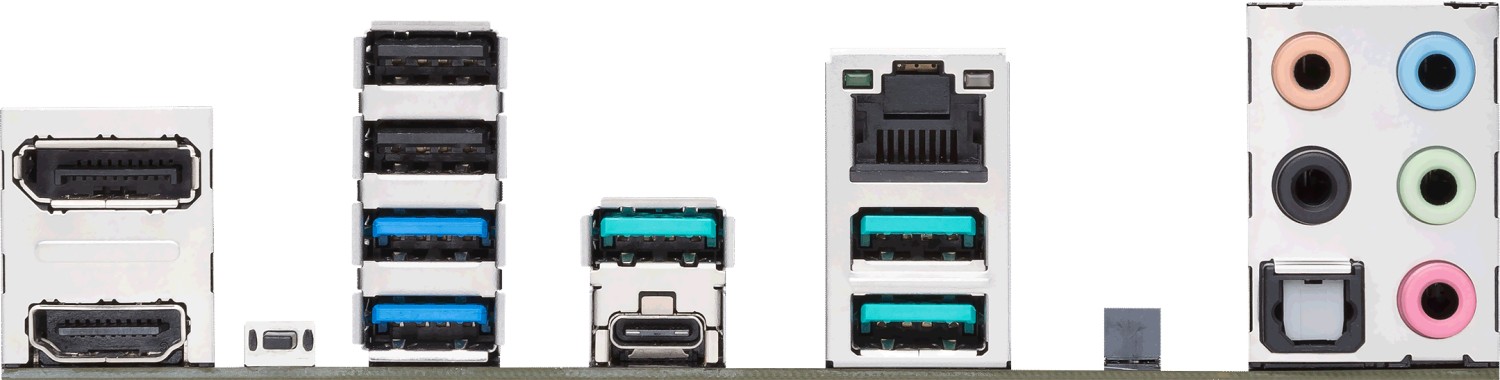

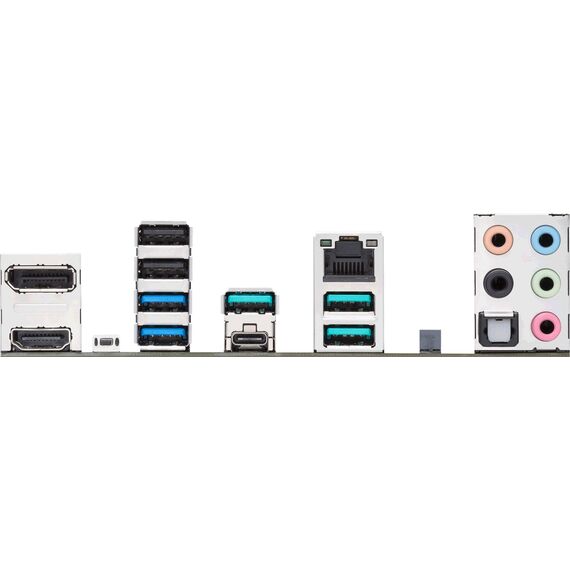

  A batch of USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C connector with ultrafast USB 3.2 Gen 2 for transmission speeds of up to 10Gbps.
• Front USB Type-C
  A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C connector that provides data transfer speeds of up to 5 Gbps.
• USB4 support
  PRIME B650-PLUS-CSM motherboard features USB4 support via a Thunderbolt (USB4) header. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
• Realtek 2.5 Gb Ethernet
  Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

Special Features

• AMD AM5 socket - ready for AMD Ryzen 7000 Series desktop processors
• Ultrafast connectivity - M.2 PCIe 5.0, Realtek 2.5 Gb Ethernet, USB 3.2 Gen 2 Type-C, front USB 3.2 Gen 1 Type-C, USB4 support
• ASUS OptiMem II - careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
• Comprehensive cooling - VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers
• Aura Sync RGB Lighting - onboard addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
