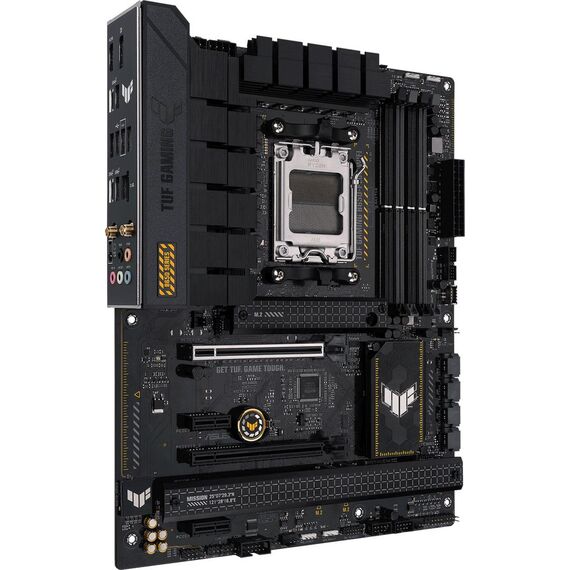

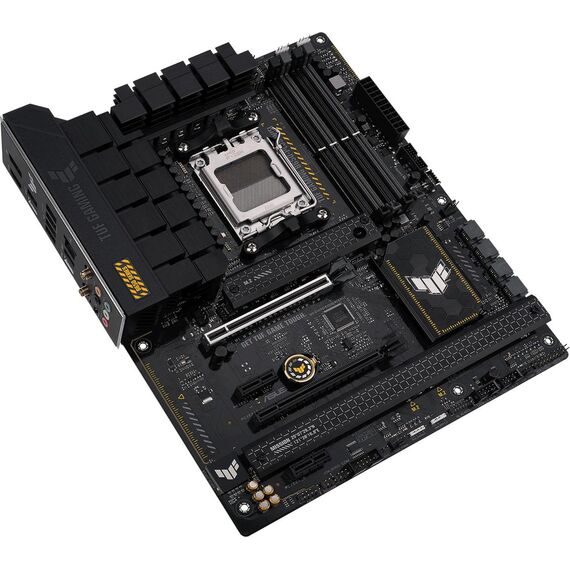

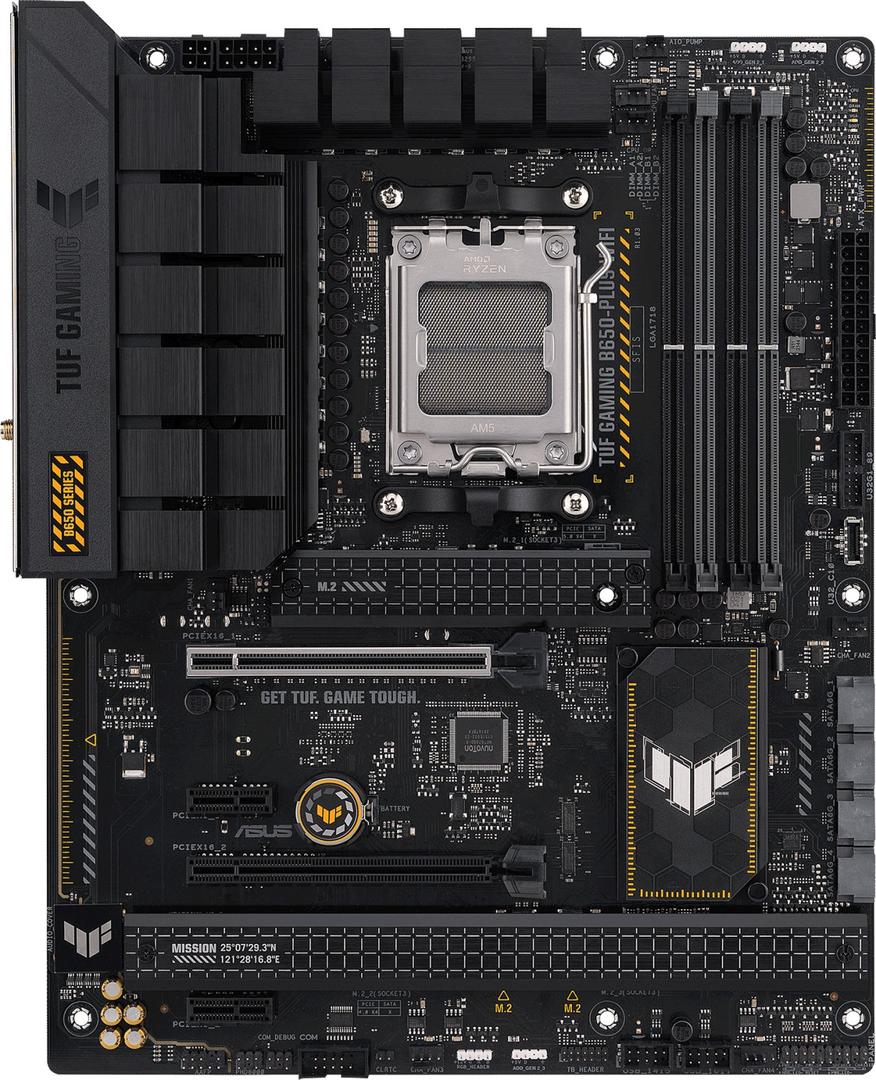

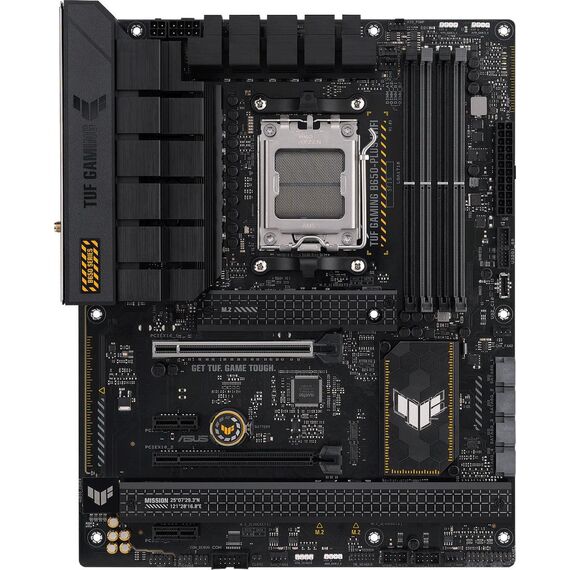

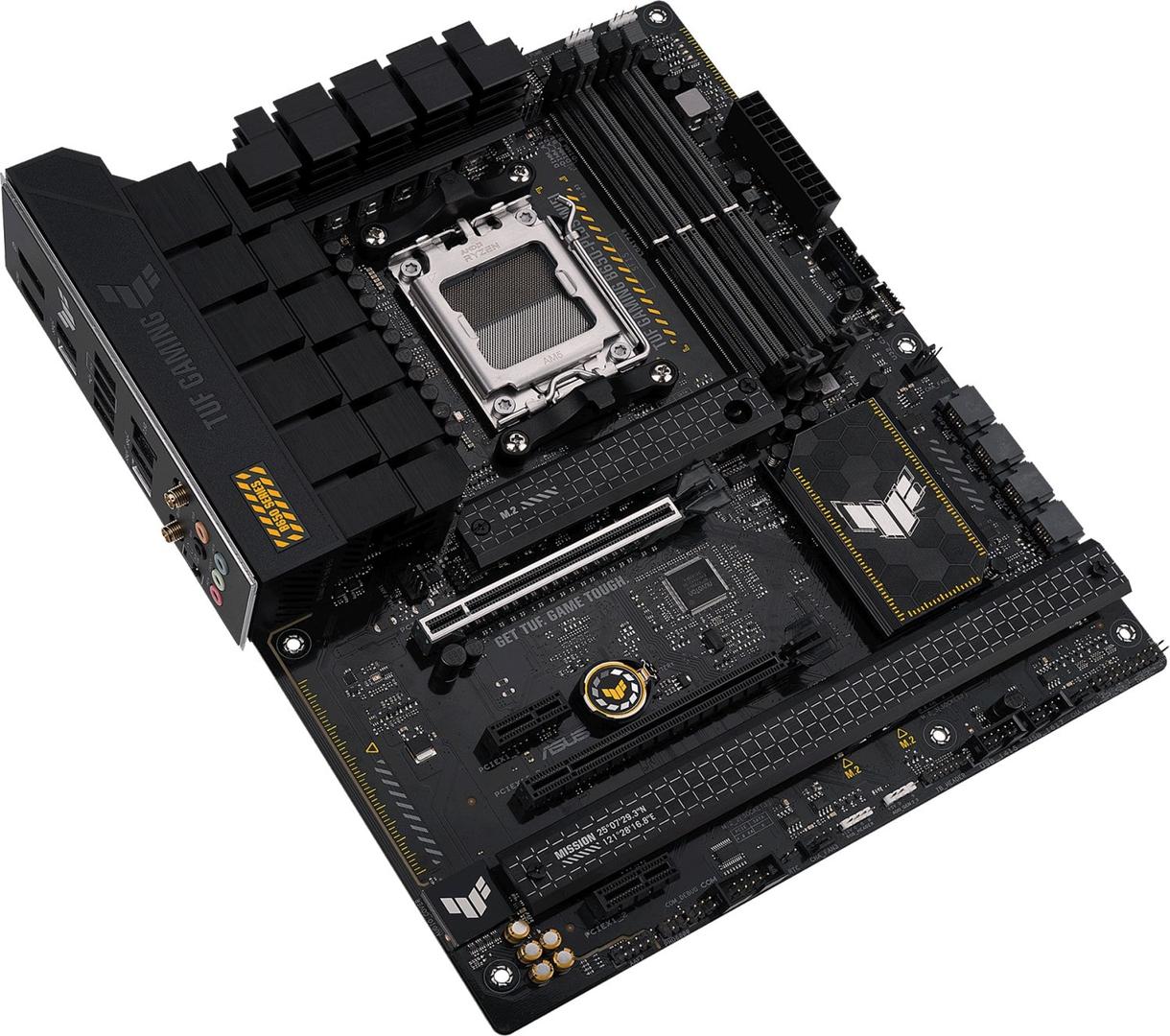

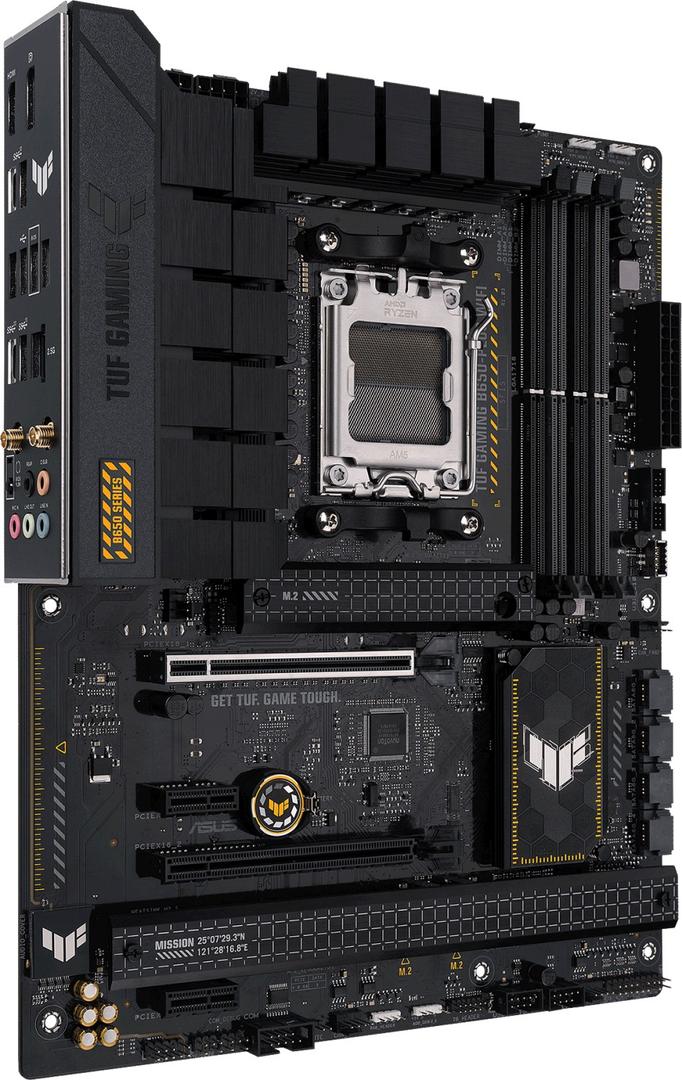

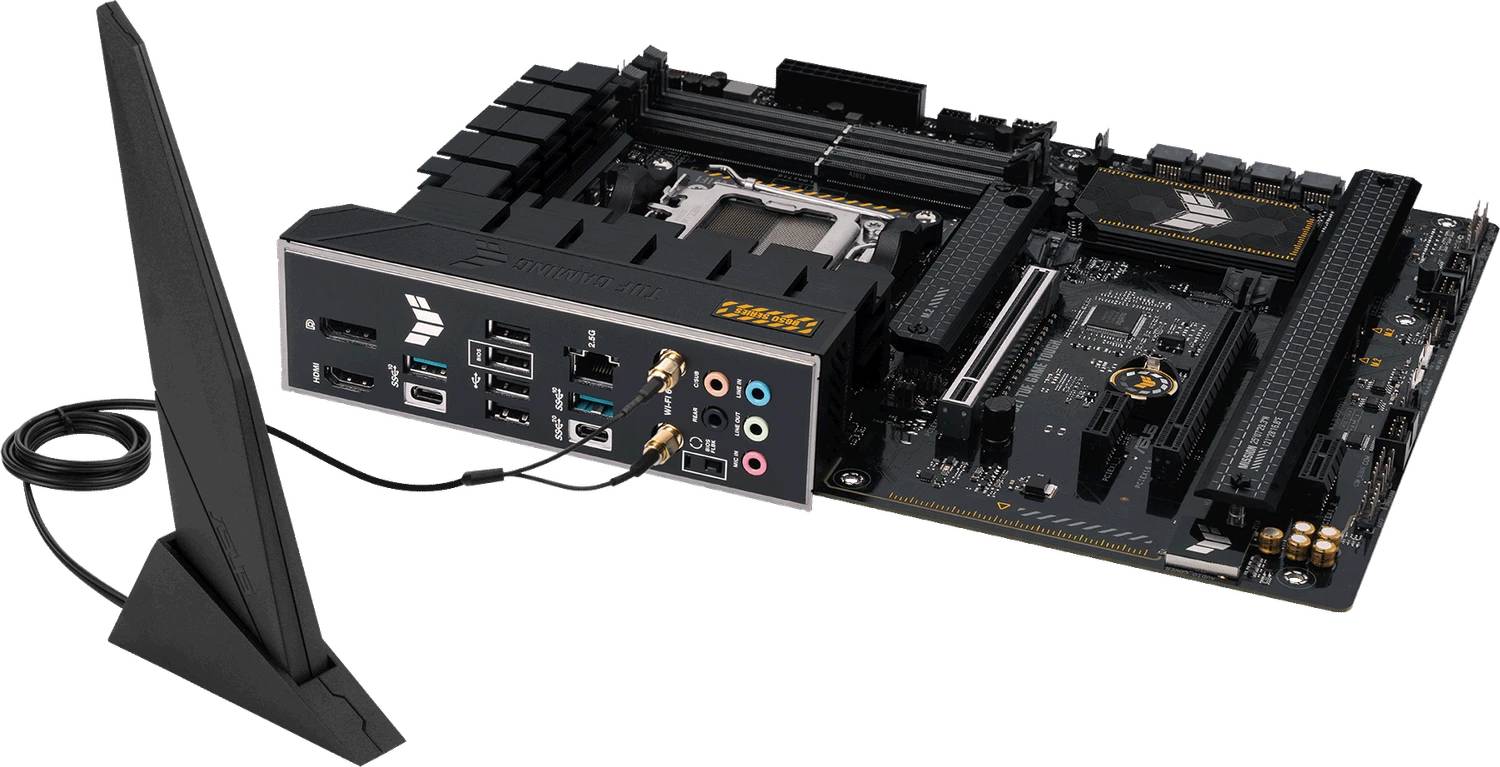

ASUS TUF Gaming B650-Plus WiFi / Motherboard / ATX / Socket AM5 / AMD B650 Chipset / USB 3.1 Gen 2, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required | 90MB1BZ0-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- Intelligent control
Comprehensive controls form the foundation of the ASUS TUF Gaming series. The TUF Gaming B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. - Rock-solid performance
With upgraded power delivery and comprehensive cooling options to fuel AMD's CPUs, plus support for faster memory and storage, TUF Gaming B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig. - Easy PC DIY
The TUF Gaming line offers easy setup for all builders. The TUF Gaming Alliance Ecosystem grants compatibility, while Armory Crate has Fan Xpert 4, hardware info, Two-way AI noise cancellation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs. - Immersive gaming
TUF Gaming B650 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.
Special Features
- 12 + 2 power stages (rated 60 A) with enlarged VRM heatsinks
- PCIe 5.0 for M.2 storage
- DDR5 memory module support
- USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 1 Type-C header
- 2.5 Gb Ethernet
- Wi-Fi 6
- Two-way AI noise cancellation
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5000 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode (auto turn-off if 3rd M.2 is occupied)) ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

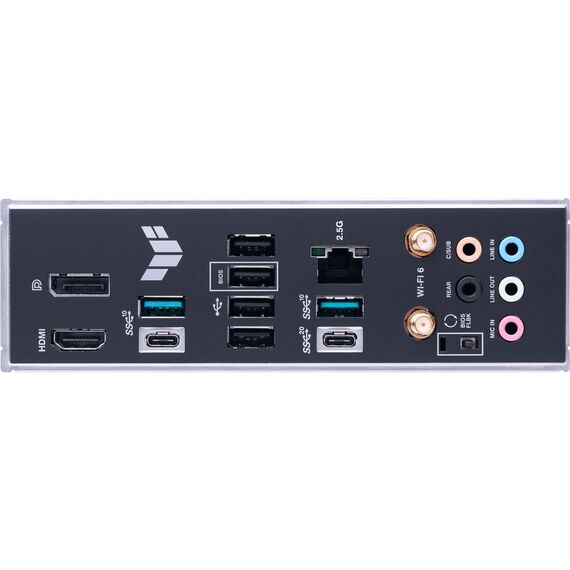

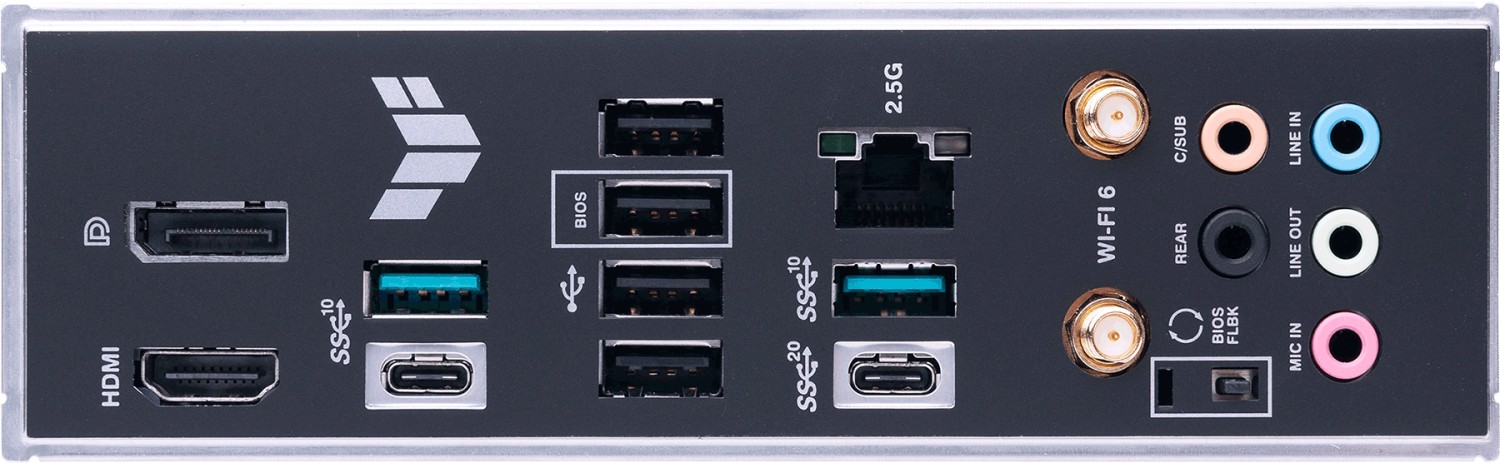

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, Enlarged Chipset Heatsink, 60A Power Stage |
| Miscellaneous | Miscellaneous |
| Included Accessories | ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4 |
| Compliant Standards | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
Features - Asus - 90MB1BZ0-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
07:129800
EAN Code
4711081912651
Manufacturer
Asus
