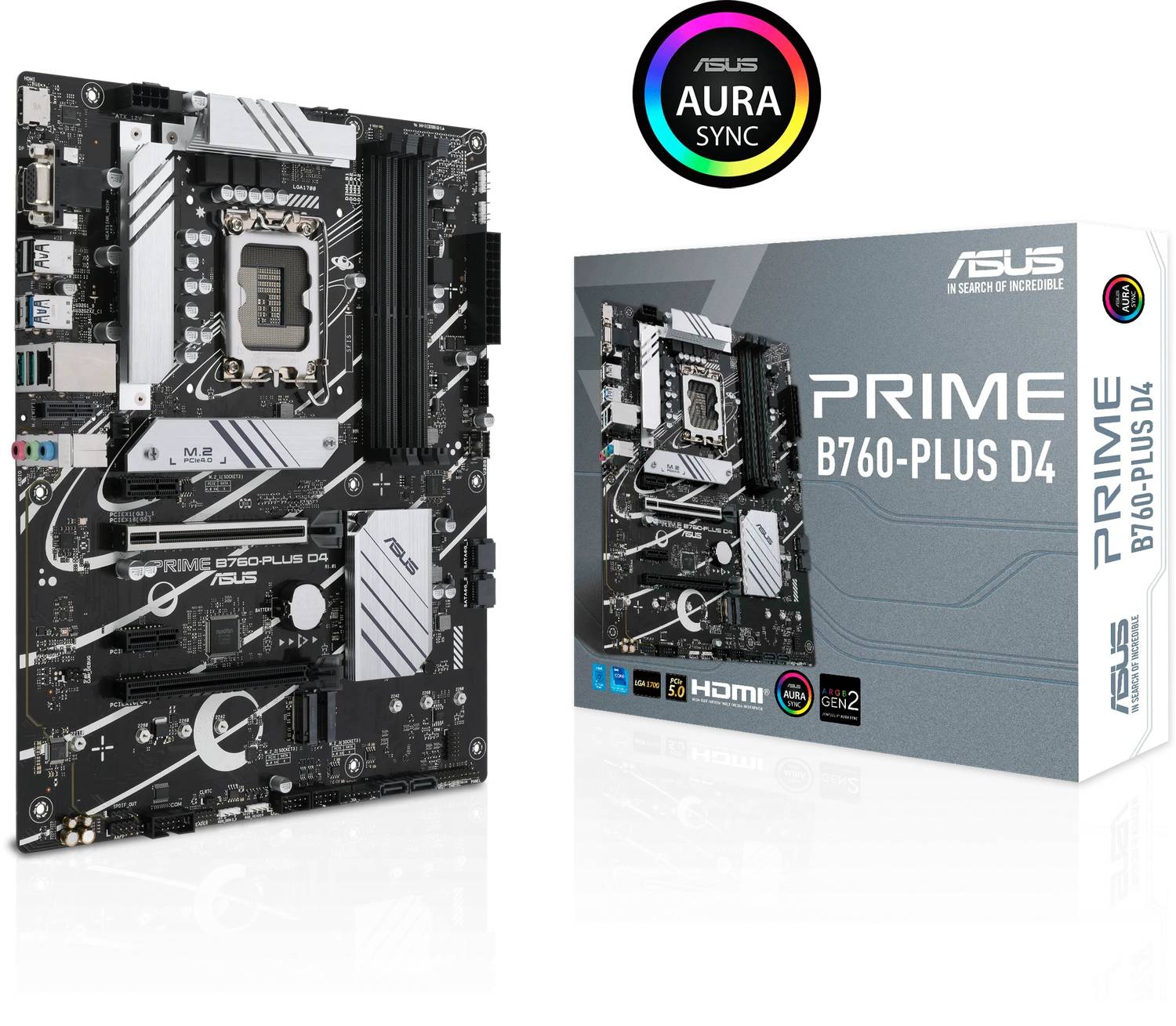

ASUS PRIME B760-PLUS D4 ATX LGA1700 DDR4 Motherboard PCIe 5.0 2.5G LAN

Brand:
ASUS

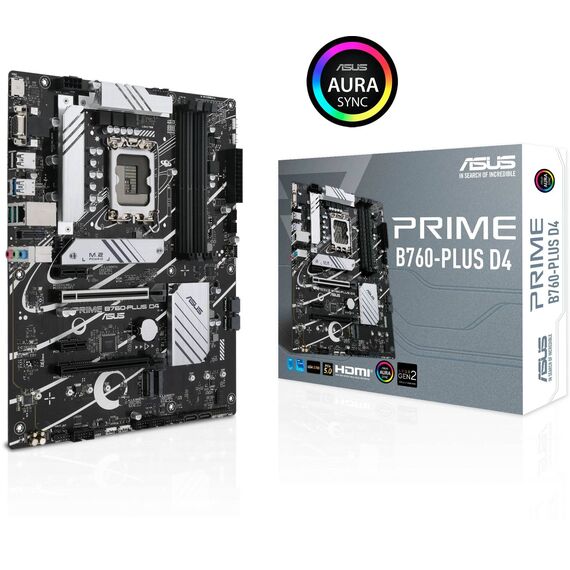

ASUS PRIME B760-PLUS D4 ATX DDR4 Motherboard
ASUS PRIME B760-PLUS D4 ATX LGA1700 DDR4 Motherboard PCIe 5.0 2.5G LAN
€182.8 inc. VAT
Buy
90MB1CW0-M1EAY0
€153.61 €170.68
€182.80 inc. VAT
Ships from EU stock: 90 item(s)
+ −
Add to wish list Ask a question
Product Code
04:419919
EAN Code
4711081970309
Manufacturer
ASUS

Quick Specs

Socket & Chipset
Intel LGA1700 + B760
Memory
4x DDR4 up to 128GB
Storage
3x M.2 + 4x SATA 6G
Connectivity
PCIe 5.0 + 2.5G LAN + USB-C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS PRIME B760-PLUS D4 ATX Motherboard

A practical Intel B760 ATX motherboard for LGA1700 DDR4 PC builds with PCIe 5.0 graphics support, three M.2 slots, USB-C and 2.5G Ethernet.
Intel LGA1700DDR4 5066 OCPCIe 5.0 x16Realtek 2.5G LAN

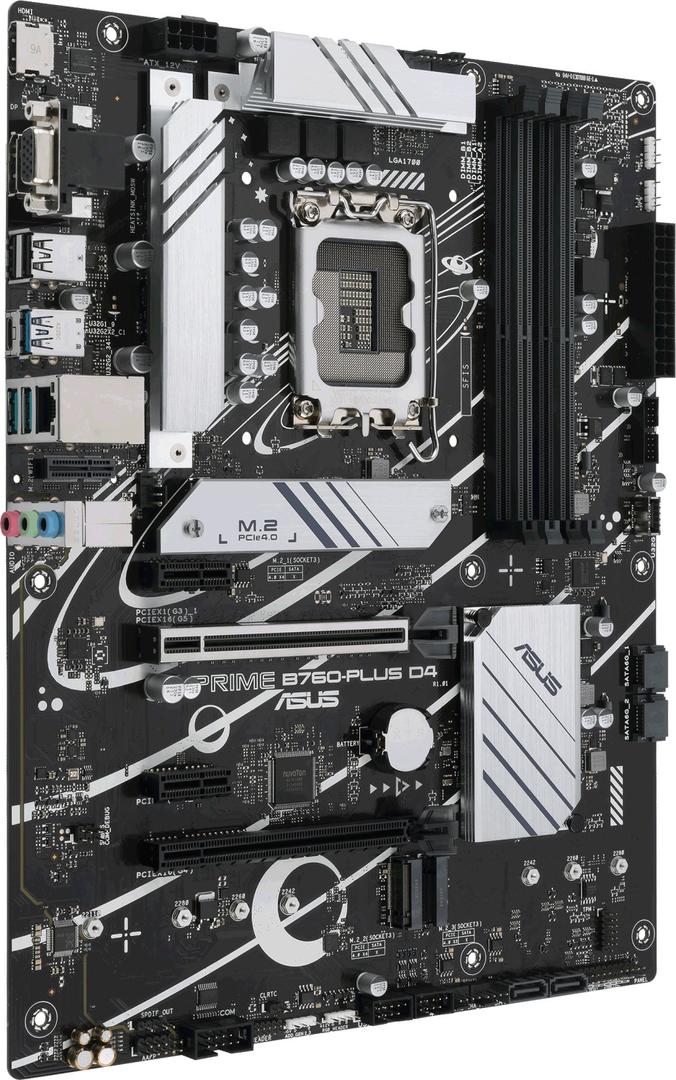

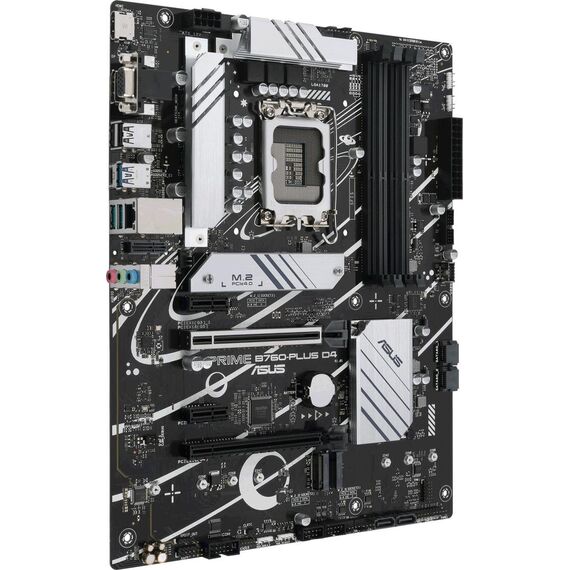

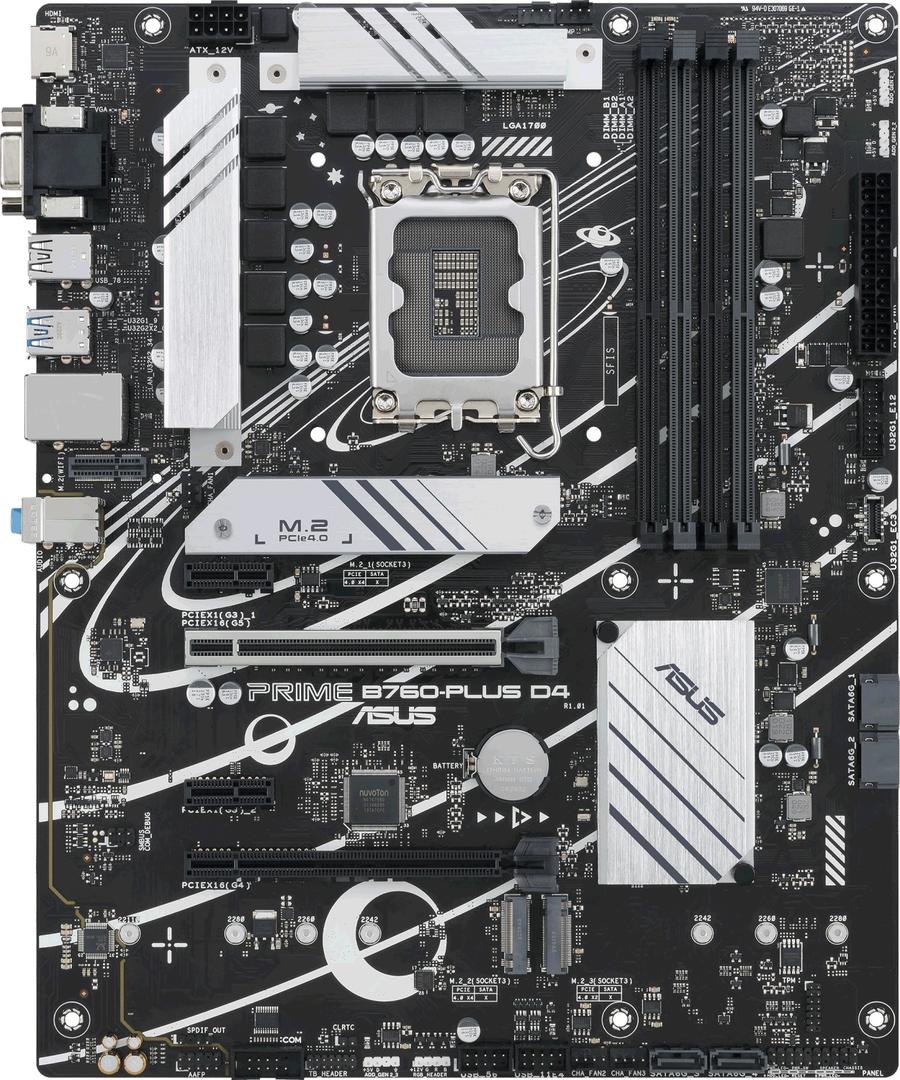

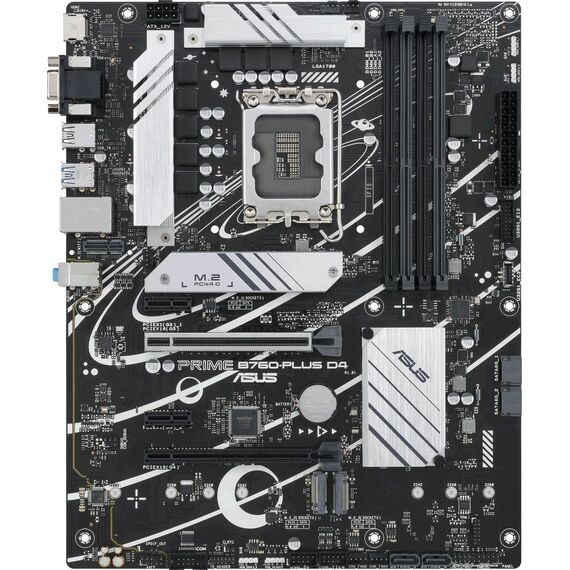

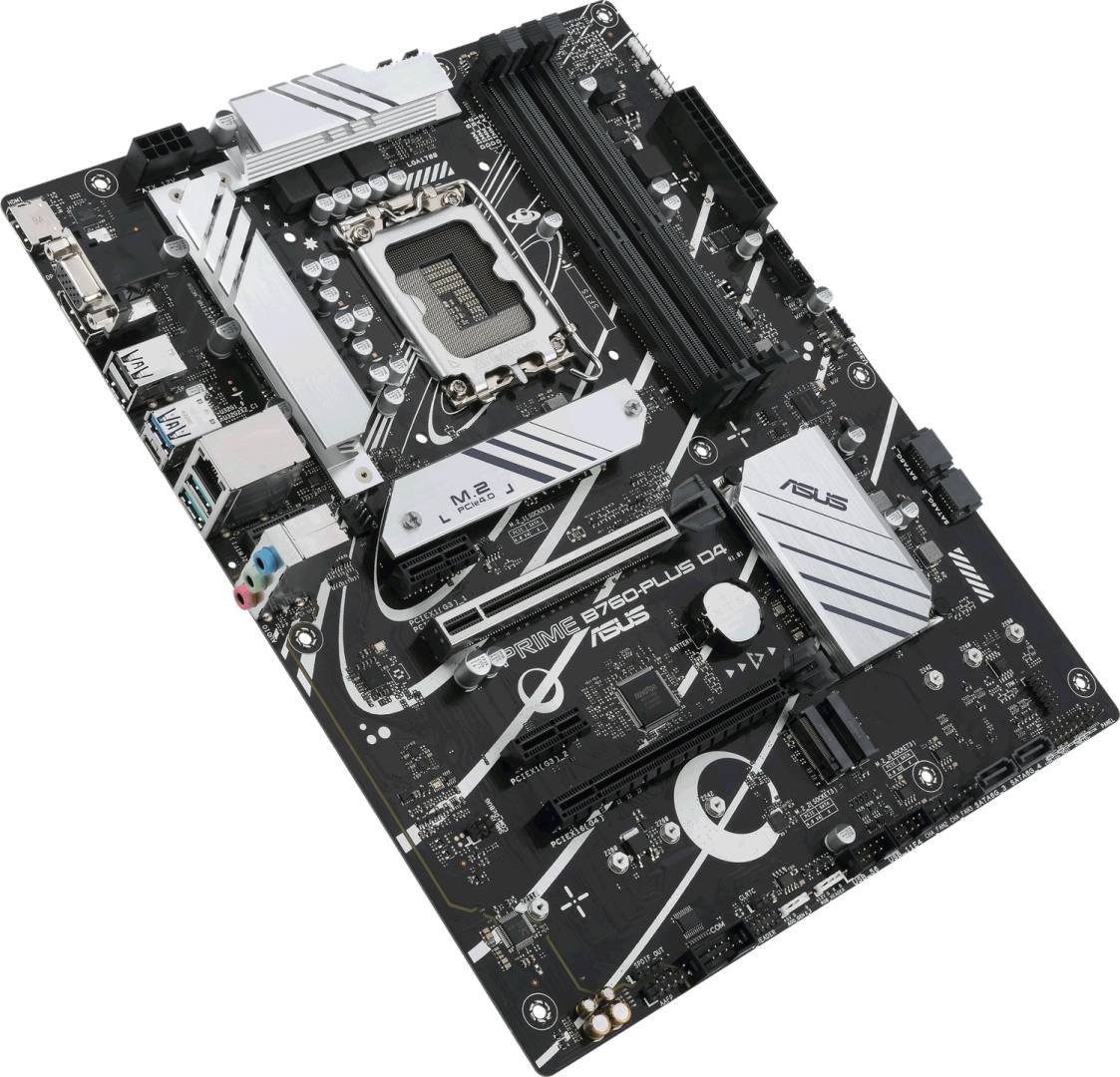

The ASUS PRIME B760-PLUS D4 is an ATX Intel B760 motherboard for Intel LGA1700 desktop processors. It is a smart choice for customers who want to reuse DDR4 memory while building a modern 12th, 13th or 14th Gen Intel PC with PCIe 5.0 graphics support, three PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and fast USB-C connectivity.

Compatibility Note: This motherboard uses the Intel LGA1700 socket and DDR4 memory. It does not support DDR5 memory, and Wi-Fi is not built in; the vertical M.2 Key E slot is for an optional Wi-Fi module sold separately.
Best For
✓ Intel 12th, 13th and 14th Gen builds
✓ Reusing DDR4 memory kits
✓ Multi-SSD PCIe 4.0 storage
✓ Reliable wired 2.5G networking

Key Features


Intel B760 LGA1700 Platform
Supports Intel Core 14th, 13th and 12th Gen processors, plus compatible Pentium Gold and Celeron processors for flexible mainstream desktop builds.

DDR4 Upgrade Value
Four DDR4 DIMM slots support up to 128GB memory, giving customers a cost-effective upgrade path when DDR4 memory is preferred over DDR5.

PCIe 5.0 and M.2 Storage
A PCIe 5.0 x16 graphics slot and three PCIe 4.0 M.2 slots provide a modern foundation for graphics cards and fast NVMe SSD storage.

Practical Connectivity
Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2x2 Type-C, front USB-C support and HDMI, DisplayPort and VGA outputs make it useful for office, home and upgrade PCs.

Technical Specifications

Brand ASUS
Model PRIME B760-PLUS D4
Manufacturer SKU 90MB1CW0-M1EAY0
EAN 4711081970309
Product Type ATX motherboard
Chipset Intel B760
CPU Socket Intel LGA1700
CPU Support Intel Core 14th, 13th and 12th Gen processors, Intel Pentium Gold and Celeron processors
Memory 4x DDR4 DIMM, up to 128GB, dual-channel, non-ECC un-buffered memory, Intel XMP support, up to DDR4 5066 OC
Expansion Slots 1x PCIe 5.0 x16 slot, 1x PCIe 4.0 x16 slot supporting x4 mode, 2x PCIe 3.0 x1 slots
Storage 3x M.2 slots, including 2x PCIe 4.0 x4 and 1x PCIe 4.0 x2, plus 4x SATA 6Gb/s ports
RAID Support Intel Rapid Storage Technology supports SATA RAID 0, 1, 5 and 10
LAN Realtek 2.5Gb Ethernet
Wireless No built-in Wi-Fi, vertical M.2 Key E slot for optional Wi-Fi module sold separately

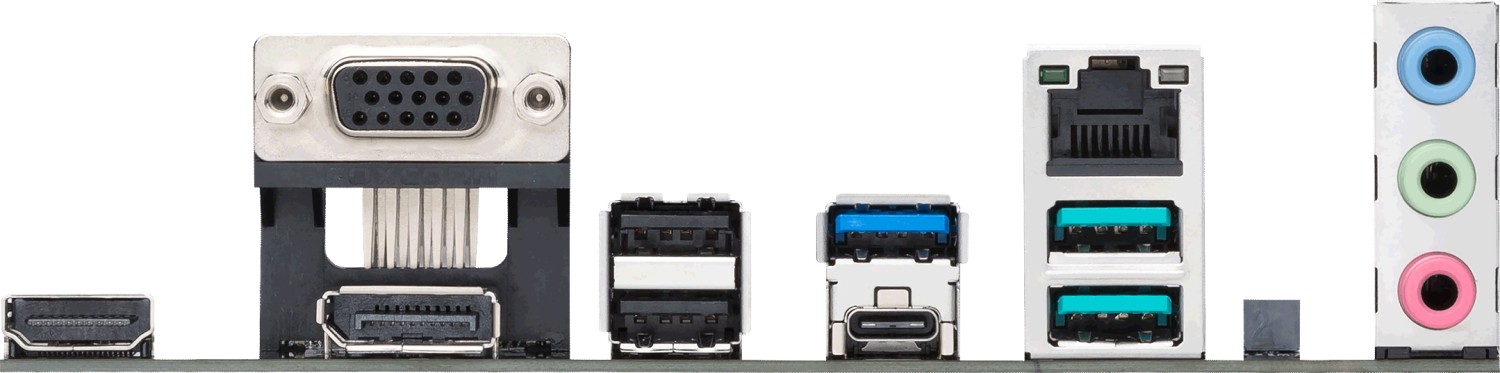

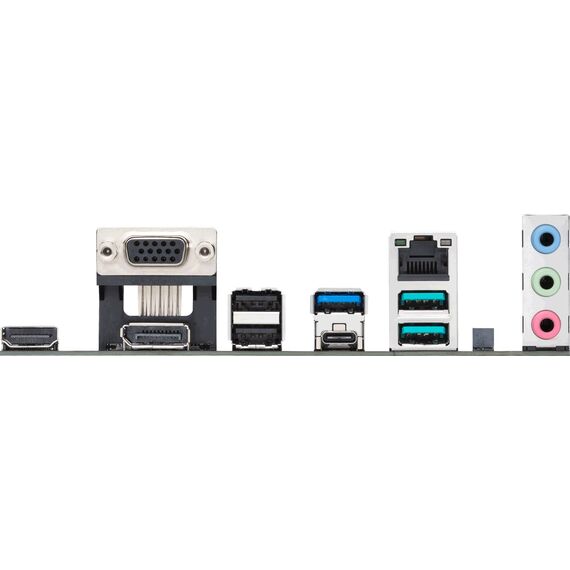

Rear USB 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A
Front USB Support 1x USB 3.2 Gen 1 Type-C connector, 1x USB 3.2 Gen 1 header for 2 ports, 2x USB 2.0 headers for 4 ports
Display Outputs 1x DisplayPort, 1x HDMI, 1x VGA, CPU integrated graphics required
Audio Realtek 7.1 surround sound high definition audio codec
Thunderbolt Support 1x Thunderbolt USB4 header, ASUS add-on card sold separately
Operating System Windows 11 64-bit and Windows 10 64-bit support
Dimensions ATX, 30.5 x 24.4 cm

Frequently Asked Questions

Which CPUs does this motherboard support?
It supports Intel Core 14th, 13th and 12th Gen LGA1700 processors, plus compatible Intel Pentium Gold and Celeron processors. Check the ASUS CPU support list for BIOS requirements before purchase.
Can I use DDR5 memory?
No. This D4 version uses DDR4 memory only. Choose a DDR5 motherboard if you want to use DDR5 RAM.
Does it include Wi-Fi?
No built-in Wi-Fi is listed for this model. It includes a vertical M.2 Key E slot for an optional Wi-Fi module that is sold separately.
Singular Expert Insight
Choose the ASUS PRIME B760-PLUS D4 if you want a modern LGA1700 motherboard while keeping DDR4 memory costs low. If you need built-in Wi-Fi or DDR5 memory support, consider a different B760 or Z790 model instead.

Buyer’s Guide

Buy it if
You are building or upgrading an Intel LGA1700 PC and want DDR4 support, PCIe 5.0 graphics, three M.2 slots, USB-C and 2.5G LAN.
Skip it if
You need DDR5 memory support, built-in Wi-Fi, CPU overclocking features or an LGA1851 board for Intel Core Ultra processors.
Also consider
Consider an ASUS B760 Wi-Fi model if wireless networking must be included, or an ASUS Z790 board if you want more enthusiast-level platform features.
