ASUS Pro H610T-CSM
DDR5 Thin Mini-ITX commercial board with SO-DIMM memory, 19V DC input and LVDS output — the modern DDR5 pick for AIO PCs, digital signage, ultra-slim clients and embedded systems.
LGA1700 · 12/13/14th GenThin Mini-ITXDDR5 SO-DIMM · 19V DCLVDS · CSM · ACCE

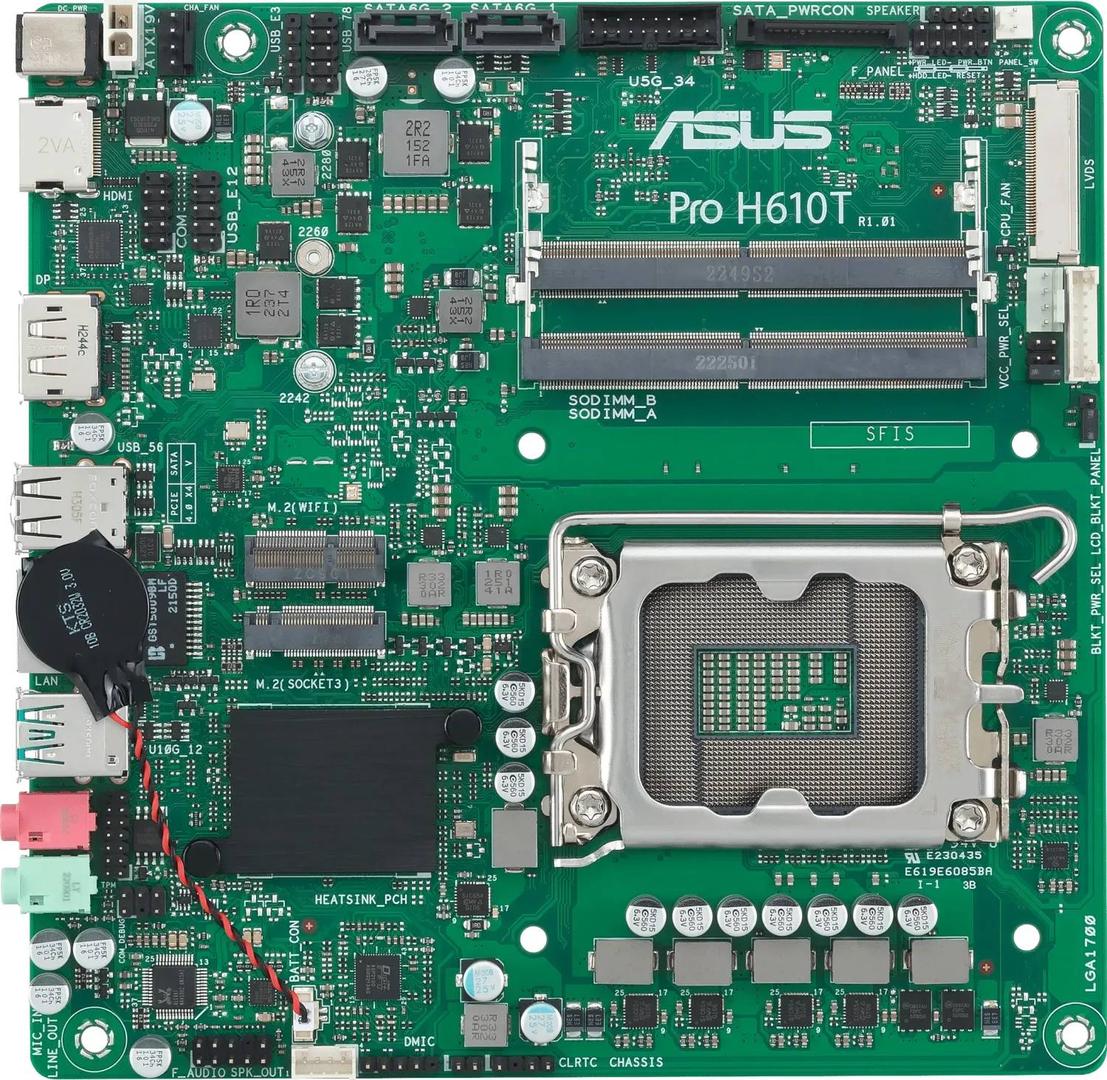

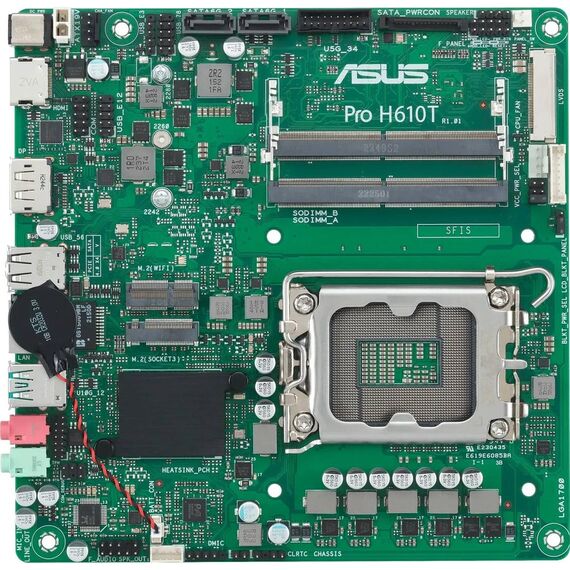

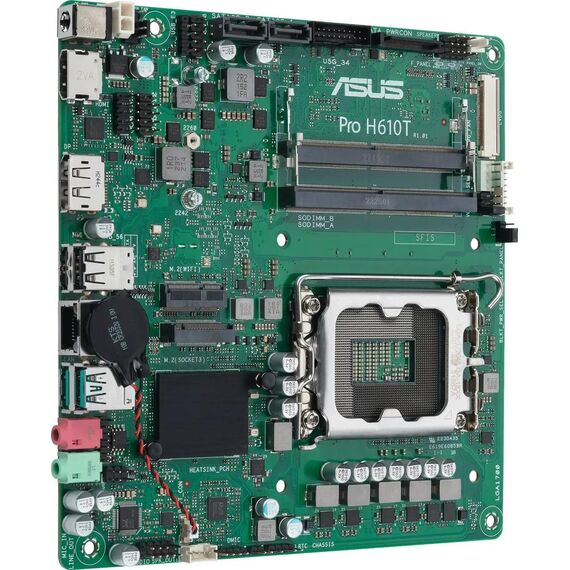

The ASUS Pro H610T-CSM is the DDR5 revision of ASUS’ specialised Thin Mini-ITX commercial motherboard, built around Intel’s H610 chipset and the LGA1700 socket. Like its DDR4 sibling (Pro H610T D4-CSM), it’s purpose-engineered for All-in-One PCs, digital signage, kiosks, ultra-slim client workstations and embedded systems — using laptop-style DDR5 SO-DIMM memory, a 19V DC barrel-jack for power (no ATX 24-pin), and an LVDS connector for driving internal display panels. CPU support is capped at 65W TDP processors. The board provides two SO-DIMM slots up to 64GB DDR5, one M.2 slot (PCIe 4.0), SATA III ports, three video outputs (HDMI, DisplayPort, LVDS), TPM hardware security, ASUS Self-recovering BIOS and a free ASUS Control Center Express (ACCE) activation key for fleet IT management. Note: there is no PCIe x16 expansion slot — the board relies entirely on the iGPU and onboard I/O. The DDR5 upgrade brings higher memory bandwidth versus the D4 sibling for memory-bound workloads.
Compatibility Note: Thin Mini-ITX form factor — requires a Thin Mini-ITX or compatible AIO chassis (will not fit standard ATX/mATX cases). Uses DDR5 SO-DIMM only (laptop-style modules) — standard desktop DIMM and DDR4 modules are NOT compatible. Power input is 19V DC via barrel jack — requires an external 19V DC power brick (sold separately), no standard ATX PSU connection. CPU support capped at 65W TDP max — high-power K-series CPUs are not supported. No PCIe x16 expansion slot — iGPU only (CPU must have integrated graphics; F-series CPUs not supported). Wi-Fi module is sold separately for the M.2 Key E slot. LAN is 1Gb (not 2.5G as some listings show). Please confirm system requirements before purchase.
Best For
✓ All-in-One PC builds with LVDS panels
✓ Digital signage & kiosk systems
✓ Ultra-slim 1U server/client builds
✓ DDR5-based memory-bound embedded PCs
✓ Fanless / passive-cooling builds
✓ Commercial fleets needing CSM lifecycle
Key Features
Thin Mini-ITX with DDR5 SO-DIMM
17 x 17 cm board with ultra-low profile under 25mm and modern DDR5 SO-DIMM memory — fits AIO chassis and slim 1U cases while delivering DDR5 bandwidth for memory-bound workloads.
19V DC Barrel-Jack Input
Powered by an external 19V DC brick (laptop-style PSU) instead of a bulky ATX power supply — ideal for compact, fanless and passive-cooled builds.
LVDS Output for AIO Panels
Internal LVDS connector with backlight control for driving integrated display panels in All-in-One builds — rare on consumer boards, essential for AIO/embedded designs.
CSM + ACCE + Self-Healing BIOS
CSM lifecycle support, free ASUS Control Center Express, TPM, COM debug header, Q-LED diagnostics and self-recovering BIOS — commercial reliability built in.
Technical Specifications
| Part Number |
90MB1G60-M0EAYC |
| EAN |
4711387304020 |
| Form Factor |
Thin Mini-ITX (17 cm x 17 cm, ultra-low profile) |
| Socket |
Intel LGA1700 — 12th / 13th / 14th Gen Core, Pentium Gold, Celeron (max 65W TDP) |
| Chipset |
Intel H610 |
| Memory |
2 x SO-DIMM (laptop-style), max 64GB, DDR5, Dual Channel, XMP, Non-ECC |
| Power Input |
19V DC barrel jack (rear panel) — external power brick required (sold separately) |
| Expansion Slots |
No PCIe x16 slot — integrated graphics only via iGPU |
| Storage |
1 x M.2 Key M (PCIe 4.0) + SATA III 6Gb/s connectors |
| Graphics Output |
1 x DisplayPort + 1 x HDMI + 1 x LVDS connector (internal panel) — up to 3 displays simultaneously, requires CPU with iGPU |
| LAN |
Gigabit Ethernet (1Gb) |
| Wireless |
M.2 Key E slot — Wi-Fi module sold separately |
| Audio |
Realtek 7.1-Channel HD Audio Codec, internal stereo speaker header |
| USB |
USB 3.2 Gen 2 (10Gbps) Type-A rear + USB 3.2 Gen 1 + USB 2.0 ports — no rear Type-C |
| LVDS Controls |
Backlight inverter voltage selection, FPD brightness, panel voltage selection, panel off — for AIO panel integration |
| Security & Diagnostics |
TPM header, Self-recovering BIOS, Q-LED Core diagnostics, COM debug header, chassis intrude header |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| CSM Program |
ASUS Corporate Stable Model — 36-month lifecycle, 6-month EOL notice, ASUS Control Center Express (ACCE) included |
| In the Box |
Motherboard, SATA cables, I/O shields, support DVD, user guide. 19V DC power brick and Wi-Fi module not included. |
Frequently Asked Questions
What is the difference between this and the Pro H610T D4-CSM?
This is the DDR5 SO-DIMM version (Pro H610T-CSM). The D4-CSM is the DDR4 SO-DIMM variant. Both are Thin Mini-ITX with the same socket, chipset, 19V DC input, LVDS output and CSM features — the only practical difference is the memory type. Choose this for new builds with fresh DDR5 SO-DIMM memory; choose the D4-CSM if reusing existing DDR4 SO-DIMM modules.
How is this powered — can I use a normal ATX PSU?
No. The board uses a 19V DC barrel-jack input on the rear panel and requires an external 19V DC power brick (similar to a laptop charger). Standard ATX power supplies cannot be used. The power brick is sold separately.
What memory does it use — can I use desktop DIMMs?
No. This board uses laptop-style DDR5 SO-DIMM modules (the same as in modern laptops and mini PCs), max 64GB across 2 slots. Standard desktop DIMMs are physically incompatible. DDR4 modules are also not supported on this DDR5 variant.
Will any LGA1700 CPU work in this board?
CPU support is capped at 65W TDP max. 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors within that envelope are supported. K-series and high-TDP CPUs (i7-14700K, i9-14900K etc.) are NOT supported. The CPU must also have integrated graphics — F/KF series CPUs without iGPU will not work as there is no PCIe x16 slot for a discrete GPU.
Singular Expert Insight
Choose the Pro H610T-CSM only if you are building a Thin Mini-ITX system — AIO PC with internal LVDS panel, digital signage, kiosk, slim 1U embedded server or industrial PC — want DDR5 memory bandwidth, and can power it from a 19V DC brick. The combination of SO-DIMM DDR5, 19V DC input, LVDS output and no PCIe x16 makes this board unsuitable for normal desktop builds. For DDR4 SO-DIMM in the same form factor choose the Pro H610T D4-CSM. For a standard mini-ITX desktop with DDR5 and PCIe x16 choose the PRIME H610I-PLUS-CSM. For LGA1851 (Core Ultra Series 2) builds, this board does not work.
Buyer's Guide
Buy it if
You are building an AIO PC with internal LVDS display, digital signage, kiosk, ultra-slim embedded system or 1U commercial client and need DDR5 memory bandwidth + 19V DC input + CSM lifecycle support.
Skip it if
You are building a normal desktop PC, need a discrete GPU (no PCIe x16), already own DDR4 memory, plan to use a K-series CPU, or want to power from an ATX PSU.
Also consider
Pro H610T D4-CSM for DDR4 SO-DIMM Thin Mini-ITX, or PRIME H610I-PLUS-CSM for standard mini-ITX desktop with DDR5 and PCIe x16.
