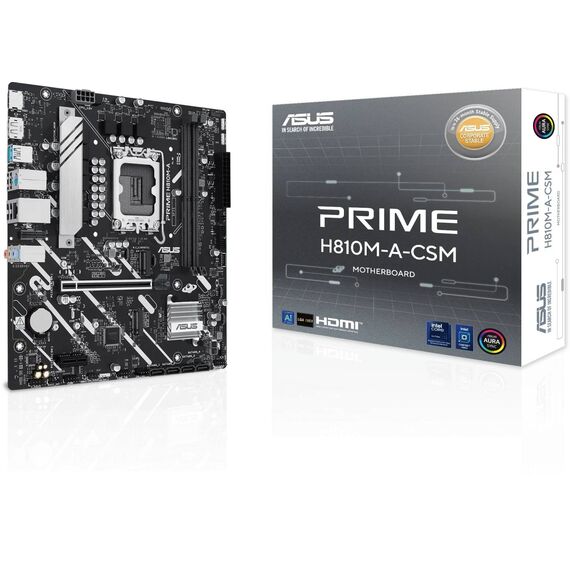

ASUS PRIME H810M-A-CSM Motherboard micro-ATX LGA1851 H810 Core Ultra Series 2 DDR5 PCIe 4.0 Aura Sync ACCE

Brand:
ASUS

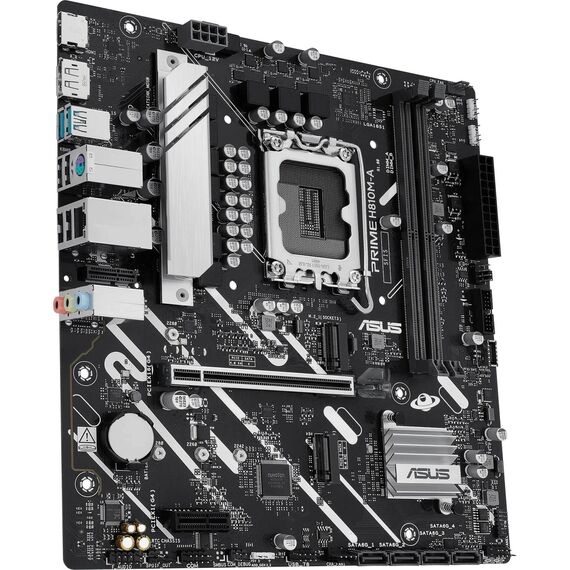

ASUS PRIME H810M-A-CSM H810 LGA1851 DDR5 mATX
ASUS PRIME H810M-A-CSM Motherboard micro-ATX LGA1851 H810 Core Ultra Series 2 DDR5 PCIe 4.0 Aura Sync ACCE
€152.58 inc. VAT
Buy
90MB1KK0-M0EAYC
€128.22 €142.47
€152.58 inc. VAT
Ships from EU stock: 198 item(s)
+ −
Add to wish list Ask a question
Product Code
04:519411
EAN Code
4711387844625
Manufacturer
ASUS

Quick Specs

Socket
Intel LGA1851
Form Factor
micro-ATX
Chipset
Intel H810
CPU Support
Core Ultra Series 2
Memory
2 x DDR5 6400, max 128GB
Storage
2 x M.2 PCIe 4.0 + 4 x SATA
Video Out
HDMI + DisplayPort
CSM
ACC Express included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS PRIME H810M-A-CSM

A Core Ultra Series 2 commercial micro-ATX motherboard with DDR5 6400 CUDIMM, dual M.2 PCIe 4.0, front USB-C and Aura Sync RGB — built for prosumer business workstations and AI PC fleets with ACC Express management bundled in.
LGA1851 · Core Ultra S2DDR5 6400 · 128GBCSM · ACCEAura Sync RGB

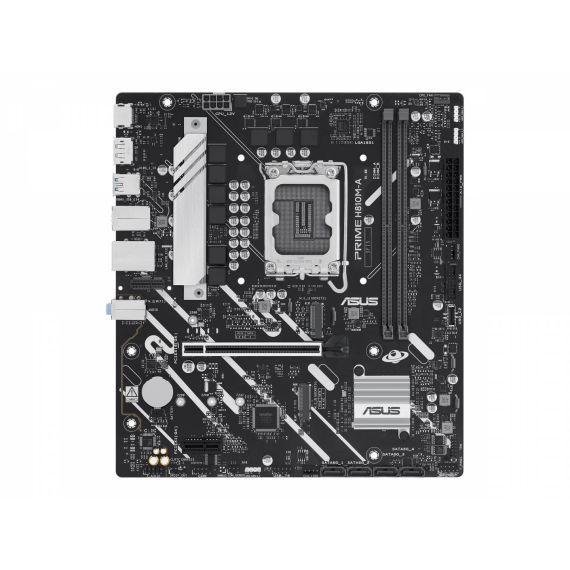

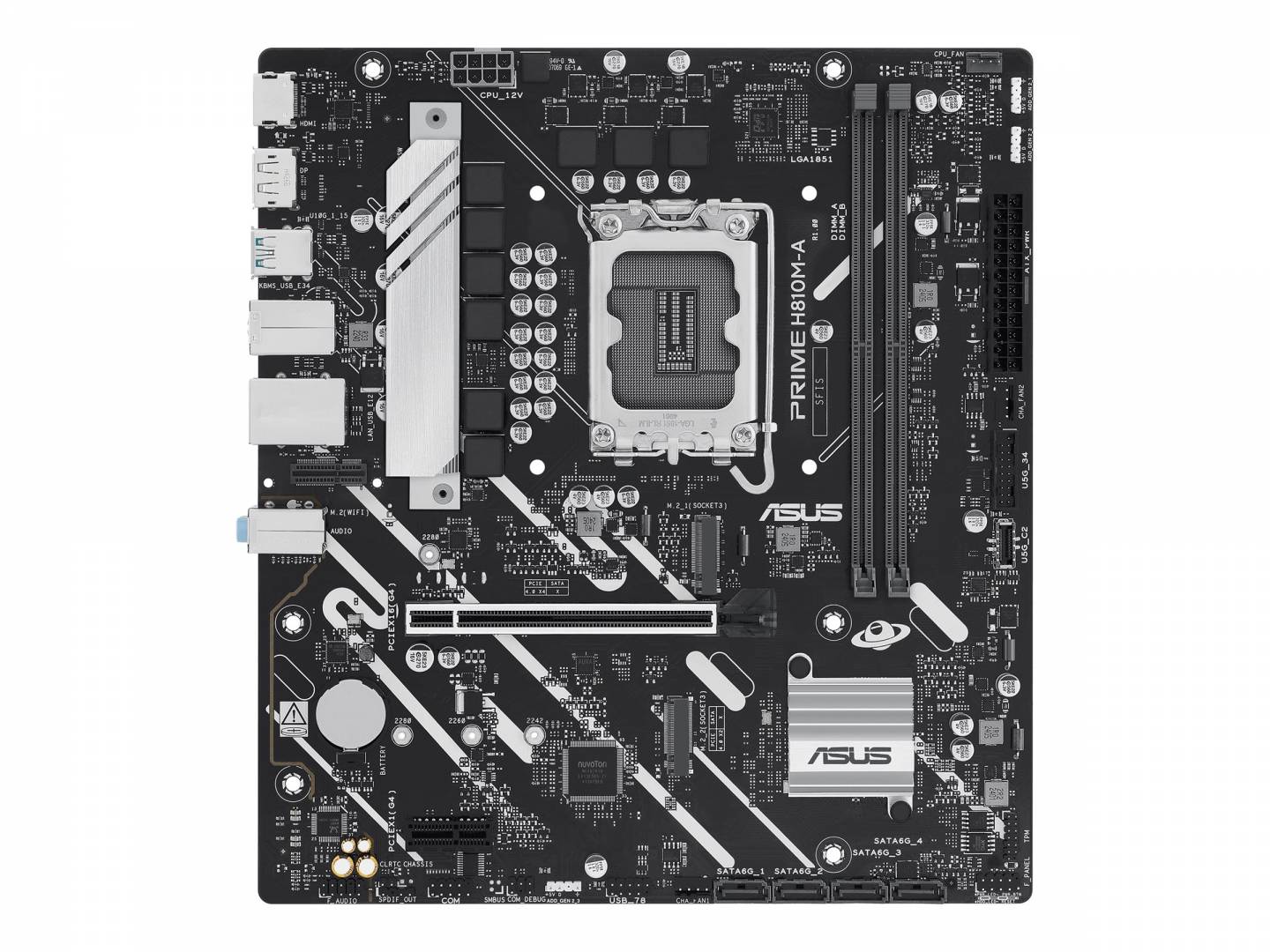

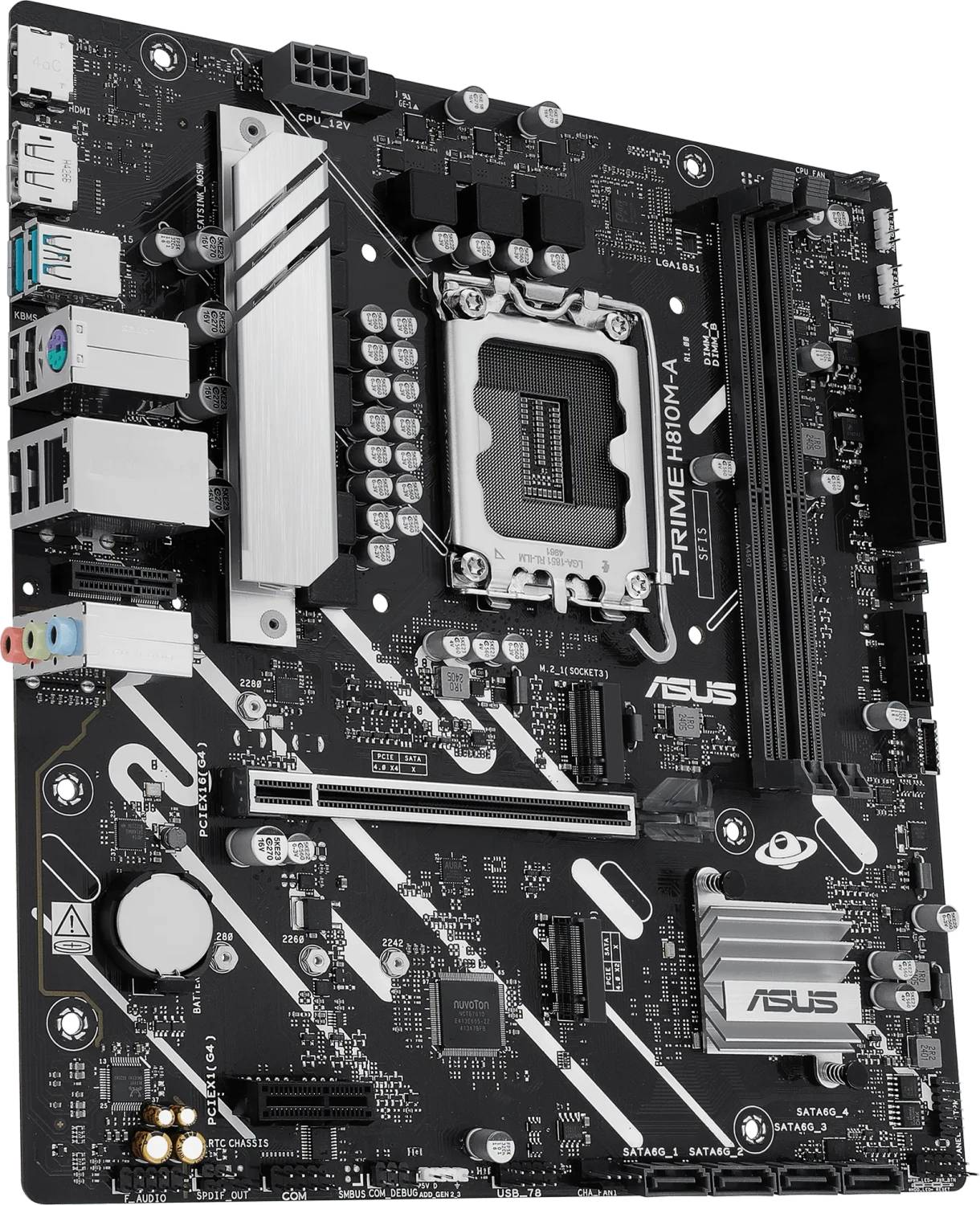

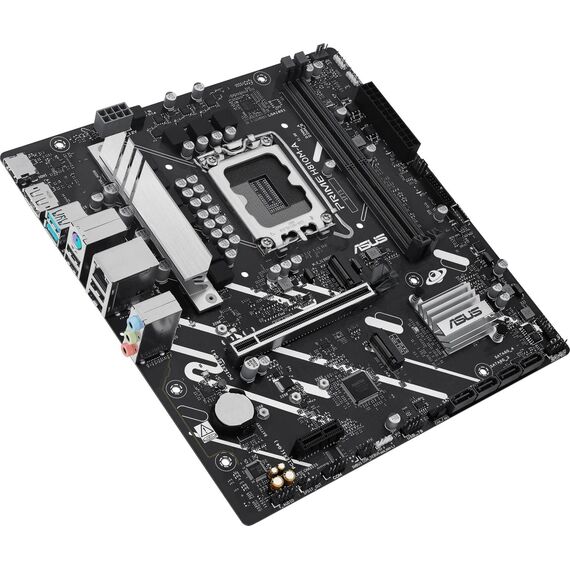

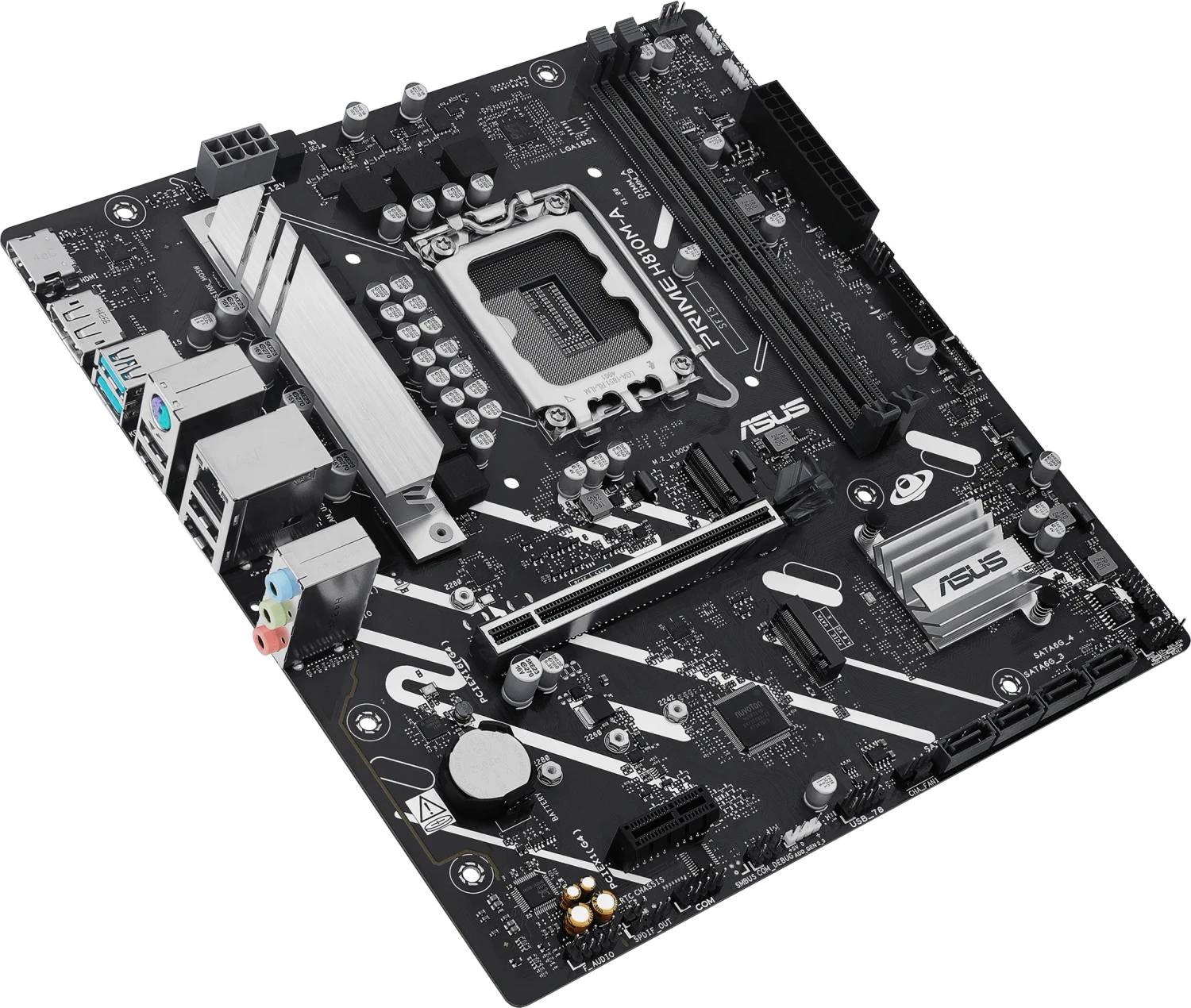

The ASUS PRIME H810M-A-CSM is a commercial-grade micro-ATX motherboard for Intel’s LGA1851 platform, built specifically for the new Intel Core Ultra Series 2 processors (Arrow Lake). It targets prosumer business workstations, AI PC fleets and Aura RGB-friendly office builds, shipping under ASUS’ CSM (Corporate Stable Model) program with extended product lifecycle support and a bundled ASUS Control Center Express (ACCE) activation key for centralised IT management. The board provides two DDR5 DIMM slots up to 128GB at 6400MT/s with CUDIMM, XMP and ASUS Enhanced Memory Profile II (AEMP II) support, two M.2 PCIe 4.0 slots, four SATA III ports, and dual display outputs (HDMI 2.1, DisplayPort 1.4). Three Addressable Gen 2 RGB headers with Aura Sync, a front USB-C 5Gbps connector, rear USB 10Gbps Type-A and Intel 1Gb LAN with LANGuard surge protection round out the I/O. A vertical M.2 Key E slot is included for adding a Wi-Fi/Bluetooth module — the Wi-Fi module itself is sold separately.

Compatibility Note: LGA1851 socket only — supports Intel Core Ultra Series 2 processors only. NOT compatible with 12th/13th/14th Gen LGA1700 CPUs. DDR5 memory only — DDR4 modules are not compatible. Wi-Fi module is NOT included (V-M.2 Key E slot is empty). Dual display only (HDMI + DP) — no VGA. The H810 chipset does not support CPU overclocking. Note: with Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3. Please confirm CPU and case (micro-ATX) compatibility before purchase.
Best For
✓ Prosumer Core Ultra Series 2 builds
✓ AI PC ready commercial systems
✓ Business workstation fleets
✓ Aura Sync RGB office builds
✓ Compact micro-ATX cases
✓ Dual NVMe Gen4 setups

Key Features


Core Ultra Series 2 Ready
Native LGA1851 support for Intel’s newest Core Ultra Series 2 processors with on-chip NPU for AI PC workloads — future-proof platform for the next several CPU generations.

DDR5 128GB CUDIMM 6400
Two DIMM slots up to 128GB DDR5 at 6400MT/s with CUDIMM, XMP and AEMP II profiles — fast and high-capacity memory for memory-bound business workloads.

Dual M.2 PCIe 4.0 + Front USB-C
Two M.2 slots for fast NVMe storage (PCIe 4.0 x4 + PCIe 4.0 x2) plus a front-panel USB 5Gbps Type-C connector — modern essentials usually missing from H810 boards.

CSM + ACCE + Aura RGB
CSM lifecycle support, free ACC Express IT management software bundled, plus 3 Addressable Gen 2 RGB headers with Aura Sync — commercial reliability with personalisation options.

Technical Specifications

Part Number 90MB1KK0-M0EAYC
EAN 4711387844625
Form Factor micro-ATX (24.4 cm x 22.2 cm)
Socket Intel LGA1851 — Core Ultra Series 2 only (NOT LGA1700)
Chipset Intel H810
Memory 2 x DIMM, max 128GB, DDR5 up to 6400MT/s, CUDIMM, Dual Channel, XMP, AEMP II, Non-ECC
Expansion Slots 1 x PCIe 4.0 x16 (CPU) + 1 x PCIe 4.0 x1 (chipset)
Storage M.2_1 type 2280 (PCIe 4.0 x4) + M.2_2 type 2242/2260/2280 (PCIe 4.0 x2) + 4 x SATA III 6Gb/s

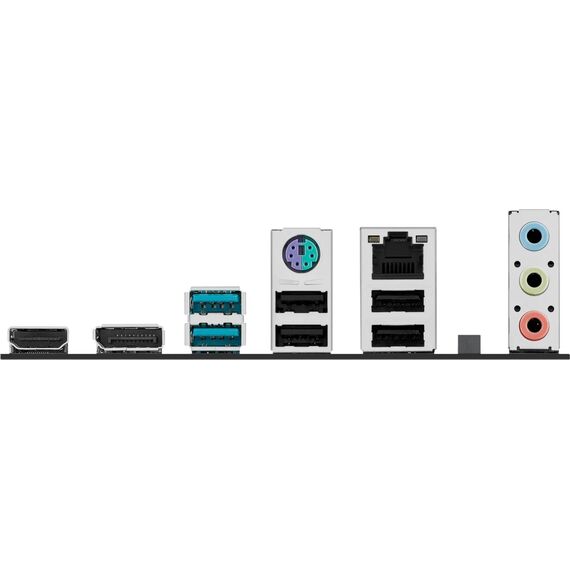

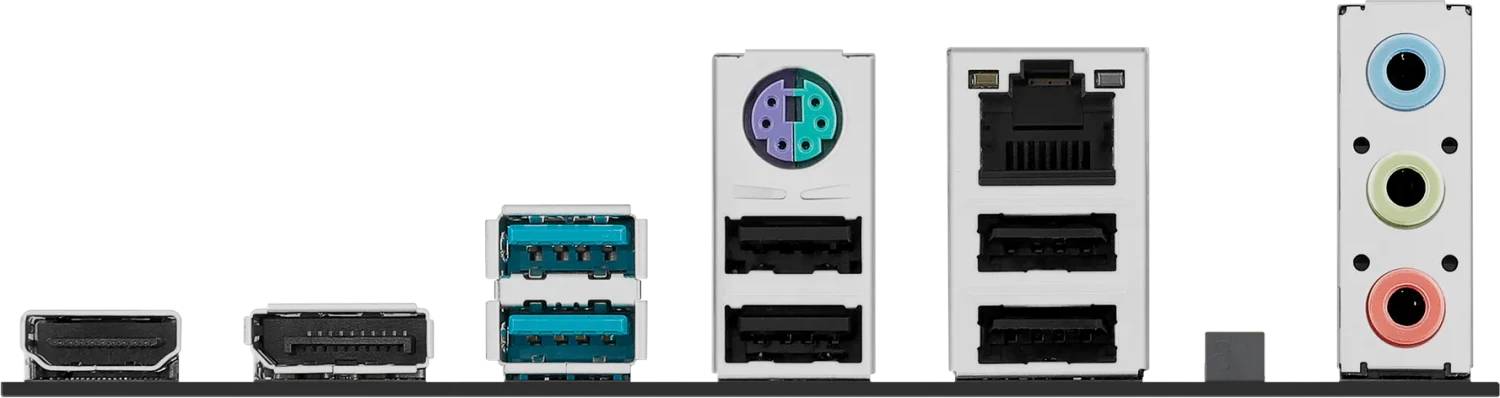

Graphics Output 1 x DisplayPort 1.4 (4K@60Hz) + 1 x HDMI 2.1 (4K@60Hz) — dual display, no VGA
LAN Intel I219V 1Gb Ethernet with ASUS LANGuard (Wake-on-LAN limitation in S5 from G3)
Wireless V-M.2 Key E (CNVi & PCIe) slot only — Wi-Fi module sold separately
Audio Realtek 7.1 Surround HD Audio Codec, 24-bit/192 kHz, audio shielding, premium capacitors
Rear USB 2 x USB 10Gbps Type-A + 4 x USB 2.0 Type-A — no rear Type-C
Front USB Headers 1 x USB 5Gbps Type-C connector + 1 x USB 5Gbps header (2 ports) + 1 x USB 2.0 header (2 ports)
RGB Headers 3 x Addressable Gen 2 — Aura Sync compatible
Fan Headers 1 x 4-pin CPU + 2 x 4-pin Chassis
Protection Features ASUS 5X Protection III — DIGI+ VRM, LANGuard, OVP, SafeSlot Core+, stainless-steel back I/O
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY, CrashFree BIOS 3, MyHotkey, Q-Dashboard, Q-LED Core
CSM Program ASUS Corporate Stable Model — extended lifecycle support, ACC Express activation key card included

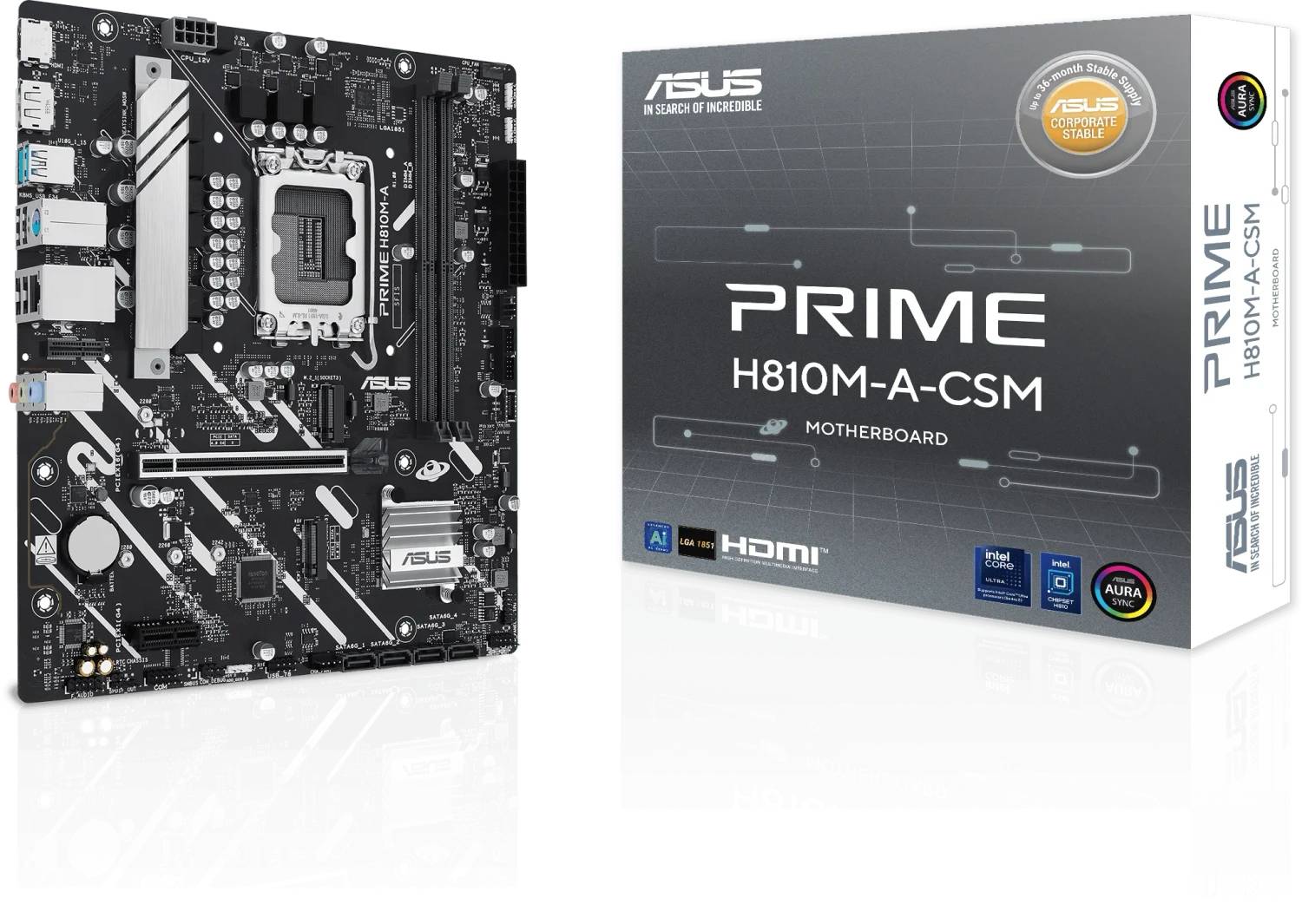

In the Box Motherboard, 2 x SATA cables, I/O shield, M.2 SSD screw package, ACC Express activation key card, quick start guide. Wi-Fi module not included.

Frequently Asked Questions

Will it work with a 14th Gen Intel Core CPU like the i7-14700?
No. This board uses the LGA1851 socket and supports Intel Core Ultra Series 2 (Arrow Lake) processors only. 12th, 13th and 14th Gen Core processors use the older LGA1700 socket and are NOT compatible. For LGA1700 builds choose an H610, H810M-K, B760 or Z790 board.
Is the Wi-Fi included with this motherboard?
No. The board has a vertical M.2 Key E slot designed for a Wi-Fi/Bluetooth module, but the module itself is sold separately. Choose an Intel CNVi-compatible Wi-Fi card or a PCIe-based one to populate the slot.
What is ASUS Control Center Express (ACCE) included with the CSM activation key?
ACCE is server-grade IT management software bundled free with this CSM motherboard. It enables remote BIOS updates, real-time monitoring, asset tracking and centralised endpoint management for IT fleets — the activation key card comes in the box.
How is this different from the H810M-E-CSM?
Both are CSM micro-ATX H810 LGA1851 boards. The H810M-A-CSM is the more feature-rich variant: it adds 3 Addressable Gen 2 RGB headers with Aura Sync, a front USB-C connector, additional internal headers, more rear USB 10Gbps ports and SafeSlot Core+. The H810M-E-CSM is a more stripped-down office board without RGB headers or front USB-C.
Singular Expert Insight
Choose the H810M-A-CSM if you are building Core Ultra Series 2 prosumer business workstations or AI PC fleets and want CSM lifecycle support, ACCE management, plus extras like Aura Sync RGB and front USB-C that pure office boards leave out. If you do not need RGB or USB-C and want a cheaper stripped-down office variant, choose the H810M-E-CSM. For a B860 chipset with stronger VRM and more I/O on the same LGA1851 platform step up to the B860M-X WiFi or similar B860 board. For LGA1700 (12/13/14th Gen) builds this board does NOT work — pick an H610, H810M-K or B760 board instead.

Buyer's Guide

Buy it if
You are building Core Ultra Series 2 prosumer business workstations or AI PC fleets and need CSM commercial reliability, ACCE management, Aura Sync RGB and front USB-C in micro-ATX.
Skip it if
You own a 12/13/14th Gen Intel CPU (LGA1700 incompatible), need Wi-Fi 6 included, CPU overclocking, 2.5G LAN, dual HDMI, VGA legacy support, or rear USB-C.
Also consider
PRIME H810M-E-CSM for a cheaper stripped office variant without RGB/USB-C, or B860M-X WiFi for stronger VRM, PCIe Gen5 M.2 and onboard Wi-Fi 6E on the same LGA1851 platform.
