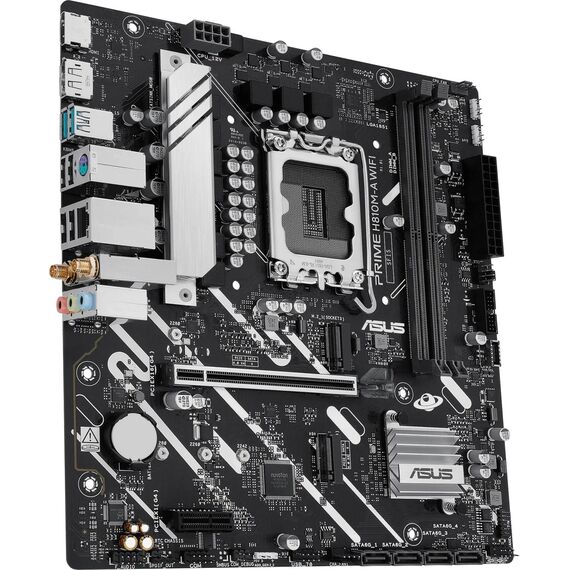

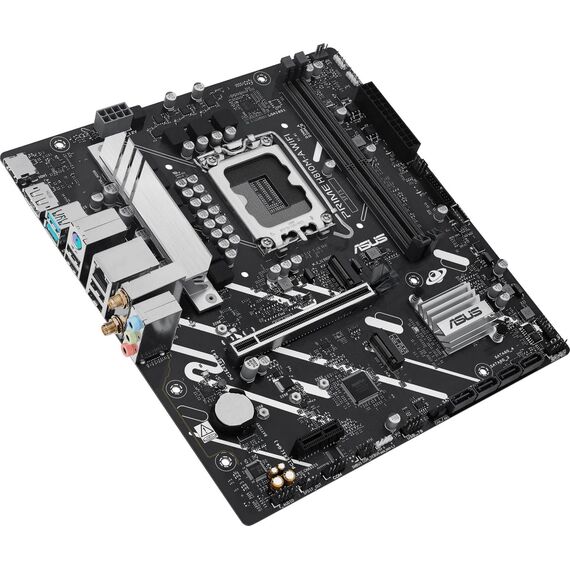

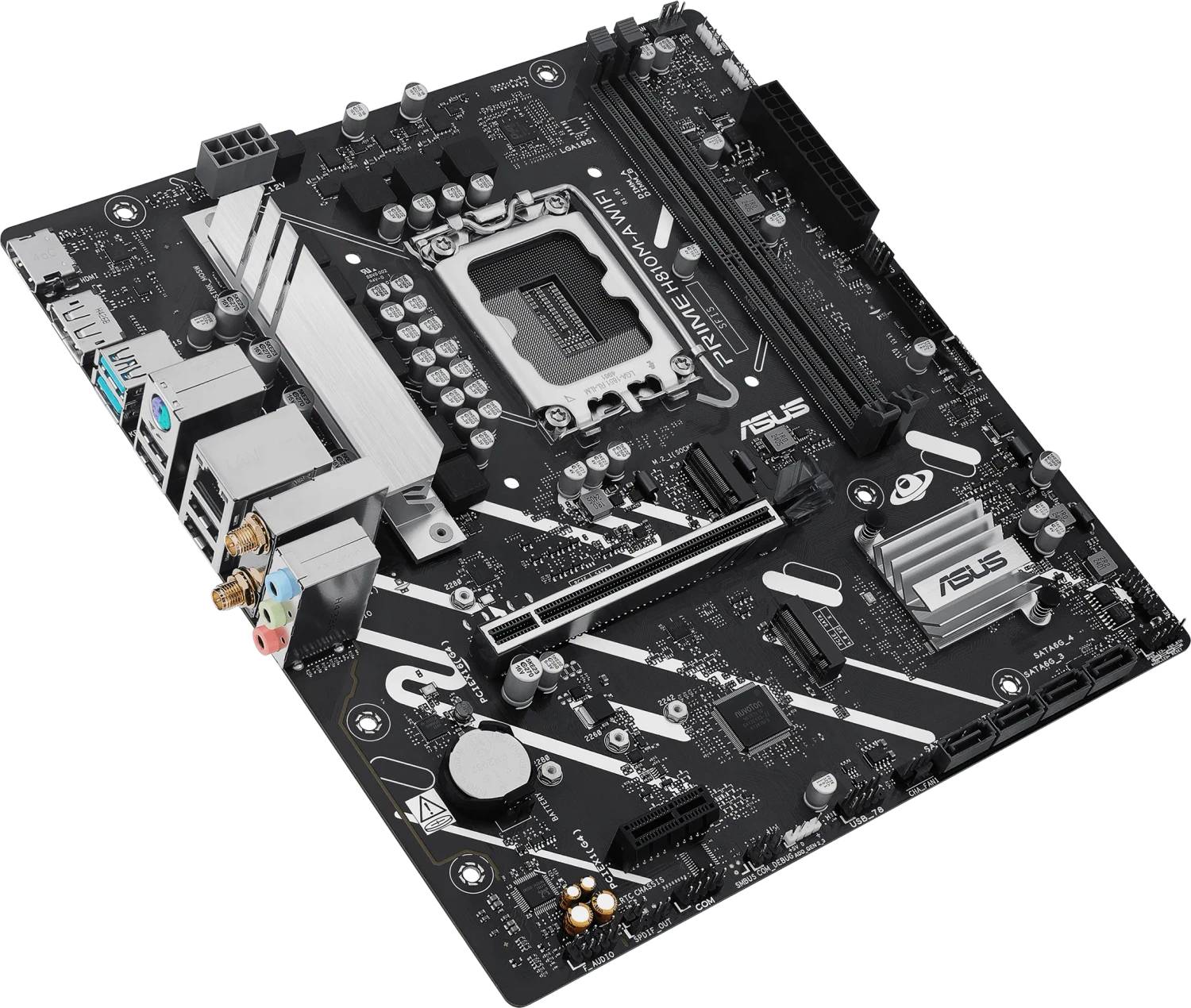

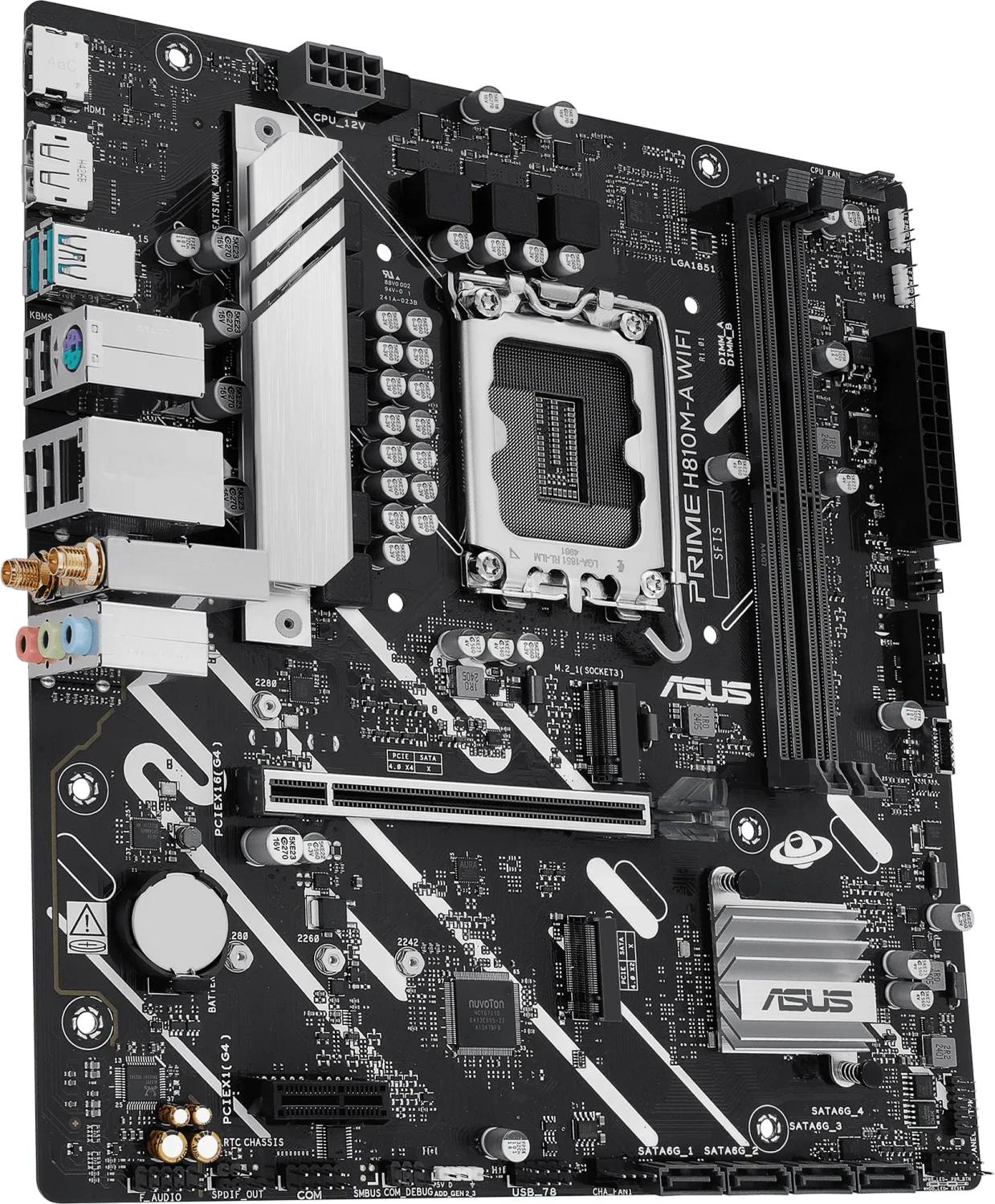

ASUS PRIME H810M-A WiFi Motherboard micro-ATX LGA1851 H810 Core Ultra Series 2 DDR5 PCIe 4.0 Wi-Fi 6 Aura Sync

Brand: ASUS
ASUS PRIME H810M-A WiFi H810 LGA1851 DDR5 mATX
ASUS PRIME H810M-A WiFi Motherboard micro-ATX LGA1851 H810 Core Ultra Series 2 DDR5 PCIe 4.0 Wi-Fi 6 Aura Sync
€164.85 inc. VAT
Buy
90MB1KJ0-M0EAY0
€138.53 €153.92
€164.85 inc. VAT
Ships from EU stock: 78 item(s)

Wi-Fi 6 included onboard, DDR5 128GB CUDIMM, dual M.2 PCIe 4.0 and Aura Sync RGB — the H810M-A WiFi is the consumer-friendly Core Ultra Series 2 micro-ATX pick for AI PC and modern home builds without paying B860 prices.

+ −
Add to wish list Ask a question
Product Code04:519408 EAN Code4711387842522 ManufacturerASUS

Quick Specs

Socket
Intel LGA1851
Form Factor
micro-ATX
Chipset
Intel H810
CPU Support
Core Ultra Series 2
Memory
2 x DDR5 6400, max 128GB
Storage
2 x M.2 PCIe 4.0 + 4 x SATA
Wireless
Wi-Fi 6 + Bluetooth
Video Out
HDMI + DisplayPort
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS PRIME H810M-A WiFi

A consumer-friendly Core Ultra Series 2 micro-ATX motherboard with onboard Wi-Fi 6, DDR5 6400 CUDIMM, dual M.2 PCIe 4.0 and Aura Sync RGB — everything modern home builds need without stepping up to a B860 board.
LGA1851 · Core Ultra S2DDR5 6400 · 128GBWi-Fi 6 OnboardAura Sync RGB

The ASUS PRIME H810M-A WiFi is a micro-ATX motherboard for Intel’s LGA1851 platform, built specifically for the new Intel Core Ultra Series 2 processors (Arrow Lake) with on-chip NPU for AI PC workloads. Compared with the H810M-A-CSM (commercial variant), this consumer model adds an onboard Wi-Fi 6 + Bluetooth module while keeping the same robust micro-ATX layout: two DDR5 DIMM slots up to 128GB at 6400MT/s with CUDIMM, XMP and ASUS Enhanced Memory Profile II (AEMP II) support, two M.2 PCIe 4.0 slots, four SATA III ports, and dual display outputs (HDMI 2.1, DisplayPort 1.4). Three Addressable Gen 2 RGB headers with Aura Sync, a front USB-C 5Gbps connector, rear USB 10Gbps Type-A and Intel 1Gb LAN with LANGuard surge protection round out the I/O. A modern, well-equipped LGA1851 board for everyday home builds and AI PC use cases.

Compatibility Note: LGA1851 socket only — supports Intel Core Ultra Series 2 processors only. NOT compatible with 12th/13th/14th Gen LGA1700 CPUs. DDR5 memory only — DDR4 modules are not compatible. Dual display only (HDMI + DP) — no VGA. Wi-Fi is the older Wi-Fi 6 standard (not Wi-Fi 6E or 7). The H810 chipset does not support CPU overclocking. Please confirm CPU and case (micro-ATX) compatibility before purchase.
Best For
✓ Home Core Ultra Series 2 builds
✓ AI PC ready desktops with NPU
✓ Wi-Fi 6 home networks
✓ Aura Sync RGB builds
✓ Compact micro-ATX cases
✓ Dual NVMe Gen4 setups

Key Features


Core Ultra Series 2 + Onboard Wi-Fi 6
Native LGA1851 support for Intel’s newest Core Ultra Series 2 processors with NPU plus an integrated Wi-Fi 6 + Bluetooth module — antennas in the box, no extra purchase needed.

DDR5 128GB CUDIMM 6400
Two DIMM slots up to 128GB DDR5 at 6400MT/s with CUDIMM, XMP and AEMP II profiles — fast and high-capacity memory for memory-bound workloads.

Dual M.2 PCIe 4.0 + Front USB-C
Two M.2 slots for fast NVMe storage (PCIe 4.0 x4 + PCIe 4.0 x2) plus a front-panel USB 5Gbps Type-C connector — modern essentials at a sensible H810 price.

Aura Sync RGB + 5X Protection III
3 Addressable Gen 2 RGB headers with Aura Sync compatibility plus DIGI+ VRM, LANGuard, OVP, SafeSlot Core+ and stainless-steel back I/O for everyday reliability.

Technical Specifications

Part Number 90MB1KJ0-M0EAY0
EAN 4711387842522
Form Factor micro-ATX (24.4 cm x 22.2 cm)
Socket Intel LGA1851 — Core Ultra Series 2 only (NOT LGA1700)
Chipset Intel H810
Memory 2 x DIMM, max 128GB, DDR5 up to 6400MT/s, CUDIMM, Dual Channel, XMP, AEMP II, Non-ECC
Expansion Slots 1 x PCIe 4.0 x16 (CPU) + 1 x PCIe 4.0 x1 (chipset)
Storage M.2_1 type 2280 (PCIe 4.0 x4) + M.2_2 type 2242/2260/2280 (PCIe 4.0 x2) + 4 x SATA III 6Gb/s
Graphics Output 1 x DisplayPort 1.4 (4K@60Hz) + 1 x HDMI 2.1 (4K@60Hz) — dual display, no VGA
LAN Intel 1Gb Ethernet with ASUS LANGuard
Wireless Wi-Fi 6 (802.11ax) + Bluetooth — module included onboard, antennas in the box
Audio Realtek 7.1 Surround HD Audio Codec, 24-bit/192 kHz, audio shielding, premium capacitors

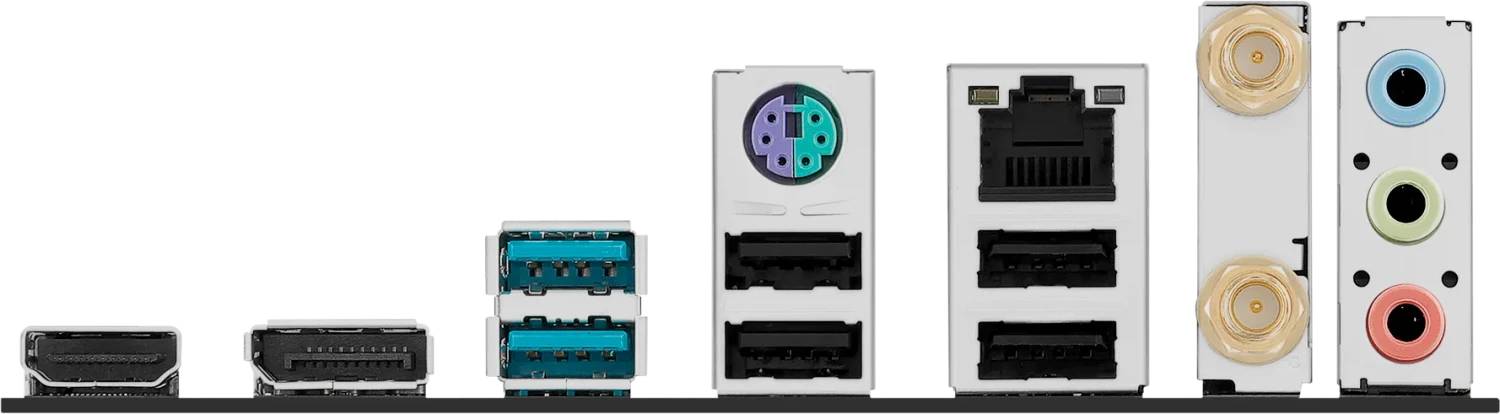

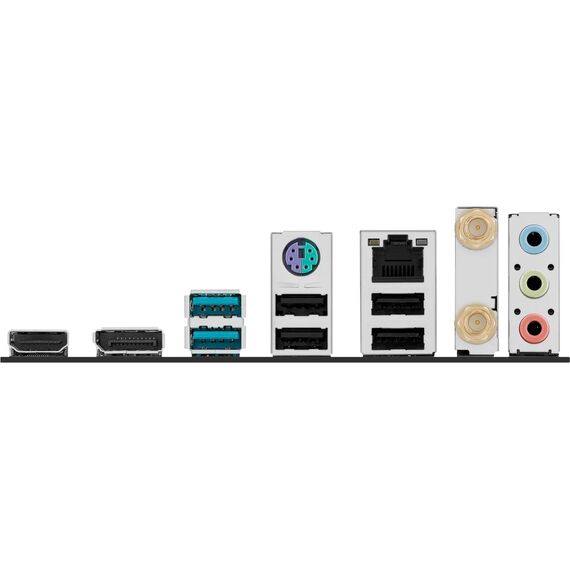

Rear USB 2 x USB 10Gbps Type-A + 4 x USB 2.0 Type-A — no rear Type-C
Front USB Headers 1 x USB 5Gbps Type-C connector + 1 x USB 5Gbps header (2 ports) + 1 x USB 2.0 header (2 ports)
RGB Headers 3 x Addressable Gen 2 — Aura Sync compatible
Fan Headers 1 x 4-pin CPU + 2 x 4-pin Chassis
Protection Features ASUS 5X Protection III — DIGI+ VRM, LANGuard, OVP, SafeSlot Core+, stainless-steel back I/O
BIOS 256 (128+128) Mb Flash ROM, UEFI AMI BIOS, ASUS EZ DIY, CrashFree BIOS 3, Q-Dashboard, Q-LED Core

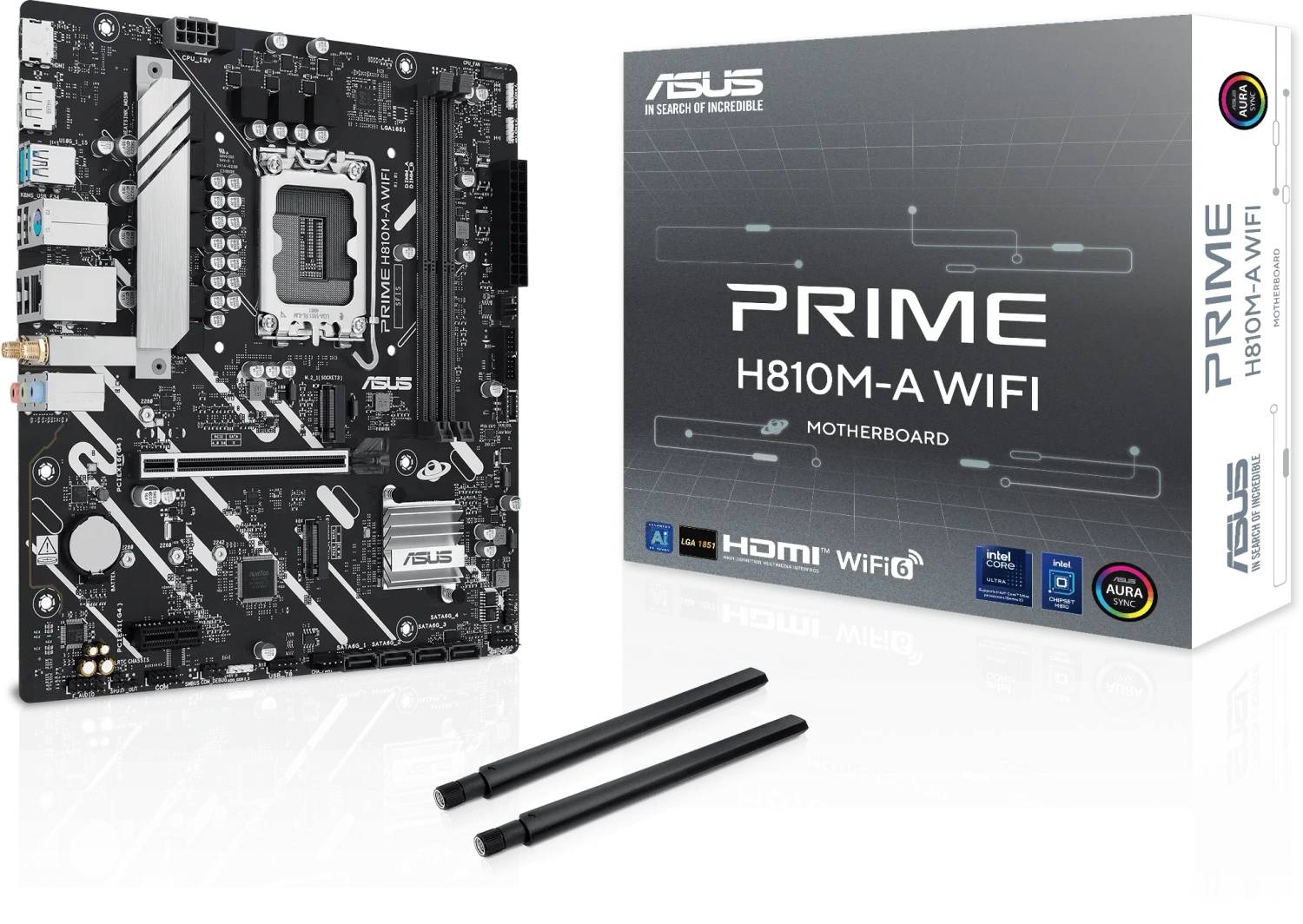

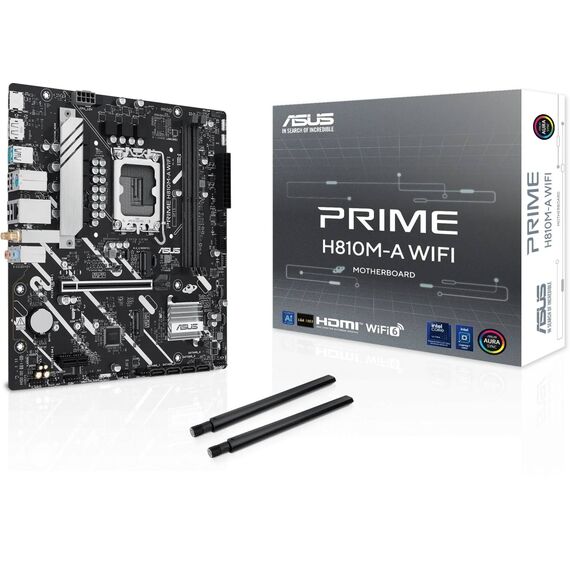

In the Box Motherboard, Wi-Fi antennas, 2 x SATA cables, I/O shield, M.2 SSD screw package, quick start guide

Frequently Asked Questions

Will it work with a 14th Gen Intel Core CPU like the i7-14700?
No. This board uses the LGA1851 socket and supports Intel Core Ultra Series 2 (Arrow Lake) processors only. 12th, 13th and 14th Gen Core processors use the older LGA1700 socket and are NOT compatible. For LGA1700 builds choose an H610, H810M-K, B760 or Z790 board.
Is Wi-Fi included or sold separately?
Included. This is the “WiFi” SKU and ships with an onboard Wi-Fi 6 + Bluetooth module pre-installed. Antennas are included in the box. Note this is Wi-Fi 6 (not Wi-Fi 6E or 7).
How is this different from the H810M-A-CSM?
Both are PRIME H810M-A micro-ATX boards for LGA1851. The CSM variant is for commercial deployments — it ships with ACC Express IT management software and 36-month lifecycle support, but the V-M.2 Key E slot is empty (Wi-Fi sold separately). This consumer WiFi variant has Wi-Fi 6 + Bluetooth pre-installed but no ACCE bundle. Pick the CSM for IT fleets, this one for home/personal builds.
Can I overclock the CPU on this board?
No CPU overclocking — the H810 chipset does not support it (you need a Z890 board for that). Memory XMP overclocking up to 6400MT/s is supported.
Singular Expert Insight
Choose the H810M-A WiFi if you are building a Core Ultra Series 2 home or modest workstation system in micro-ATX, want Wi-Fi included, and do not need commercial CSM lifecycle support or ACCE management. If you are building business fleets, choose the H810M-A-CSM (separate Wi-Fi module + ACCE bundled). For a B860 chipset with stronger VRM, PCIe Gen5 GPU + Gen5 M.2 step up to the B860M Pro-A WiFi or B860M-X WiFi. For LGA1700 (12/13/14th Gen) builds this board does NOT work — pick an H610, H810M-K or B760 board instead.

Buyer's Guide

Buy it if
You are building a Core Ultra Series 2 home or AI PC system in micro-ATX and want Wi-Fi 6 included, DDR5 128GB CUDIMM, dual M.2 PCIe 4.0 and Aura Sync RGB at H810 prices.
Skip it if
You own a 12/13/14th Gen Intel CPU (LGA1700 incompatible), need Wi-Fi 6E or 7, CPU overclocking, 2.5G LAN, PCIe 5.0 GPU, or VGA legacy support.
Also consider
PRIME H810M-A-CSM if building commercial fleets needing ACC Express, or B860M Pro-A WiFi for PCIe 5.0 GPU + Gen5 M.2 + 2.5G LAN + Wi-Fi 6E.
