ASUS Pro WS W680M-ACE SE LGA1700 Intel W680 Micro-ATX Workstation Motherboard DDR5 ECC PCIe 5.0 Dual 2.5GbE BMC
Brand:
ASUS
ASUS Pro WS W680M-ACE SE LGA1700 Intel W680 Micro-ATX Workstation Motherboard DDR5 ECC PCIe 5.0 Dual 2.5GbE BMC
€670.58 inc. VAT
90MB1FA0-M0EAY0
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Singular Selected

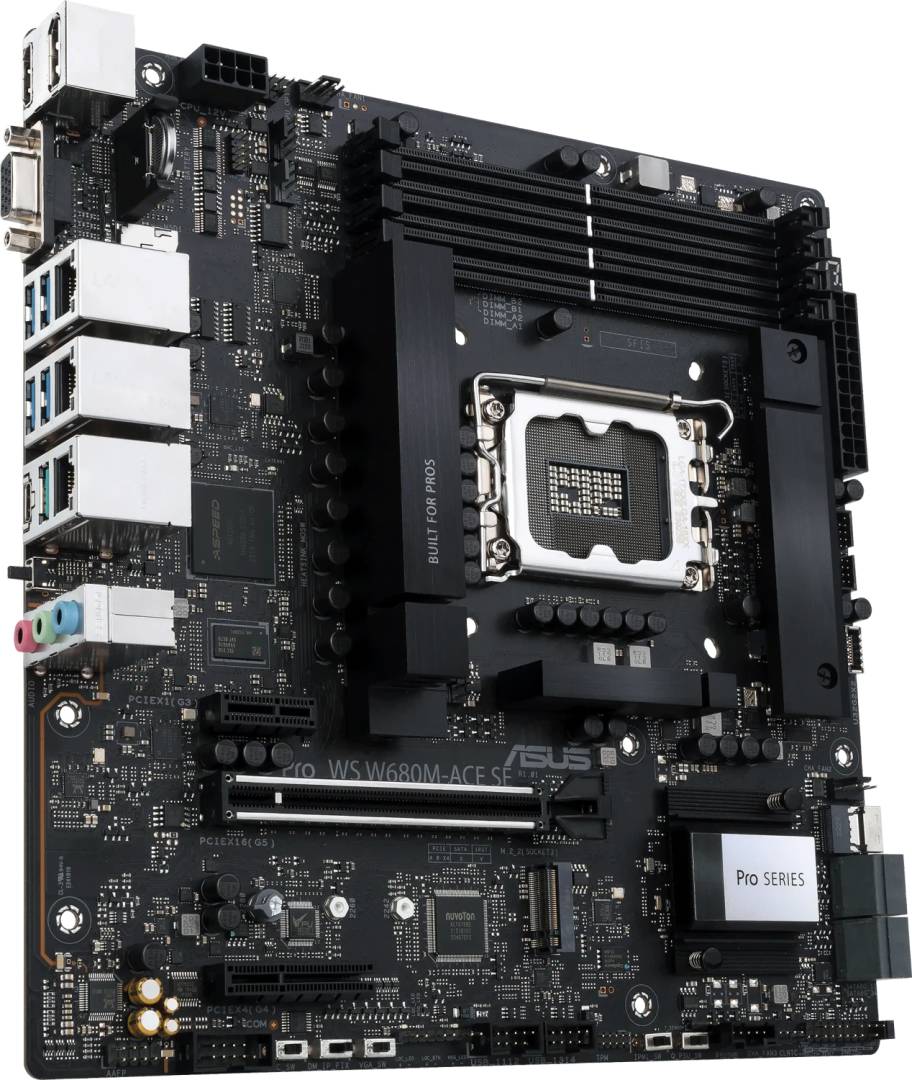

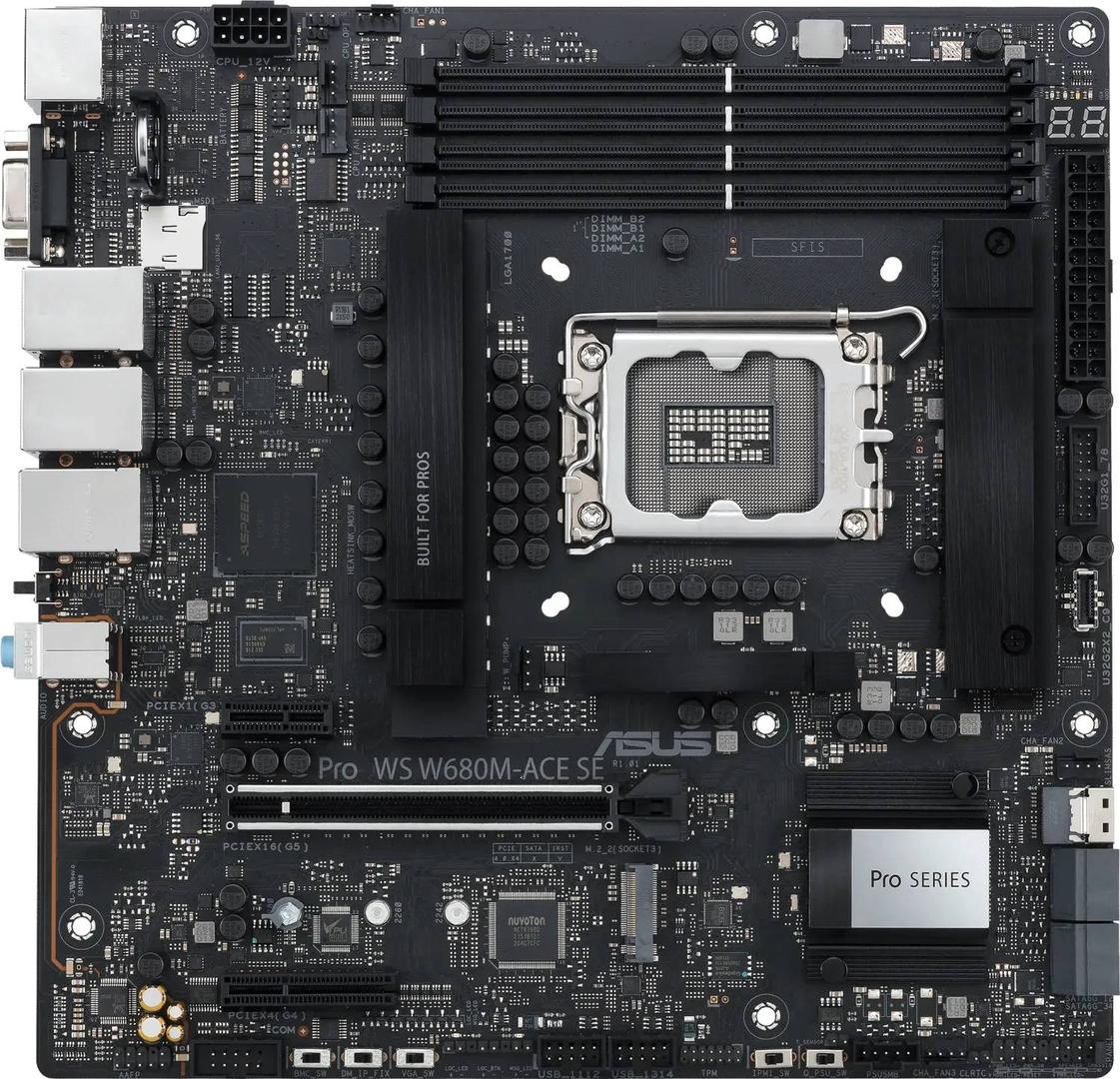

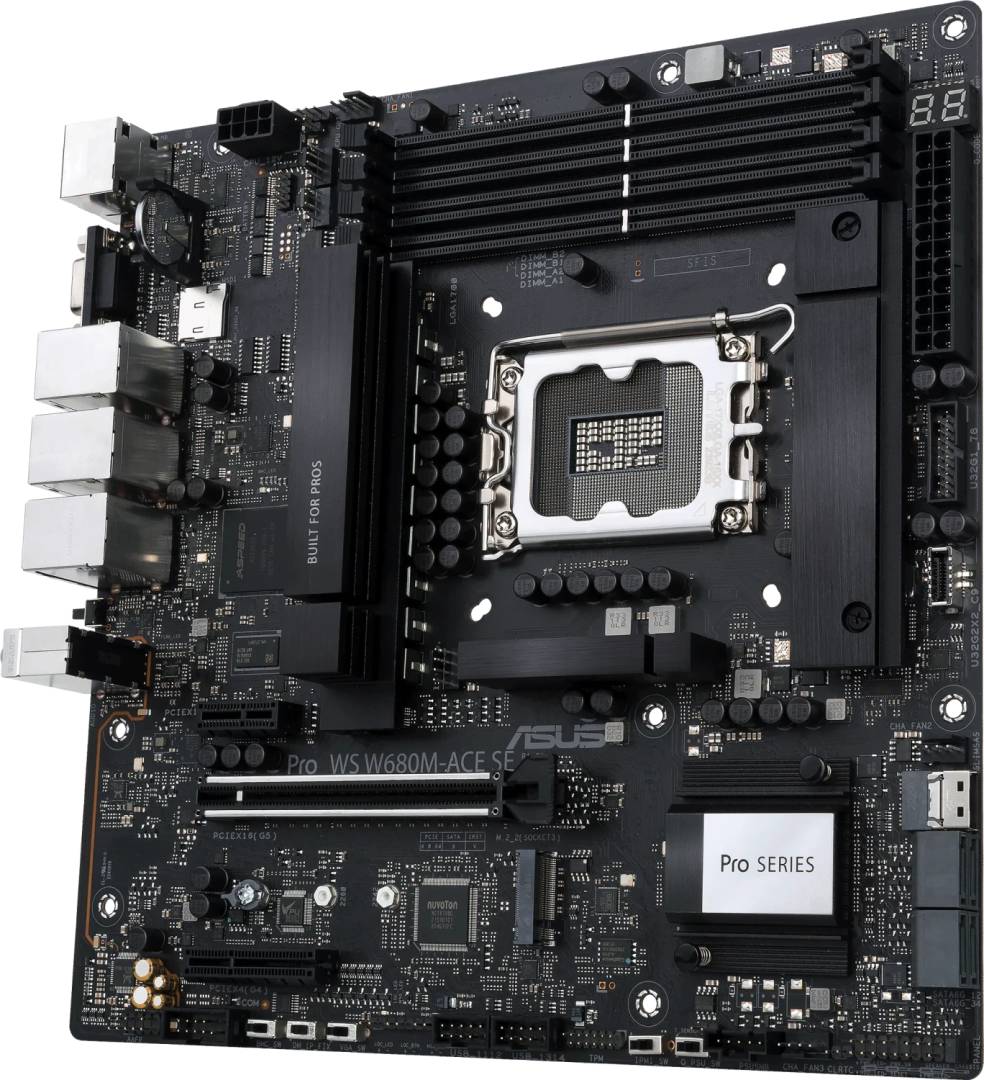

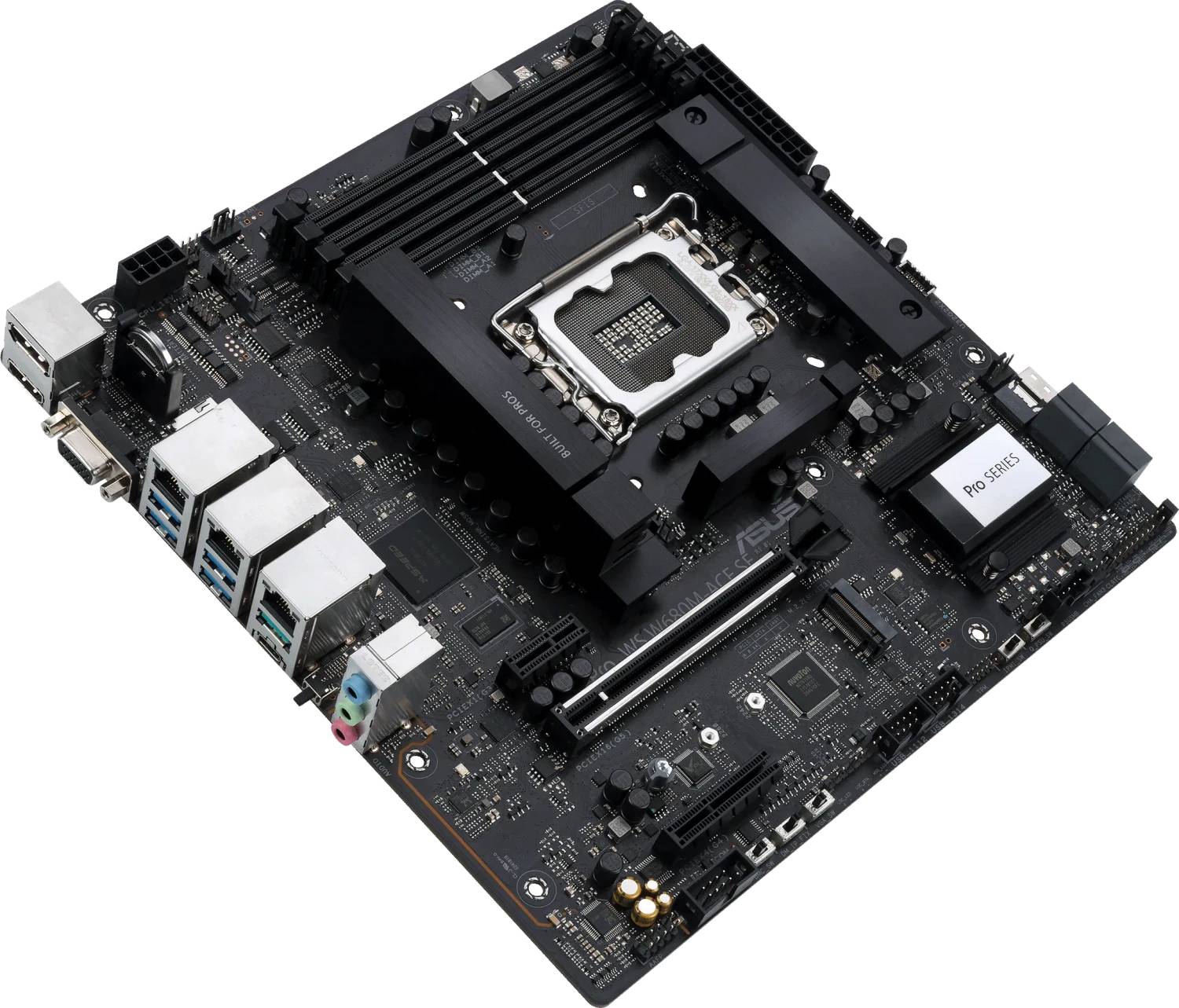

ASUS Pro WS W680M-ACE SE Micro-ATX Workstation Motherboard
A compact Intel W680 workstation motherboard with LGA1700 support, DDR5 ECC capability, PCIe 5.0, dual Intel 2.5GbE LAN and onboard AST2600 BMC remote management.
Intel W680LGA1700DDR5 ECC supportBMC AST2600
The ASUS Pro WS W680M-ACE SE is a micro-ATX workstation motherboard for Intel LGA1700 workstation and professional PC builds. It combines the Intel W680 chipset, support for 14th, 13th and 12th Gen Intel Core processors, DDR5 ECC and non-ECC unbuffered memory, PCIe 5.0 expansion, dual Intel 2.5Gb Ethernet and a dedicated AST2600 BMC for IPMI-style remote management.
Compatibility Note: Please confirm CPU support, BIOS version, DDR5 ECC or non-ECC memory compatibility, micro-ATX case fit, PSU connectors, storage cabling and expansion card clearance before purchase. ECC functionality depends on the installed processor and memory configuration.
Best For
✓ Compact workstation builds
✓ ECC-capable professional PCs
✓ Remote-managed systems
✓ Storage and creator workstations
Key Features
Compact Intel W680 Workstation Platform
The Intel W680 chipset and LGA1700 socket make this board suitable for professional Intel Core workstation builds that need stability, manageability and compact micro-ATX integration.
DDR5 ECC Memory Support
Four DDR5 DIMM slots support up to 192GB of ECC or non-ECC unbuffered memory, giving professional users more reliability-focused options than standard consumer platforms.
PCIe 5.0 and Flexible Storage
A PCIe 5.0 x16 SafeSlot, PCIe 4.0 expansion, two PCIe 4.0 M.2 slots, four SATA ports and SlimSAS support make it practical for GPU, SSD and storage-heavy workstation builds.
Built-In Remote Management
The onboard AST2600 BMC with dedicated management LAN helps IT administrators monitor, reset and manage systems remotely, supported by ASUS Control Center Express.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the ASUS Pro WS W680M-ACE SE if you need a compact Intel workstation board with ECC-capable DDR5, PCIe 5.0, dual 2.5GbE and built-in BMC management. If you do not need remote management or ECC-focused workstation features, a mainstream ASUS business or creator motherboard may be simpler and more cost-effective.
Buyer’s Guide
Buy it if
You need a micro-ATX Intel W680 workstation motherboard with LGA1700 support, DDR5 ECC capability, PCIe 5.0, dual 2.5GbE and onboard remote management.
Skip it if
You need built-in Wi-Fi, a gaming-focused motherboard, RGB styling, a larger ATX board with more expansion slots, or a basic low-cost desktop platform.
Also consider
Consider the non-SE Pro WS W680 variant if you do not need onboard BMC management, or an ATX ProArt/Pro WS board if expansion space is more important than compact size.
Features - ASUS - 90MB1FA0-M0EAY0
CPU Socket
- Socket 1700
More Details
Product Code
04:442415
EAN Code
4711387298190
