ASUS ExpertCenter PN54-BBR321MNS1 Barebone Mini PC AMD Ryzen 3 210 4-Core Radeon 740M Wi-Fi 7 Bluetooth 5.4 Dual 2.5GbE USB4 HDMI DisplayPort No RAM No SSD No OS

Brand:
ASUS
ASUS ExpertCenter PN54 Ryzen 3 210 Barebone Mini PC Wi-Fi 7
ASUS ExpertCenter PN54-BBR321MNS1 Barebone Mini PC AMD Ryzen 3 210 4-Core Radeon 740M Wi-Fi 7 Bluetooth 5.4 Dual 2.5GbE USB4 HDMI DisplayPort No RAM No SSD No OS
€537.02 inc. VAT
Buy
90MR01D2-M000C0
€451.28
€537.02 inc. VAT
Ships from EU stock: 40 item(s)

Compact 0.6L barebone mini PC with AMD Ryzen 3 210 4-core, Wi-Fi 7, dual 2.5GbE and four 4K display support — bring your own RAM, SSD and OS for a fully tailored deployment.

+ −
Add to wish list Ask a question
CPU Type
AMD Ryzen
Product Code
04:581509
EAN Code
4711636281119
Manufacturer
ASUS

Quick Specs

Form Factor
0.6L Barebone Mini PC
CPU
AMD Ryzen 3 210 (4C/8T, 28W)
GPU
AMD Radeon 740M
Memory + Storage
No RAM + No SSD (DIY)
OS
No preinstalled OS
Wireless
Wi-Fi 7 + BT 5.4
LAN + Displays
2x 2.5GbE + 4x 4K
I/O Highlights
USB4 + HDMI 2.1 + DP 1.4
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS ExpertCenter PN54-BBR321MNS1 Barebone Mini PC

A 0.6-litre commercial mini PC powered by AMD Ryzen 3 210, ready for your own RAM, SSD and operating system — an entry-level platform for digital signage, POS, kiosks and 24/7 light workloads.
AMD Ryzen 3 210 (4C/8T, 28W)Wi-Fi 7 + BT 5.4Dual 2.5GbE LAN4x 4K Display Support

The ASUS ExpertCenter PN54-BBR321MNS1 is an entry-level barebone mini PC built on the AMD Ryzen 200 Series (Zen 4) platform. It ships as a chassis + motherboard + Ryzen 3 210 4-core / 8-thread 28W processor with AMD Radeon 740M graphics, ready for you to install DDR5-5600 SO-DIMM memory, an M.2 NVMe SSD and the operating system of your choice. Its 0.6L aluminium body, military-grade MIL-STD-810H durability rating and VESA mount compatibility make it ideal for digital signage, retail POS, kiosks, thin clients and silent home/office deployments where low power draw matters.

Barebone — Important: This is a barebone kit. It does not include RAM, storage (SSD/HDD) or an operating system. You will need to add 1–2 x DDR5-5600 SO-DIMM modules (up to 64GB), an M.2 2280 NVMe PCIe 4.0 SSD, and a licensed Windows 11 or compatible Linux OS to make it operational.
Best For
✓ Digital signage & menu boards
✓ Retail POS & self-service kiosks
✓ Thin clients & remote desktops
✓ Low-power office workstations
✓ Receptionist & front-desk PCs
✓ Custom Linux / Windows builds

Key Features


AMD Ryzen 3 210 4-core CPU
Zen 4 architecture with 4 cores / 8 threads at 28W TDP and integrated AMD Radeon 740M graphics — ideal for signage, web-based POS, office productivity and remote-desktop workloads with low power draw.

Four 4K Displays Simultaneously
1x HDMI 2.1, 1x DisplayPort 1.4, plus USB4 and USB-C with DP-Alt — drive up to four independent 4K screens for digital signage walls or multi-monitor productivity setups.

Wi-Fi 7 + Dual 2.5GbE LAN
Latest MediaTek Wi-Fi 7 (up to 5.7 Gbps) and Bluetooth 5.4 wireless, plus two 2.5 Gigabit Ethernet ports for redundancy, link aggregation or network segmentation.

0.6L Aluminium MIL-STD-810H Chassis
Premium 34mm-thin aluminium body tested to military-grade durability — shock, extreme temperature, dust and humidity — for 24/7 reliability in retail, industrial or signage environments.

Technical Specifications

Part Number 90MR01D2-M000C0
EAN 4711636281119
Model ExpertCenter PN54-BBR321MNS1 (Barebone)
Form Factor Mini PC, 0.6L, ~130 x 130 x 34 mm
CPU AMD Ryzen 3 210 processor (4 cores / 8 threads, 28W, Zen 4, 200 Series)
Graphics AMD Radeon 740M integrated graphics
Memory Not included — Max 64GB DDR5-5600 SO-DIMM x 2 (dual-channel)
Storage Not included — 1x M.2 2280 NVMe PCIe 4.0 SSD slot
Operating System No preinstalled OS — Windows 11 Pro / Home supported
Wireless Wi-Fi 7 (up to 5.7 Gbps) + Bluetooth 5.4
LAN 2x 2.5 Gigabit Ethernet (RJ45)

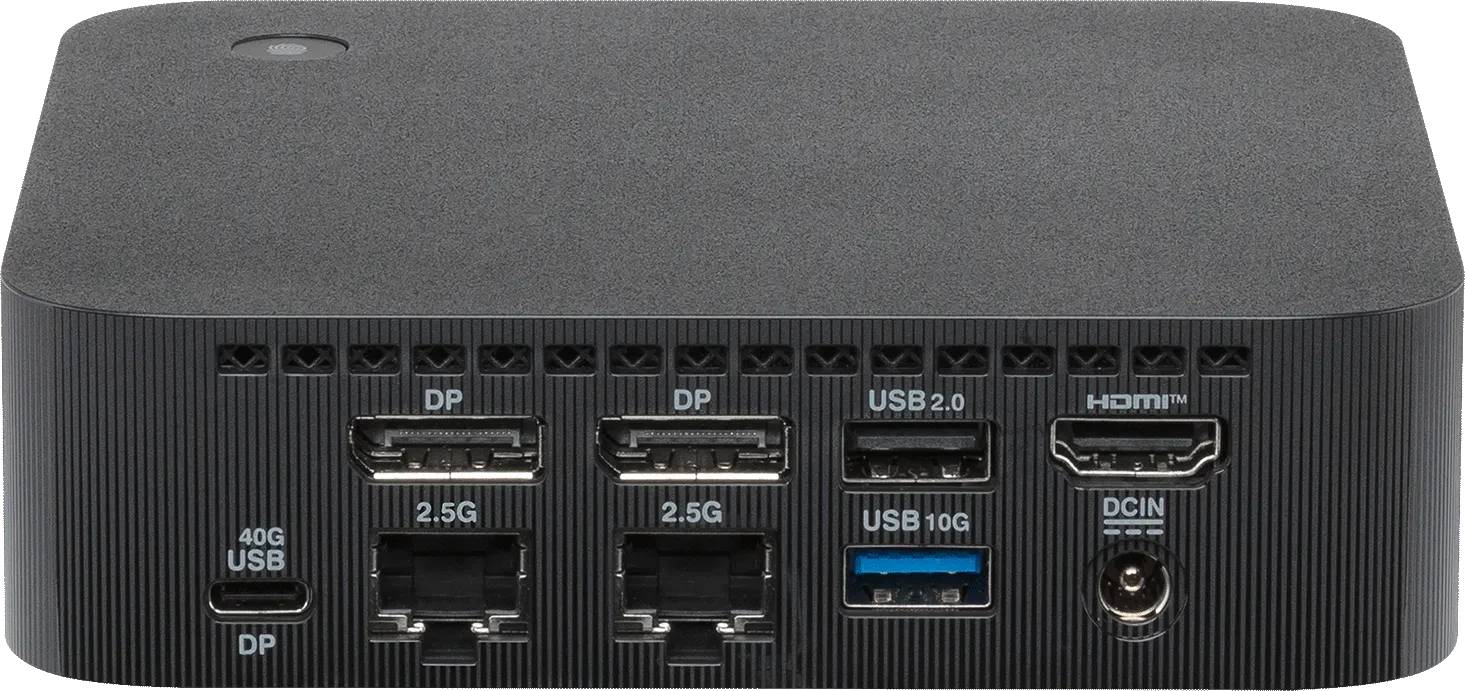

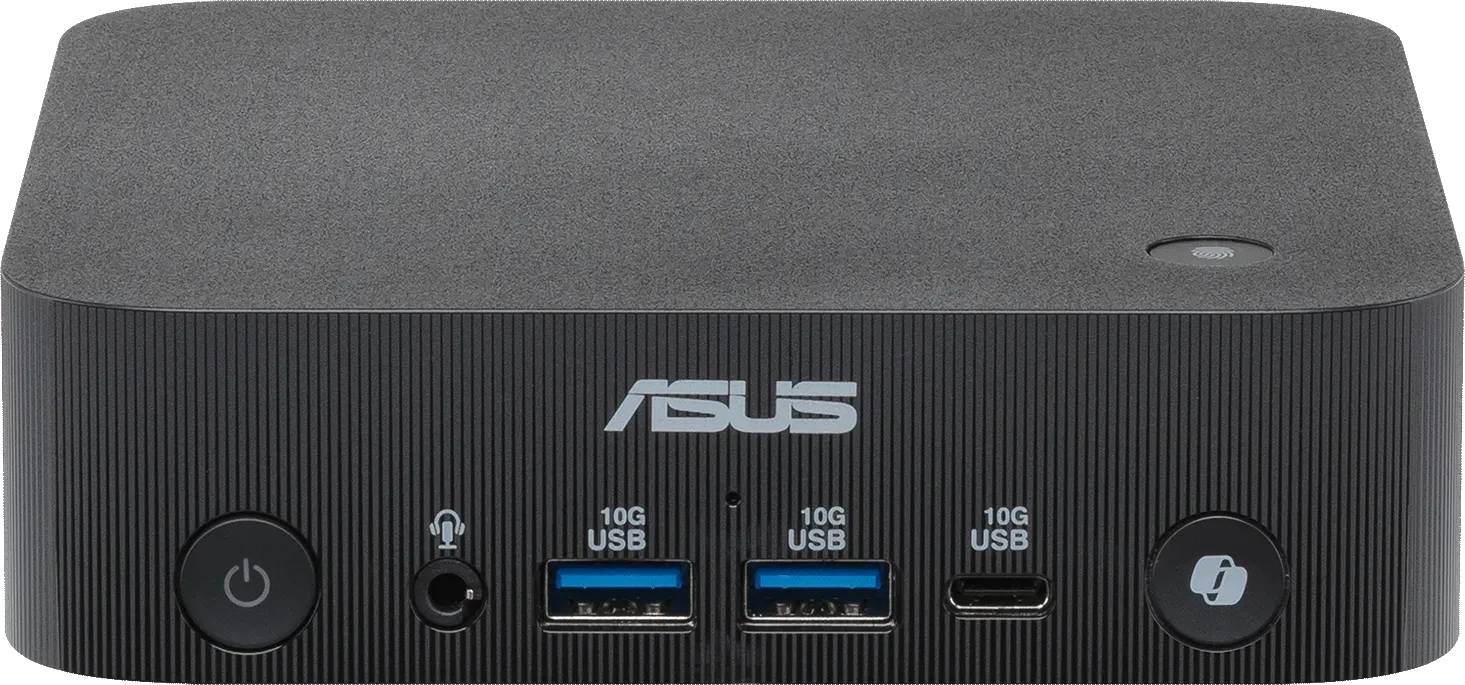

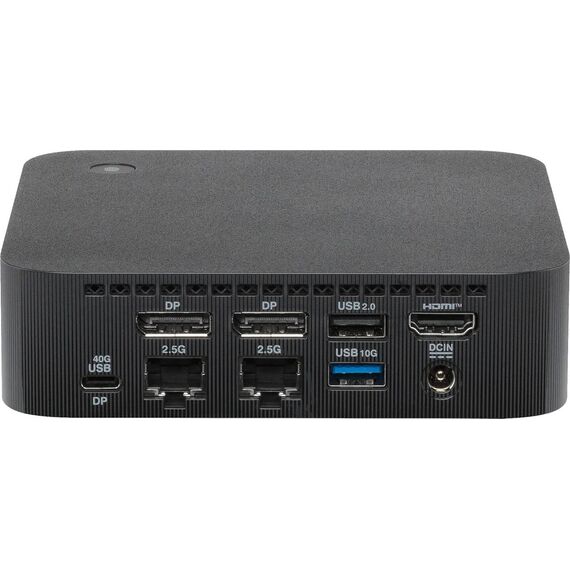

USB Ports 1x USB4 Type-C, 1x USB 3.2 Gen2 Type-C, 3x USB 3.2 Gen2 Type-A, 1x USB 2.0 Type-A
Video Outputs 1x HDMI 2.1, 1x DisplayPort 1.4 (4x 4K total via combined outputs)
Audio 1x 3.5mm headset jack, internal speaker + digital microphone
Security fTPM 2.0 / optional dTPM, Kensington lock slot, fingerprint reader
Durability MIL-STD-810H (shock / temperature / humidity / vibration)
Box Contents Mini PC + power adapter + documentation (no RAM, SSD or OS)

Frequently Asked Questions

Does this mini PC come with RAM, SSD or Windows?
No — this is a barebone kit. You must supply your own DDR5-5600 SO-DIMM memory (up to 64GB), an M.2 2280 NVMe SSD and an operating system. Windows 11 Pro and Home are officially supported.
What memory and storage can I install?

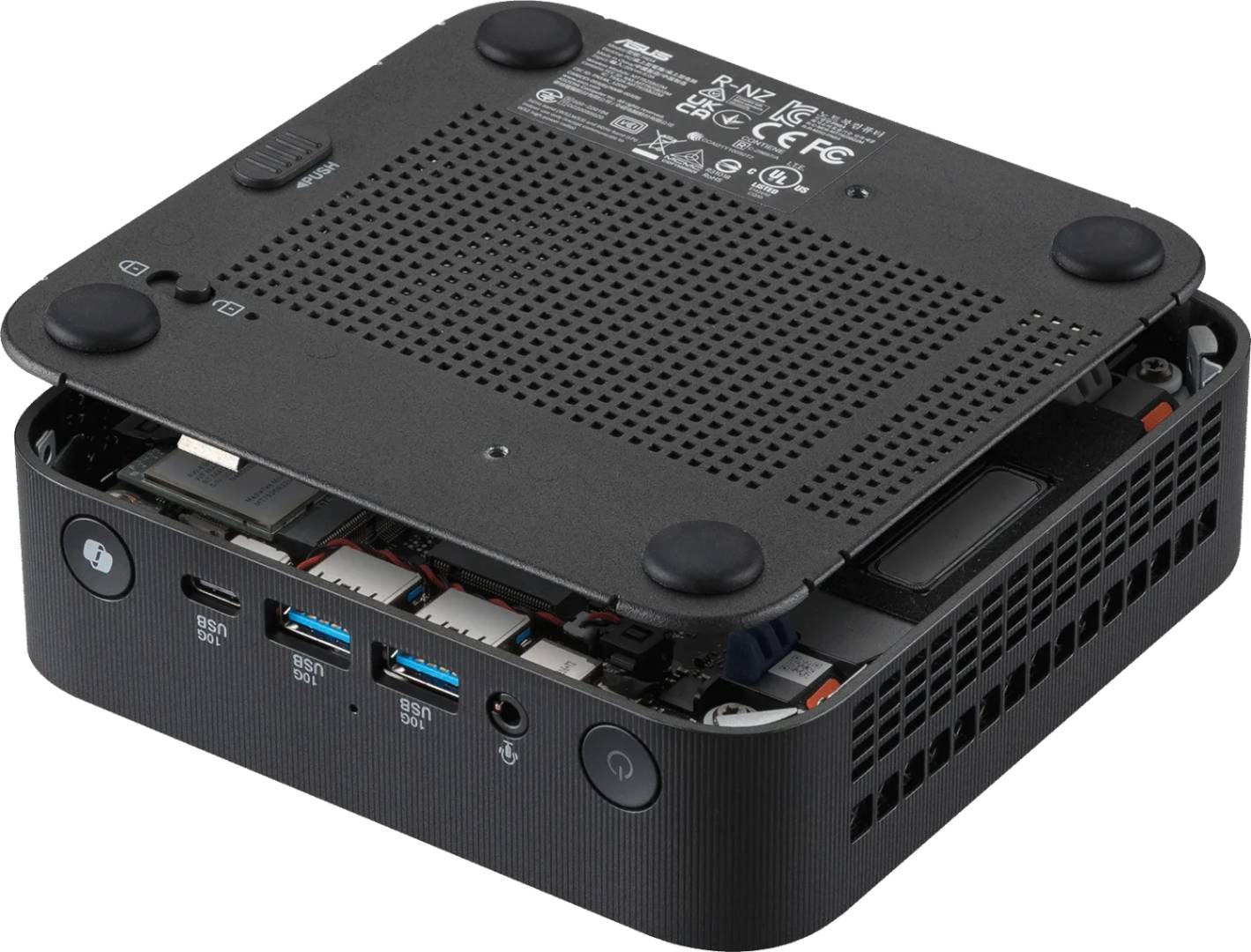

Up to 2x DDR5-5600 SO-DIMM modules (64GB max in dual-channel) and 1x M.2 2280 NVMe PCIe 4.0 SSD. Tool-less access makes upgrades and maintenance fast.
Is the Ryzen 3 210 enough for office work and signage?
Yes — the 4-core / 8-thread Zen 4 CPU handles web browsing, Microsoft 365, video conferencing, retail POS software and 4K digital signage smoothly. It is not aimed at heavy gaming, 3D rendering or large-scale AI workloads.
Can it really drive four 4K displays at once?
Yes — using the HDMI 2.1, DisplayPort 1.4 and the USB4 / USB-C outputs (with DisplayPort Alternate Mode), the system supports up to four independent 4K displays for signage or multi-monitor work.
Singular Expert Insight
Choose this PN54-BBR321MNS1 if you want the most affordable current-gen ASUS barebone with Wi-Fi 7, dual 2.5GbE and quad-4K output for signage, kiosks, thin clients or basic office PCs. If you need more multi-threaded headroom for heavier productivity or virtualisation workloads, step up to the PN54-BBR522MNS1 (Ryzen 5 220, 6 cores) instead.

Buyer's Guide

Buy it if
You need an entry-level 0.6L mini PC for signage, POS, thin-client or front-desk roles, and you want a low-power 28W AMD Zen 4 platform with Wi-Fi 7 and quad-4K output that you can spec yourself with your preferred RAM, SSD and OS.
Skip it if
You need heavy multi-threaded performance for development, virtualisation, 3D rendering or AI workloads, or you want a plug-and-play PC out of the box with Windows pre-installed.
Also consider
PN54-BBR522MNS1 with Ryzen 5 220 (6 cores) for stronger multitasking, or a pre-configured ASUS ExpertCenter PN54-S1 with RAM, SSD and Windows 11 Pro included.
