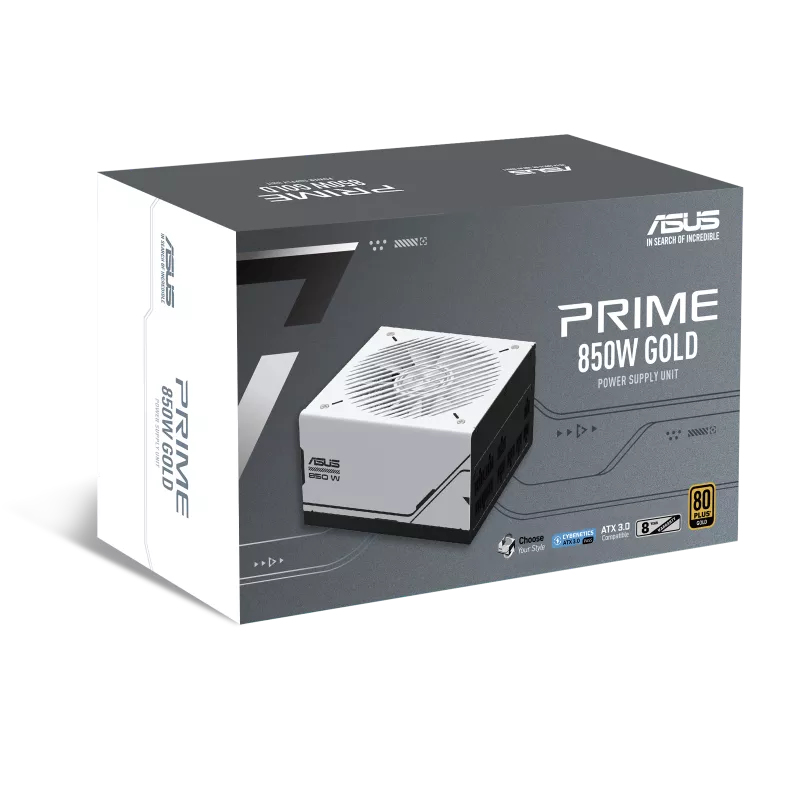

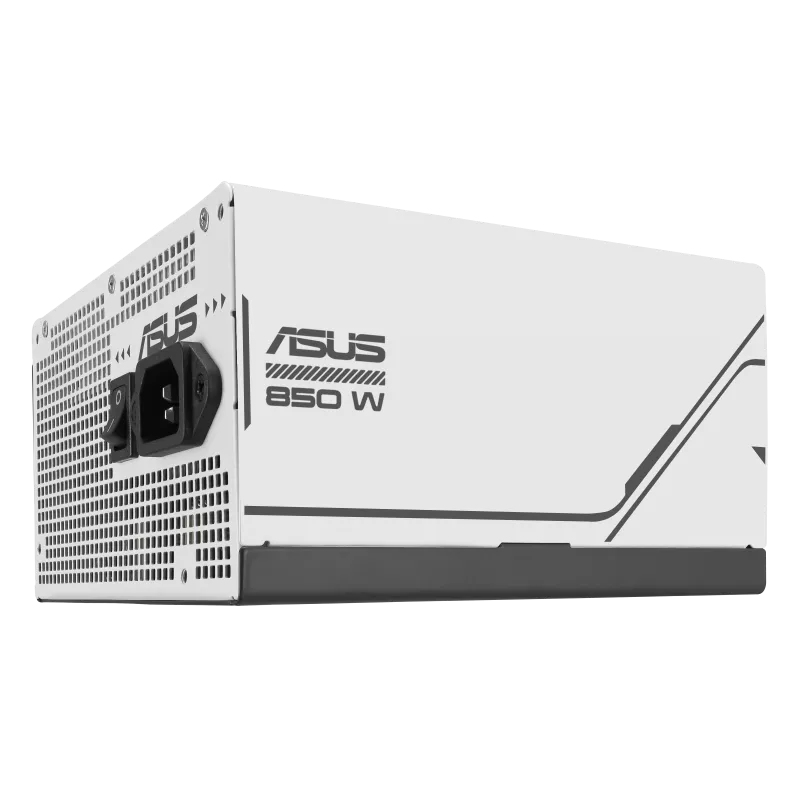

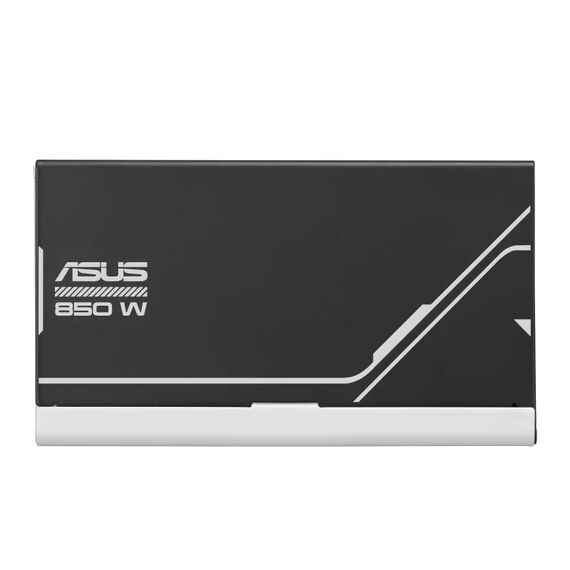

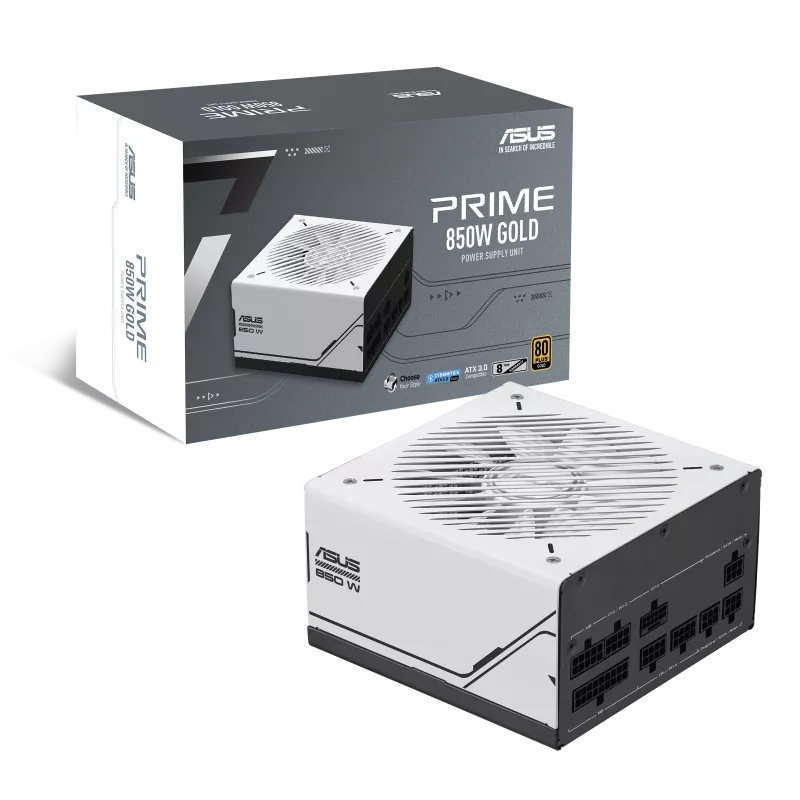

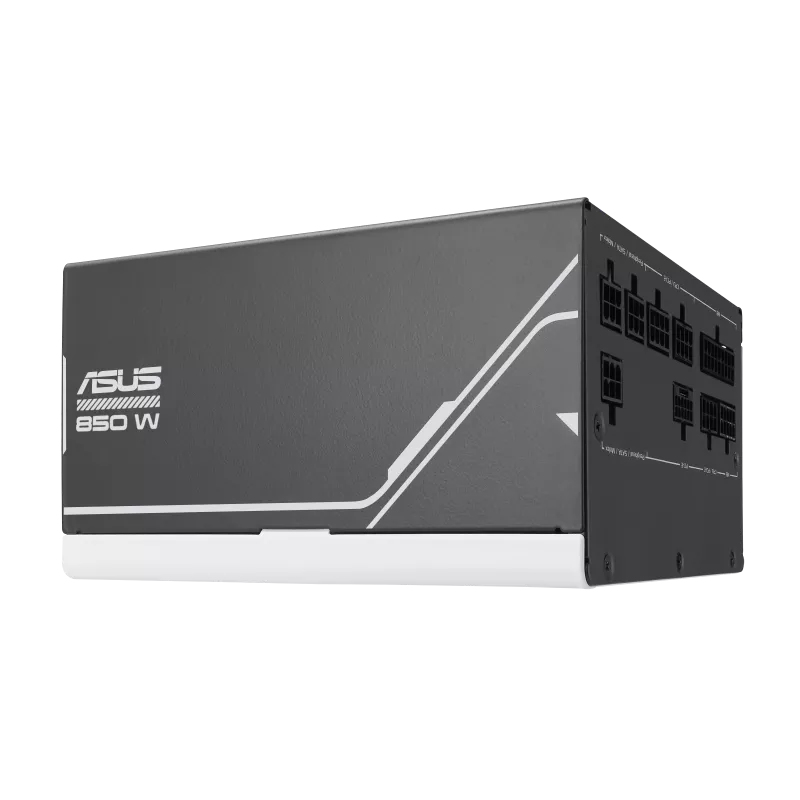

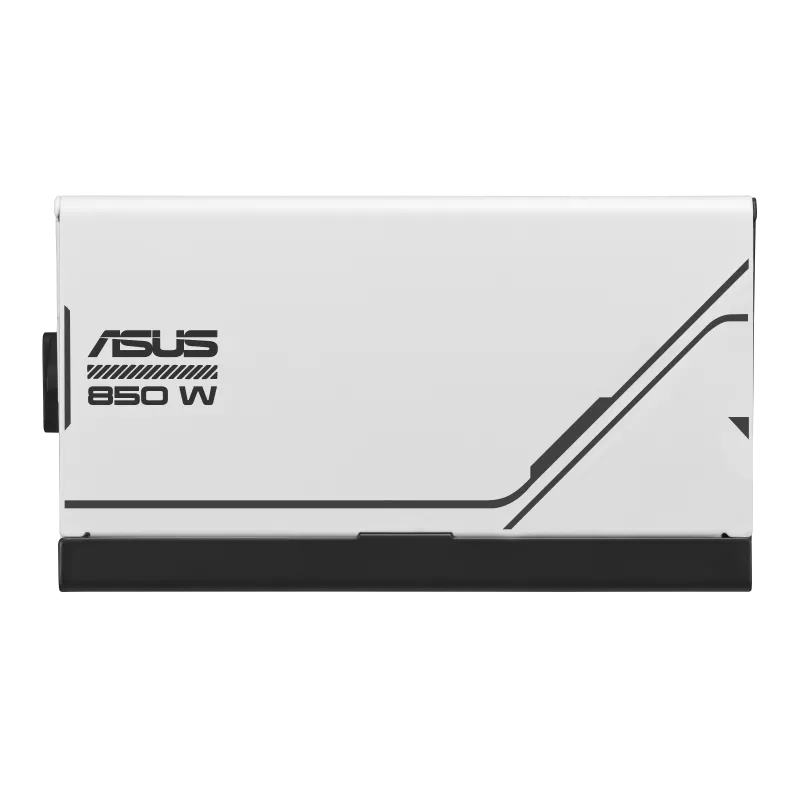

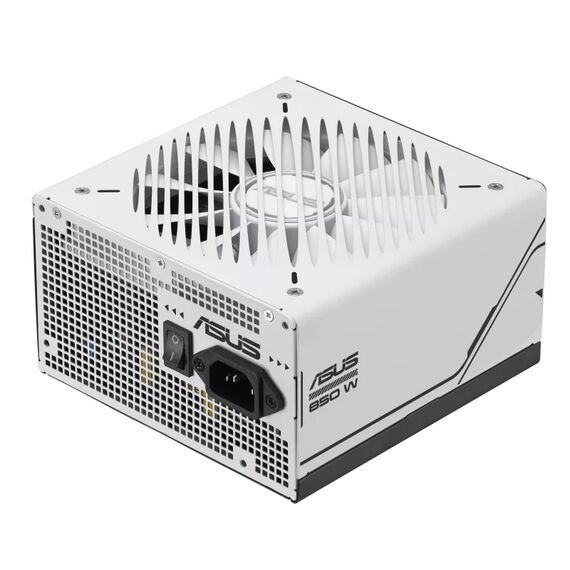

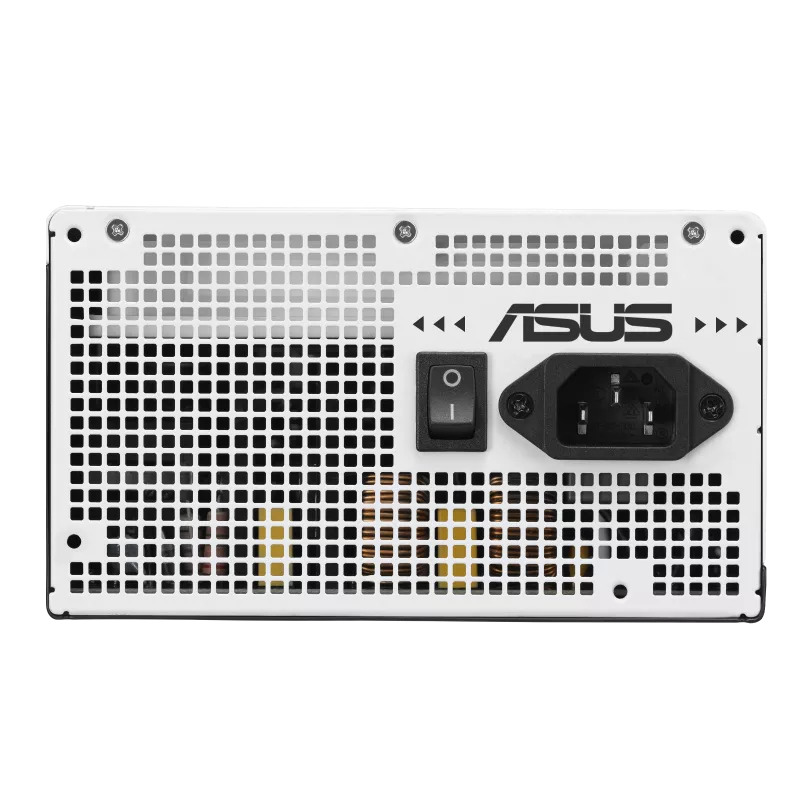

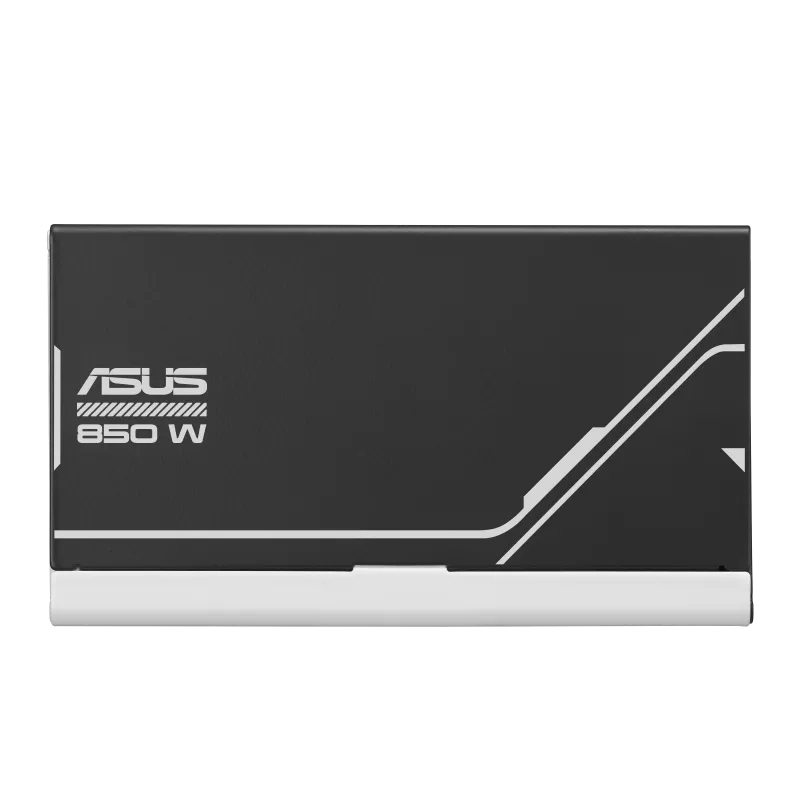

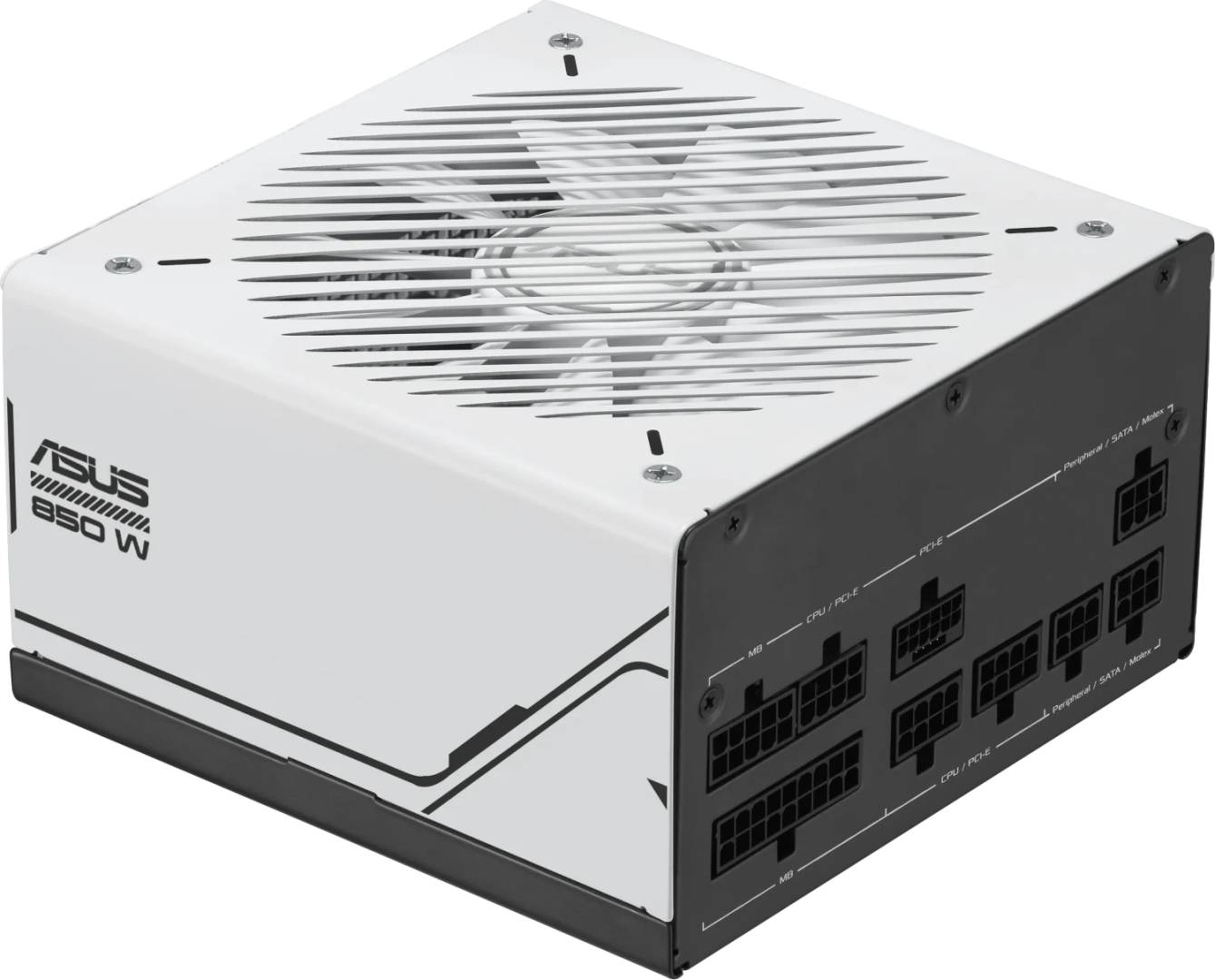

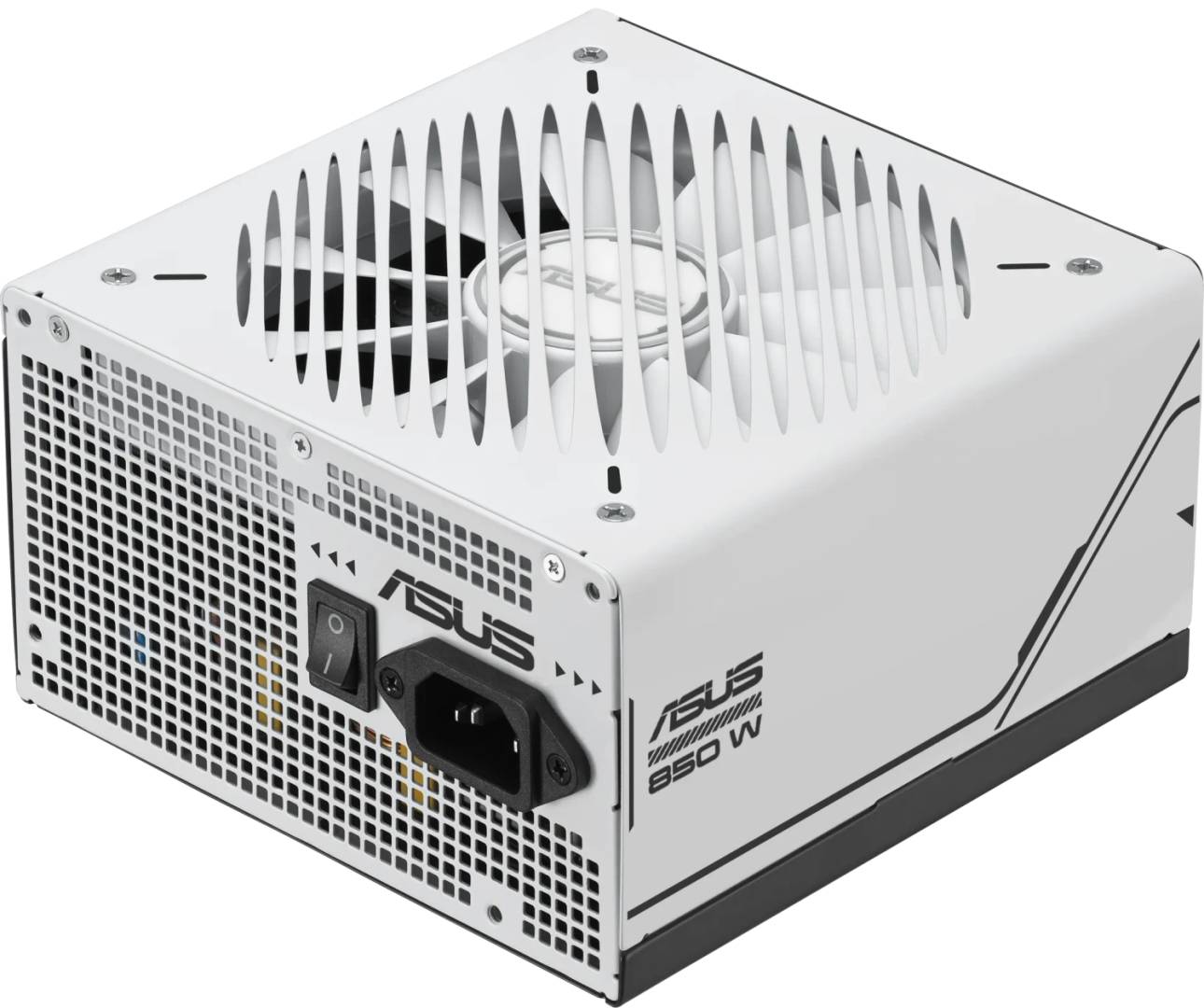

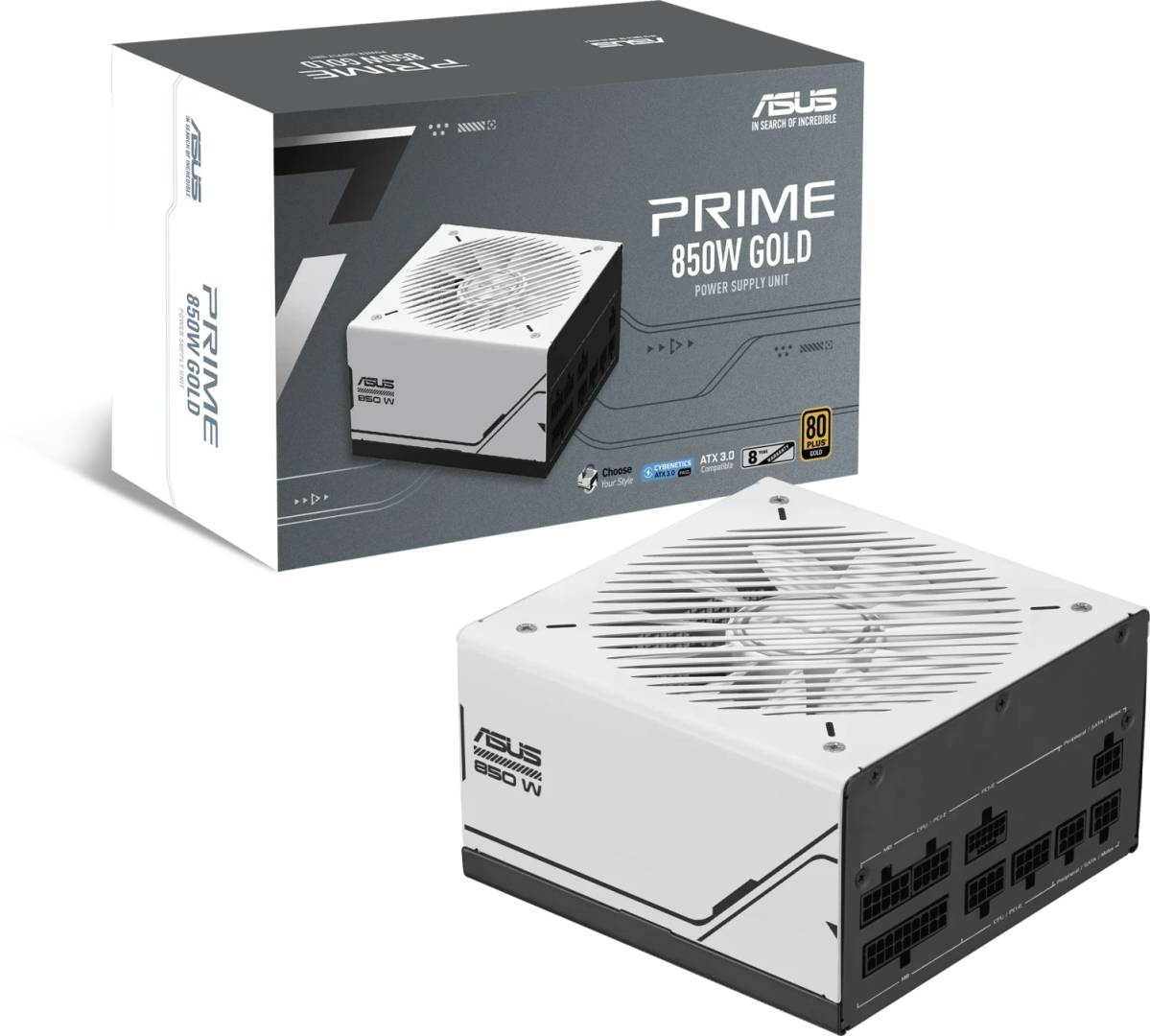

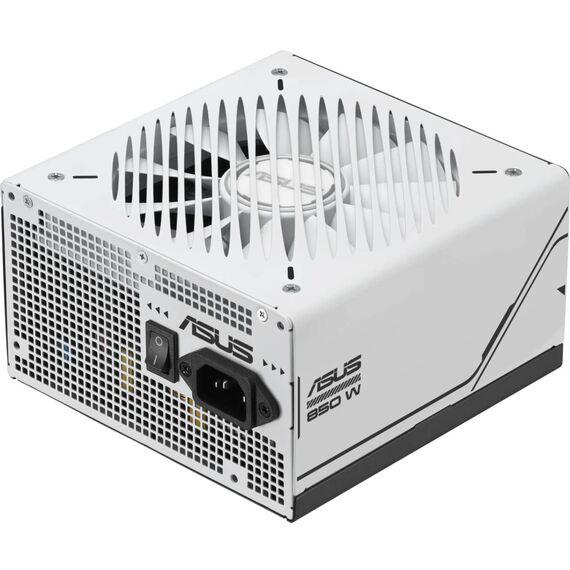

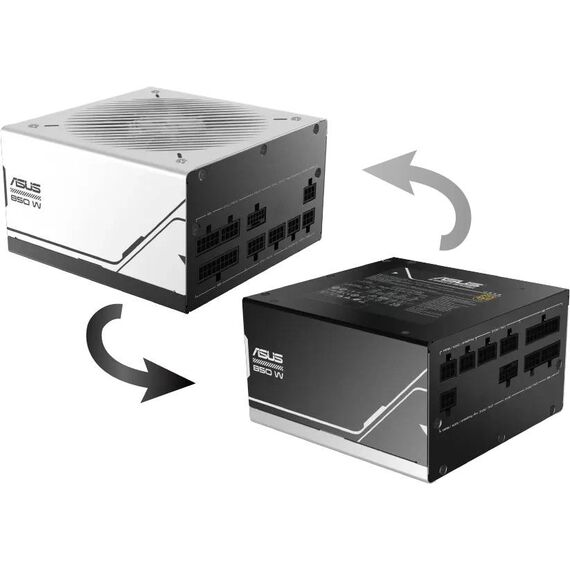

ASUS PRIME - Power supply (internal) - ATX12V 3.0 - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC - black, white | 90YE00U0-B0NB00
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0 |
| PSU Form Factor | ATX |

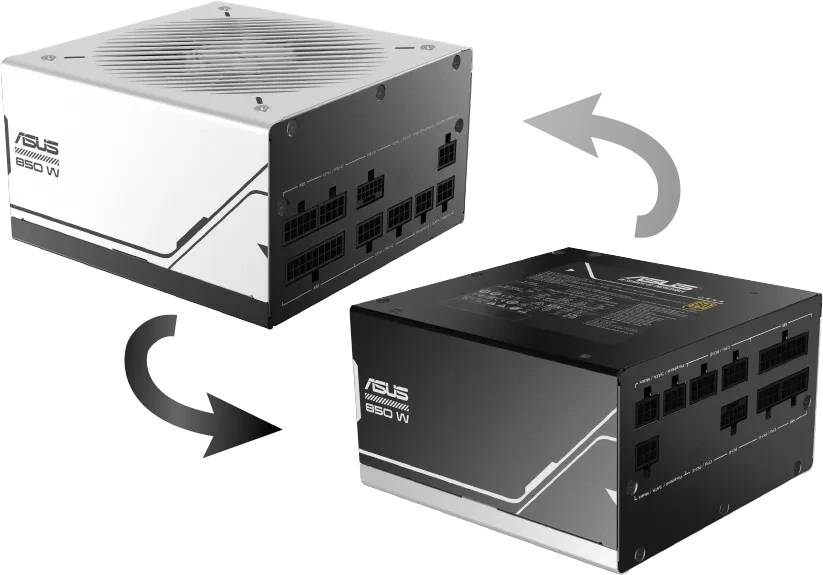

| Colour | Black, white |
| Power Device | |
| Input Voltage | AC 100-240 V |

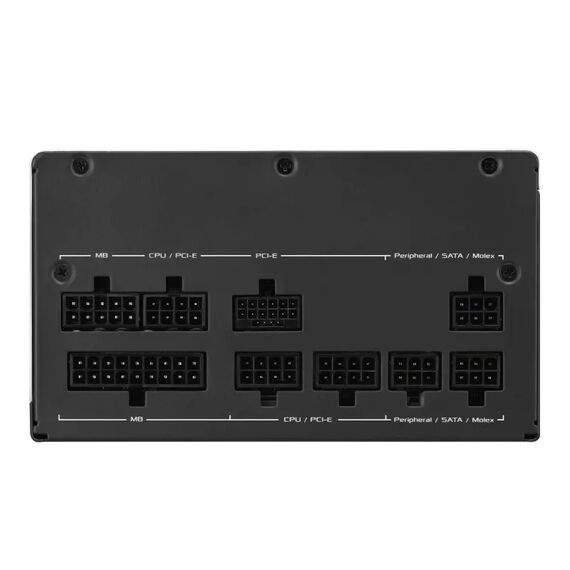

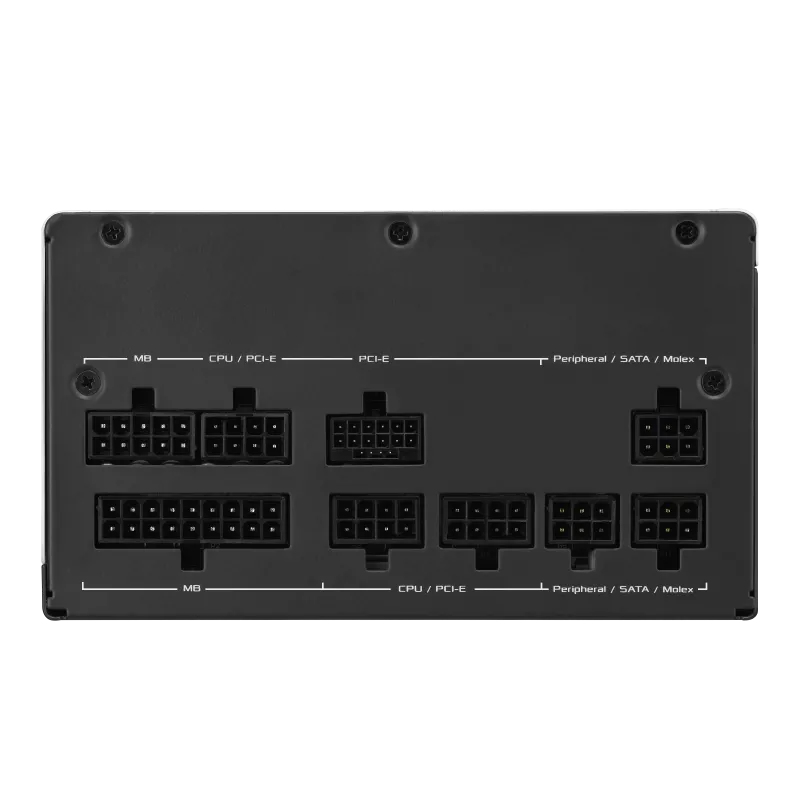

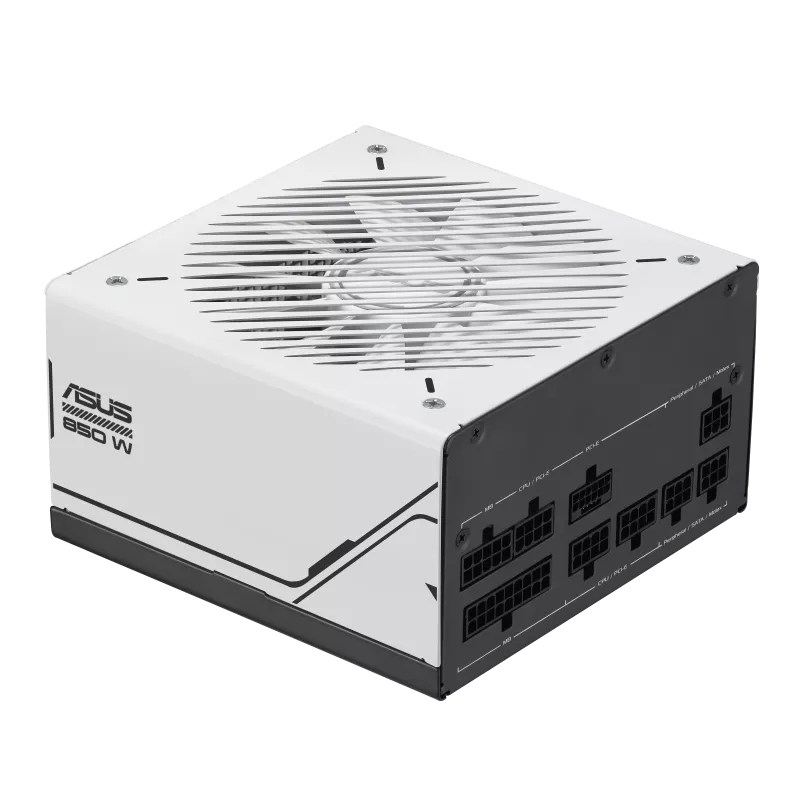

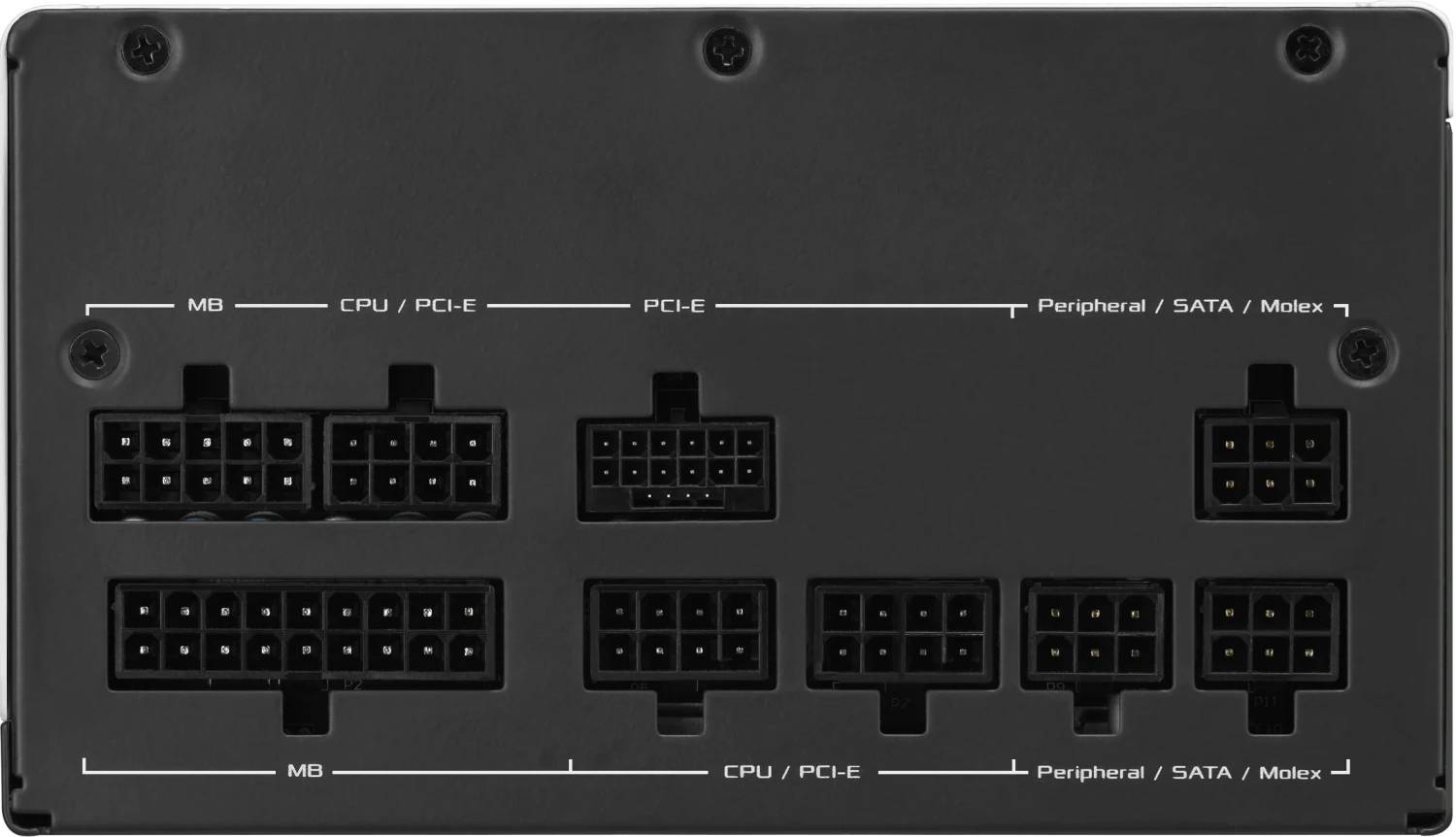

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 2 x power 8 pin +12V with detachable 4 pin section <br /> 3 x 8 pin PCI Express power with detachable 2 pin section <br /> 5 x 15 pin Serial ATA power <br /> 3 x 4 PIN internal power <br /> 1 x 16 pin PCI Express power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A <br /> +5V - 20 A <br /> +12V - 70.5 A <br /> -12V - 0.3 A <br /> +5VSB - 2.5 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |

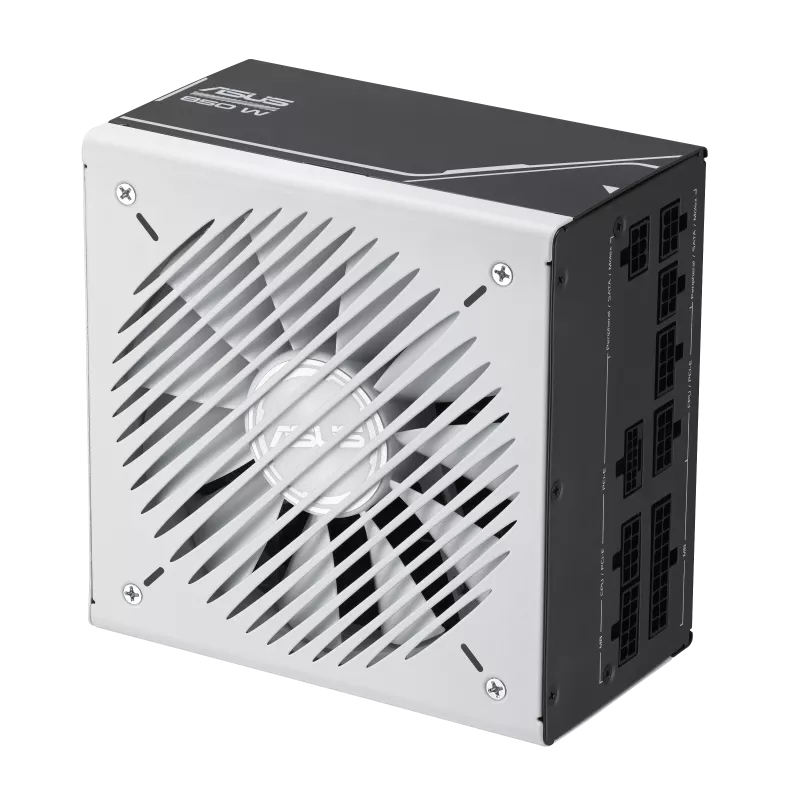

| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular |
| Compliant Standards | RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 8 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
| Weight | 1.502 kg |
Features - Asus - 90YE00U0-B0NB00
More Details
Product Code
04:444620
EAN Code
4711387192849
Manufacturer
Asus
