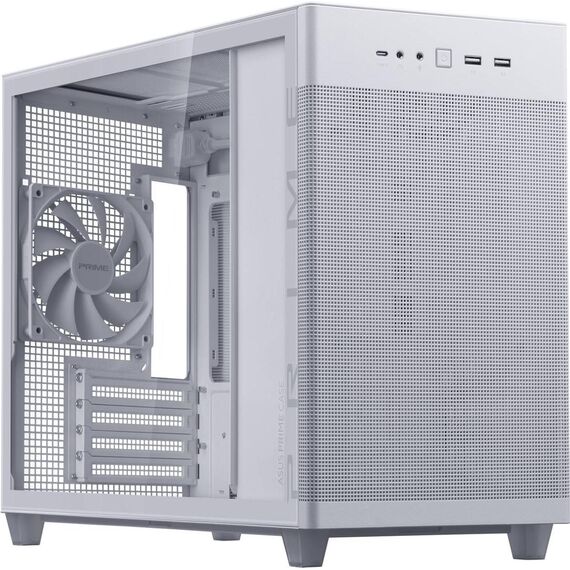

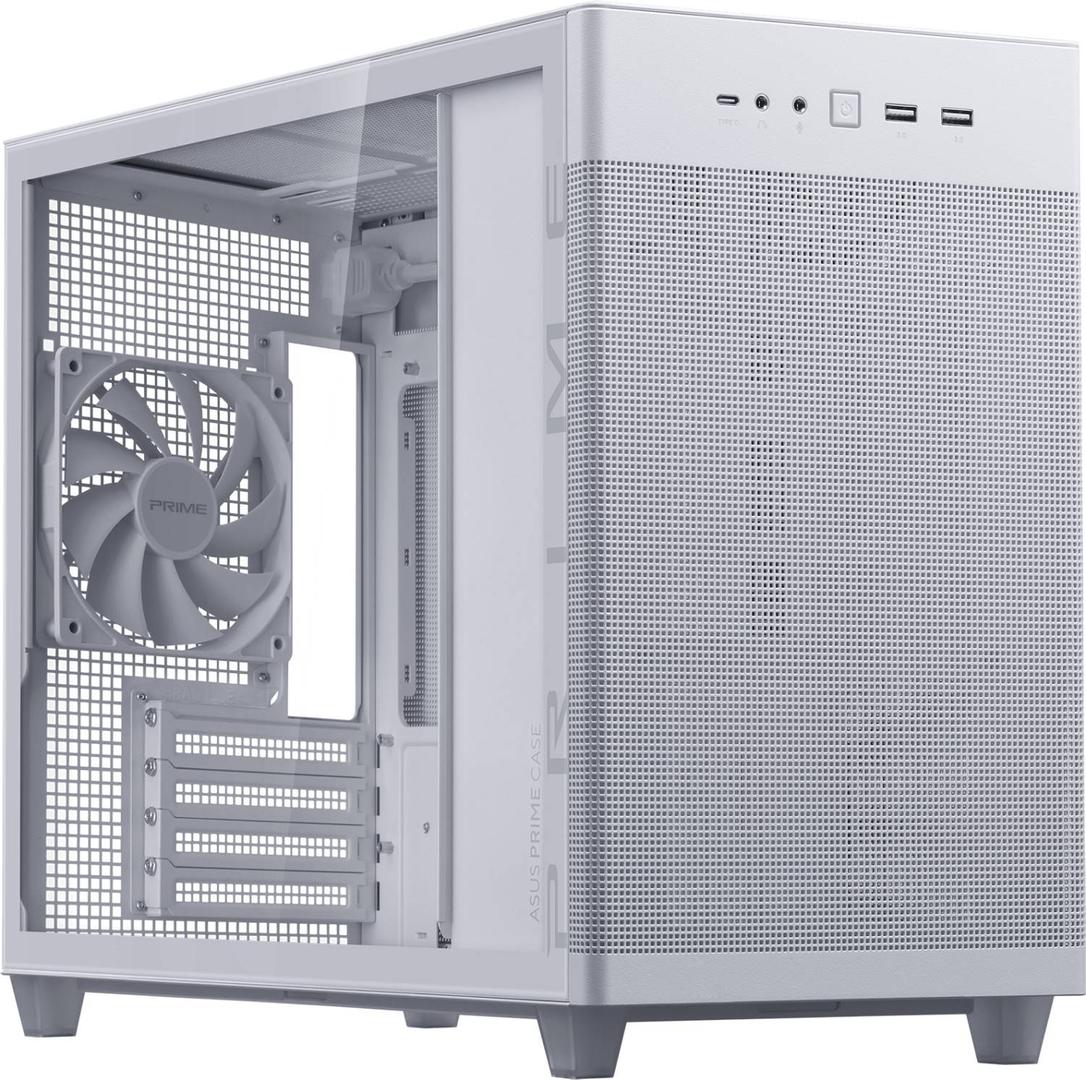

ASUS Prime AP201 / Small tower / micro ATX / windowed side panel (tempered glass) / no power supply / white / USB/Audio | 90DC00G3-B39010

90DC00G3-B39010
123.05
(146.43 inc. VAT)
Out of stock
Find similar
Delivery
Payment options
Product Code03:205506 EAN Code4711081771920 ManufacturerAsus

Product Features

  • Go big, stay compact
    The ASUS Prime AP201 is a microATX chassis design, delivering a high-performance platform that invites 360 mm AIO coolers and graphics cards up to 338 mm long, all within a compact space. Tool-free side panels with a quasi-filter mesh also provide easy access and enhanced airflow, and they complete a tasteful, minimalist aesthetic that can be the centerpiece of any DIY PC build.
  • Quasi-filter mesh panels
    The AP201 mesh design is comprised of over 57000 precision-machined 1.5 mm holes, structured to increase airflow, reduce dust ingress, and collectively provide a compelling view of the components within your build.
  • Stay chilled
    With support for 280 and 360 mm radiators and up to 6 fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.
  • Removable dust filter
    The two 120 mm fan mounts at the bottom of the AP201 include a dust filter that can be removed for easy cleaning, or to enhance airflow even further.
  • Load up
    Despite its compact size, the AP201 supports standard ATX power supplies up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling setups, and a spread of storage devices.
  • Tool-free side panels
    Instead of making you wrestle with screws or potentially awkward hinges, the side panels of the AP201 both use a simple but secure clip mechanism to attach to the case. This makes them easy to remove when you want to access the interior of the chassis, and resistant to being accidentally dislodged.
  • Sizeable cable management
    The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap, giving builders ample room to tuck cables out of sight and create a clean aesthetic for their DIY PC.

Special Features

  • Go big, stay compact
  • Quasi-filter mesh panels
  • Stay chilled
  • Removable dust filter
  • Load up
  • Tool-free side panels
  • Sizable cable management

Product Specification

Form Factor Small tower
Windowed Side Panel Yes
Windowed Side Panel Material Tempered glass
Max Mainboard Size Micro ATX
Supported Motherboards microATX, Mini-ITX
Internal Bays Qty 4
Colour White
Cooling System Top: 120 mm fan mount x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported ¦ Rear: 120 mm fan x 1 / 120 mm radiator supported
CPU Cooler Max Height 170 mm
Video Card Max Length 338 mm
Power Supply Max Length 180 mm
System Cabinet Features Meshed front panel, meshed side panel, tool-less side panels, bottom removable dust filter, cable management system (32 mm clearance)
Expansion / Connectivity Expansion / Connectivity
Expansion Bays 1 (total) / 1 (free) x internal - 2.5" ¦ 3 (total) / 3 (free) x internal - 2.5" / 3.5" shared
Expansion Slots 4
Interfaces 2 x USB 3.2 Gen 1 ¦ Headphones ¦ Microphone ¦ USB-C 3.2 Gen 2
Power Power
Power Device No power supply
Dimensions & Weight Dimensions & Weight
Width 20.5 cm
Depth 46 cm
Height 35 cm
Weight 5.8 kg
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 2 years

Features - Asus - 90DC00G3-B39010

More Details
Product Code
03:205506
EAN Code
4711081771920
Manufacturer
Asus
