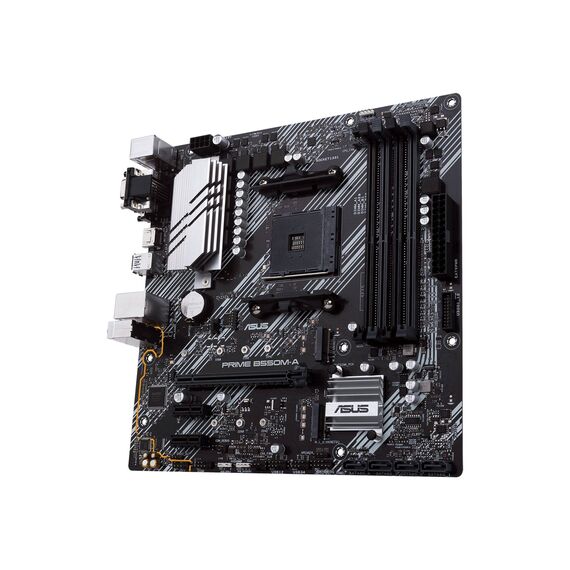

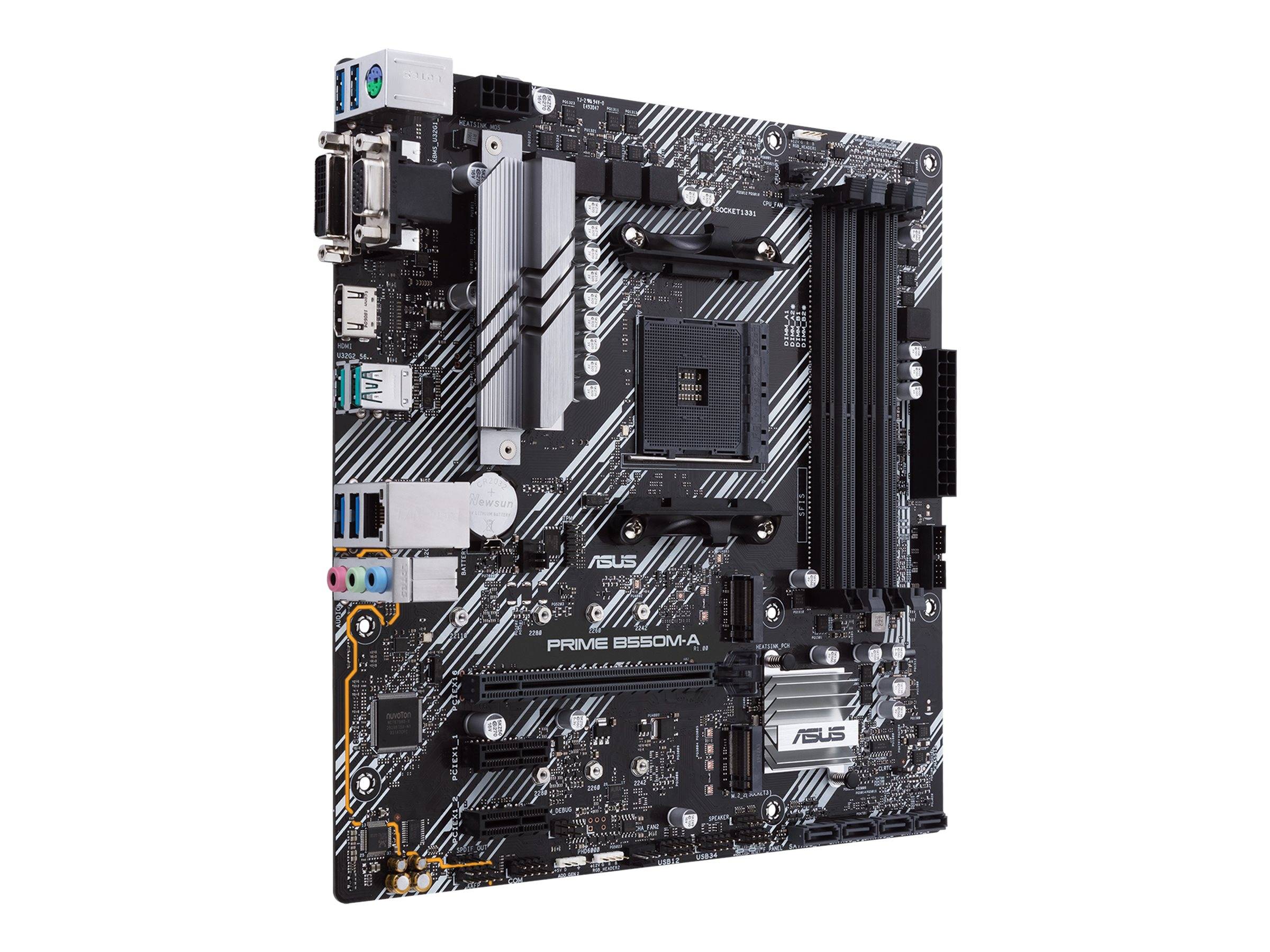

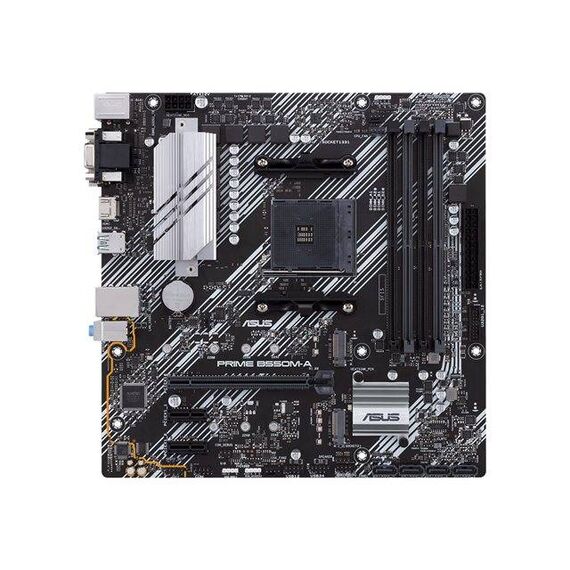

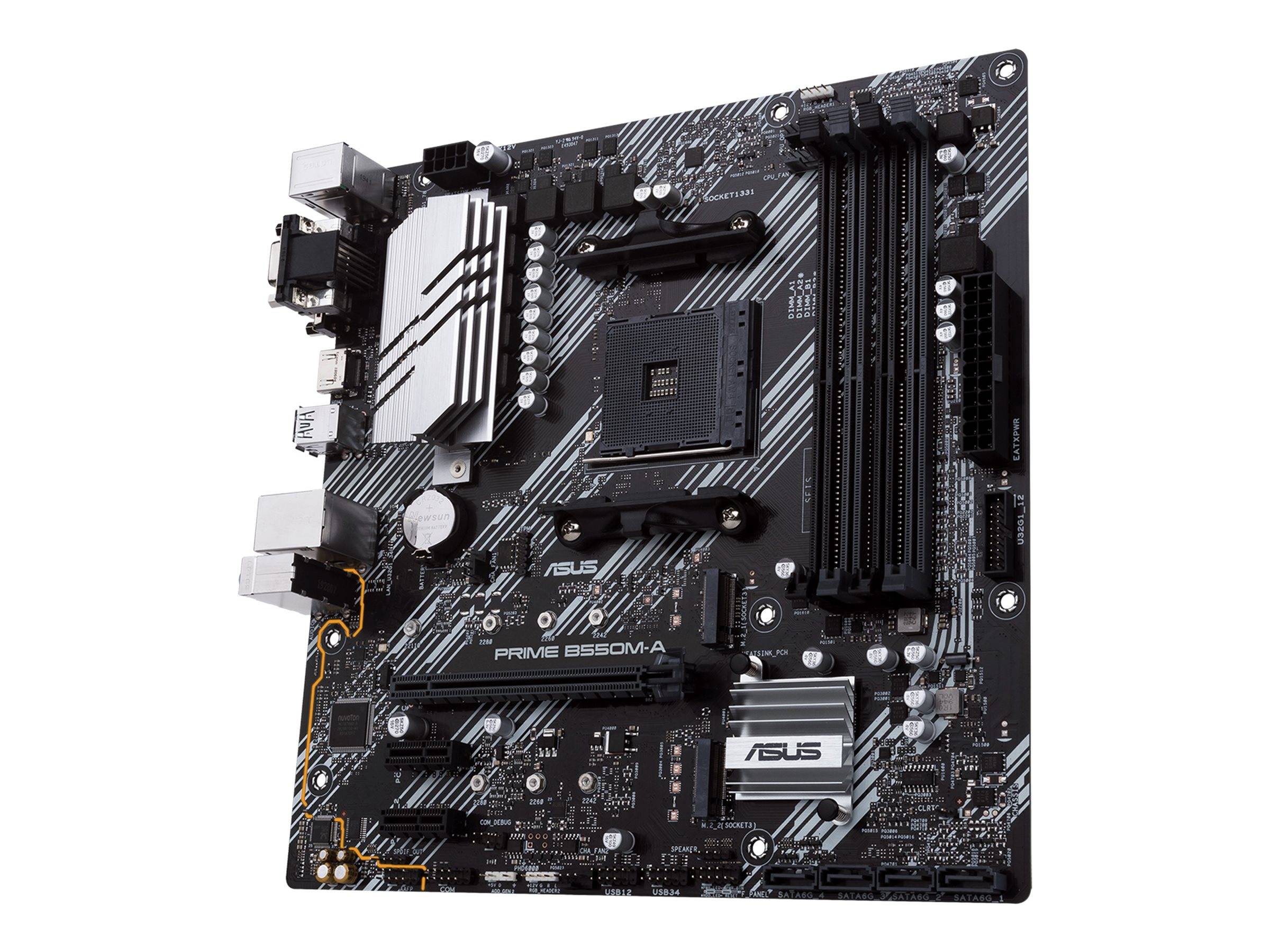

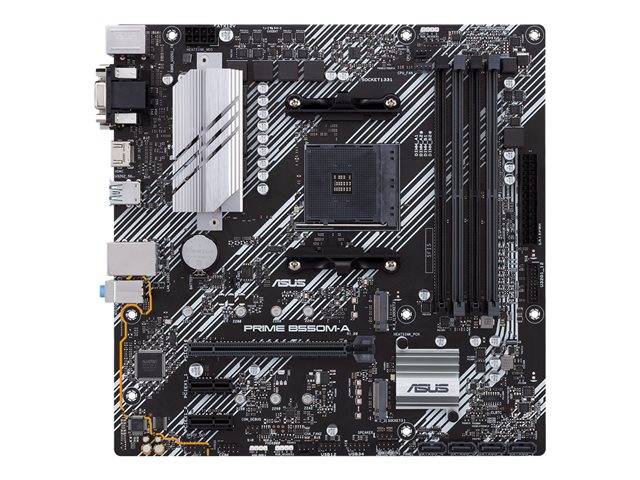

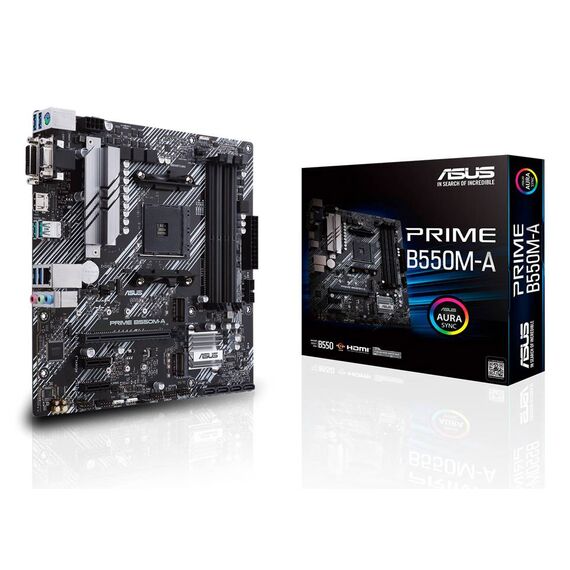

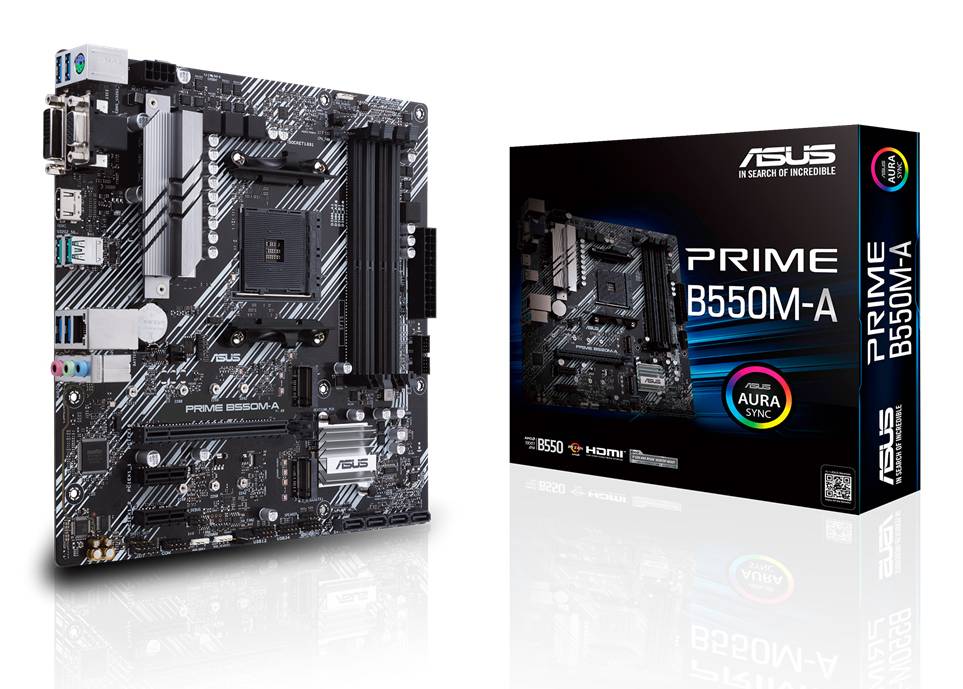

ASUS PRIME B550M-A / Motherboard / micro ATX / Socket AM4 / AMD B550 / USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB14I0-M0EAY0
ASUS PRIME B550M-A / Motherboard / micro ATX / Socket AM4 / AMD B550 / USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB14I0-M0EAY0
Description
Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
ASUS PRIME B550M-A / Motherboard | 90MB14I0-M0EAY0
Special Features
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A
- Aura Sync RGB: onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
Product features
- Tune it your way
Comprehensive controls form the foundation of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity. - Cool to the core
Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. - VRM heatsink and thermal pads
A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance. - Build on a solid foundation
Prime B550 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. - Achieve speed with onboard M.2
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. - Little things make a big difference
Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. - Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | AMD B550 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
Max Size | 128 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz |
Supported RAM Integrity Check | ECC |
Registered or Buffered | Unbuffered |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

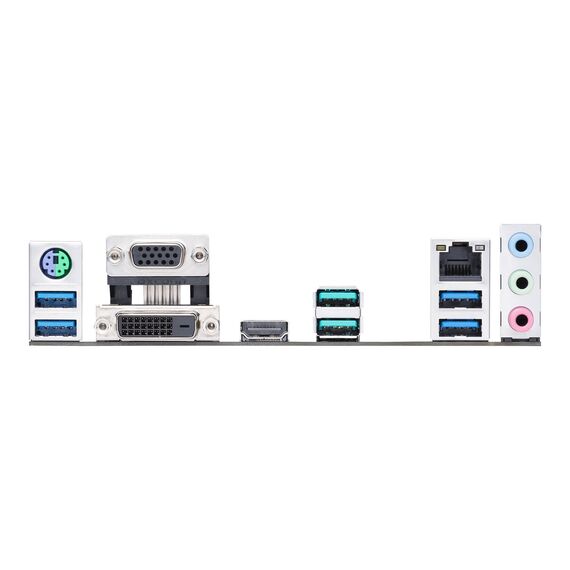

Interfaces | 1 x VGA ¦ 1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Aura Sync, Armoury Crate |
Included Accessories | 1 x M.2 screw, I/O back cover |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
Width | 24.4 cm |
Depth | 24.4 cm |
Features - Asus - 90MB14I0-M0EAY0
- Socket AM4
