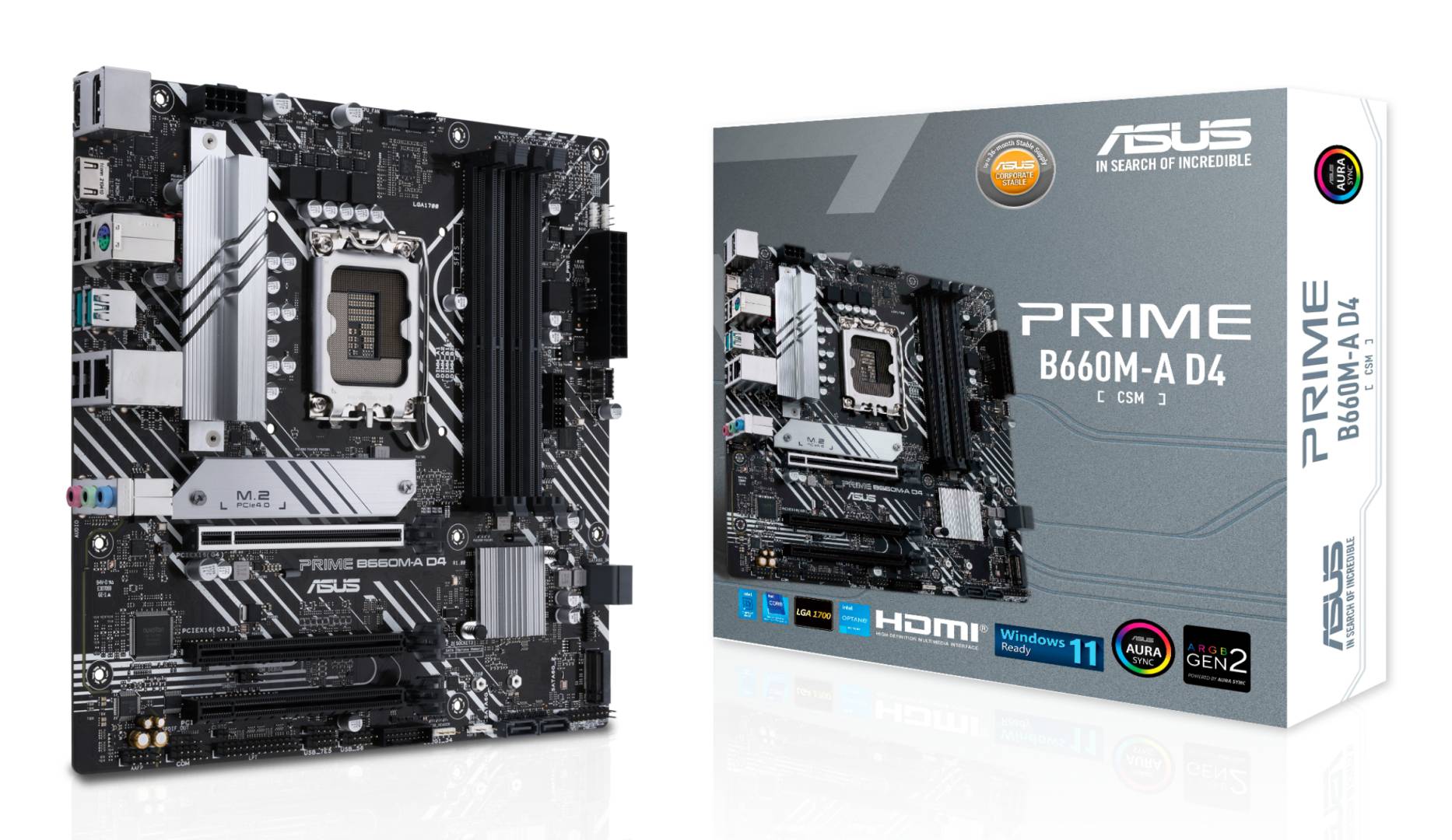

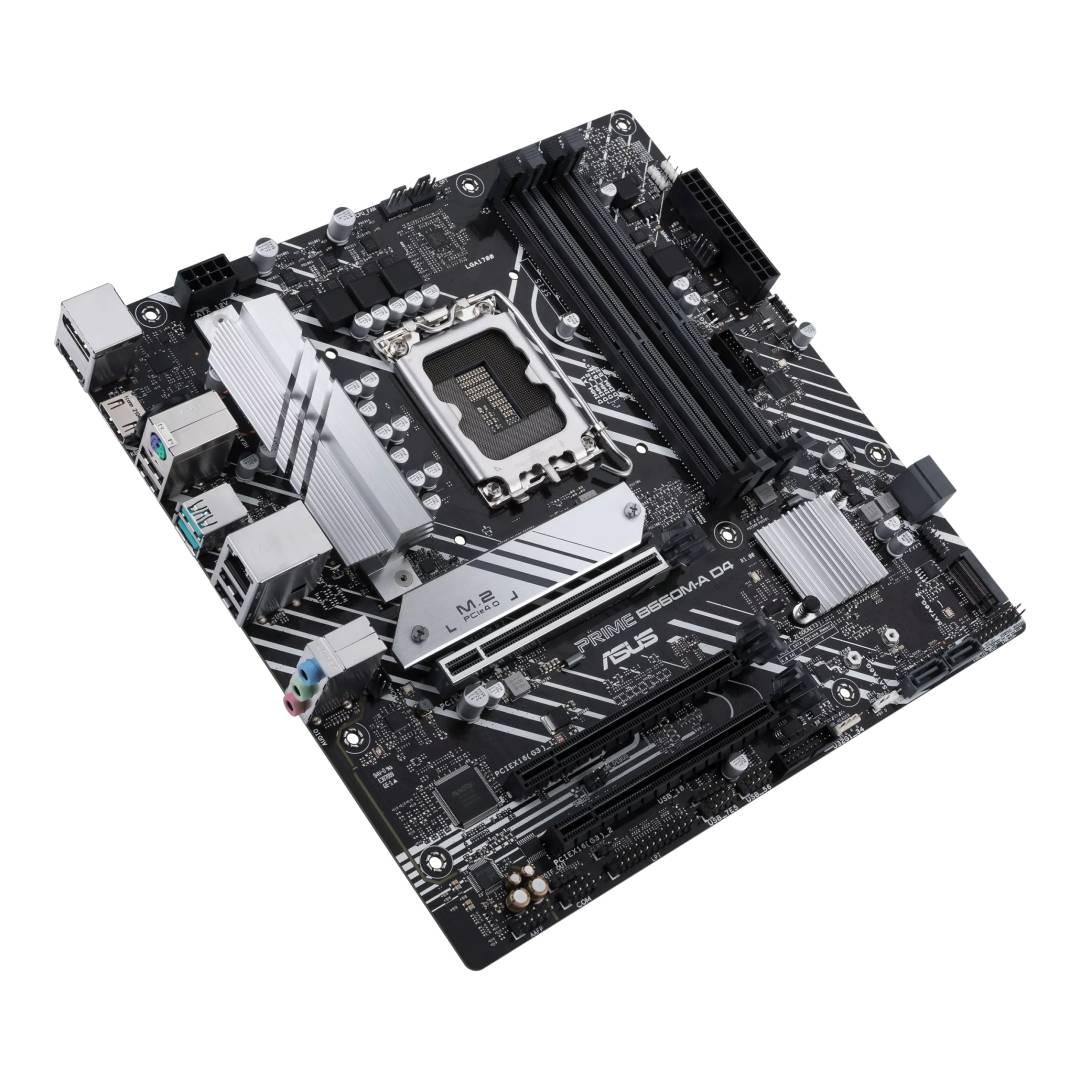

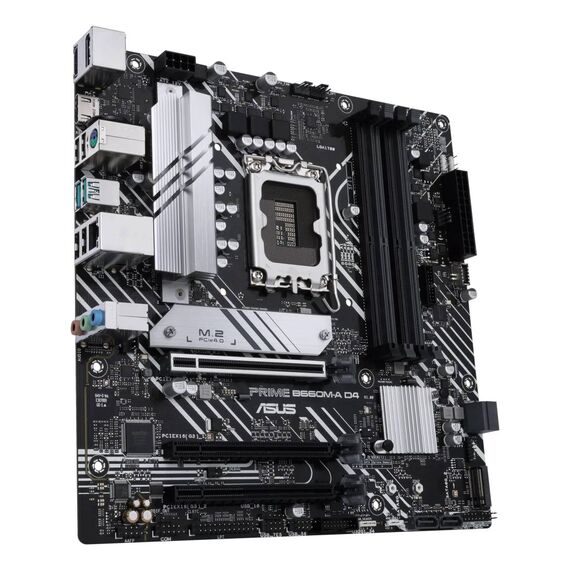

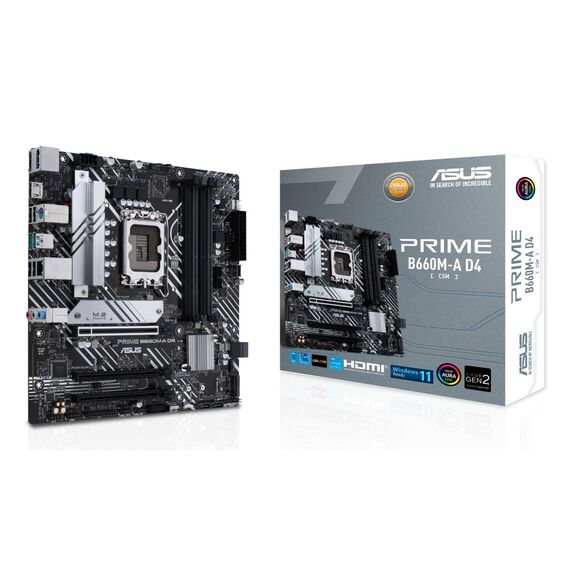

ASUS PRIME B660M-A D4-CSM / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB19K0-M1EAYC

Product Features

• ASUS Control Center Express
  ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
• Optimize IT endpoint management
  Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely.
• Automate IT maintenance
  Allows IT staff to schedule automatic updates of the advanced BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility.
• Securely manage all of endpoints
  Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices.
• Flexibility
  Comprehensive controls form the foundation of the ASUS Prime series. The Prime B660 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
• All-around energy efficiency
  The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
• Flexible air- and liquid-cooling controls
  ASUS Fan Xpert 2+ software provides comprehensive control over fans, water pumps and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans, water pumps and AiO coolers can also be controlled via the UEFI BIOS.
• Precise digital power control
  The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
• UEFI BIOS
  The ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
• Advanced tuning for serious tweakers
  An intuitive advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
• Quick and simple setup
  EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
• Intuitive graphical fan control
  Fine-tune individual fan settings simply by dragging a curve with the mouse.
• Advanced cooling
  Prime B660 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
• M.2 heatsink
  M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
• VRM heatsink and thermal pad
  VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.
• Cooler by design
  Prime B660 series feature comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
• Multiple temperature sources
  Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• Improved performance
  Prime B660 series are built to handle the additional cores and increased bandwidth of 13th and 12th generation Intel processors. ASUS B660 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
• Robust power design
  Stable power is essential to extract every last bit of performance out of 13th and 12th generation Intel processors. PRIME B660M-A D4-CSM is geared to cater to the demands of these high-core-count CPUs.
• ProCool connector
  Proprietary connector augments the motherboard's link to the PSU with 8 pin connector that passes 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
• PCIe 4.0 slot
  Prime B660 motherboards are designed specifically for 13th & 12th Generation Intel Core CPUs and offer PCIe 4.0 connectivity for the advanced GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
• USB 3.2 Gen 1 Type-C
  Numerous USB ports support high-end rigs loaded with peripherals, including front USB Type-C connectors with fast USB 3.2 Gen 1 for transmission speeds of up to 5 Gbps.
• Outshine the competition
  A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
• Addressable Gen 2 headers
  Three addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
• Armoury Crate
  Armoury Crate is a software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
• Q-LED core
  The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
• SafeSlot Core+
  SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.
• Pumped-up throughput higher surge tolerance
  ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
• Short-circuit damage prevention
  Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
• World-class circuit-protecting power design
  An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
• Better corrosion-resistance for greater durability
  Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Special Features

• ASUS Control Center Express
• Optimize IT endpoint management
• Automate IT maintenance
• Securely manage all of endpoints
• Flexibility
• All-around energy efficiency
• Flexible air- and liquid-cooling controls
• Precise digital power control
• Advanced tuning for serious tweakers
• Quick and simple setup
• Intuitive graphical fan control
• Advanced cooling
• M.2 heatsink
• VRM heatsink and thermal pad
• Multiple temperature sources
• Improved performance
• Robust power design
• ProCool connector
• PCIe 4.0 slot
• USB 3.2 Gen 1 Type-C
• Outshine the competition
• Addressable Gen 2 headers
• Armoury Crate
• Q-LED core
• Pumped-up throughput higher surge tolerance
• Short-circuit damage prevention
• World-class circuit-protecting power design
• Corrosion-resistance for greater durability

Product Specification
