ASUS Prime B760M-A D4-CSM Intel B760 LGA1700 mATX DDR4 Motherboard

Brand:
ASUS
90MB1D00-M1EAYC
€162.89 €180.99
€193.84 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
04:425819
EAN Code
4711081984061
Manufacturer
ASUS

Quick Specs

CPU Platform
Intel LGA1700
Chipset
Intel B760
Memory
4 x DDR4 DIMM up to 128GB
Storage & LAN
Dual M.2 + 2.5Gb Ethernet
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS Prime B760M-A D4-CSM Motherboard

A compact Intel B760 mATX motherboard for reliable LGA1700 business and productivity PCs with DDR4 memory, PCIe 4.0, dual M.2 storage and ASUS CSM manageability.
Intel B760LGA1700DDR42.5Gb Ethernet

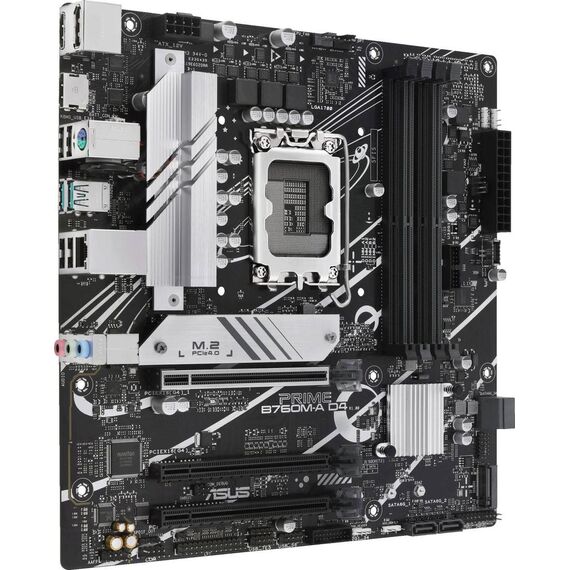

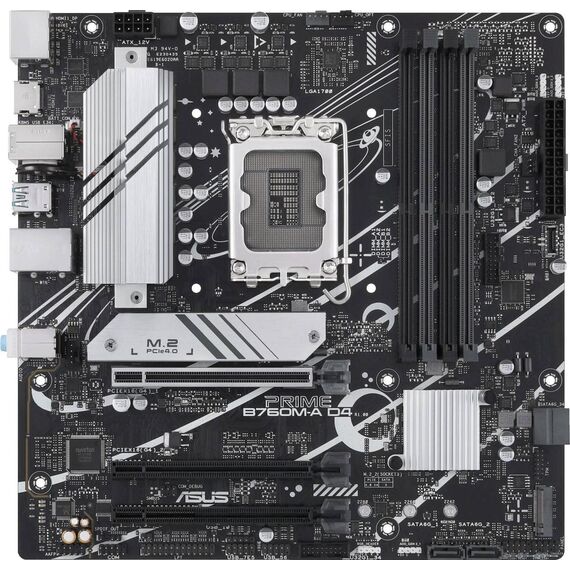

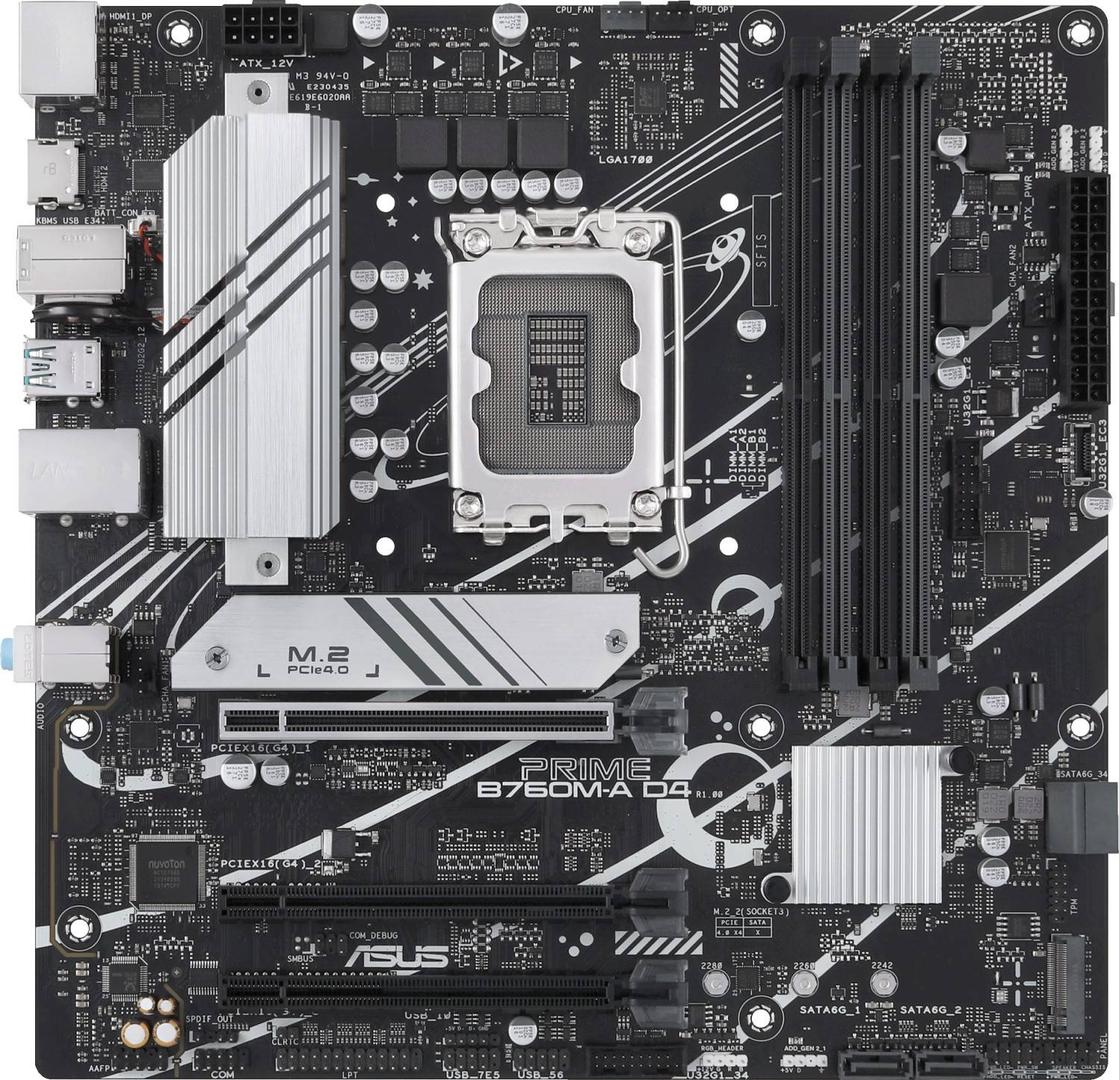

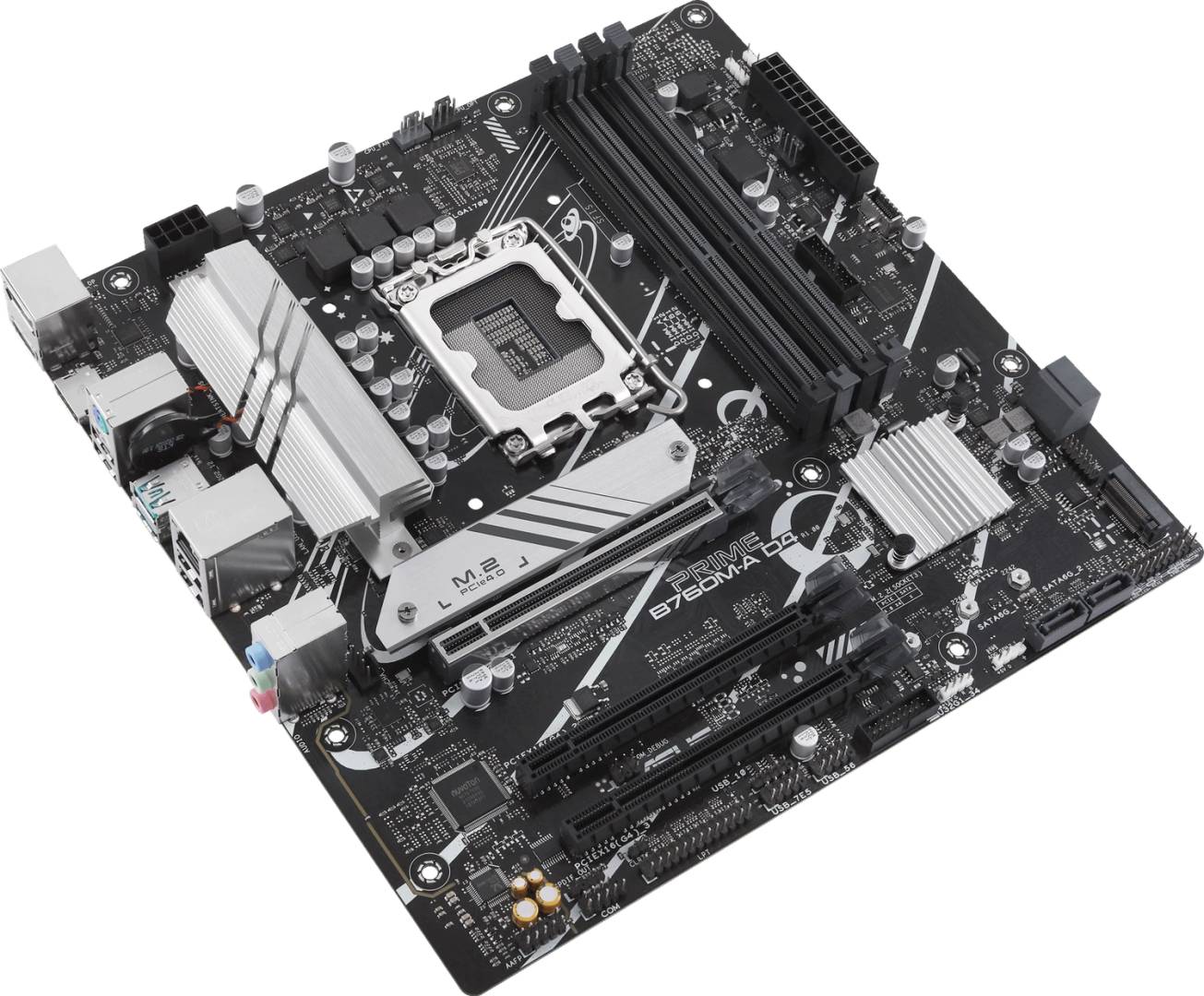

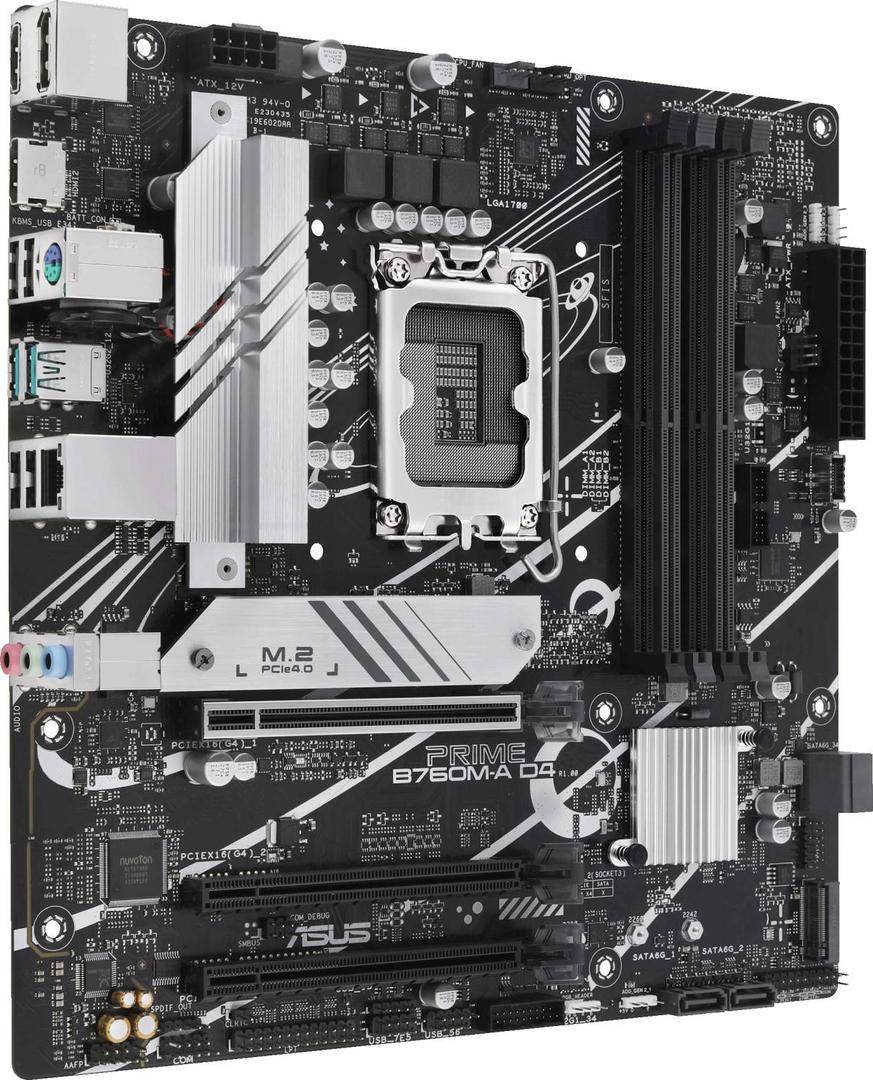

The ASUS Prime B760M-A D4-CSM is a micro ATX motherboard for Intel LGA1700 systems, designed for office desktops, managed business PCs, home productivity builds and everyday performance setups that need DDR4 memory support, modern storage and stable wired networking.

Compatibility Note: Please confirm CPU support, BIOS version, DDR4 memory compatibility, case size, PSU connectors and cooler clearance before purchase, especially when using Intel 14th Gen processors.
Best For
✓ Business and office desktops
✓ DDR4-based Intel LGA1700 builds
✓ Managed IT environments with ASUS CSM
✓ Productivity PCs with dual M.2 storage

Key Features


Intel LGA1700 Ready
Supports Intel 14th, 13th and 12th Gen Core processors, plus Pentium Gold and Celeron processors, making it a practical platform for modern Intel desktop builds.

DDR4 Value Platform
Four DDR4 DIMM slots support up to 128GB memory, helping reduce upgrade cost when building with compatible DDR4 modules.

Fast Storage and Expansion
Dual PCIe 4.0 M.2 slots, SATA 6Gb/s ports and PCIe 4.0 expansion provide a strong base for fast SSDs and everyday upgrade flexibility.

Business-Friendly CSM Design
The CSM version adds ASUS Corporate Stable Model positioning with ASUS Control Center Express support, useful for business fleets and managed deployments.

Technical Specifications

Brand ASUS
Model Prime B760M-A D4-CSM
Manufacturer SKU 90MB1D00-M1EAYC
EAN 4711081984061
Form Factor micro ATX 24.4 cm x 24.4 cm
CPU Socket Intel LGA1700
Processor Support Intel 14th, 13th and 12th Gen Core processors, Pentium Gold and Celeron processors
Chipset Intel B760
Memory 4 x DIMM up to 128GB DDR4 Non-ECC unbuffered memory
Memory Features Dual channel architecture, Intel XMP support, ASUS OptiMem II
Expansion Slots 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x16 slot supporting x4 mode, 1 x PCIe 4.0 x16 slot supporting x1 mode
Storage 2 x M.2 PCIe 4.0 x4 slots and 4 x SATA 6Gb/s ports
RAID Support SATA RAID 0, 1, 5 and 10 via Intel Rapid Storage Technology
Display Outputs 1 x DisplayPort 1.4 and 2 x HDMI 2.1 ports, graphics output requires compatible CPU with integrated graphics
Networking 1 x Realtek 2.5Gb Ethernet
Rear USB Ports 2 x USB 3.2 Gen 2 Type-A and 4 x USB 2.0 Type-A
Front USB Support USB 3.2 Gen 1 Type-C connector, USB 3.2 Gen 1 headers and USB 2.0 headers
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

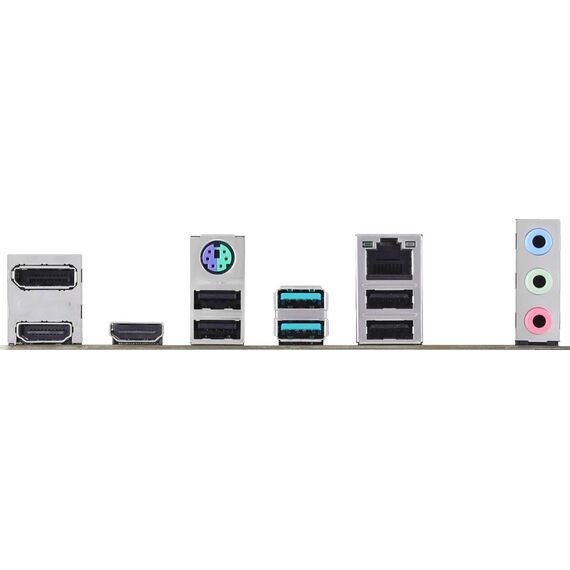

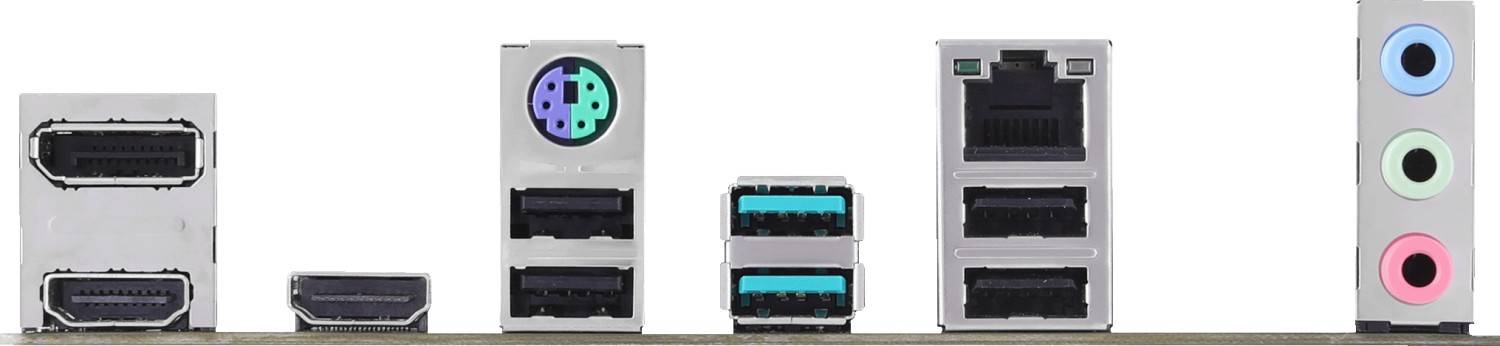

Back Panel Ports DisplayPort, 2 x HDMI, Realtek 2.5Gb Ethernet, 3 x audio jacks, PS/2 combo port and USB ports
Business Features ASUS Corporate Stable Model, ASUS Control Center Express support, WOL by PME and PXE manageability
Operating System Support Windows 11 and Windows 10 64-bit

Frequently Asked Questions

Does this motherboard use DDR4 or DDR5 memory?
This is the D4 version, so it uses DDR4 memory. It is not compatible with DDR5 modules.
Can it support Intel 14th Gen processors?
Yes, the platform supports Intel 14th Gen processors, but BIOS version should be confirmed before installation to avoid compatibility issues.
Does it have built-in Wi-Fi?
No confirmed built-in Wi-Fi is listed for this model. Use a PCIe or USB Wi-Fi adapter if wireless networking is required.
Singular Expert Insight
Choose the ASUS Prime B760M-A D4-CSM if you want a cost-effective Intel B760 business motherboard that keeps DDR4 memory support while adding dual M.2 storage, 2.5Gb Ethernet and ASUS CSM management value. If you need DDR5 memory or built-in Wi-Fi, consider a DDR5 or Wi-Fi version instead.

Buyer’s Guide

Buy it if
You are building a reliable Intel LGA1700 PC with DDR4 memory, fast NVMe storage, 2.5Gb Ethernet and business-friendly ASUS CSM features.
Skip it if
You need DDR5 memory, built-in Wi-Fi, more PCIe expansion, a premium gaming board or advanced overclocking features.
Also consider
Consider an ASUS Prime B760M-A DDR5 model if you are building a newer DDR5 system, or a Wi-Fi version if wireless connectivity is required.
