ASUS PRIME B760M-A II-CSM — a business-channel B760 board with PCIe 5.0 and 2.5 GbE
Intel B760, LGA17004 × DDR5 to 256 GBPCIe 5.0 x162.5 Gigabit LAN

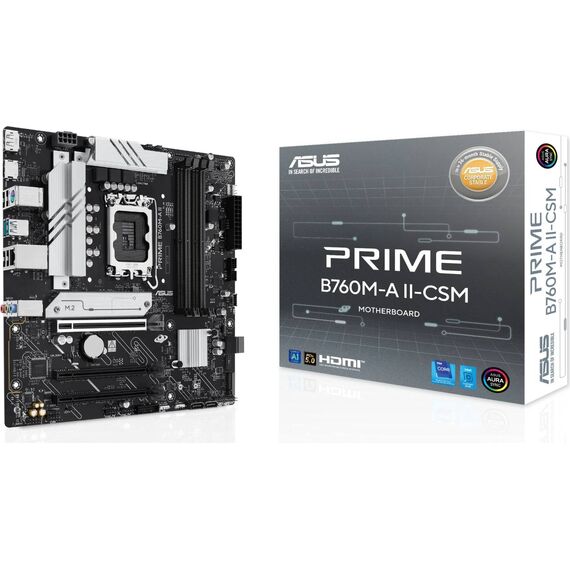

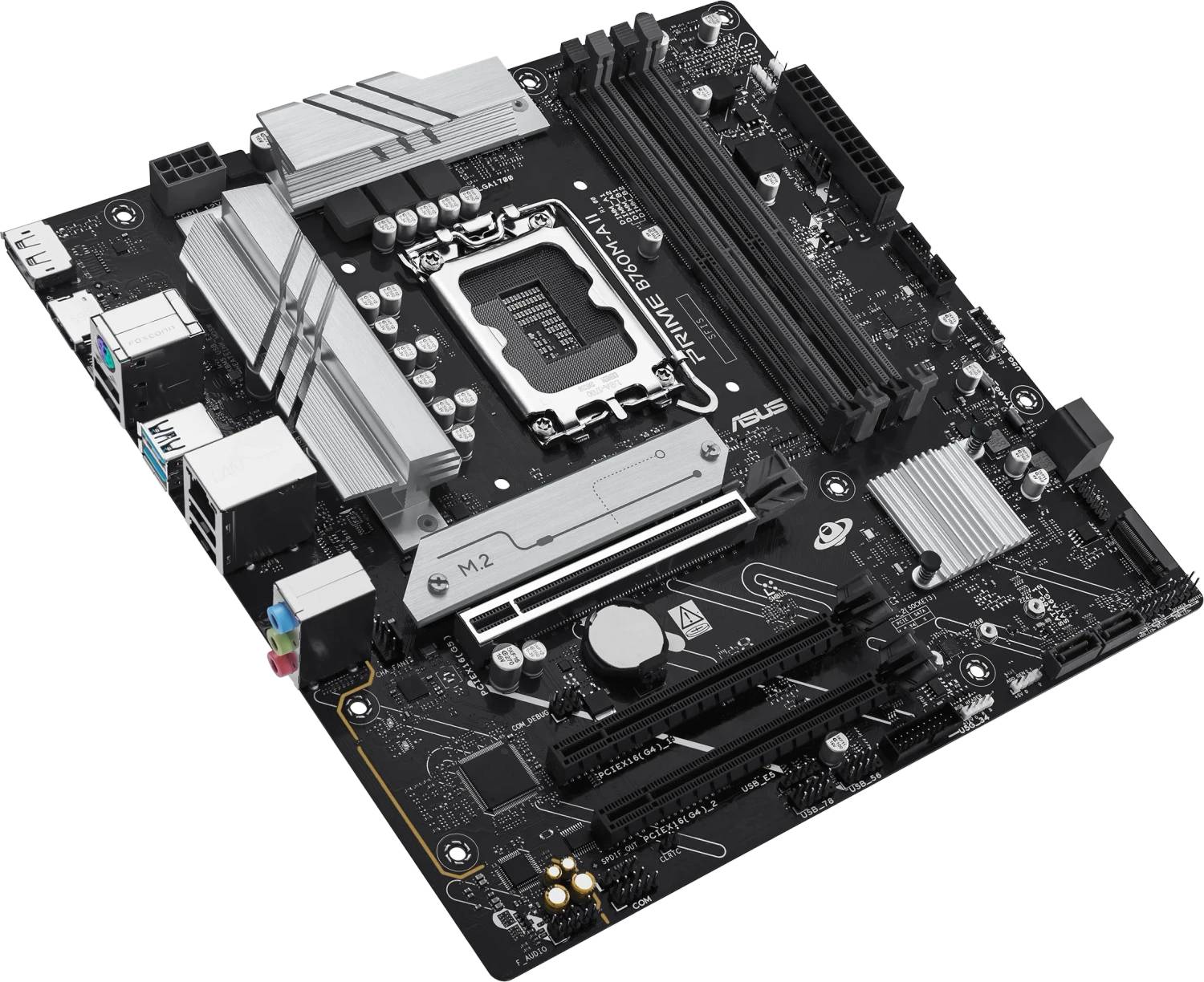

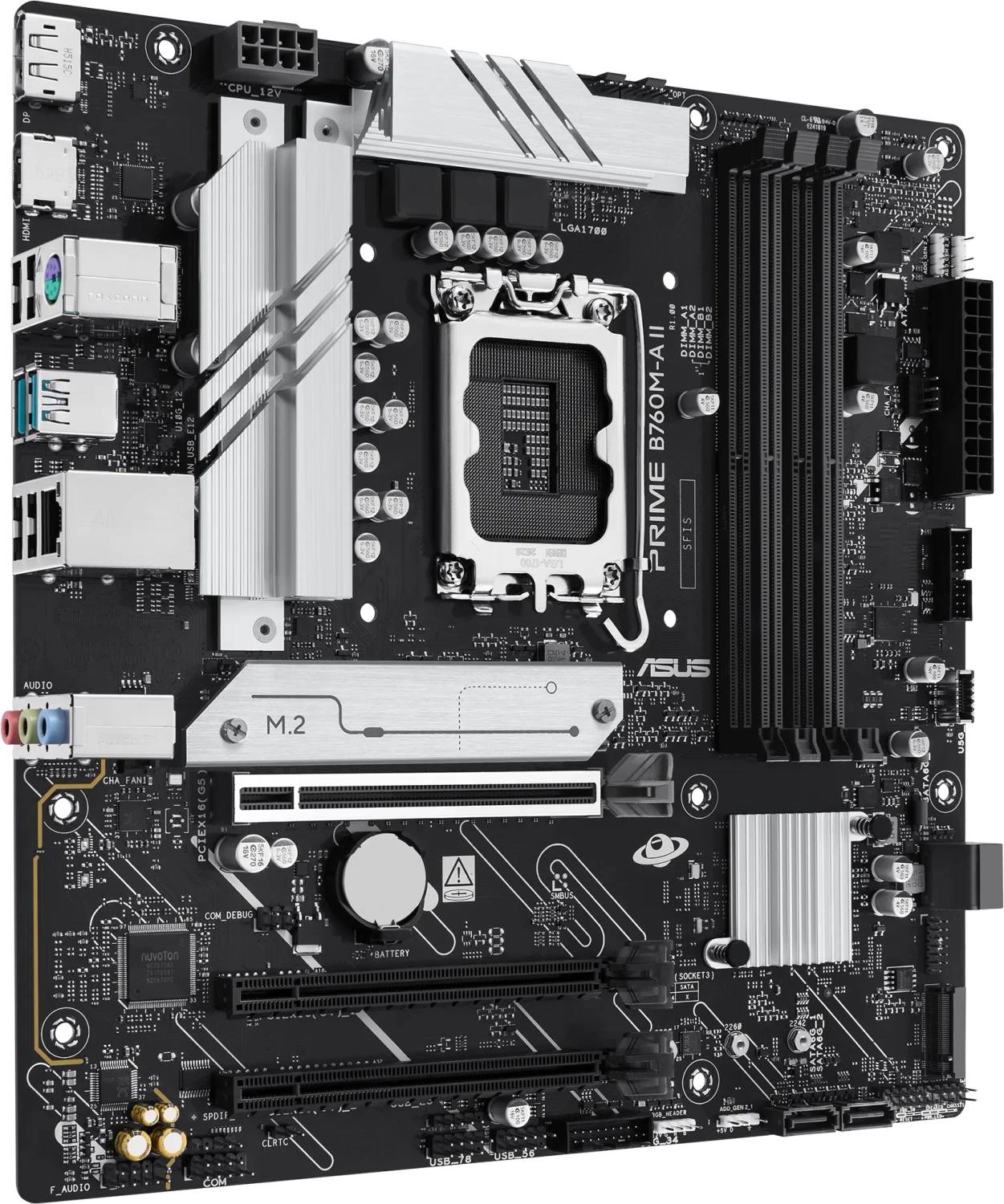

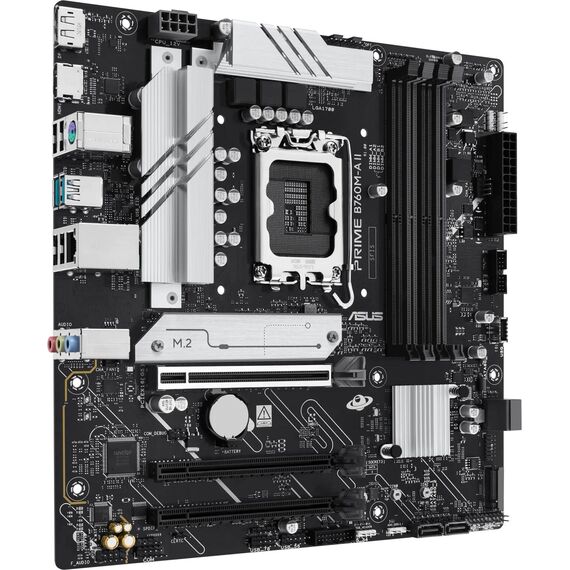

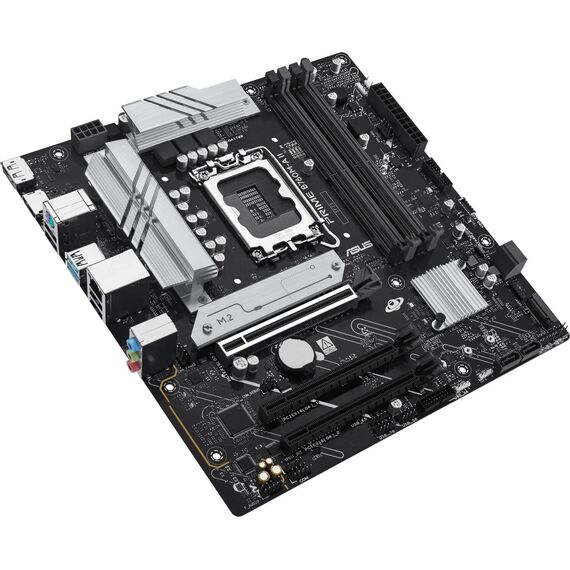

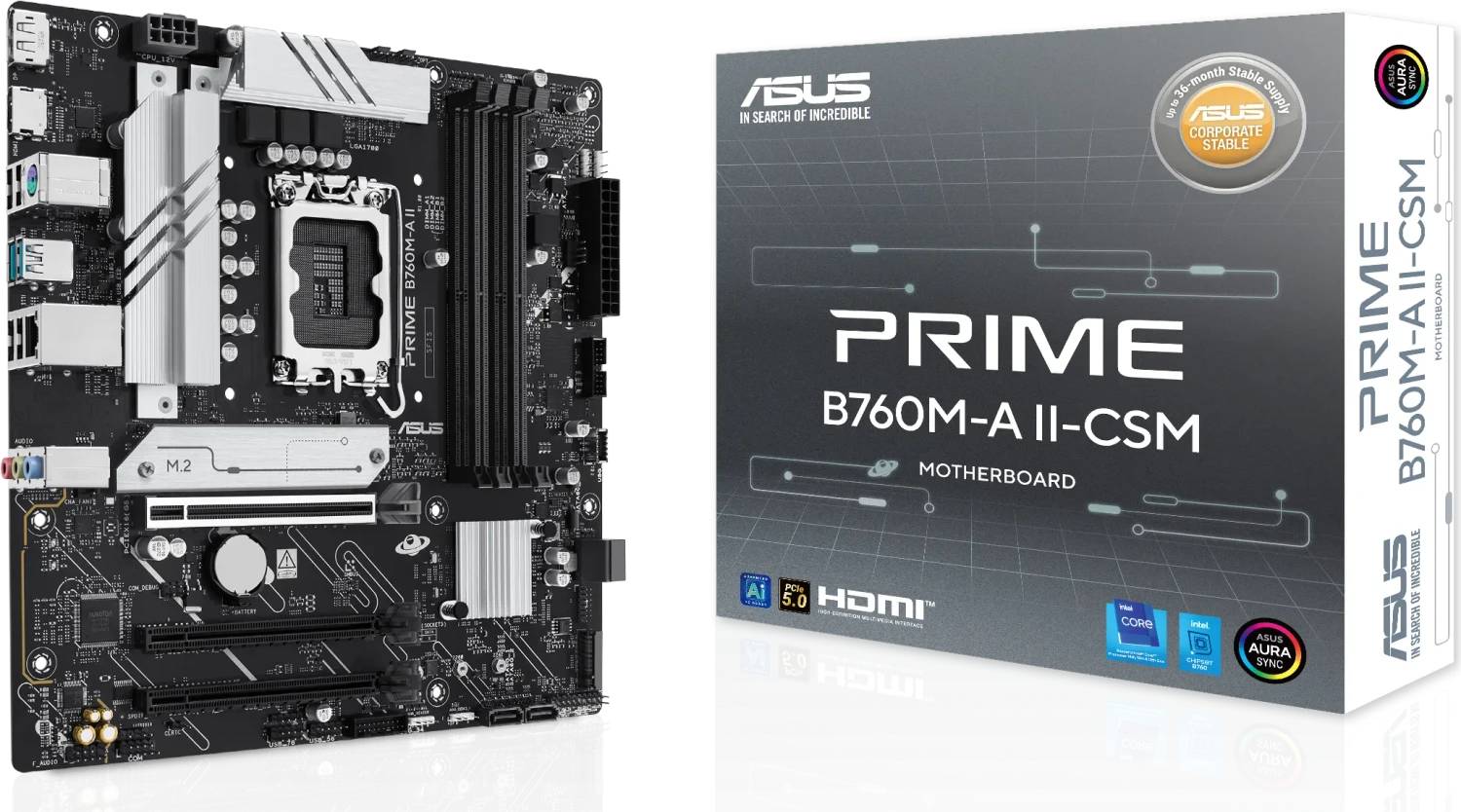

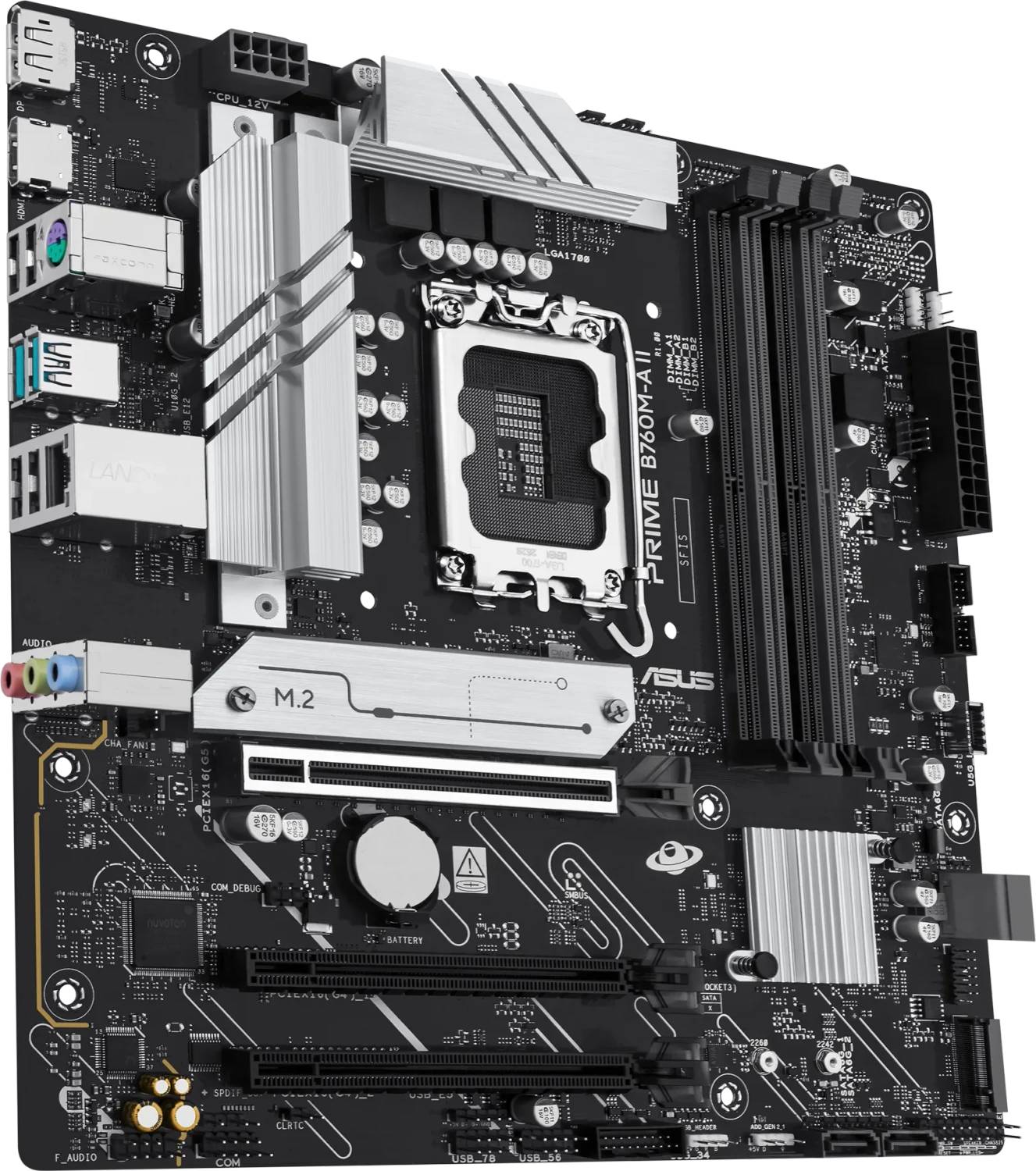

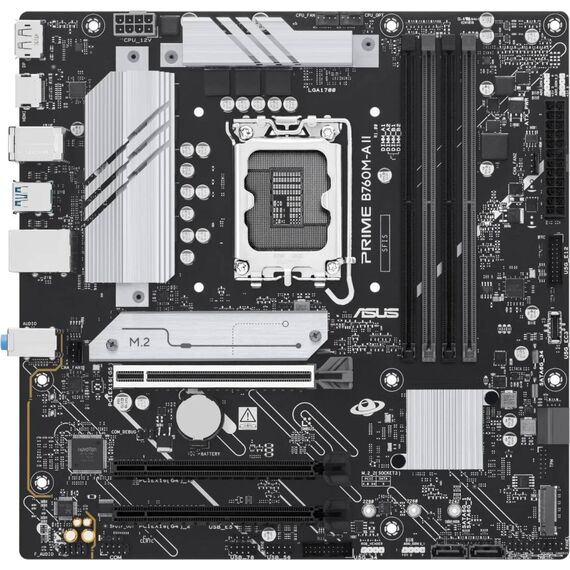

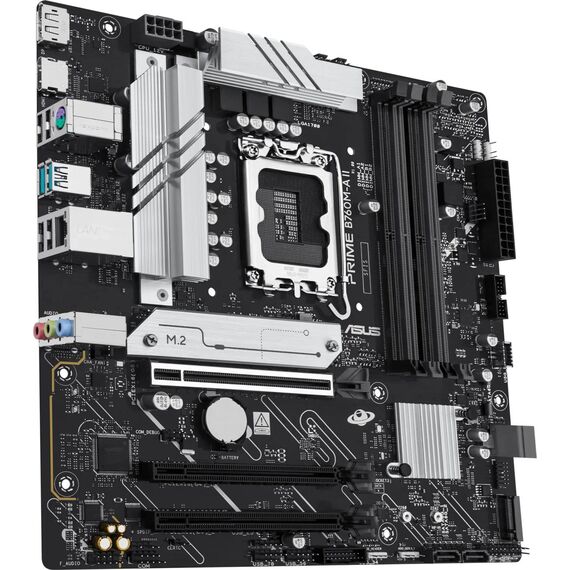

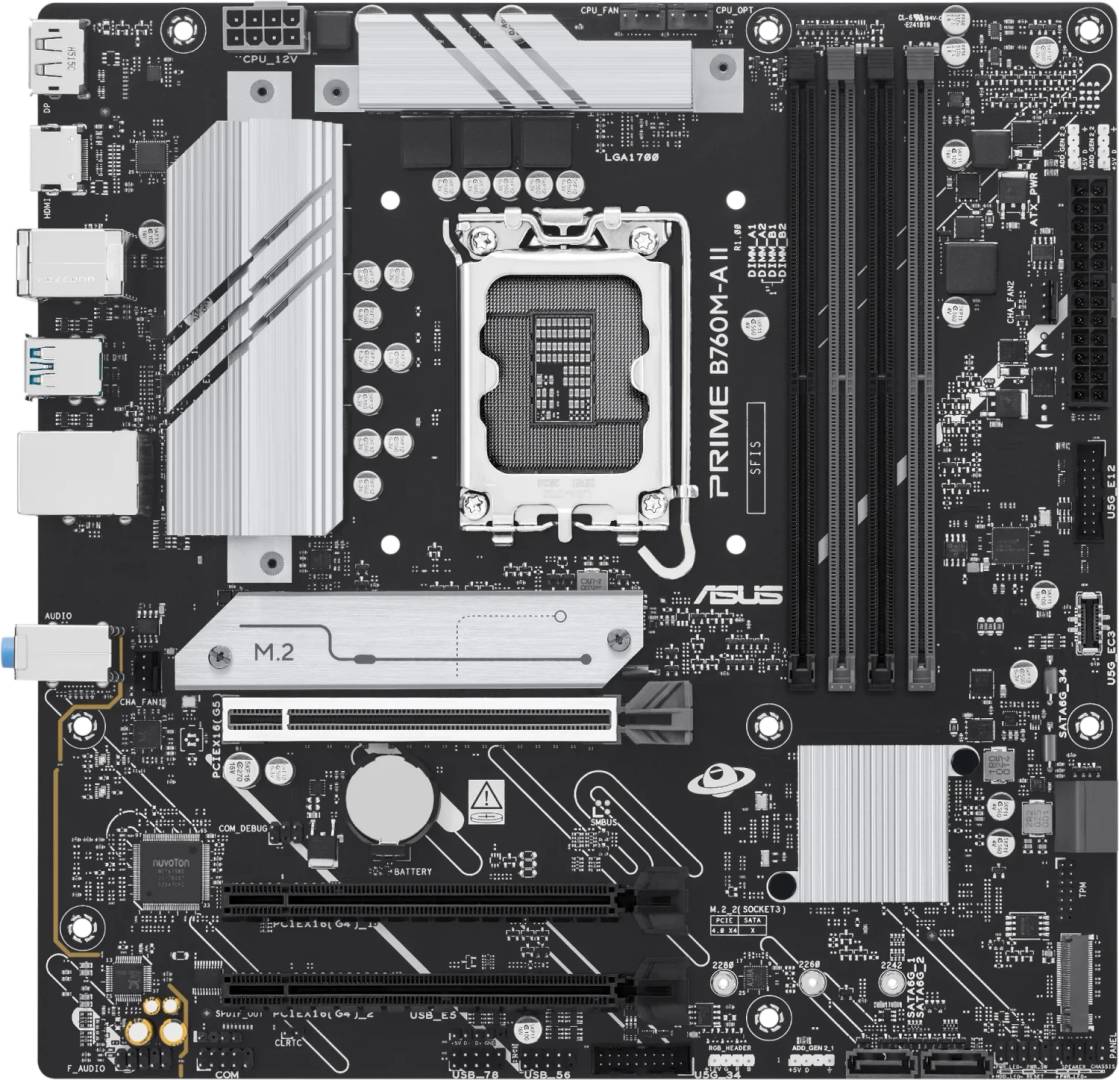

The ASUS PRIME B760M-A II-CSM is a micro-ATX motherboard for Intel LGA1700 processors on the B760 chipset, sold through ASUS’s corporate channel. It takes four DDR5 modules to 256 GB, has a PCIe 5.0 x16 slot for the graphics card, two M.2 sockets and four SATA ports, and carries 2.5 Gigabit Ethernet rather than the plain Gigabit that boards at this price often still ship with. The CSM designation is what separates it from the retail version: same board, plus ASUS Control Center Express management software and a guaranteed product lifecycle, which is why system builders and IT departments buy this variant rather than the shop one.
Compatibility — check before buying:
Three things to check. This board has no Wi-Fi and no Bluetooth — it is a wired-only board, and no antenna is supplied; plan a PCIe or USB adapter if you need wireless. It also has no rear USB-C port: the rear panel is two USB 10 Gbps Type-A, four USB 2.0 Type-A, DisplayPort, HDMI, three audio jacks and a PS/2 combo. A USB-C header is on the board for a front-panel port, so a case with a front Type-C will still give you one. And USB BIOS FlashBack is not supported on this model — a BIOS update needs a working processor installed, so on a very new CPU check the board’s shipped BIOS version with us first. This is the CSM (corporate) SKU; if you specifically want the plain retail box, that is a different part number.
Best For
✓ Business and office builds on Intel 12th, 13th or 14th generation
✓ System builders who need a guaranteed product lifecycle
✓ Fleets managed with ASUS Control Center Express
✓ Wired offices that do not need Wi-Fi on the board
✓ Builds with four memory slots and a PCIe 5.0 graphics slot
✓ Machines carrying several SATA drives across from an older system
Key Features
Four DDR5 slots to 256 GB
Four DIMM slots supporting up to 256 GB of DDR5 at up to 7200+ MT/s under XMP. Four slots on a micro-ATX board is not a given at this level, and it means memory can be added in pairs later rather than replaced wholesale.
PCIe 5.0 for the graphics card
The primary x16 slot runs at PCIe 5.0 from the processor, with two further chipset slots (x4 and x1 electrical in x16 mechanical form). Two M.2 sockets both run PCIe 4.0 x4, and four SATA 6 Gb/s ports with Intel RST RAID 0/1/5/10 handle older drives.
2.5 Gigabit Ethernet with LANGuard
A Realtek 2.5 GbE controller with ASUS LANGuard surge protection, rather than the 1 GbE still common in this segment. On a network with a multi-gig switch or NAS that is a real, everyday difference when moving large files.
CSM: management software and a lifecycle guarantee
The corporate SKU bundles an ASUS Control Center Express activation key for remote management, and carries ASUS’s CSM commitment to a stable product lifecycle with end-of-life notice. For anyone building more than one identical machine, that predictability is the reason to choose this code.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Two things make this board worth choosing and one thing to plan around. The 2.5 Gigabit LAN and the four DDR5 slots are genuinely above what B760 boards at this level usually offer, and the CSM lifecycle guarantee is the reason IT departments specify it — you can order the same board again in a year and get the same board. What to plan around is the missing BIOS FlashBack: on a fresh build with a very new processor, no FlashBack means no recovery path without a working CPU, so confirm the shipped BIOS with us first. Remember too that LGA1700 is a mature socket rather than the current one — that keeps the price sensible but it is not an upgrade path to Intel’s newest desktop parts. Pair it with DDR5 from our memory range and a card from graphics cards. Tell us the processor and we will confirm BIOS support before you order.
Buyer’s Guide
Buy it if
You are building business or office machines on Intel 12th to 14th generation and you want four memory slots, PCIe 5.0 for the graphics card and 2.5 Gigabit networking. The CSM lifecycle guarantee and Control Center Express make it repeatable across a fleet.
Skip it if
You need Wi-Fi or a rear USB-C port — neither is here. Skip it too if you want BIOS FlashBack as a safety net on a brand-new processor, or if you are buying Intel’s newest Core Ultra desktop parts, which use a different socket.
Also consider
The retail PRIME B760M-A II if you do not need the corporate bundle, or a board on Intel’s current desktop socket if you are buying a new-generation processor rather than a 12th to 14th generation one.
