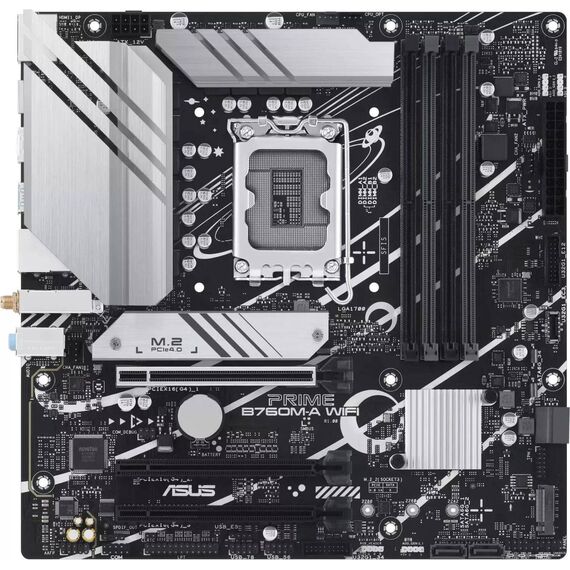

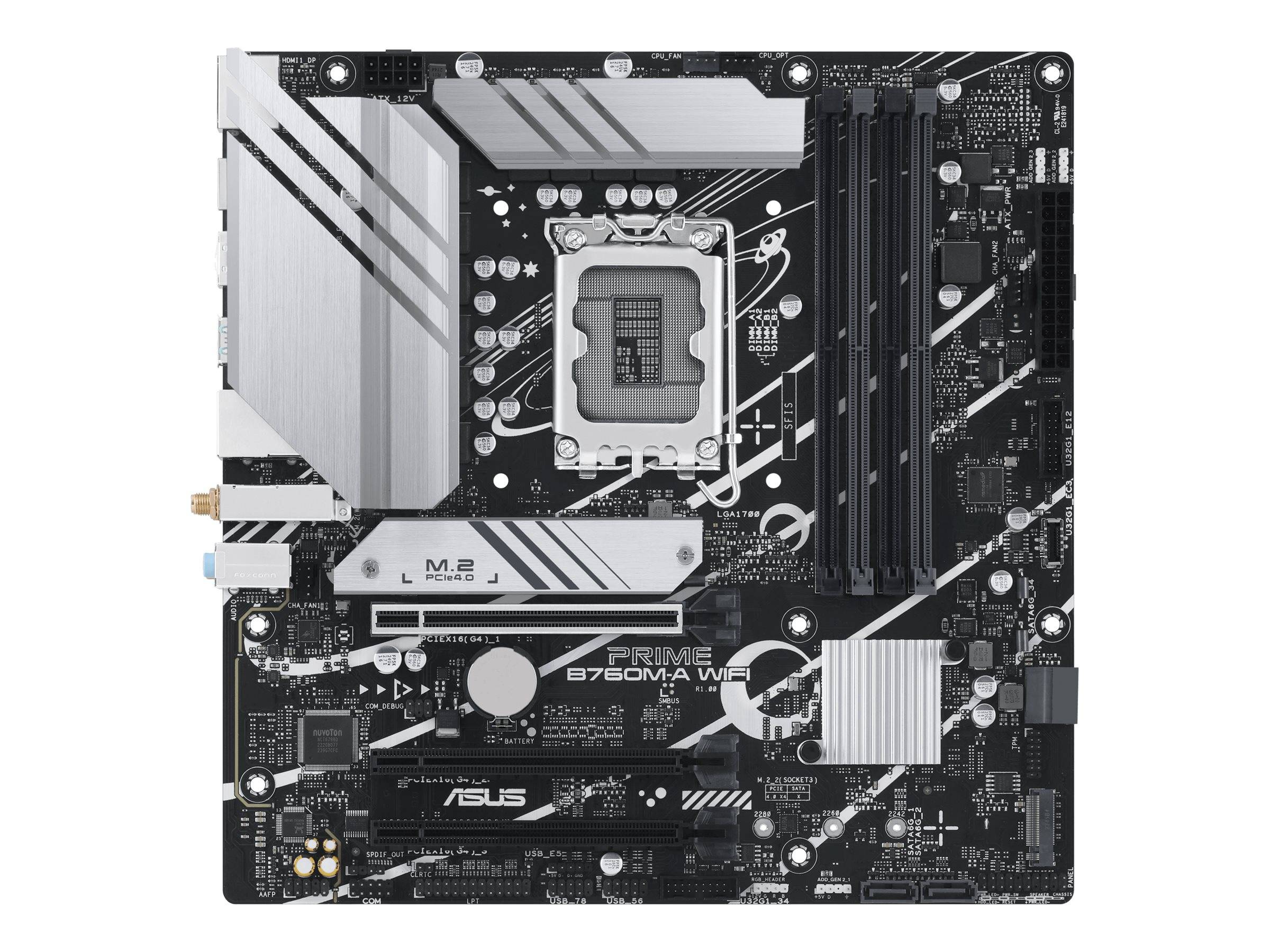

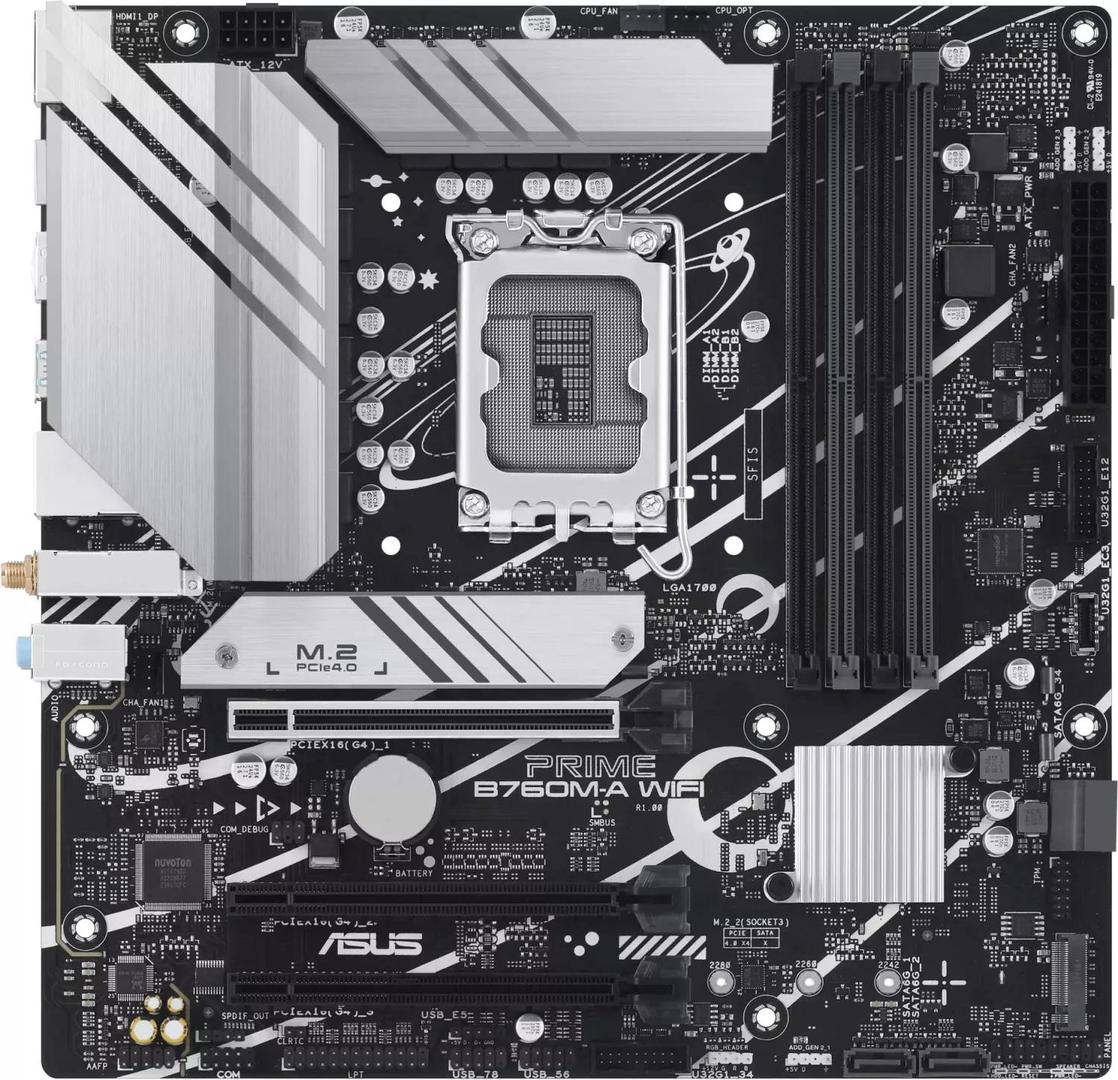

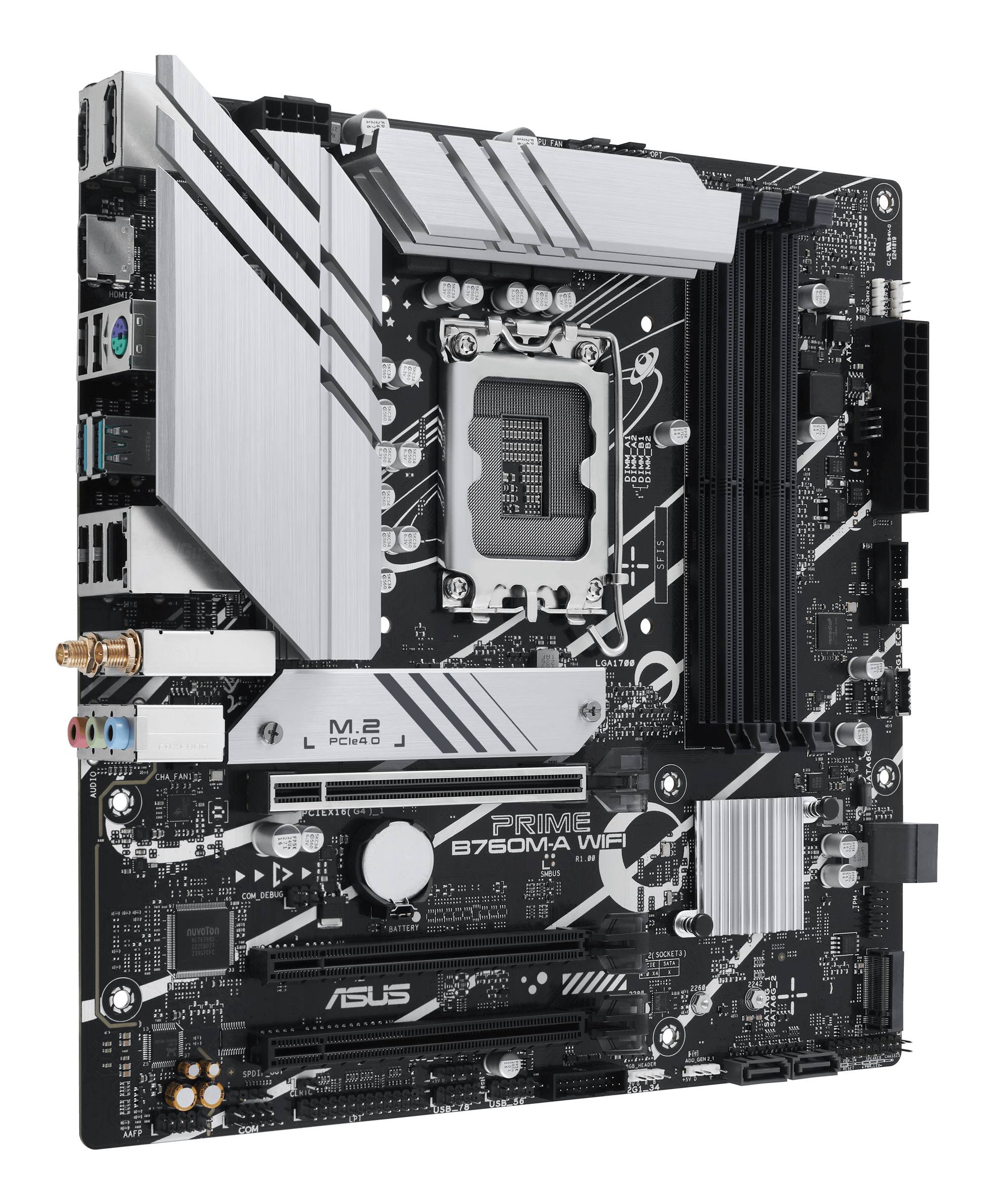

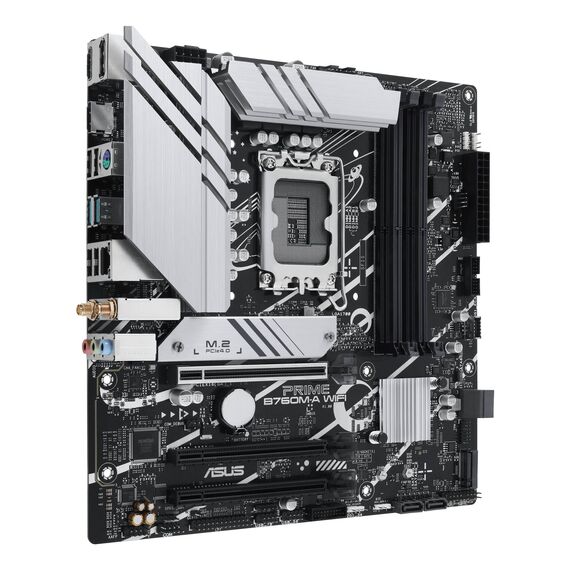

ASUS PRIME B760M-A WIFI / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 2, USB-C 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / High Definition Audio (7.1-channel) | 90MB1EL0-M1EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 4.0 x16 (x1 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

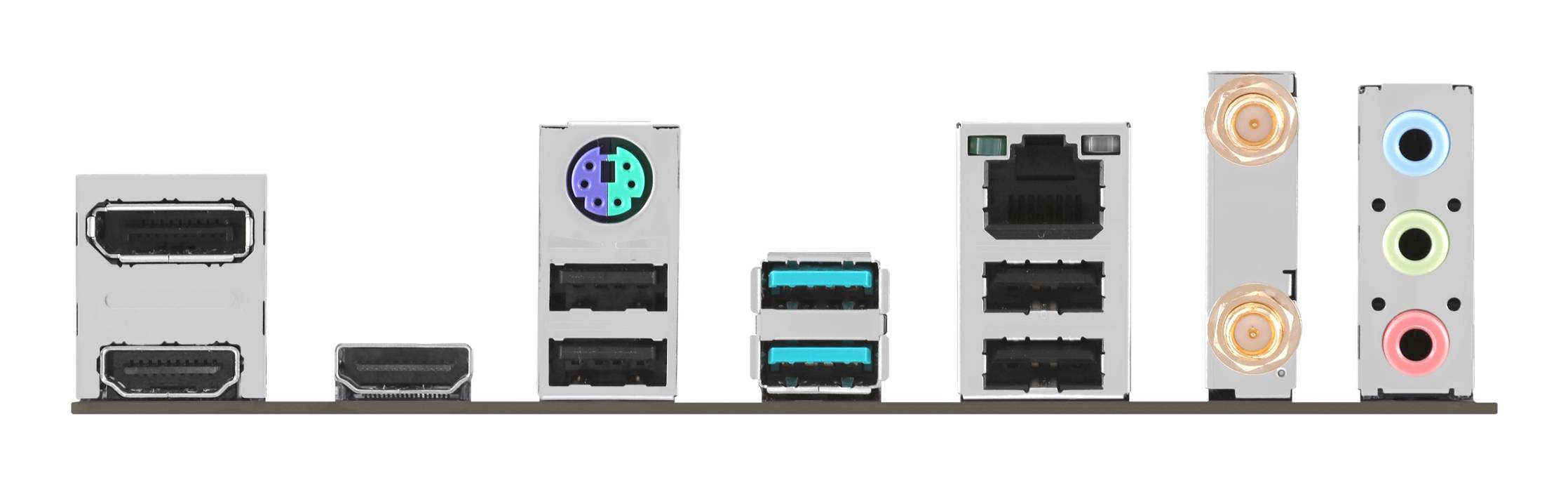

| Interfaces | 2 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Internal Interfaces | 5 x USB 2.0 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, Windows 11 compatible, Q-LED Core, VRM heatsink design |
| Miscellaneous | Miscellaneous |

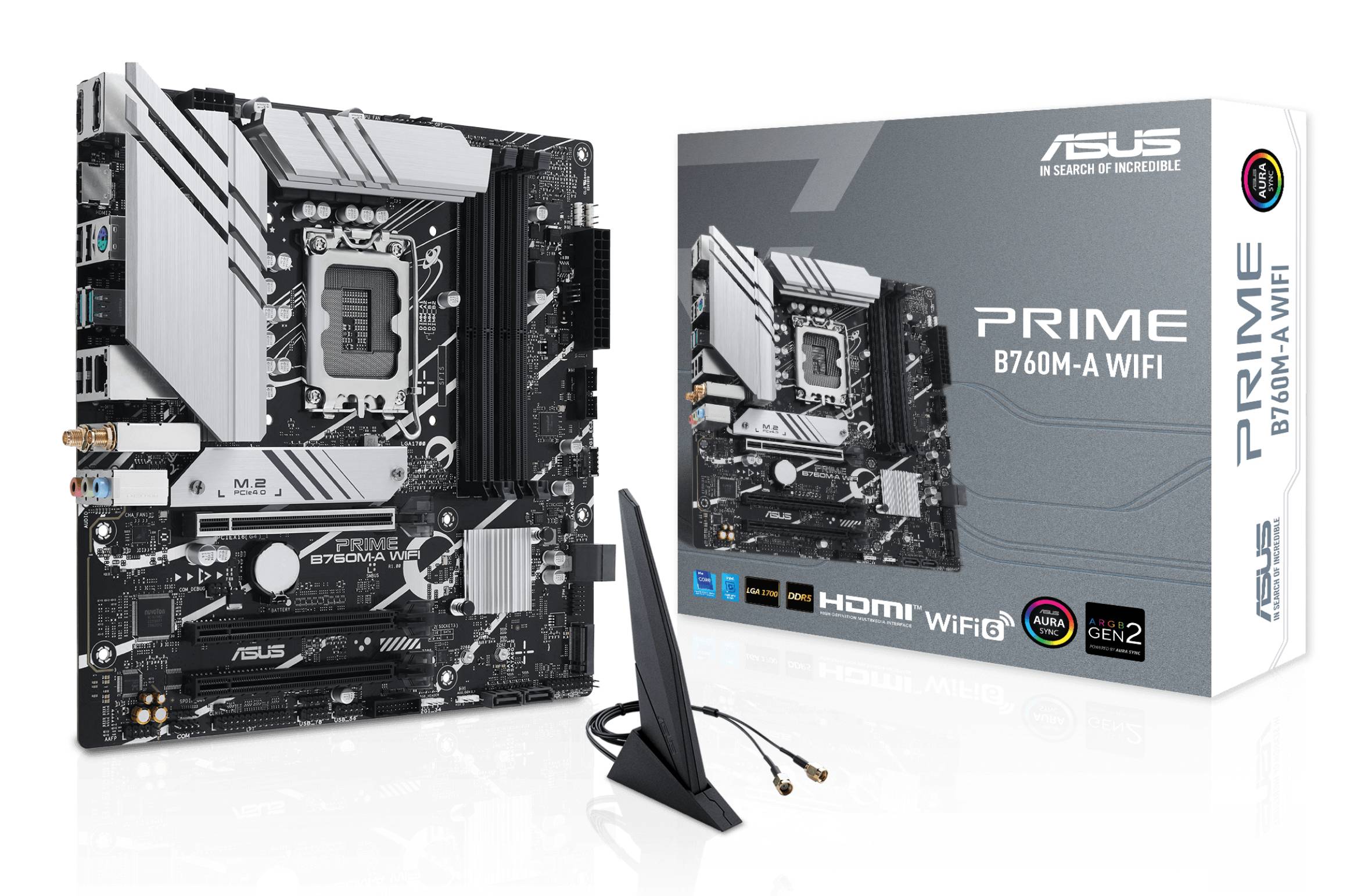

| Included Accessories | IO shield, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, MyAsus, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+ |
| Compliant Standards | VCCI Class B ITE, JATE, RoHS, WEEE, KC, NCC, RCM, FCC Part 15 Class B, DisplayPort 1.4, IMDA, UKCA, EU REACH |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1EL0-M1EAY0
CPU Socket
- Socket 1700
More Details
Product Code
03:217577
EAN Code
4711387131435
Manufacturer
Asus
