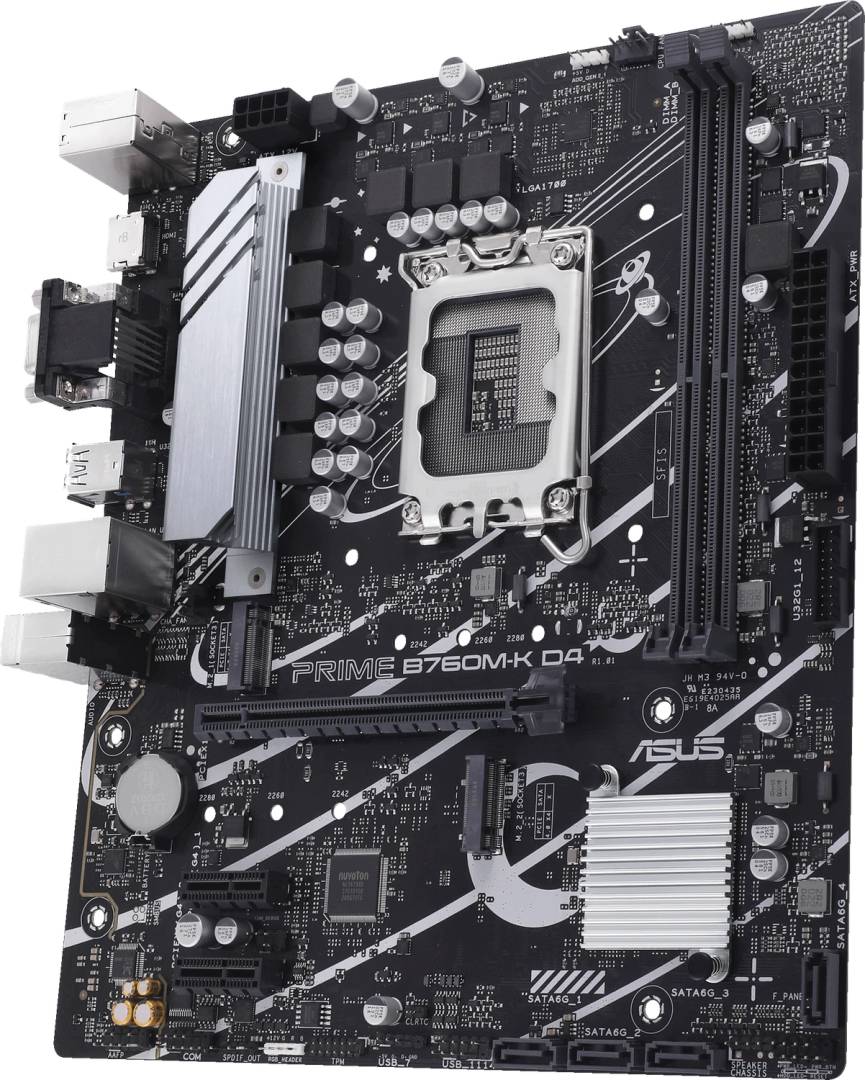

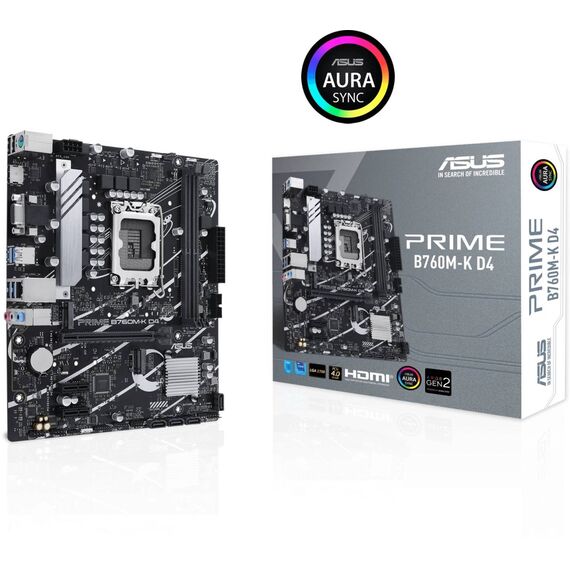

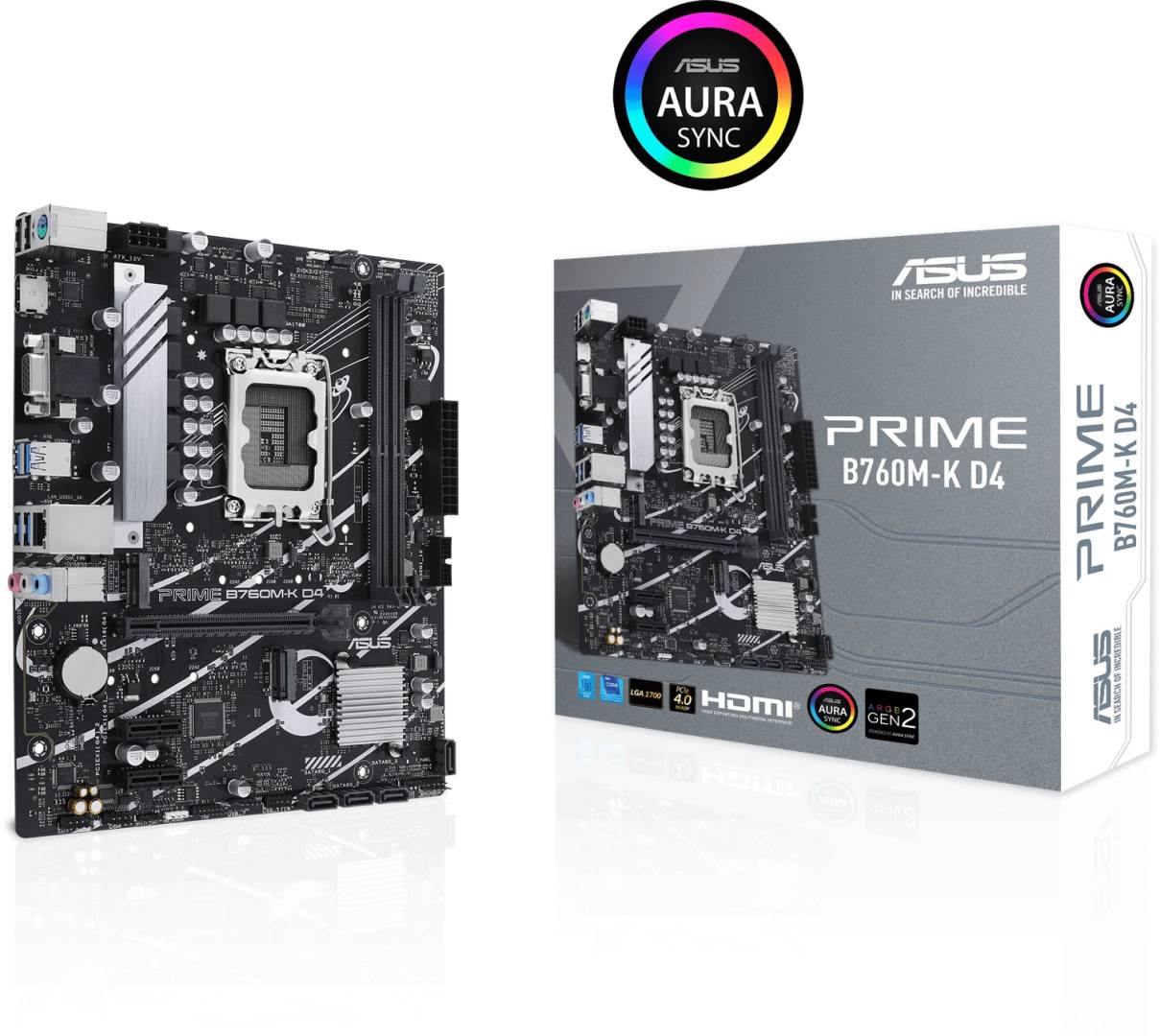

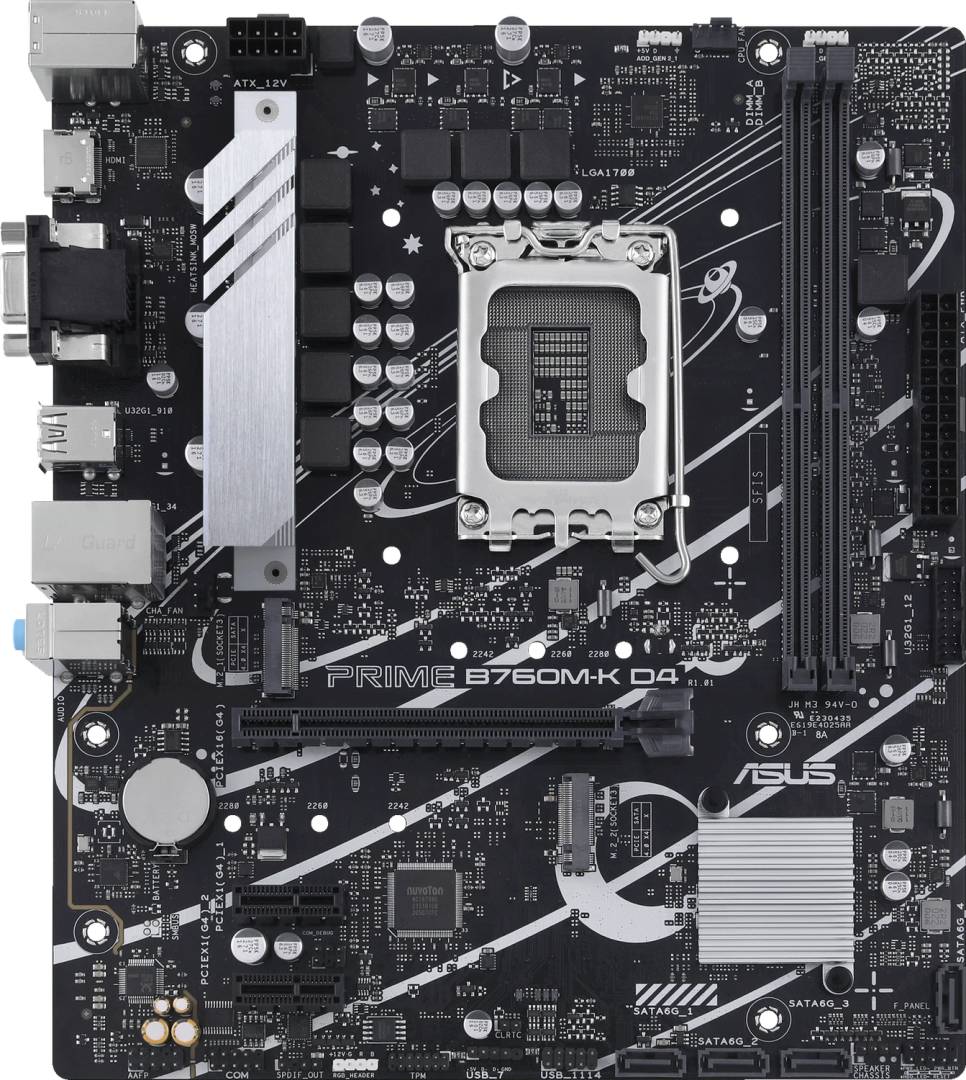

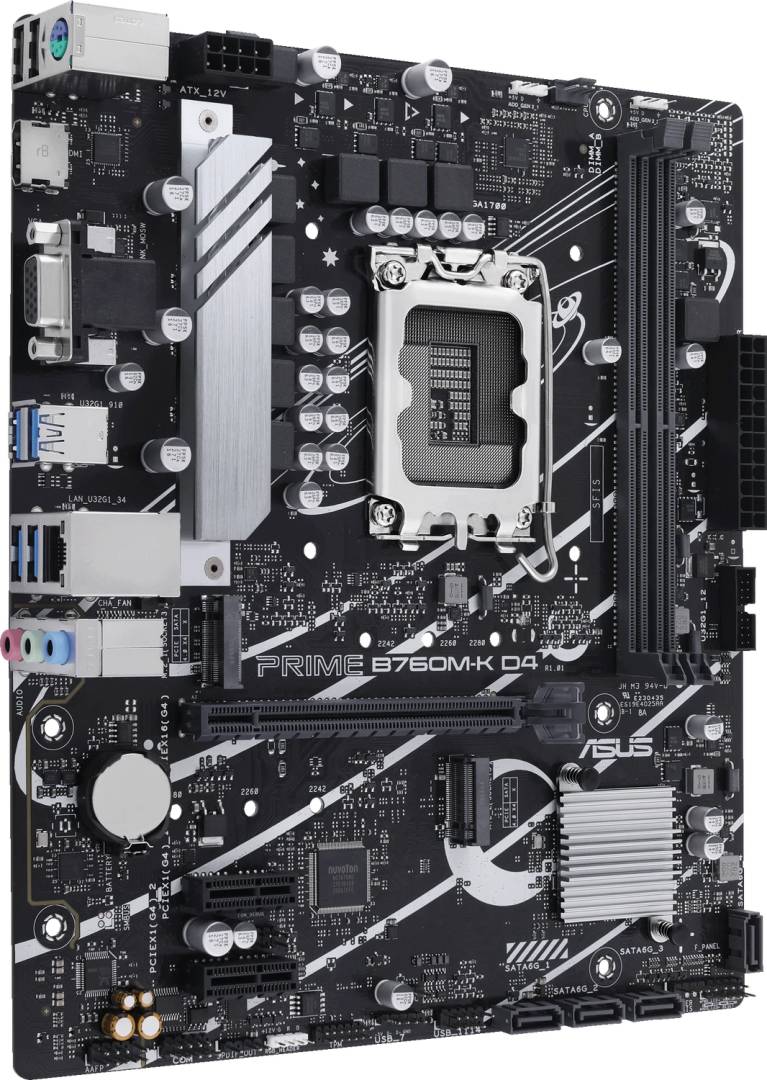

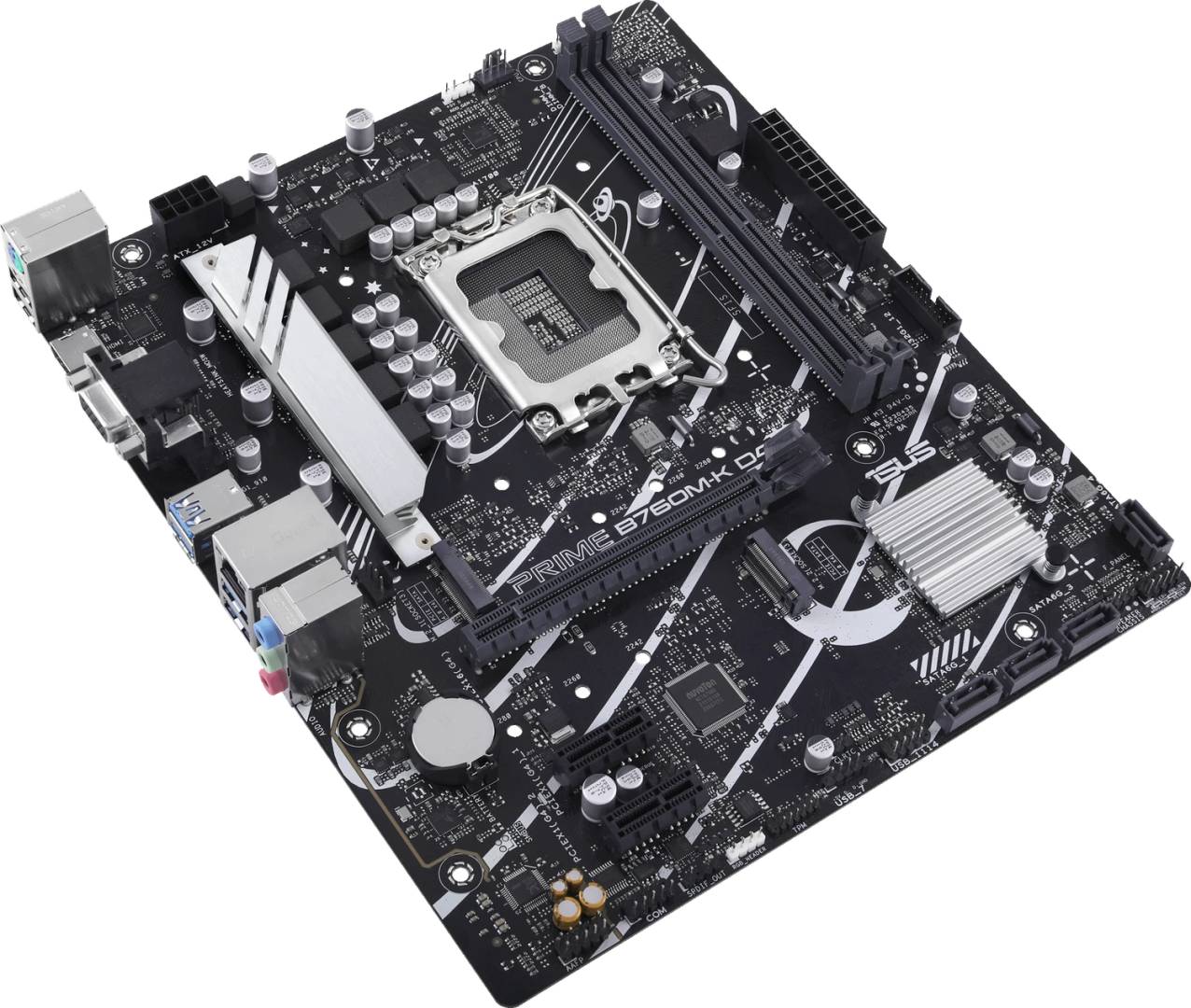

ASUS PRIME B760M-K D4 / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1DS0-M1EAY0
Please sign in so that we can notify you about a reply
Product Features
- All-around energy efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. - Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. - VRM heatsink and thermal pad
VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance. - ProCool connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. - DDR4 support
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. - Two M.2 slots (up to 64 Gbps)
The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. - PCIe 4.0 slot
The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel CPUs and offer PCIe 4.0 connectivity for the GPUs. - Realtek 2.5 Gb Ethernet
Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
Special Features
- Intel LGA 1700 socket - ready for 13th and 12th Gen Intel processors
- Ultrafast connectivity - PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5 Gb Ethernet and front USB 3.2 Gen 1 support
- Comprehensive cooling - VRM heatsink, PCH heatsink, hybrid fan headers
- Aura Sync RGB Lighting - onboard addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features | Intel Rapid Storage Technology |

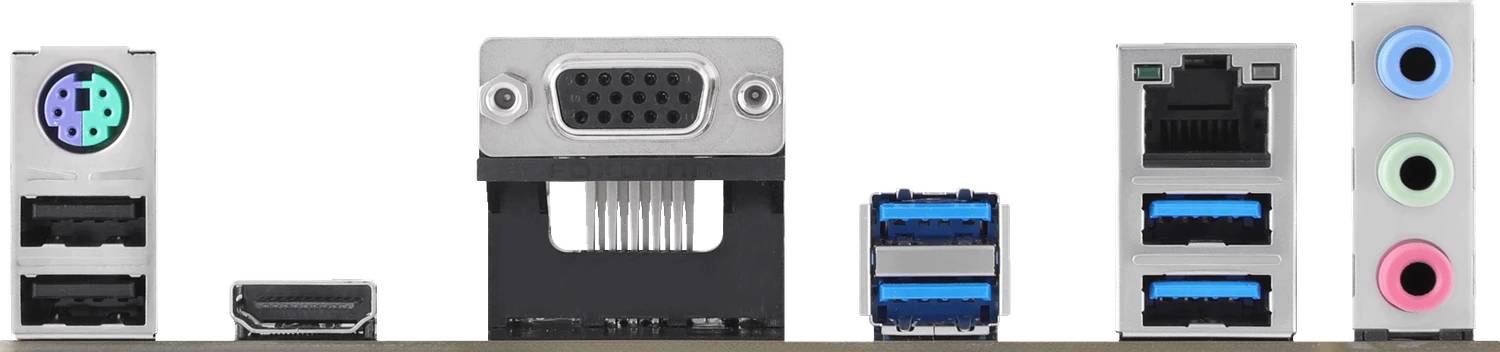

| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack |
| Internal Interfaces | 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, Windows 11 compatible, Q-LED Core, VRM heatsink design |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 2 x M.2 anchors |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert |
| Width | 24.4 cm |
| Depth | 21.1 cm |
Features - Asus - 90MB1DS0-M1EAY0
CPU Socket
- Socket 1700
More Details
Product Code
03:225769
EAN Code
4711387006917
Manufacturer
Asus
