ASUS Pro A620M-C-CSM Business Micro-ATX Motherboard Socket AM5 AMD A620 DDR5 PCIe 4.0 Dual M.2 2.5GbE Black

Brand:
ASUS
ASUS PRO A620MCCSM 90MB1F80M0EAYC
ASUS Pro A620M-C-CSM Business Micro-ATX Motherboard Socket AM5 AMD A620 DDR5 PCIe 4.0 Dual M.2 2.5GbE Black
€159.86 inc. VAT
Buy
90MB1F80-M0EAYC
€134.34 €149.27
€159.86 inc. VAT
Ships from EU stock: 45 item(s)
+ −
Add to wish list Ask a question
Product Code
04:432981
EAN Code
4711387239704
Manufacturer
ASUS
Quick Specs
Socket
AMD AM5
Chipset
AMD A620
Memory
2× DDR5, up to 96GB
Form Factor
Micro-ATX
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

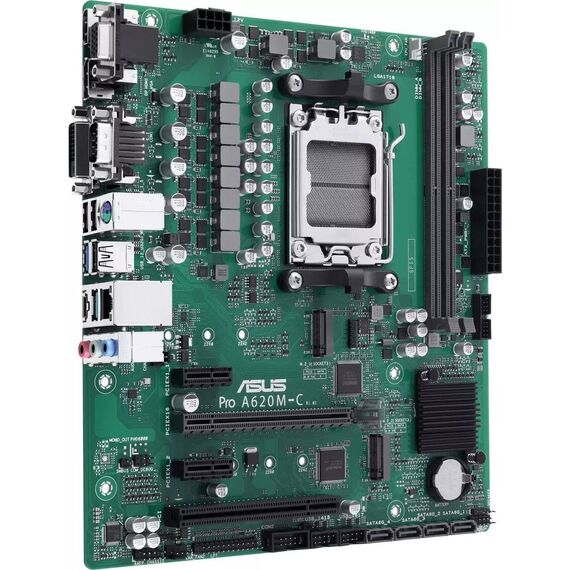

ASUS Pro A620M-C-CSM — Business Micro-ATX for AMD AM5

AMD AM5 · A6202× DDR5 up to 96GBPCIe 4.0 + Dual M.22.5GbE · Quad Display

The ASUS Pro A620M-C-CSM is a business-focused micro-ATX motherboard built on the entry AMD A620 chipset and the Socket AM5 platform, supporting AMD Ryzen 9000, 8000 and 7000 Series processors (up to 120W). Sold under ASUS part number 90MB1F80-M0EAYC (EAN 4711387239704), it brings DDR5 to a value AM5 platform with a PCIe 4.0 graphics slot, dual PCIe 4.0 M.2 slots, SATA storage, 2.5GbE networking and quad display output (HDMI, DisplayPort, DVI-D and VGA) — with commercial-grade reliability and manageability. Typically in stock with fast delivery across Cyprus.

Compatibility — read before buying
This is an AMD Socket AM5 board on the entry A620 chipset, supporting Ryzen 7000 / 8000 / 9000 processors (up to 120W) — it is not compatible with Intel CPUs or older AMD AM4 (Ryzen 5000 and earlier). It uses DDR5 memory only (not DDR4) and runs at PCIe 4.0 (the A620 chipset does not provide PCIe 5.0, and CPU overclocking is not supported).

Best For

✓Business and office AMD AM5 desktops
✓Multi-monitor productivity setups (quad display)
✓Value AM5 builds on DDR5
✓Reusing or buying into the AM5 platform affordably
✓Dual NVMe storage
✓IT-managed commercial deployments

Key Features


CSM business reliability
As an ASUS Pro CSM commercial board it offers enhanced reliability, security and manageability features, plus durable stainless-steel I/O, for corporate fleets.

Quad display output
HDMI, DisplayPort, DVI-D and VGA outputs drive up to four monitors from a Ryzen APU’s integrated graphics — ideal for office and trading desks.

DDR5 + 2.5GbE
Two DDR5 DIMM slots support up to 96GB at up to 8000+ MHz (OC), with integrated 2.5GbE LAN for fast wired networking.

Dual PCIe 4.0 M.2
Two PCIe 4.0 M.2 slots plus SATA III ports with RAID, a USB-C port and Q-LED Core diagnostics for easy storage and troubleshooting.

Technical Specifications

Identification
Part Number 90MB1F80-M0EAYC
EAN / GTIN 4711387239704
Model ASUS Pro A620M-C-CSM
Brand ASUS
Platform
Chipset AMD A620
Socket AMD AM5
CPU Support Ryzen 9000 / 8000 / 7000 (up to 120W)
Form Factor Micro-ATX
Program CSM — Corporate Stable Model
Memory
Slots 2× DDR5 DIMM (Dual-Channel)
Max Capacity 96GB
Speed 4800 – 8000+ MHz (OC)
Expansion & Storage
PCIe PCIe 4.0 expansion
M.2 2× M.2 PCIe 4.0
SATA SATA III 6Gb/s with RAID
Connectivity & I/O
LAN 2.5GbE LAN (RJ-45)

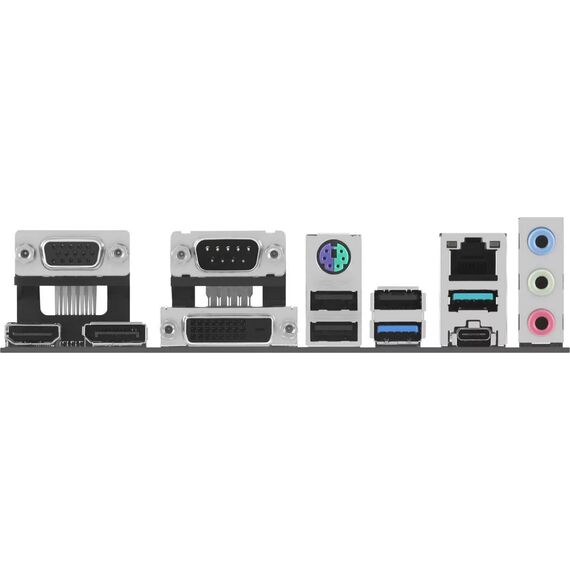

Display Out 1× HDMI + 1× DisplayPort + 1× DVI-D + 1× VGA
Rear USB USB 3.2 Gen 2 Type-C + USB Type-A (front USB 3.2 Gen 1 header)
Diagnostics Q-LED Core
Other
Colour Black
Operating System Windows 11 64-bit

Frequently Asked Questions

Which CPUs work with the ASUS Pro A620M-C-CSM?
It supports AMD Ryzen 9000, 8000 and 7000 Series processors (up to 120W) on Socket AM5. It does not support Intel CPUs or older AMD AM4 (Ryzen 5000 and earlier).
Does it support PCIe 5.0 or overclocking?
No. The entry A620 chipset runs at PCIe 4.0 and does not support CPU overclocking. For PCIe 5.0 and overclocking, choose a B650/B850 board.
How many monitors can it drive?
Using a Ryzen APU’s integrated graphics it offers HDMI, DisplayPort, DVI-D and VGA outputs, supporting up to four monitors directly from the motherboard.
Does it use DDR4 or DDR5?
DDR5 only. Two DDR5 DIMM slots support up to 96GB at up to 8000+ MHz (OC). DDR4 is not supported on the AM5 platform.
Singular Expert Insight
The Pro A620M-C-CSM is the affordable, business-oriented way onto the AM5 platform — quad display output, 2.5GbE, dual M.2 and commercial reliability make it ideal for office and corporate Ryzen 7000/9000 desktops. Note the A620 chipset is PCIe 4.0 only with no CPU overclocking; for PCIe 5.0 and overclocking, a B850/B650 board like the ASRock B850M Pro RS is the step up. Pair it with a reliable internal NVMe SSD for fast, dependable storage.

Buyer's Guide

Buy it if
You want an affordable, manageable AMD AM5 business board with DDR5, quad display output and 2.5GbE for office or corporate use.
Skip it if
You want PCIe 5.0, CPU overclocking, four DIMM slots, or built-in Wi-Fi — choose a B650/B850 board.
Also consider
The ASRock B850M Pro RS WiFi (PCIe 5.0, Wi-Fi) or a B650 board for more performance.

Features - ASUS - 90MB1F80-M0EAYC

CPU Socket
  • Socket AM5
Colour
black
Interface
  • USB Type-C,
  • USB3.1,
  • M.2,
  • Ethernet
More Details
Product Code
04:432981
EAN Code
4711387239704
Manufacturer
ASUS
