ASUS Pro B760M-C-CSM Intel B760 LGA1700 DDR5 Micro-ATX Business Motherboard 90MB1DX0-M1EAYC

Brand:
ASUS

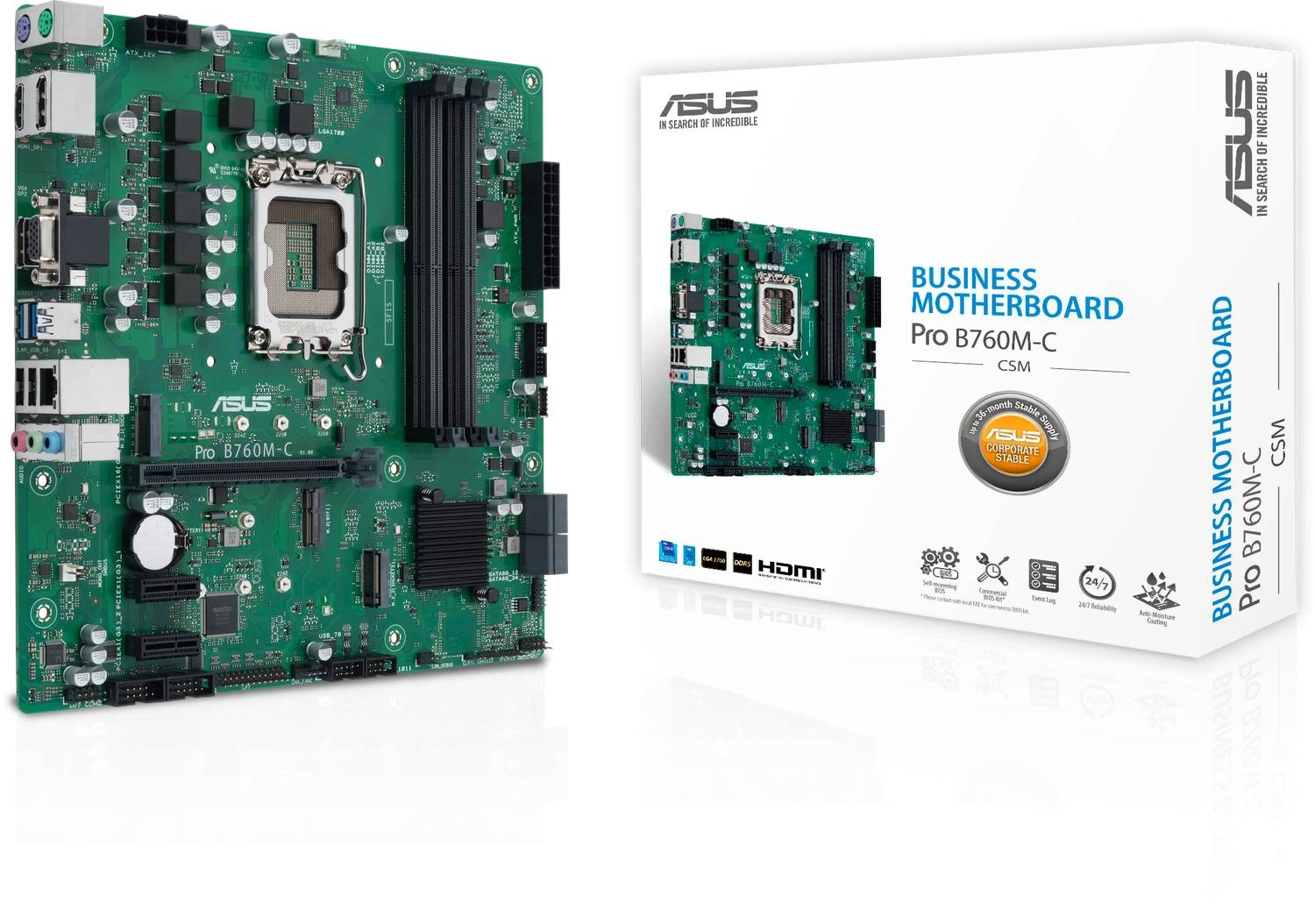

ASUS Pro B760M-C-CSM Intel B760 LGA1700 DDR5 Motherboard
ASUS Pro B760M-C-CSM Intel B760 LGA1700 DDR5 Micro-ATX Business Motherboard 90MB1DX0-M1EAYC
€194.22 inc. VAT
Buy
90MB1DX0-M1EAYC
€163.21 €181.34
€194.22 inc. VAT
Ships from EU stock: 147 item(s)
+ −
Add to wish list Ask a question
Product Code
04:421779
EAN Code
4711387014691
Manufacturer
ASUS

Quick Specs

Socket / Chipset
LGA1700 / Intel B760
Memory
4x DDR5, up to 192GB
Storage
2x PCIe 4.0 M.2 + 4x SATA
Networking
Intel 1Gb Ethernet
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ASUS Pro B760M-C-CSM — Business-Focused LGA1700 Platform

Intel B760LGA1700DDR5ASUS CSM

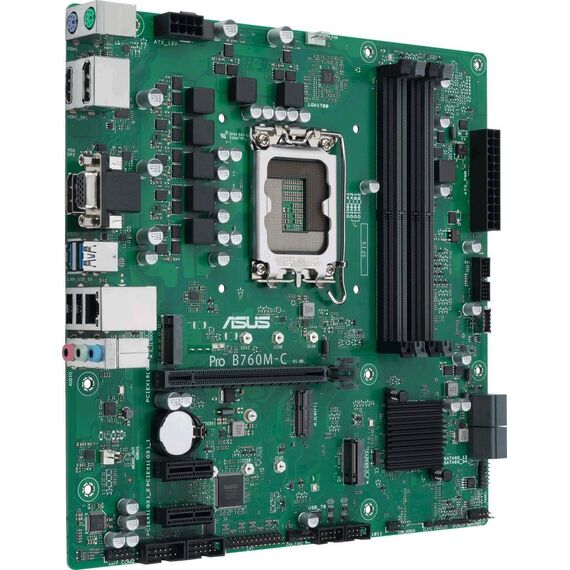

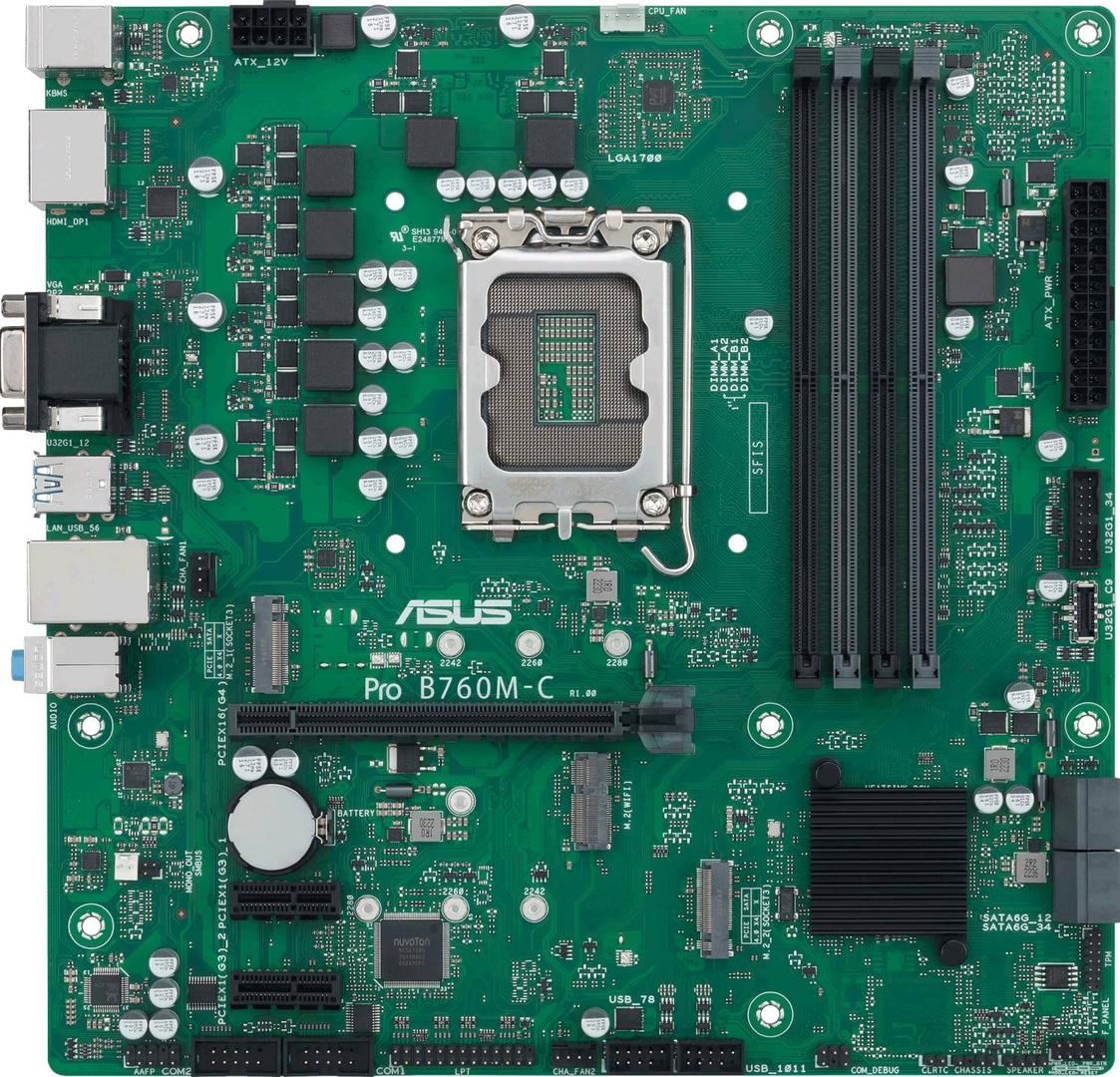

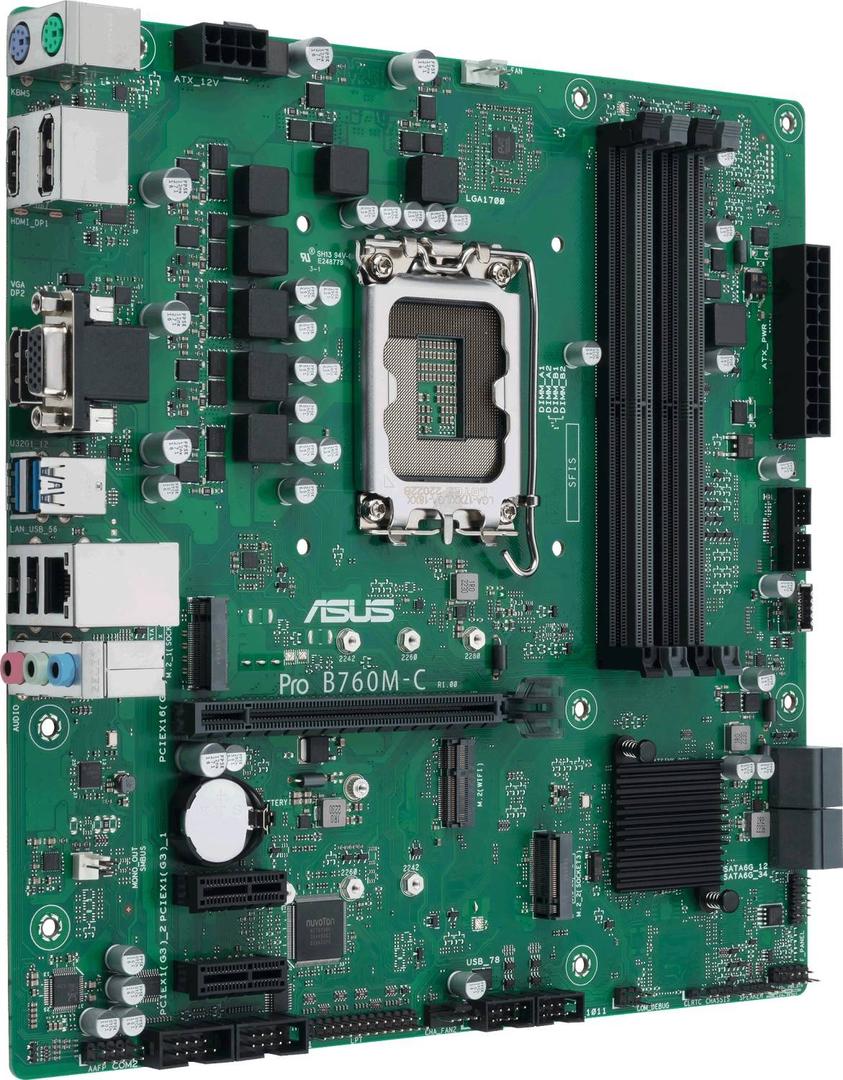

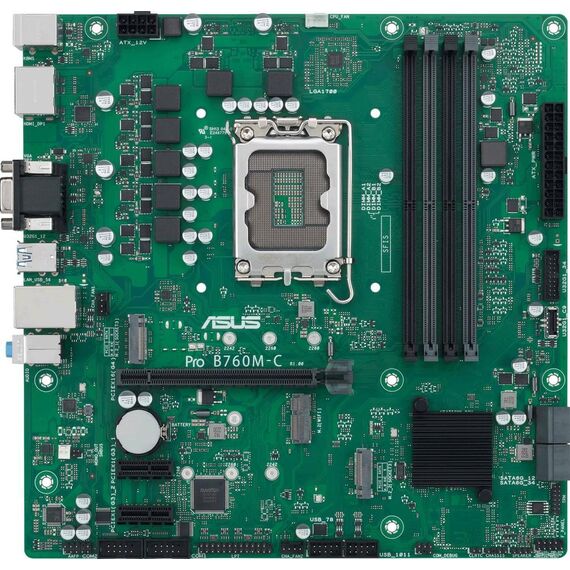

The ASUS Pro B760M-C-CSM is a Micro-ATX business motherboard based on the Intel B760 chipset and LGA1700 socket. It supports 14th, 13th and 12th Generation Intel Core processors along with compatible Pentium Gold and Celeron models, while offering four DDR5 DIMM slots, two PCIe 4.0 M.2 storage sockets, Intel Gigabit Ethernet and flexible multi-display connectivity. ASUS Corporate Stable Model features are aimed at managed business deployments that value long product availability, serviceability and IT administration tools.

Compatibility — check before buying:
This motherboard uses DDR5 memory and the LGA1700 socket. DDR4 DIMMs are not compatible. ASUS currently lists support for 14th, 13th and 12th Generation Intel Core processors, but the exact processor and BIOS combination should be checked on the ASUS CPU support list. The two DisplayPort outputs, HDMI and VGA rely on processor graphics capability. The onboard M.2 Key E slot supports a separately purchased Wi-Fi module; wireless networking is not included as standard.

Best For

✓ Office and business desktop deployments
✓ Managed IT and ASUS CSM environments
✓ Multi-monitor productivity systems
✓ DDR5 systems with dual NVMe storage

Key Features


LGA1700 with Intel B760
ASUS lists support for 14th, 13th and 12th Generation Intel Core processors, plus compatible Pentium Gold and Celeron CPUs. Turbo Boost support depends on the installed processor.

DDR5 up to 192GB
Four DDR5 DIMM sockets support dual-channel memory with a current ASUS-listed maximum capacity of 192GB. XMP profiles and ASUS OptiMem II are supported, with attainable memory data rates dependent on processor and DIMM configuration.

Dual PCIe 4.0 M.2 storage
Two M.2 Key M sockets support 2242, 2260 and 2280 PCIe 4.0 x4 storage devices. One slot connects through the processor and the second through the B760 chipset, alongside four SATA 6Gb/s ports with Intel RAID support for SATA devices.

Built for business management
ASUS Corporate Stable Model features include ASUS Control Center Express support, Self-Recovering BIOS, event logging, commercial BIOS tools, Q-LED Core diagnostics and business-oriented lifecycle support.

Technical Specifications

Identification
Brand ASUS
Model Pro B760M-C-CSM
Manufacturer Part Number 90MB1DX0-M1EAYC
EAN / GTIN 4711387014691
Processor & Chipset
CPU Socket Intel LGA1700
CPU Support 14th, 13th and 12th Gen Intel Core, Pentium Gold and Celeron processors; exact support depends on CPU and BIOS version
Chipset Intel B760
Memory
Memory Type DDR5 non-ECC unbuffered
DIMM Slots 4
Maximum Memory 192GB
Memory Speeds DDR5-6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800; actual support depends on CPU and memory configuration
Memory Features Dual-channel architecture, Intel XMP, ASUS OptiMem II
Expansion & Storage
Main Expansion Slot 1x PCIe 4.0/3.0 x16
Additional PCIe 2x PCIe 3.0 x1
M.2 Storage 2x M.2 Key M, 2242 / 2260 / 2280, PCIe 4.0 x4
SATA 4x SATA 6Gb/s
SATA RAID Intel Rapid Storage Technology with RAID 0 / 1 / 5 / 10
Display, Networking & Audio
DisplayPort 2x DisplayPort 1.4, up to 4K at 60Hz; CPU graphics support required
HDMI 1x HDMI 2.1, up to 4K at 60Hz; CPU graphics support required
VGA 1x VGA; CPU graphics support required
Ethernet Intel 1Gb Ethernet with ASUS LANGuard
Wireless Upgrade 1x M.2 Key E slot for CNVi / PCIe Wi-Fi modules; wireless module sold separately
Audio Realtek 7.1-channel High Definition Audio, up to 24-bit / 192kHz playback
USB & Rear I/O
Rear USB 2x USB 3.2 Gen 1 Type-A + 2x USB 2.0 Type-A
Front USB-C 1x internal USB 3.2 Gen 1 connector supporting front-panel USB Type-C

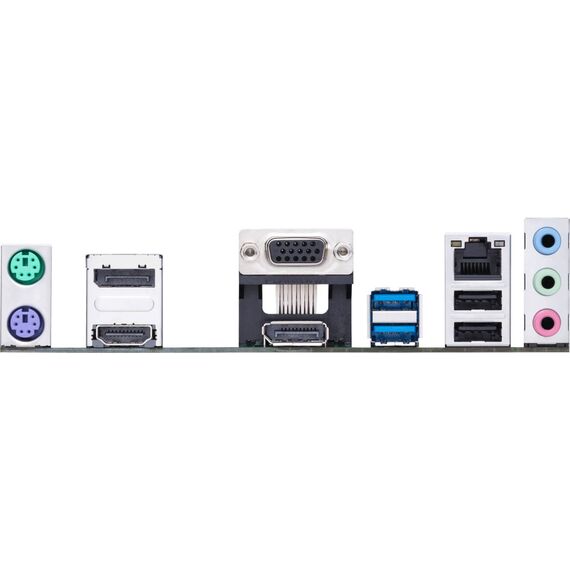

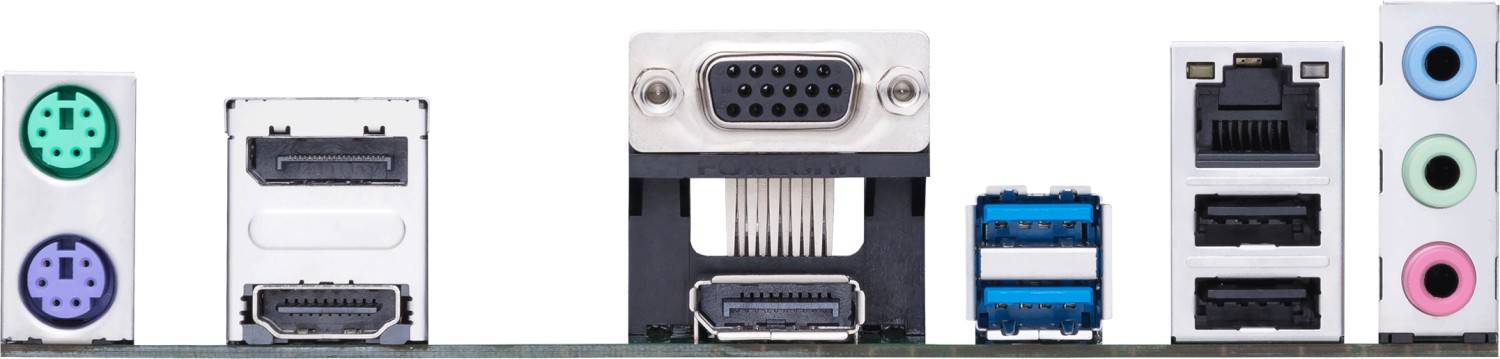

Other Rear I/O 1x PS/2 keyboard, 1x PS/2 mouse, 1x RJ-45, 3x audio jacks
Business Features & Physical
ASUS CSM Corporate Stable Model program with ASUS Control Center Express support
Management WOL by PME and PXE
Form Factor Micro-ATX
Dimensions 24.4 x 24.4 cm
Operating System Windows 11 and Windows 10 64-bit

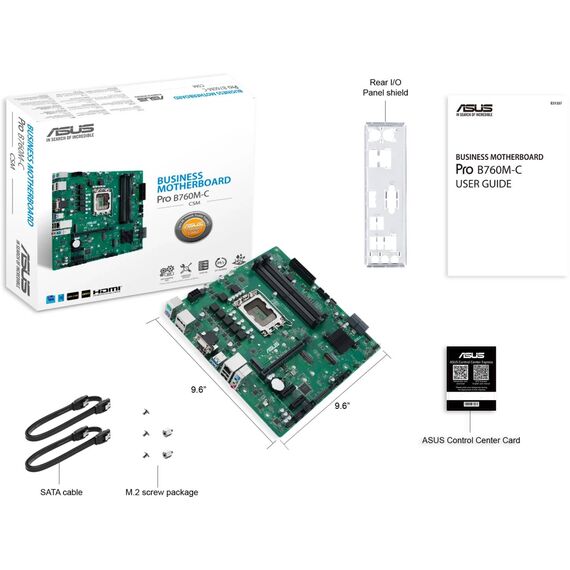

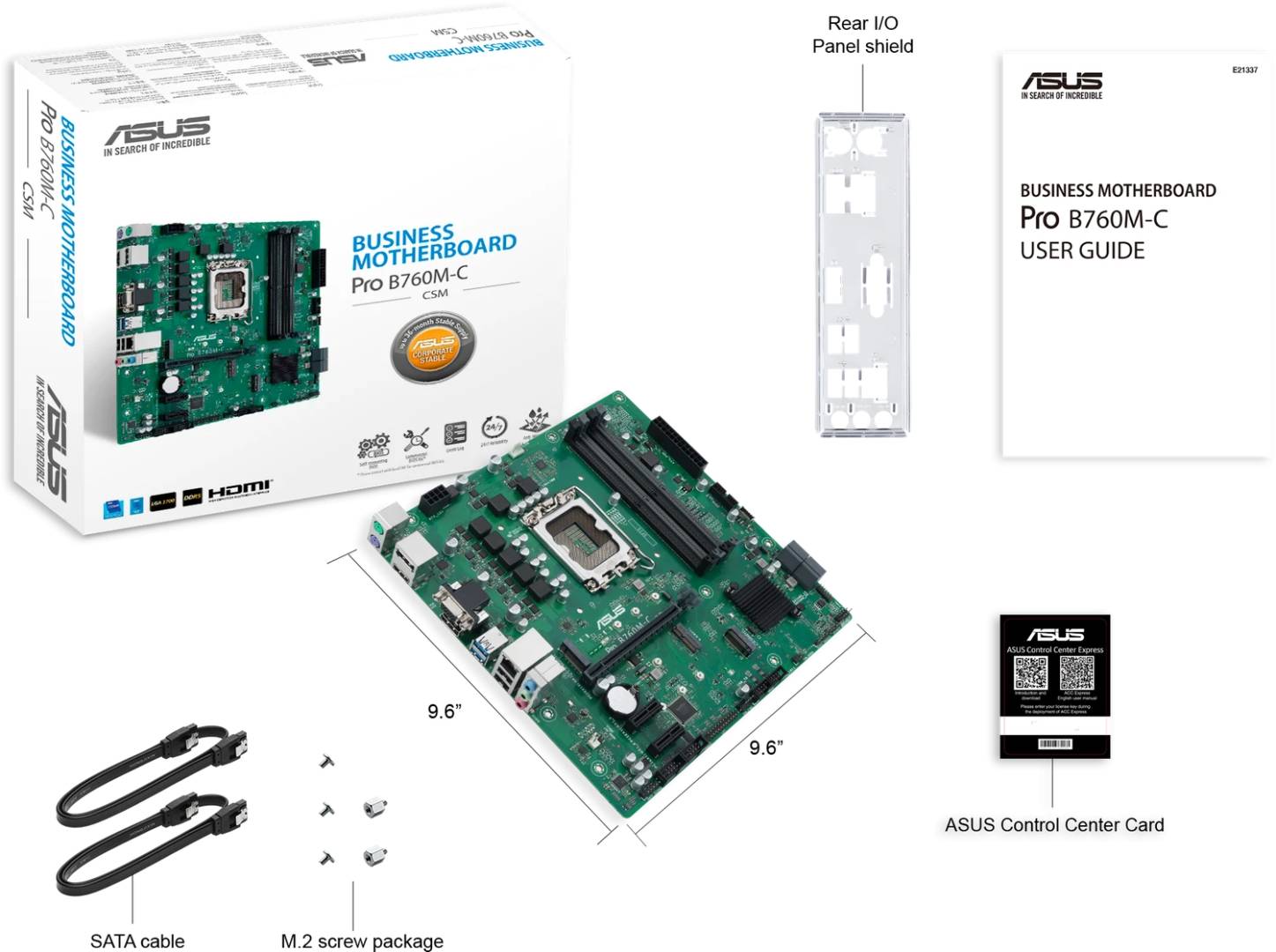

Package Contents 2x SATA 6Gb/s cables, I/O shield, M.2 SSD screw package, M.2 Key E screw package, ACC Express Activation Key Card and user guide

Frequently Asked Questions

Does it support Intel 14th Gen processors?
Yes. ASUS currently lists 14th, 13th and 12th Generation Intel Core support. Check the CPU support list for your exact processor and the required BIOS revision before installation.
Can I use DDR4 memory?
No. The Pro B760M-C-CSM uses DDR5 memory only. DDR4 modules are not compatible with its DIMM sockets.
Does it include Wi-Fi?
No. ASUS provides an M.2 Key E slot for a compatible CNVi or PCIe wireless module, but the Wi-Fi module itself is sold separately.
How many monitors can it connect directly?
The rear panel provides two DisplayPort outputs, one HDMI output and one VGA output. Actual simultaneous display support and maximum resolutions depend on the graphics capabilities of the installed processor.
Singular Expert Insight
The Pro B760M-C-CSM is designed less around gaming extras and more around business deployment. Four DDR5 slots, dual PCIe 4.0 M.2 storage and four display outputs make it flexible for office systems, while the CSM programme, ASUS Control Center Express support, Self-Recovering BIOS and diagnostic features are useful where multiple PCs need to be maintained consistently. The notable trade-offs are straightforward: networking is 1GbE rather than 2.5GbE, and Wi-Fi requires a separate M.2 Key E module. For managed desktop fleets, however, those business-specific features are the main reason to choose this model over a consumer B760 board.

Buyer’s Guide

Buy it if

You need a business-oriented LGA1700 board with DDR5, dual M.2 storage, four display outputs and ASUS CSM management features.

Skip it if

You need built-in Wi-Fi, 2.5GbE networking, DDR4 memory or gaming-focused features such as high-end audio and extensive PCIe expansion.

Check first

Confirm CPU and BIOS compatibility, use DDR5 memory and verify that your processor has integrated graphics if you plan to use the motherboard's display outputs.
