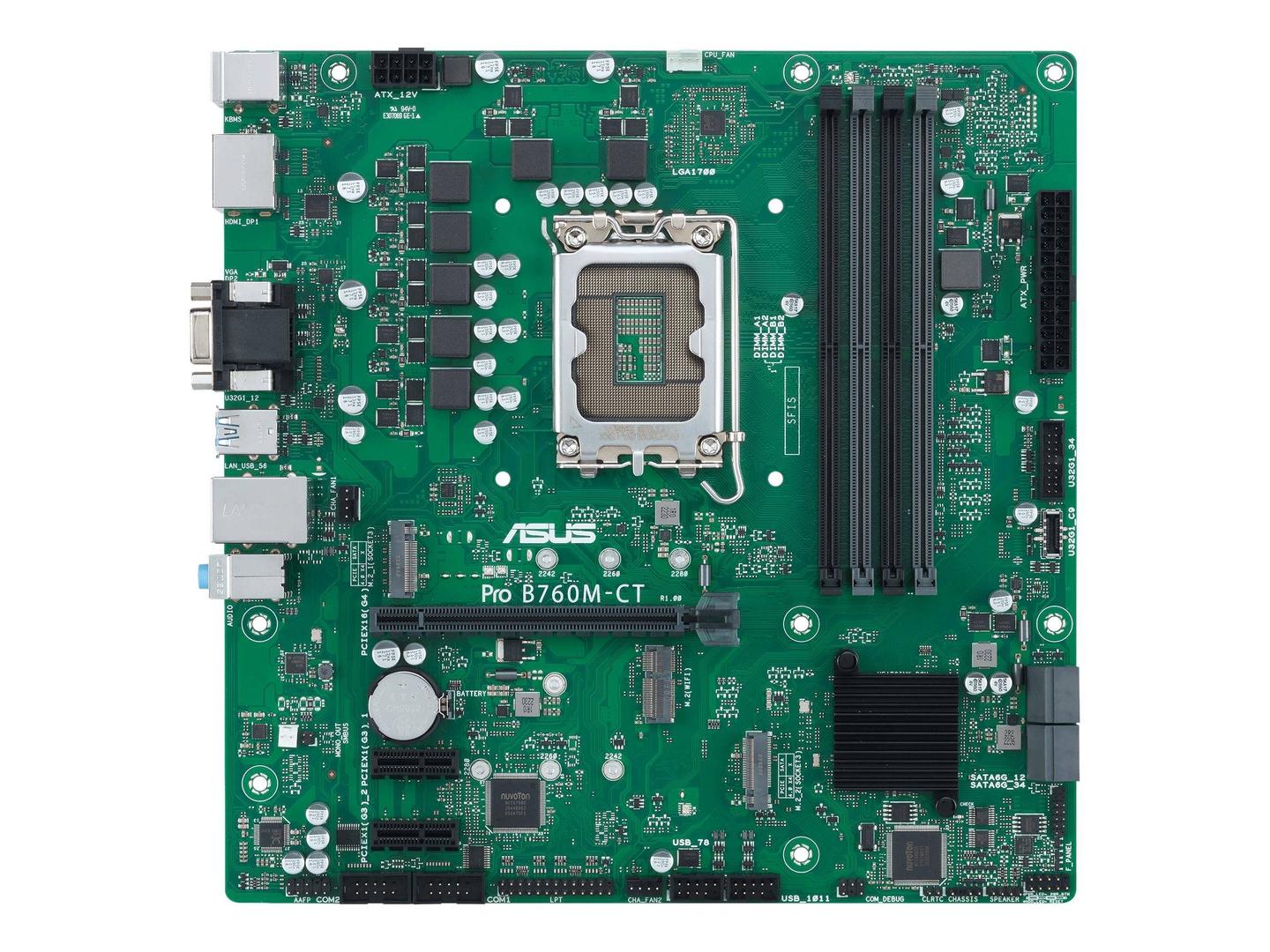

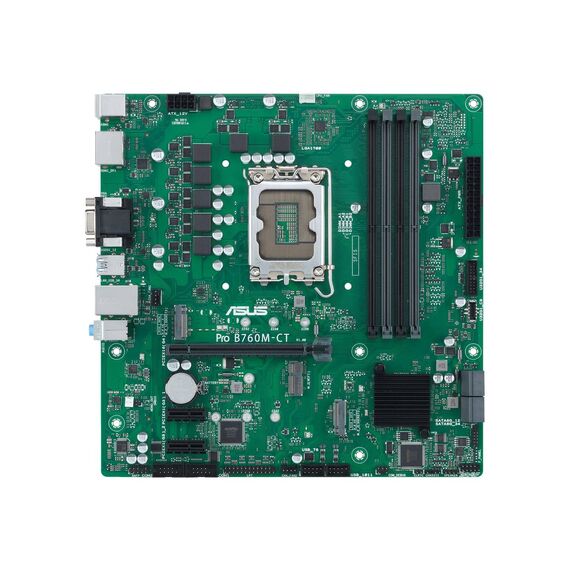

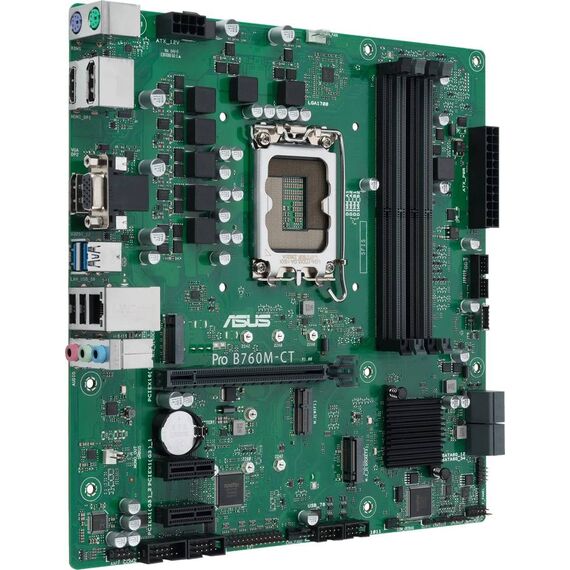

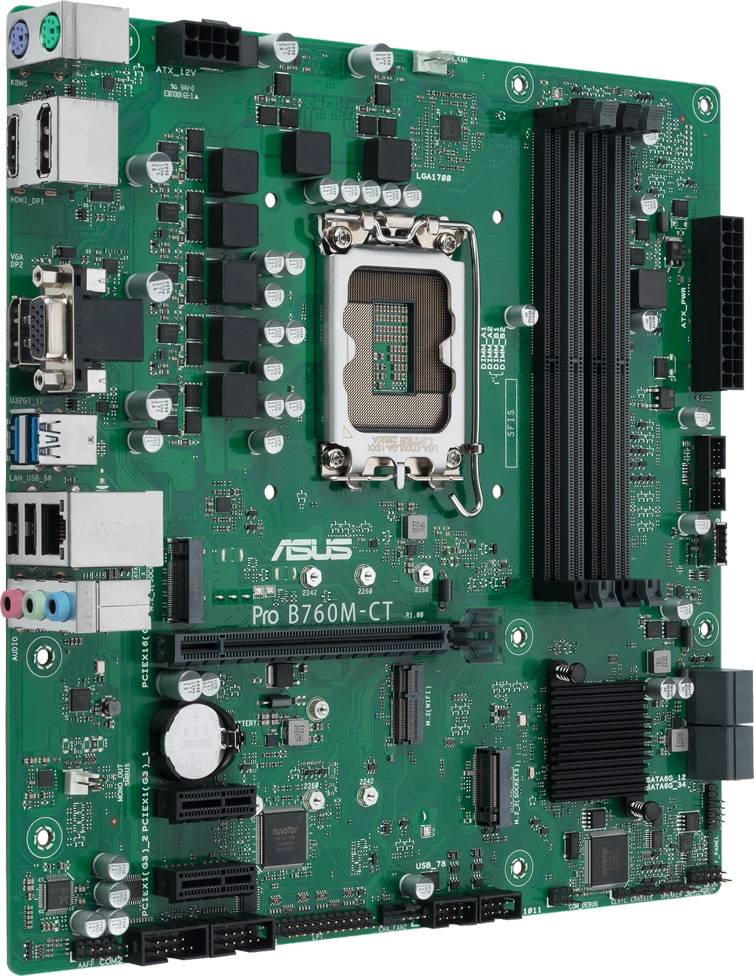

ASUS Pro B760M-CT-CSM / Motherboard / micro ATX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) / ASUS Corporate Stable Model (CSM) | 90MB1DY0-M0EAYC
Please sign in so that we can notify you about a reply
Product Features
- ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. - Internationally certifled business motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and
environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business. - DDR5 support
This business motherboard is a DDR5-compatible motherboard that optimizes memory module speeds and stability, while providing an advanced voltage delivery architecture for greater energy efficiency. - PCIe 4.0
This business motherboard is specially designed for 13th Gen Intel Core processors and offer PCIe 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed. - ASUS Boot Defender
ASUS Boot Defender ensures your PC is secure even before you boot up the OS and offers additional protection beyond the OS environment. On start-up, it verifies the BIOS code to detect attacks or corrupted firmware. It's designed to automatically protect and repair the compromised BIOS code to safeguard PCs from intrusions and attacks. - ASUS reliant
Ensures consistent performance with the finest components and rigorous reliability testing. - Remote IT management
The onboard SMBUS header connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.
Special Features
- Intel LGA 1700 socket
- ASUS CSM program
- ASUS Control Center Express
- Enhanced system security
- Consistent and reliable performance
- Efficient management and customization
- Better serviceability
- Ultrafast connectivity
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x headphones output - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 2 x serial - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, Trusted Platform Module (TPM) 2.0, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, ASUS OptiMem II, ASUS Boot Defender, anti-moisture coating |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, ACC Express Activation Key Card, 2 x M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS Control Center Express |
| Compliant Standards | VCCI Class B ITE, JATE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Pricing Type | ASUS Corporate Stable Model (CSM) |
Features - Asus - 90MB1DY0-M0EAYC
CPU Socket
- Socket 1700
More Details
Product Code
03:209297
EAN Code
4711387019610
Manufacturer
Asus
