ASUS Pro WS W680-ACE ATX Workstation Motherboard LGA1700 Intel W680 DDR5 ECC PCIe 5.0 Dual 2.5GbE 90MB1DZ0-M0EAY0
Brand:
ASUS
ASUS Pro WS W680-ACE ATX Workstation Motherboard LGA1700 Intel W680 DDR5 ECC PCIe 5.0 Dual 2.5GbE 90MB1DZ0-M0EAY0
€620.62 inc. VAT
90MB1DZ0-M0EAY0
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

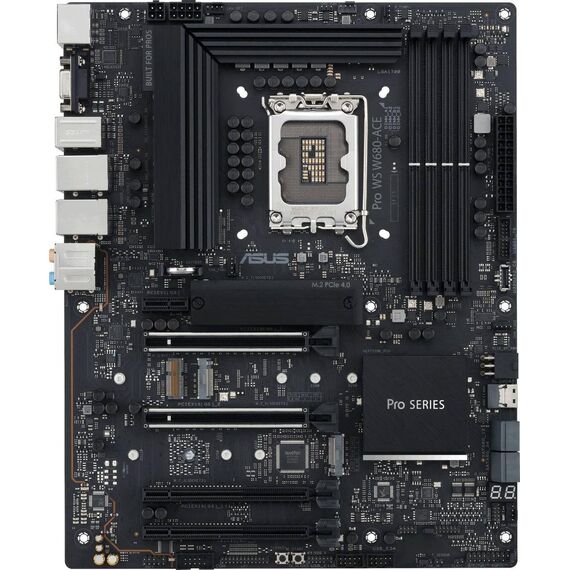

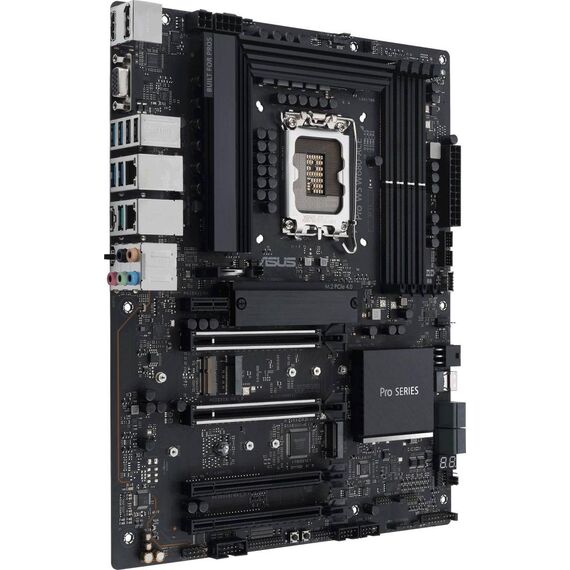

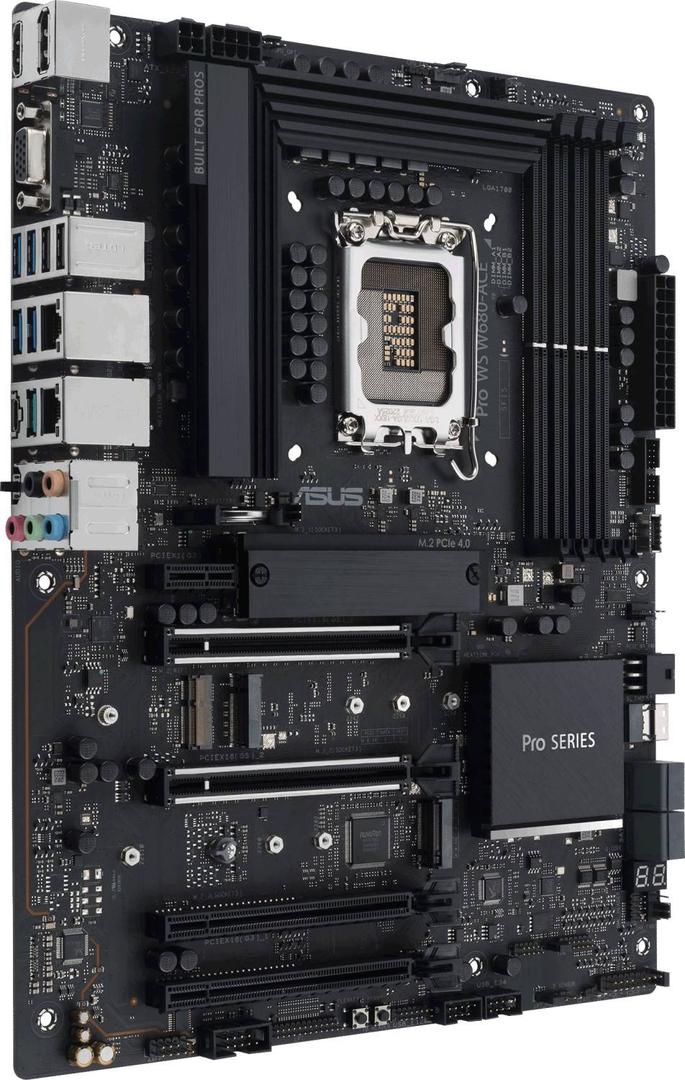

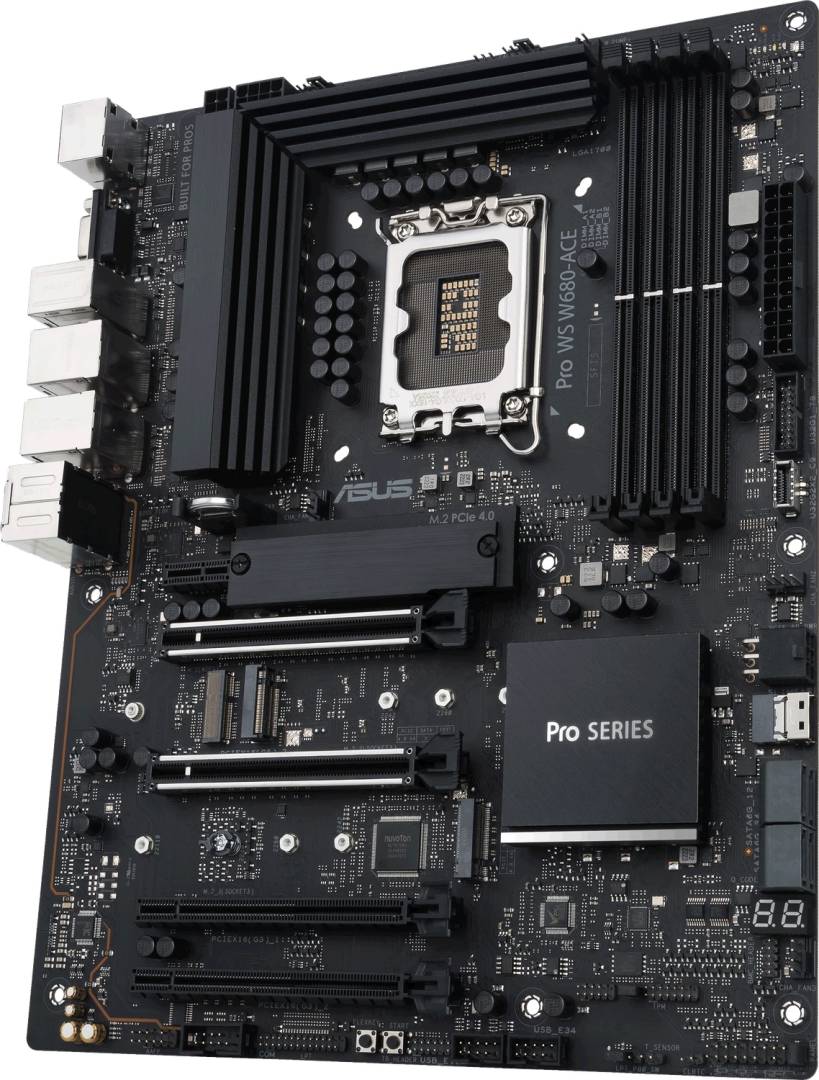

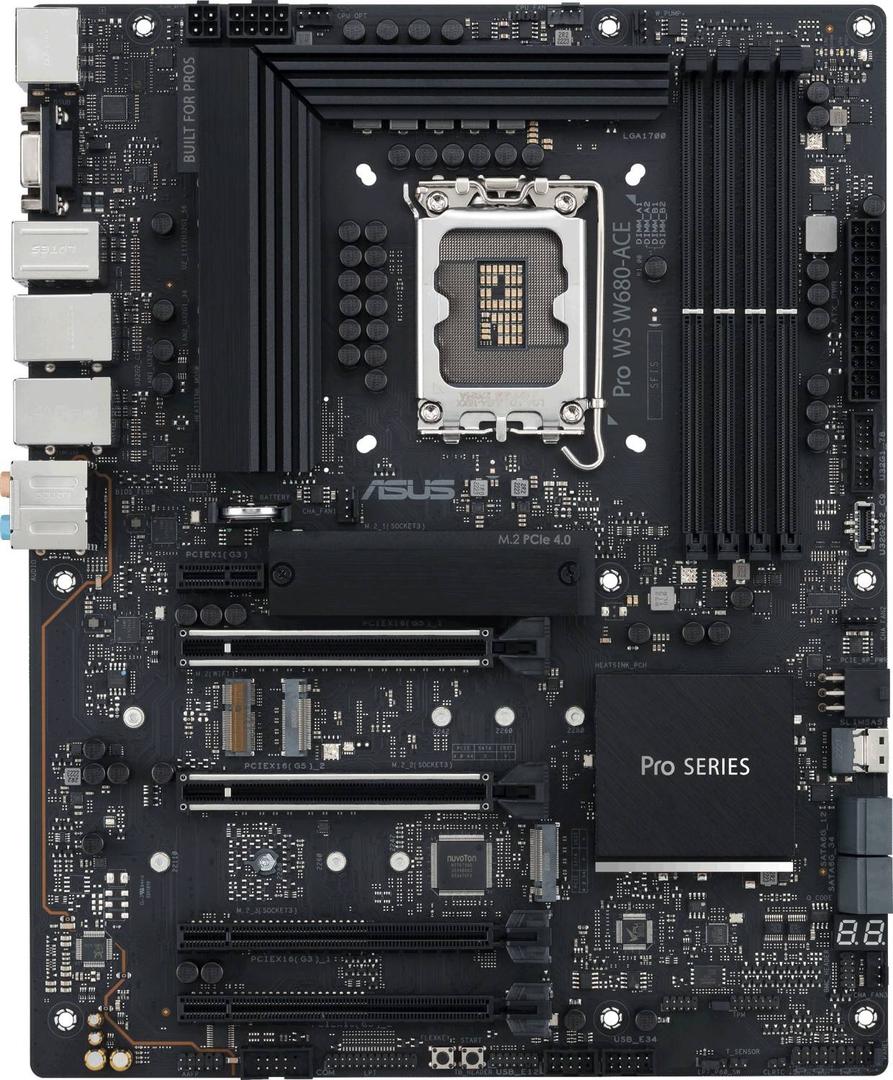

ASUS Pro WS W680-ACE Workstation Motherboard
Intel W680 / LGA1700DDR5 ECC SupportDual PCIe 5.0 x16Dual 2.5GbE
The ASUS Pro WS W680-ACE is a professional ATX workstation motherboard built on the Intel W680 chipset for LGA1700 Intel Core processors, and one of the few ways to run error-correcting DDR5 ECC memory on a mainstream Intel Core platform. Identified by part number 90MB1DZ0-M0EAY0, it offers dual PCIe 5.0 x16 slots, three M.2 slots plus SlimSAS and eight SATA ports, dual 2.5GbE LAN and a BMC header for management. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying: This board uses Socket LGA1700 and supports Intel Core 12th, 13th and 14th Gen (plus Pentium Gold and Celeron) processors. It takes DDR5 ECC or non-ECC unbuffered UDIMM memory (not registered RDIMM); ECC operation requires a supported CPU. There is no onboard Wi-Fi (an M.2 Wi-Fi slot is provided, card sold separately). It fits ATX cases; CPU, memory and graphics card are sold separately.
Best For
✓Professional workstations needing ECC reliability
✓Dual-GPU or GPU-plus-accelerator builds (x8/x8)
✓Heavy storage: eight SATA plus three M.2 and SlimSAS
✓Dual 2.5GbE networked environments
✓Small servers and always-on compute
✓Engineering, rendering and data workloads
Key Features
Intel W680 Workstation Chipset
Built for LGA1700 Intel Core processors, the W680 platform adds workstation-class features that mainstream consumer chipsets do not offer.
DDR5 ECC Memory Support
Four DIMM slots take up to 192GB of DDR5 ECC or non-ECC unbuffered memory, bringing error correction and data integrity to a Core-based build.
Dual PCIe 5.0 x16 and Deep Storage
Two PCIe 5.0 x16 slots (x16 or x8/x8), three M.2 slots, a SlimSAS connector and eight SATA 6Gb/s ports handle serious expansion.
Dual 2.5GbE and BMC Header
Two Intel 2.5Gb Ethernet ports plus an onboard BMC header and Realtek 7.1 audio round out a management-ready workstation board.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Singular Expert Insight
The W680-ACE exists mainly for one reason: ECC memory on a mainstream Intel Core CPU, which consumer Z-series boards cannot do. Combined with eight SATA ports and dual PCIe 5.0 x16 for graphics cards or accelerators, it suits reliability-focused workstations. Pair it with ECC-capable DDR5 memory and a supported CPU. If you are moving to the newer LGA1851 platform, look at the Pro WS Z890-ACE SE instead.
Buyer's Guide
Buy it if
You are building an LGA1700 workstation and need DDR5 ECC memory, dual PCIe 5.0 x16 and heavy SATA/M.2 storage expansion.
Skip it if
You want a gaming board with onboard Wi-Fi and RGB, or you are building on the newer LGA1851 platform — this targets LGA1700 workstations.
Also consider
The Pro WS Z890-ACE SE for a newer LGA1851 workstation, or a Z790 gaming board if you do not need ECC, plus a matching CPU and DDR5 kit.
Features - ASUS - 90MB1DZ0-M0EAY0
CPU Socket
- Socket 1700
Colour
black
More Details
Product Code
04:420384
EAN Code
4711387006177
Manufacturer
ASUS
