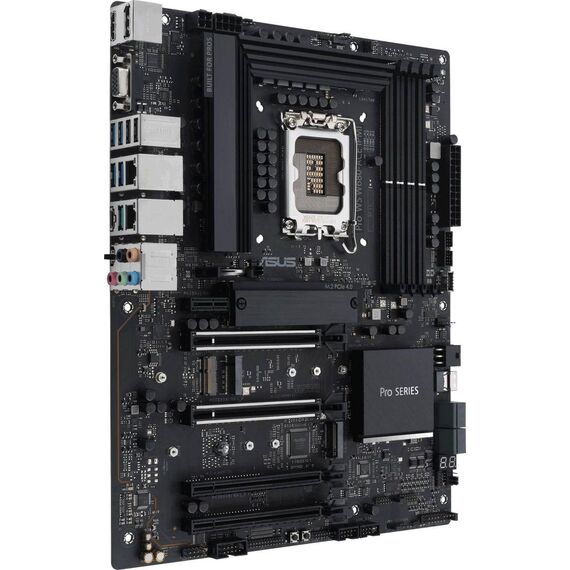

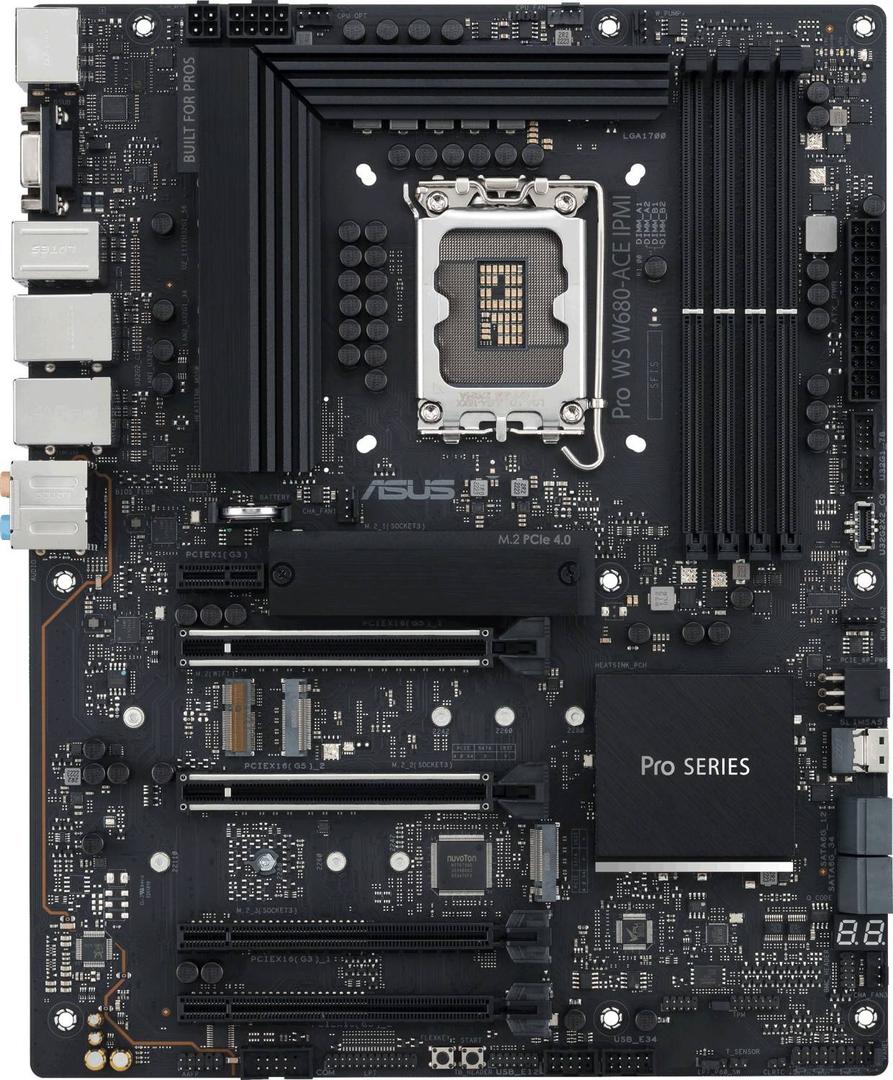

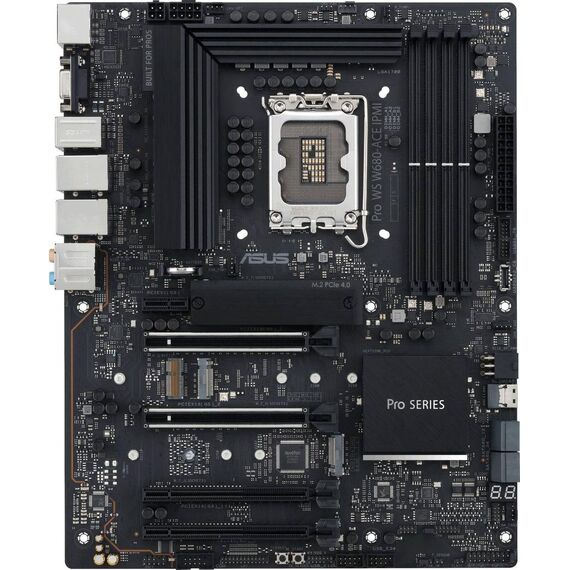

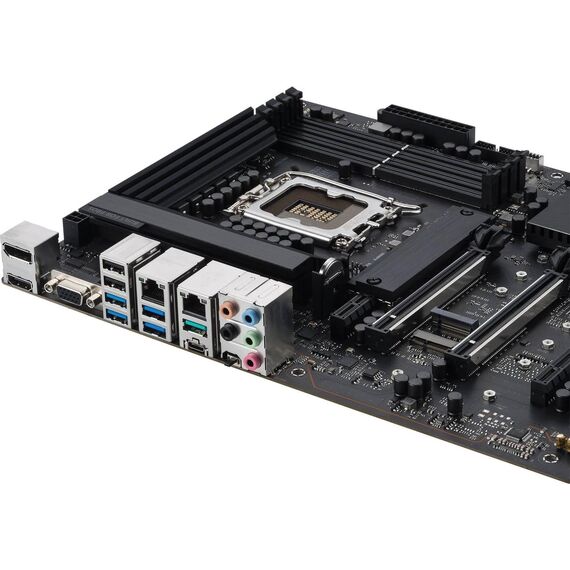

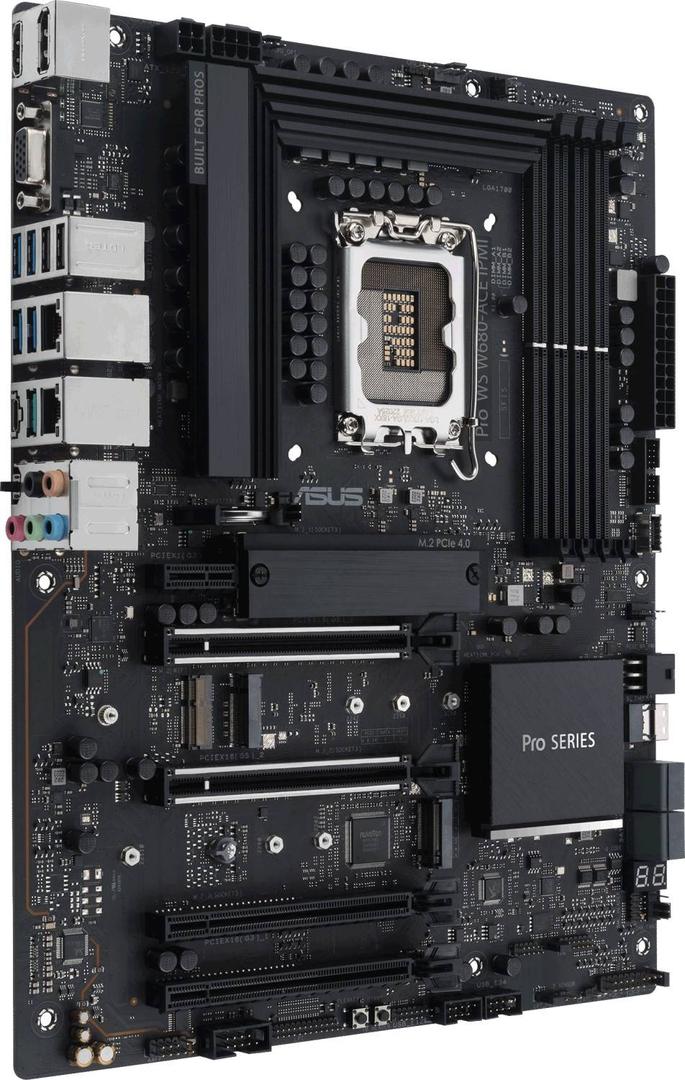

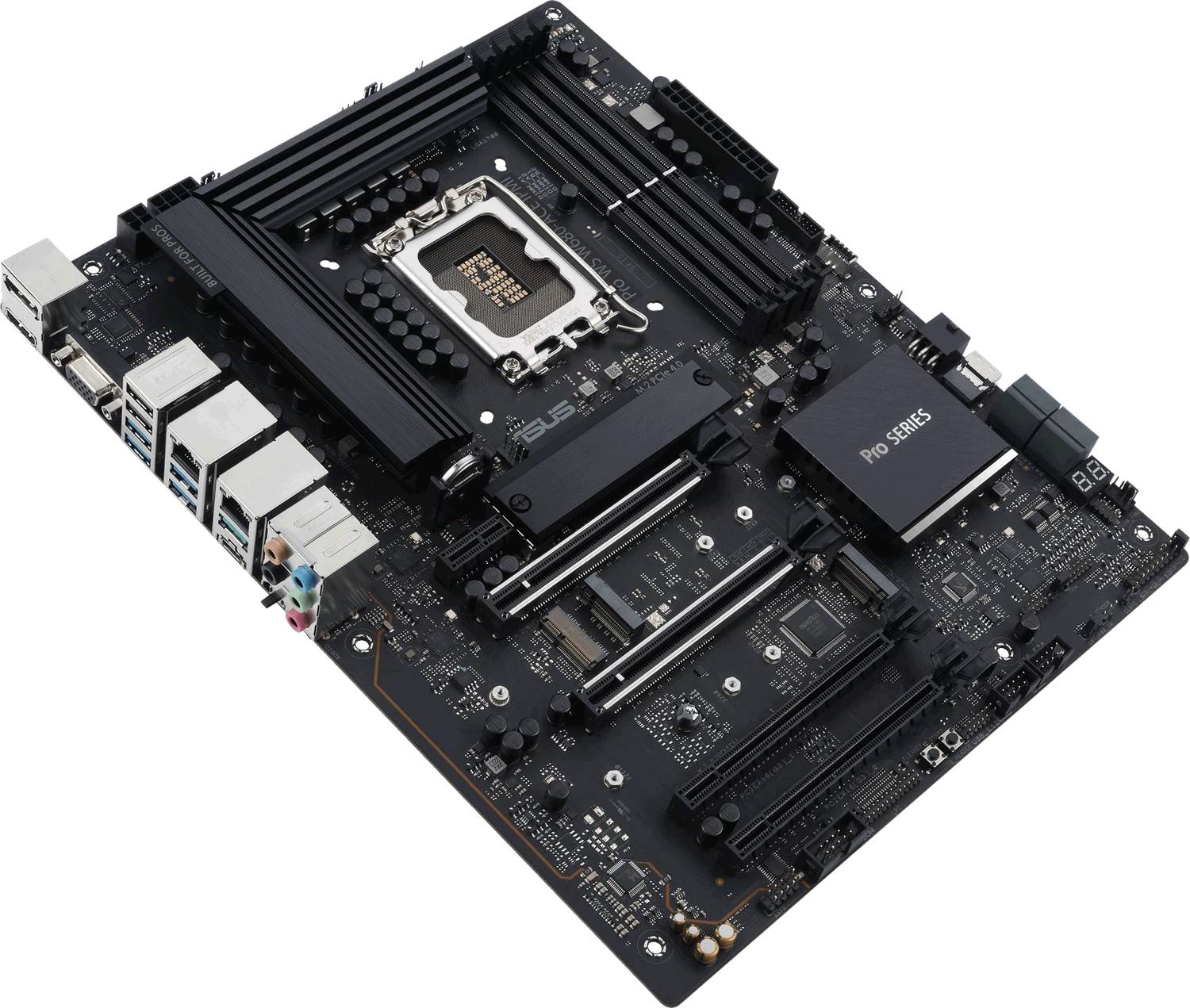

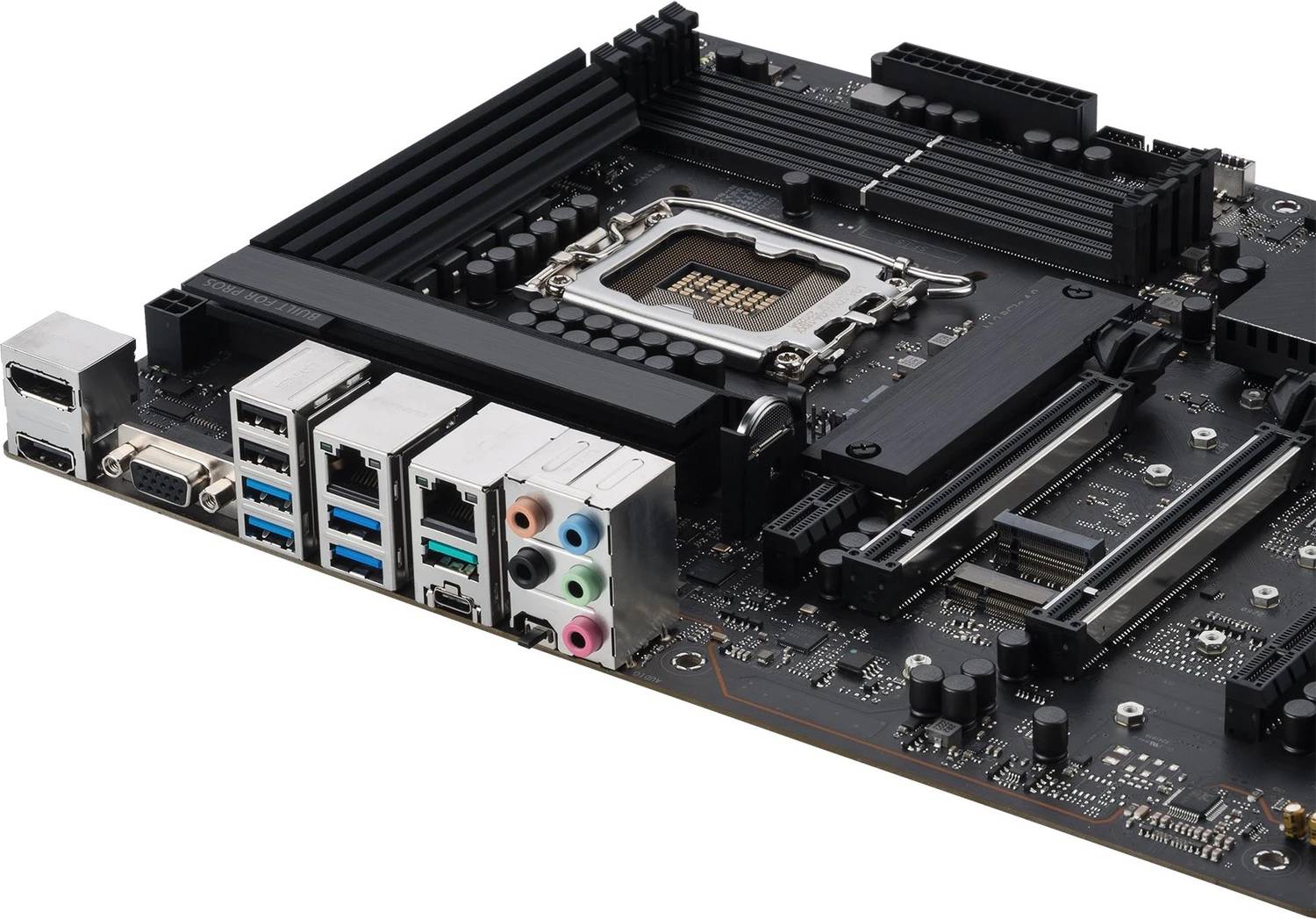

ASUS Pro WS W680-ACE IPMI LGA1700 Intel W680 ATX Workstation Motherboard DDR5 ECC PCIe 5.0 Dual 2.5GbE

Brand:
ASUS
ASUS Pro WS W680-ACE IPMI LGA1700 ATX Workstation Motherboard
ASUS Pro WS W680-ACE IPMI LGA1700 Intel W680 ATX Workstation Motherboard DDR5 ECC PCIe 5.0 Dual 2.5GbE
€728.4 inc. VAT
Buy
90MB1DN0-M0EAY1
€612.10 €680.11
€728.40 inc. VAT
Ships from EU stock: 17 item(s)
+ −
Add to wish list Ask a question
Product Code
04:420382
EAN Code
0197105005938
Manufacturer
ASUS

Quick Specs

Platform
Intel W680 + LGA1700
Memory
4x DDR5 ECC/non-ECC UDIMM
Expansion & Storage
2x PCIe 5.0 + 3x M.2
Networking & Management
Dual 2.5GbE + IPMI card
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS Pro WS W680-ACE IPMI ATX Workstation Motherboard

A professional Intel W680 ATX workstation motherboard with DDR5 ECC support, dual PCIe 5.0 x16 slots, triple M.2 storage, dual Intel 2.5GbE and a bundled IPMI expansion card for remote management.
Intel W680LGA1700DDR5 ECC supportIPMI expansion card

The ASUS Pro WS W680-ACE IPMI is an Intel W680 ATX workstation motherboard for professional PCs, creator workstations and remotely managed business systems. It supports Intel LGA1700 14th, 13th and 12th Gen Core processors, DDR5 ECC and non-ECC unbuffered memory, dual PCIe 5.0 x16 expansion, three PCIe 4.0 M.2 slots, SlimSAS storage flexibility, dual Intel 2.5Gb Ethernet and a bundled IPMI expansion card for out-of-band administration.

Compatibility Note: Please confirm CPU support, BIOS version, DDR5 ECC or non-ECC memory compatibility, ATX case fit, PSU connectors, SlimSAS cabling, IPMI card installation space and expansion card clearance before purchase. ECC operation depends on the installed processor and memory configuration.
Best For
✓ Professional workstation builds
✓ ECC-capable creator systems
✓ Remotely managed PCs
✓ Multi-GPU and storage workflows

Key Features


Intel W680 Workstation Platform
Built around Intel W680 and LGA1700, this board is designed for professional Intel Core workstation builds that need stability, expansion and business-grade management features.

DDR5 ECC Memory Support
Four DDR5 DIMM slots support up to 192GB of ECC or non-ECC unbuffered memory, giving professional systems more reliability-focused options than mainstream consumer boards.

PCIe 5.0 and Storage Flexibility
Two PCIe 5.0 x16 SafeSlots, additional PCIe 3.0 expansion, three PCIe 4.0 M.2 slots, SATA 6Gb/s and SlimSAS support make it suitable for GPUs, SSDs, controllers and storage-focused builds.

IPMI Remote Management
The bundled ASUS IPMI expansion card enables remote management functions such as system monitoring, reset and power cycling, helping IT teams manage systems without local access.

Technical Specifications

Brand ASUS
Model Pro WS W680-ACE IPMI
Manufacturer SKU 90MB1DN0-M0EAY1
EAN 0197105005938
Product Type Workstation motherboard
Form Factor ATX, 12 inch × 9.6 inch, 30.5 cm × 24.4 cm
CPU Socket Intel LGA1700
Chipset Intel W680
CPU Support 14th, 13th and 12th Gen Intel Core processors, Intel Pentium Gold and Celeron processors, CPU support list and BIOS version should be checked
Memory 4 x DDR5 DIMM slots, up to 192GB, ECC and non-ECC unbuffered memory, dual-channel architecture, XMP support
Expansion Slots 2 x PCIe 5.0 x16 slots supporting x16 or x8/x8 mode, 2 x PCIe 3.0 x16 slots supporting x4 mode, 1 x PCIe 3.0 x1 slot
M.2 Storage 3 x M.2 PCIe 4.0 x4 slots, type 2242/2260/2280 and one slot supporting 22110
SATA and SlimSAS 4 x SATA 6Gb/s ports, 1 x SlimSAS slot supporting PCIe 4.0 x4 NVMe device or up to 4 SATA devices with optional cable
RAID Support Intel Rapid Storage Technology with PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10 support
Ethernet 2 x Intel 2.5Gb Ethernet with ASUS LANGuard
Wireless M.2 Key E slot only, Wi-Fi module sold separately

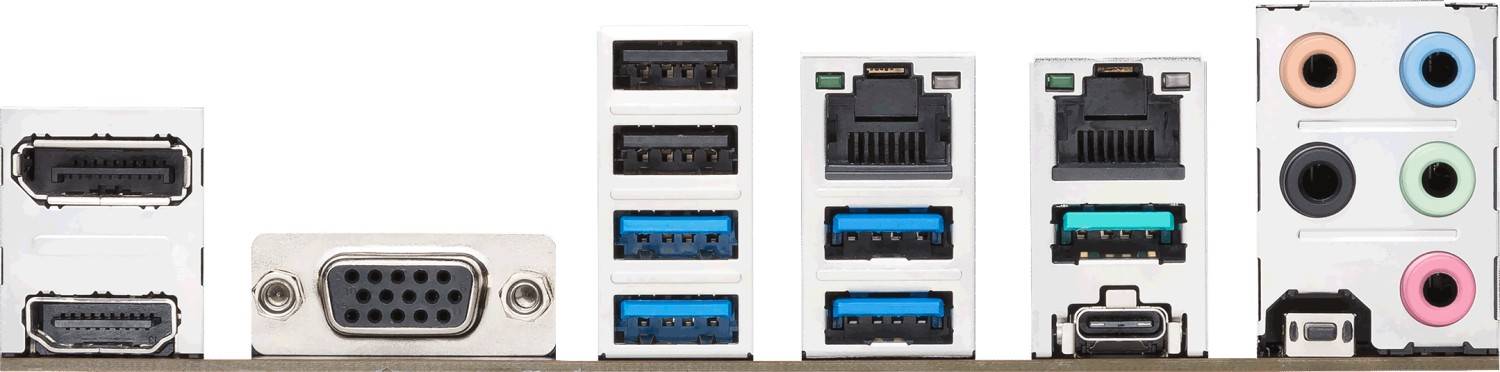

Display Outputs 1 x DisplayPort 1.4 up to 8K 60Hz, 1 x HDMI 2.1 up to 4K 60Hz, 1 x VGA, graphics support depends on CPU

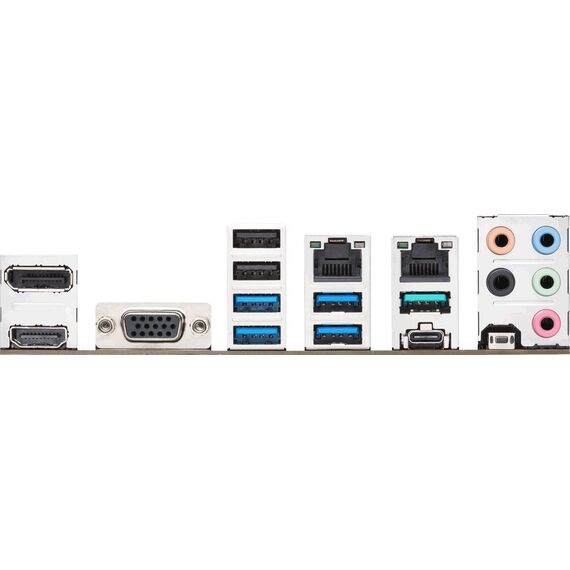

Rear USB 2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 2 x USB 2.0
Front USB Headers 1 x USB 3.2 Gen 2x2 Type-C connector, 1 x USB 3.2 Gen 1 header for 2 ports, 2 x USB 2.0 headers for 4 ports
Audio Realtek 7.1 surround sound high definition audio codec, up to 24-bit/192kHz playback
Management Bundled IPMI expansion card, ASUS Control Center Express support, WOL by PME and PXE
Internal Headers Thunderbolt header, TPM header, LPT header, COM port header, BMC header, T-sensor, Clear CMOS header and fan headers
Power Connectors 24-pin main power, 8-pin +12V, 4-pin +12V, 6-pin PCIe power connector
Operating System Support Windows 11 and Windows 10 64-bit
Listed Accessories IPMI expansion card, BMC cable, power on/off cable, reset cable, USB 2.0 cable, 2 x SATA cables, Q-connector, I/O shield, M.2 screw packages, user guide and ACC Express Activation Key Card

Frequently Asked Questions

Which processors does the ASUS Pro WS W680-ACE IPMI support?
It supports Intel LGA1700 14th, 13th and 12th Gen Core processors, plus selected Pentium Gold and Celeron processors. Always check the ASUS CPU support list and required BIOS version before ordering.
Does it support ECC memory?
Yes. The board supports DDR5 ECC and non-ECC unbuffered memory, but ECC functionality depends on the installed processor and memory configuration.
What is included for IPMI management?
ASUS lists a bundled IPMI expansion card with related cables and user guide, enabling remote management functions for workstation and IT-managed deployments.
Singular Expert Insight
Choose the ASUS Pro WS W680-ACE IPMI if you need a professional Intel workstation board with ECC-capable DDR5, strong PCIe 5.0 expansion, triple M.2 storage, dual 2.5GbE and remote management through the bundled IPMI card. If you do not need IPMI or ECC-focused workstation features, a mainstream ASUS creator or business motherboard may be simpler and more cost-effective.

Buyer’s Guide

Buy it if
You need an Intel W680 ATX workstation motherboard with DDR5 ECC support, PCIe 5.0 expansion, triple M.2 storage, dual 2.5GbE and IPMI remote management.
Skip it if
You need built-in Wi-Fi, gaming-first RGB styling, a lower-cost desktop motherboard, or a compact micro-ATX board with onboard BMC instead of an expansion card.
Also consider
Consider the ASUS Pro WS W680M-ACE SE if you need a smaller micro-ATX workstation board with integrated BMC management, or a ProArt board if creator features matter more than IPMI.
