ASUS Pro WS W790E-SAGE SE Intel W790 LGA 4677 EEB Workstation Motherboard
Brand:
ASUS
90MB1C20-M0EAY0
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Singular Selected
ASUS Pro WS W790E-SAGE SE Intel W790 Workstation Motherboard
A high-end EEB workstation motherboard for Intel Xeon W processors, multi-GPU builds, ECC DDR5 memory and remote management.
Intel W790LGA 4677DDR5 ECC R-DIMMDual 10G LAN

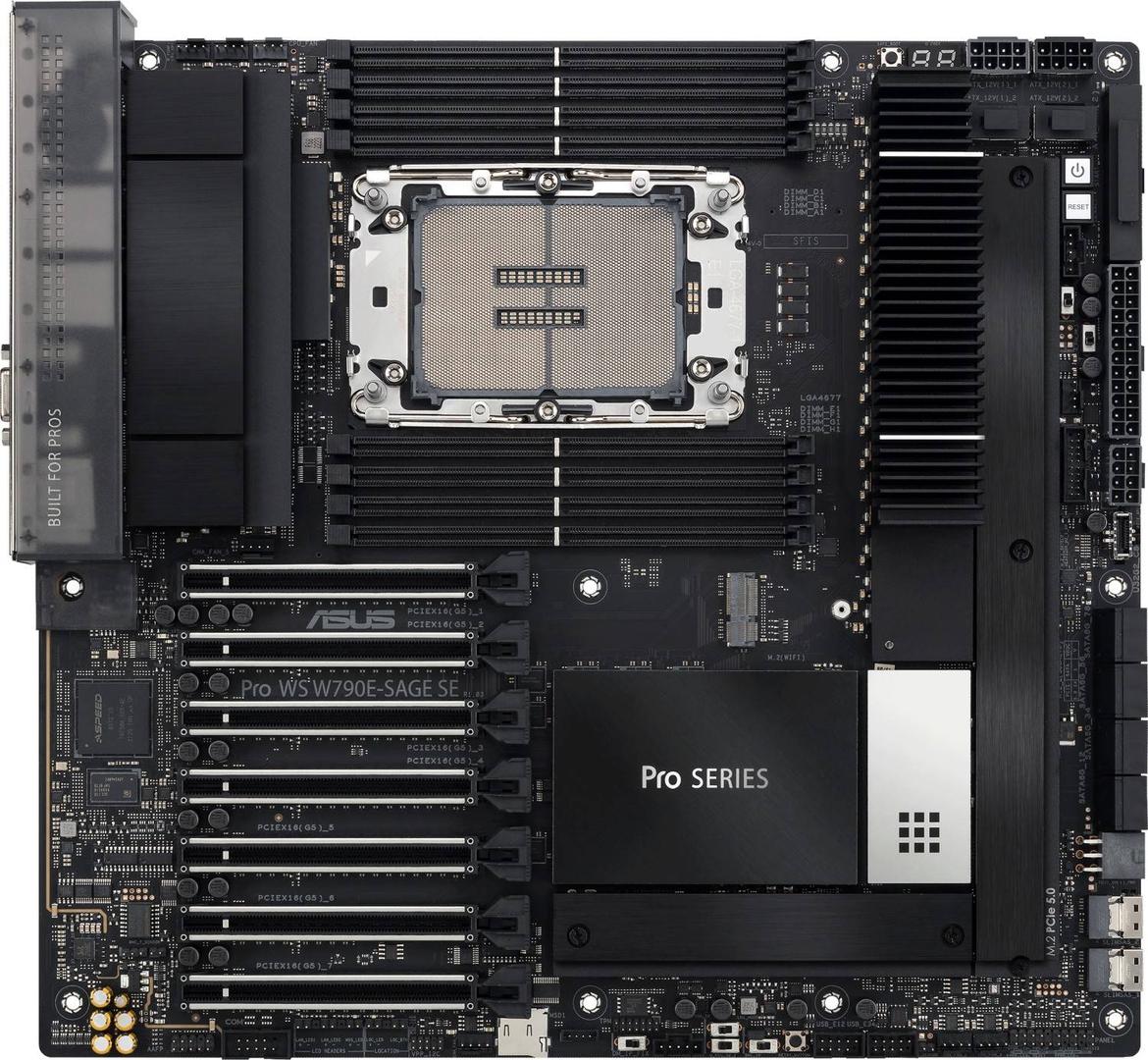

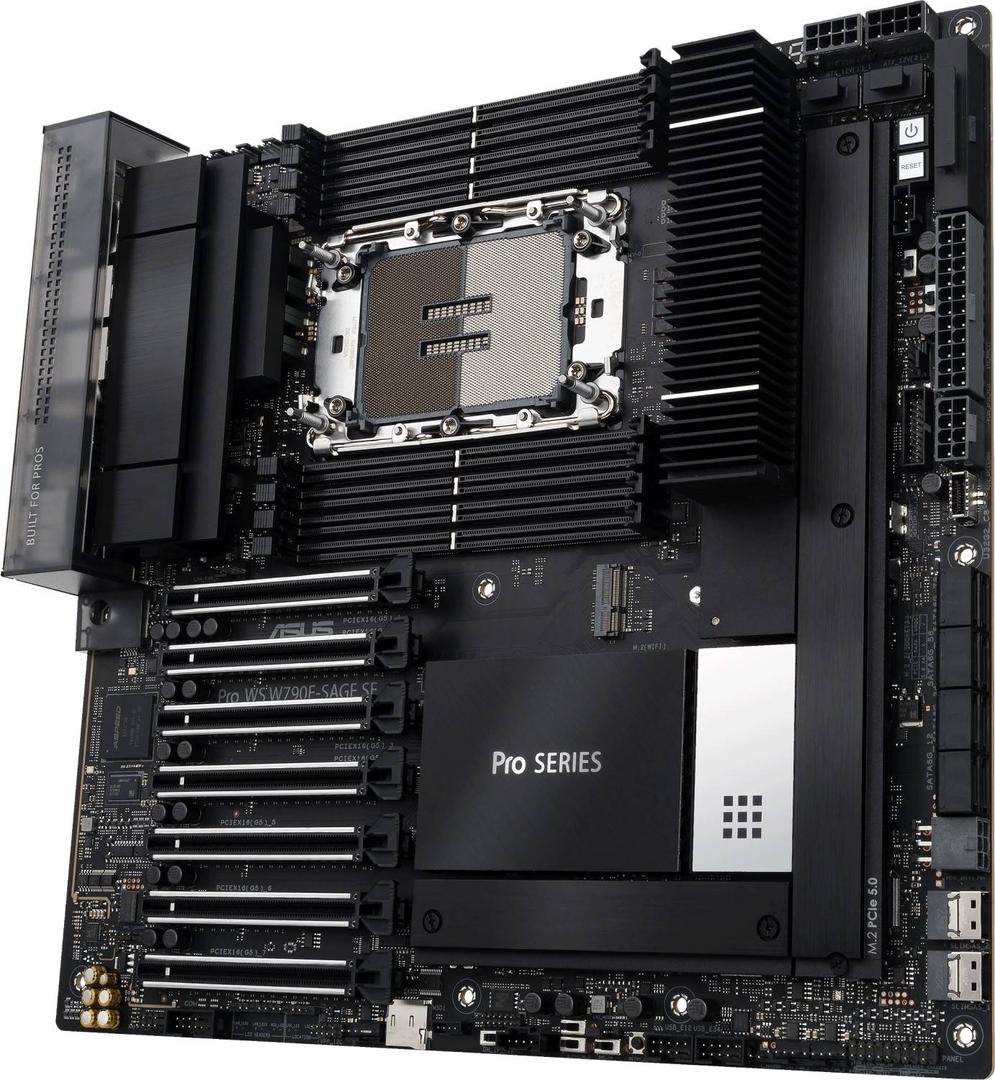

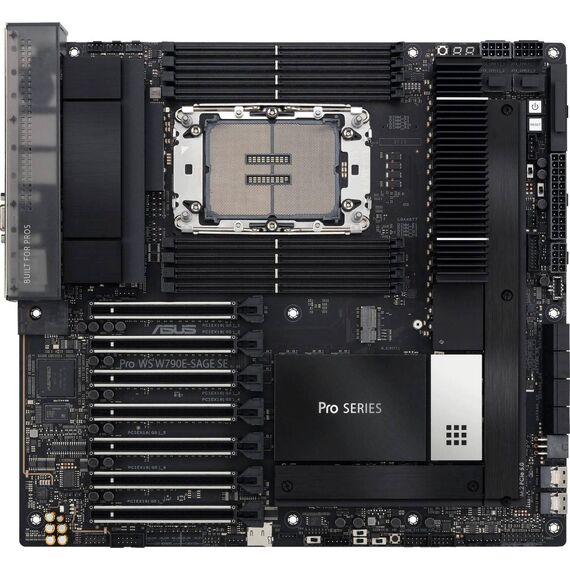

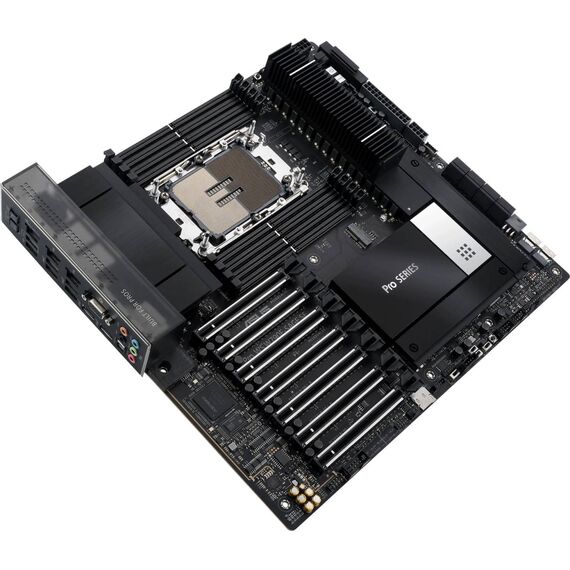

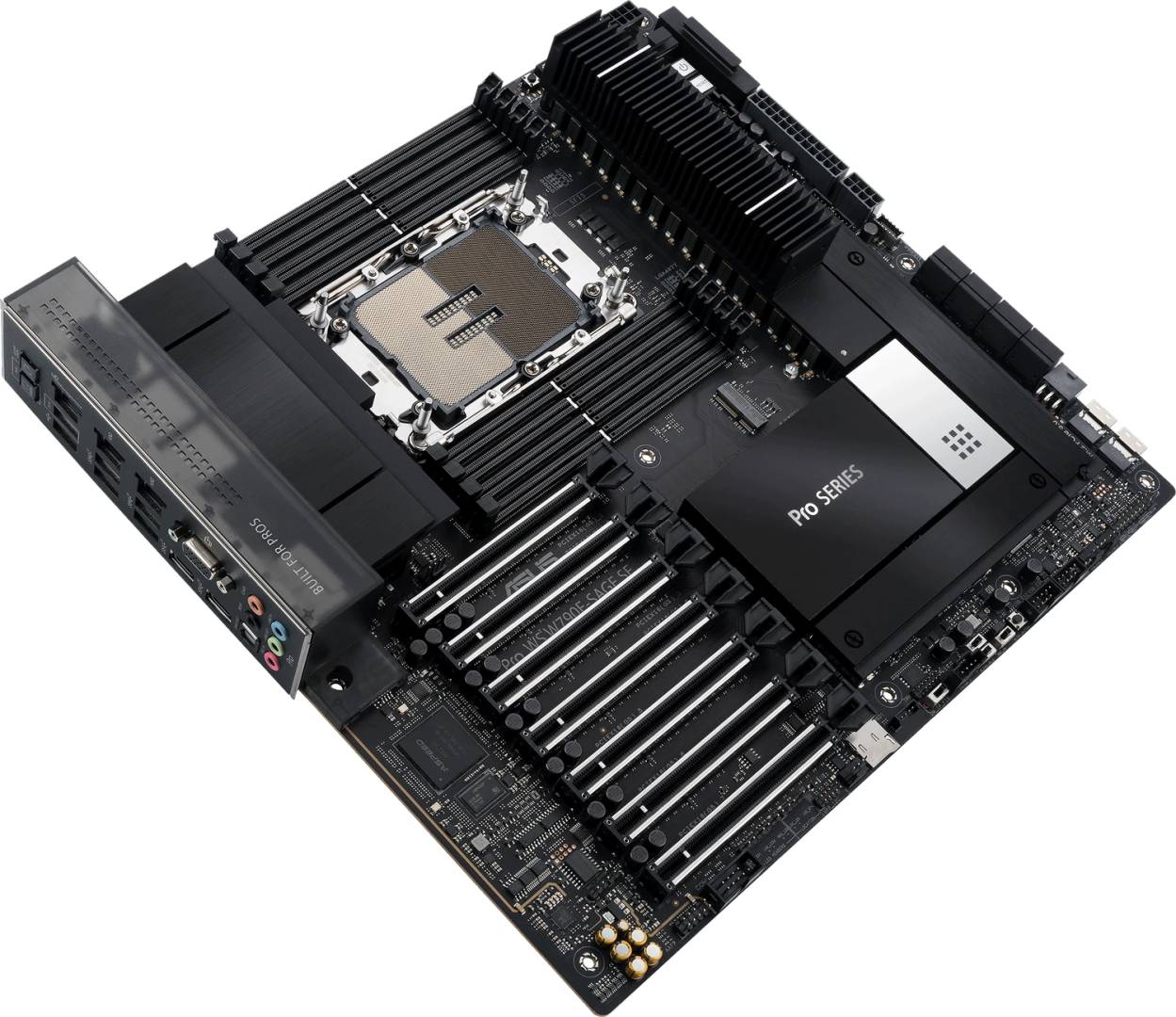

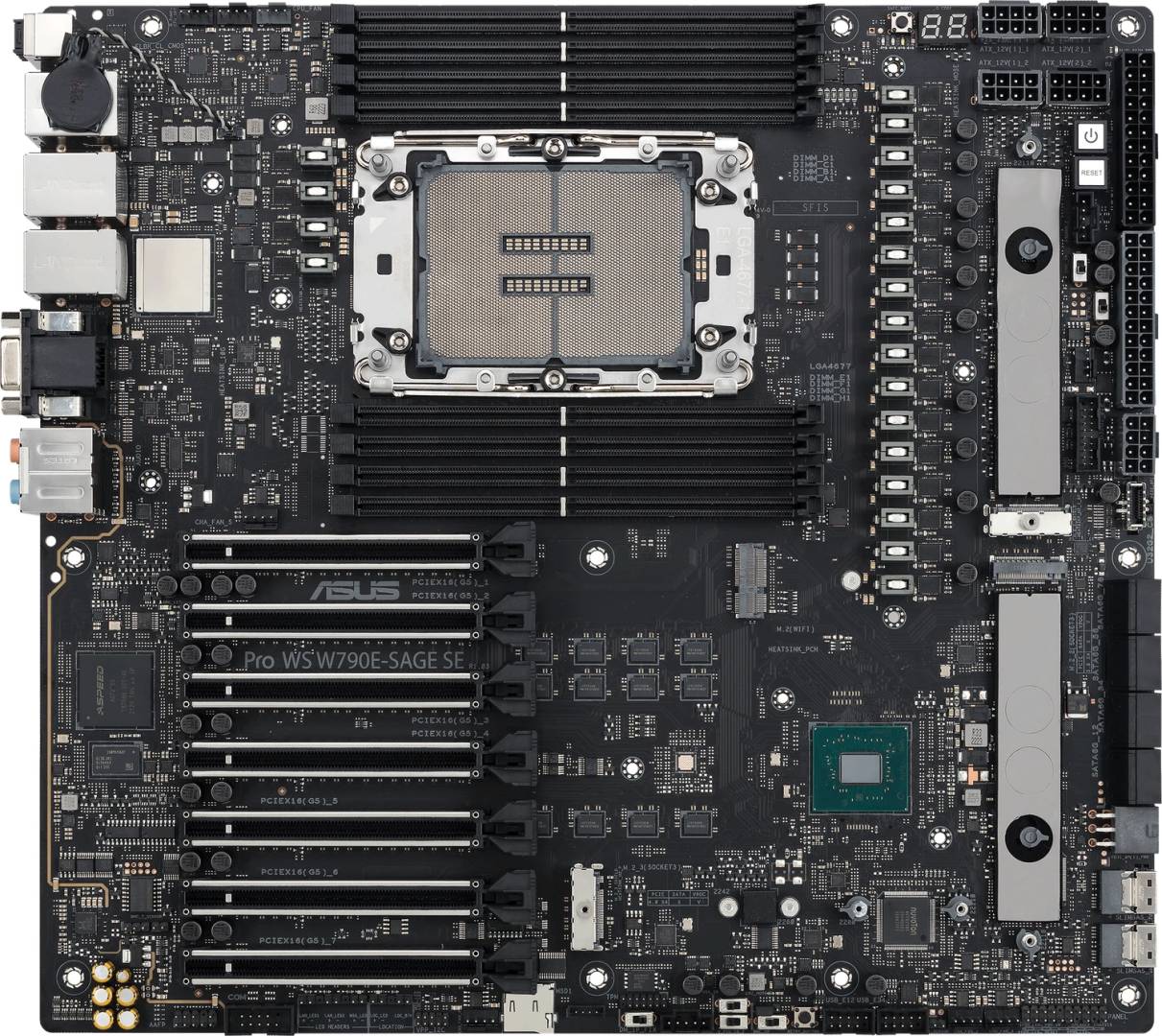

The ASUS Pro WS W790E-SAGE SE is an Intel W790 EEB workstation motherboard for Intel Xeon W-3400 and W-2400 series processors. It is built for professional workstations that need high PCIe 5.0 expansion capacity, ECC Registered DDR5 memory, multiple NVMe and SATA storage options, dual 10G Ethernet and onboard BMC remote management for demanding creator, engineering, rendering and compute environments.
Compatibility Note: Please confirm Intel Xeon W-3400 or W-2400 CPU support, ECC R-DIMM memory compatibility, EEB chassis clearance, PSU connectors, cooler support and PCIe lane requirements before purchase.
Best For
✓ Intel Xeon W professional workstations
✓ Multi-GPU rendering and compute builds
✓ Engineering, simulation and AI development systems
✓ Managed workstation deployments with BMC/IPMI needs
Key Features
Built for Intel Xeon W platforms
The LGA 4677 socket and Intel W790 chipset support Intel Xeon W-3400 and W-2400 series processors for demanding workstation workloads.
Massive PCIe 5.0 expansion
With up to seven PCIe 5.0 x16 slots on supported Xeon W-3400 configurations, this board is aimed at multi-GPU, accelerator and high-bandwidth expansion builds.
ECC DDR5 workstation memory
Eight DIMM slots support up to 2048GB of DDR5 ECC Registered memory, giving professional workloads the capacity and reliability required for large projects.
Professional networking and management

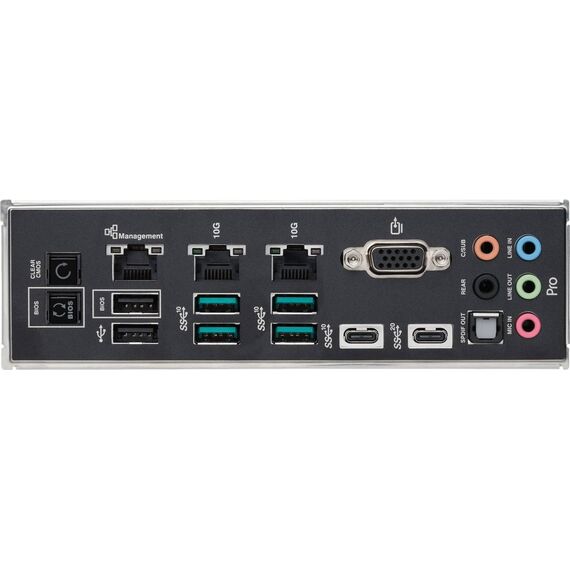

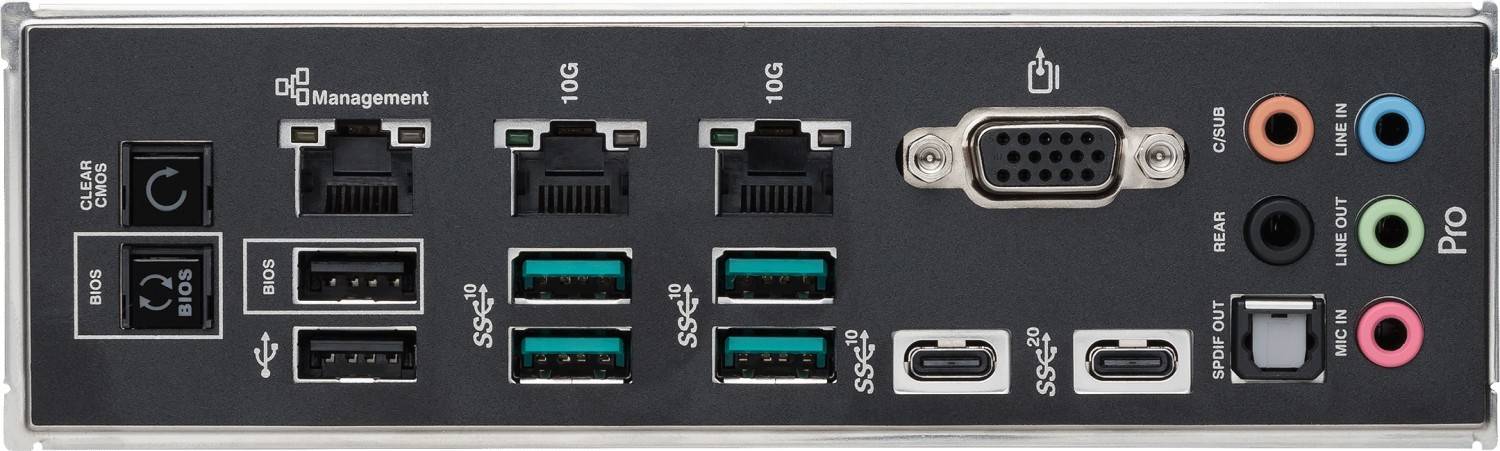

Dual Intel 10G Ethernet and onboard BMC remote management make it suitable for managed workstation environments, studios and technical teams.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the ASUS Pro WS W790E-SAGE SE if you are building a high-end Intel Xeon W workstation with ECC DDR5 memory, heavy PCIe 5.0 expansion, dual 10G networking and remote management needs. If you only need a gaming PC or standard desktop workstation, an Intel Z790, W680 or AMD platform will usually be more cost-effective and easier to build around.
Buyer’s Guide
Buy it if
You need a premium Intel Xeon W workstation motherboard for multi-GPU expansion, ECC DDR5 memory, 10G networking and BMC remote management.
Skip it if
You need a regular gaming motherboard, a compact build, standard DDR5 UDIMM memory, Wi-Fi onboard or a lower-cost desktop platform.
Also consider
Consider an ASUS Pro WS W680 board for lighter Intel workstation builds, or a mainstream ASUS Z790 motherboard if you do not need Xeon W, ECC R-DIMM or BMC management.
