ASUS Pro WS W890E-SAGE SE Workstation Motherboard Socket LGA 4710 Intel W890 EEB 8x DDR5 RDIMM PCIe 5.0 Dual 10GbE IPMI
Brand:
ASUS
ASUS Pro WS W890E-SAGE SE Workstation Motherboard Socket LGA 4710 Intel W890 EEB 8x DDR5 RDIMM PCIe 5.0 Dual 10GbE IPMI
€1696.74 inc. VAT
90MB1LH0-M0EAY0
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
ASUS Pro WS W890E-SAGE SE — Intel Xeon W Workstation Board
LGA 4710-2 · Intel W8908× DDR5 RDIMM up to 2TB7× PCIe 5.0 x16USB4 · Dual 10GbE · IPMI
The ASUS Pro WS W890E-SAGE SE is a high-end SSI EEB workstation motherboard built on the Intel W890 chipset and the LGA 4710-2 socket, supporting Intel Xeon W-series (600/3500-class) workstation processors. Sold under ASUS part number 90MB1LH0-M0EAY0 (EAN 4711636389372), it provides eight DDR5 RDIMM slots (8-channel, up to 2TB ECC), seven PCIe 5.0 x16 SafeSlots, four PCIe 5.0 M.2 slots, USB4, dual 10Gb LAN and server-grade IPMI remote management — built for the most demanding professional workstations. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is an LGA 4710-2 workstation board supporting Intel Xeon W-series workstation processors — not desktop Intel CPUs. It requires DDR5 RDIMM/MRDIMM (registered ECC) server/workstation memory, not desktop UDIMM, and its SSI EEB footprint needs a compatible EEB workstation chassis. All eight channels should be populated for full memory bandwidth.
Best For
✓High-end Intel Xeon W professional workstations
✓AI, rendering, simulation and CAD/CAE workloads
✓Multi-GPU and accelerator builds (7× PCIe 5.0)
✓Memory-intensive workloads (up to 2TB ECC)
✓High-bandwidth storage (4× PCIe 5.0 M.2, SlimSAS, MCIO)
✓Remote-managed professional deployments (IPMI)
Key Features
Intel Xeon W platform
The LGA 4710-2 socket and Intel W890 chipset support Intel Xeon W-series workstation processors with a robust 16+(2+2)+1+2 power-stage design for sustained workloads.
8-channel DDR5 RDIMM up to 2TB
Eight DDR5 DIMM slots support ECC RDIMM, 3DS-RDIMM and MRDIMM across 8 channels, up to 2TB, for memory-bandwidth-critical professional applications.
7× PCIe 5.0 + quad PCIe 5.0 M.2
Seven PCIe 5.0 x16 SafeSlots for multiple GPUs/accelerators, plus four PCIe 5.0 x4 M.2 slots, SlimSAS, MCIO and four SATA ports for vast, fast storage.
USB4, 10GbE & IPMI

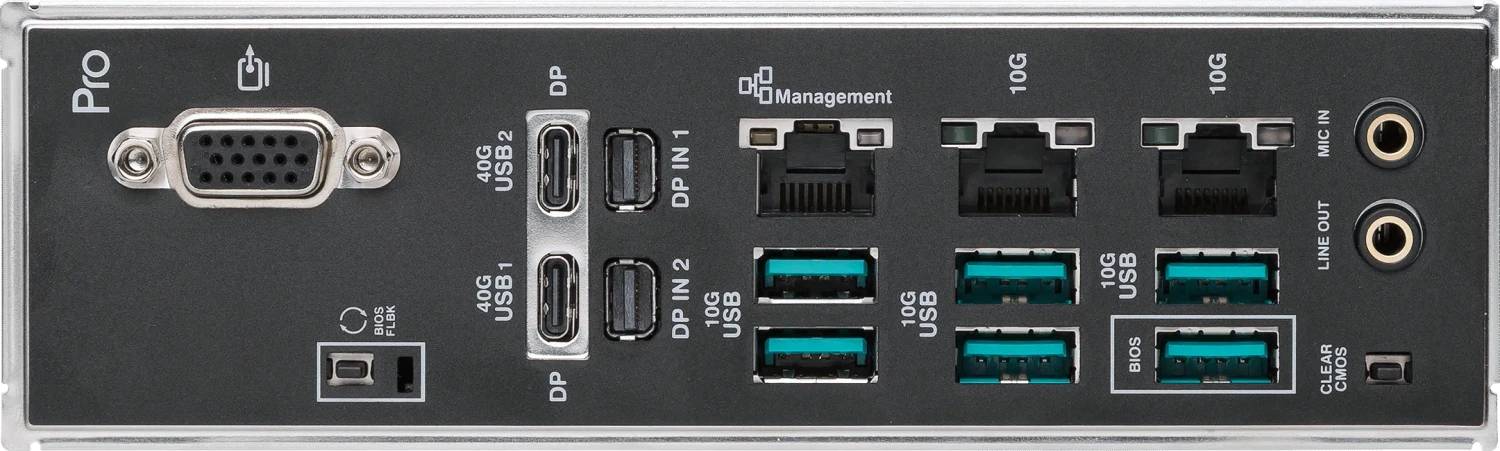

Dual USB4 (40Gbps) Type-C with 8K@60 display output, dual Intel 10Gb LAN, and an AST2600 BMC with server-grade IPMI remote management.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The Pro WS W890E-SAGE SE is a flagship workstation board for Intel Xeon W — its eight-channel DDR5, seven PCIe 5.0 slots and quad PCIe 5.0 M.2 make it ideal for multi-GPU AI, rendering and simulation rigs that need both memory bandwidth and expansion. For Core Ultra desktop-class workstations, the ASUS Pro WS W880-ACE SE is a smaller, lower-cost option; for dual-socket servers, the Z13PE-D16 is the route. Pair it with enterprise-grade SSDs for reliable, high-endurance storage.
Buyer's Guide
Buy it if
You are building a high-end Intel Xeon W workstation needing 8-channel ECC memory, seven PCIe 5.0 slots, USB4 and IPMI management.
Skip it if
You need a desktop-class build or a dual-socket server — choose the Pro WS W880-ACE SE (Core Ultra) or a dual-socket Xeon server board.
Also consider
The ASUS Pro WS W880-ACE SE (Core Ultra workstation) or Z13PE-D16 (dual-socket Xeon server).
Features - ASUS - 90MB1LH0-M0EAY0
Colour
black
Interface
- USB Type-C,
- M.2,
- Ethernet,
- Thunderbolt
More Details
Product Code
04:587693
EAN Code
4711636389372
Manufacturer
ASUS
Technical specifications
CPU Type
- Intel Xeon
