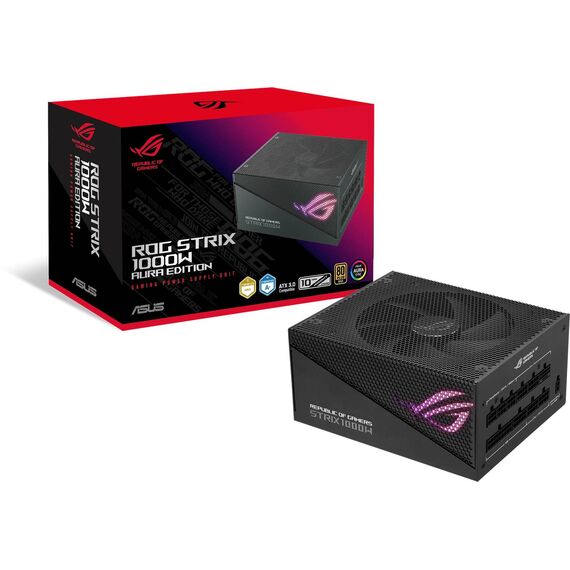

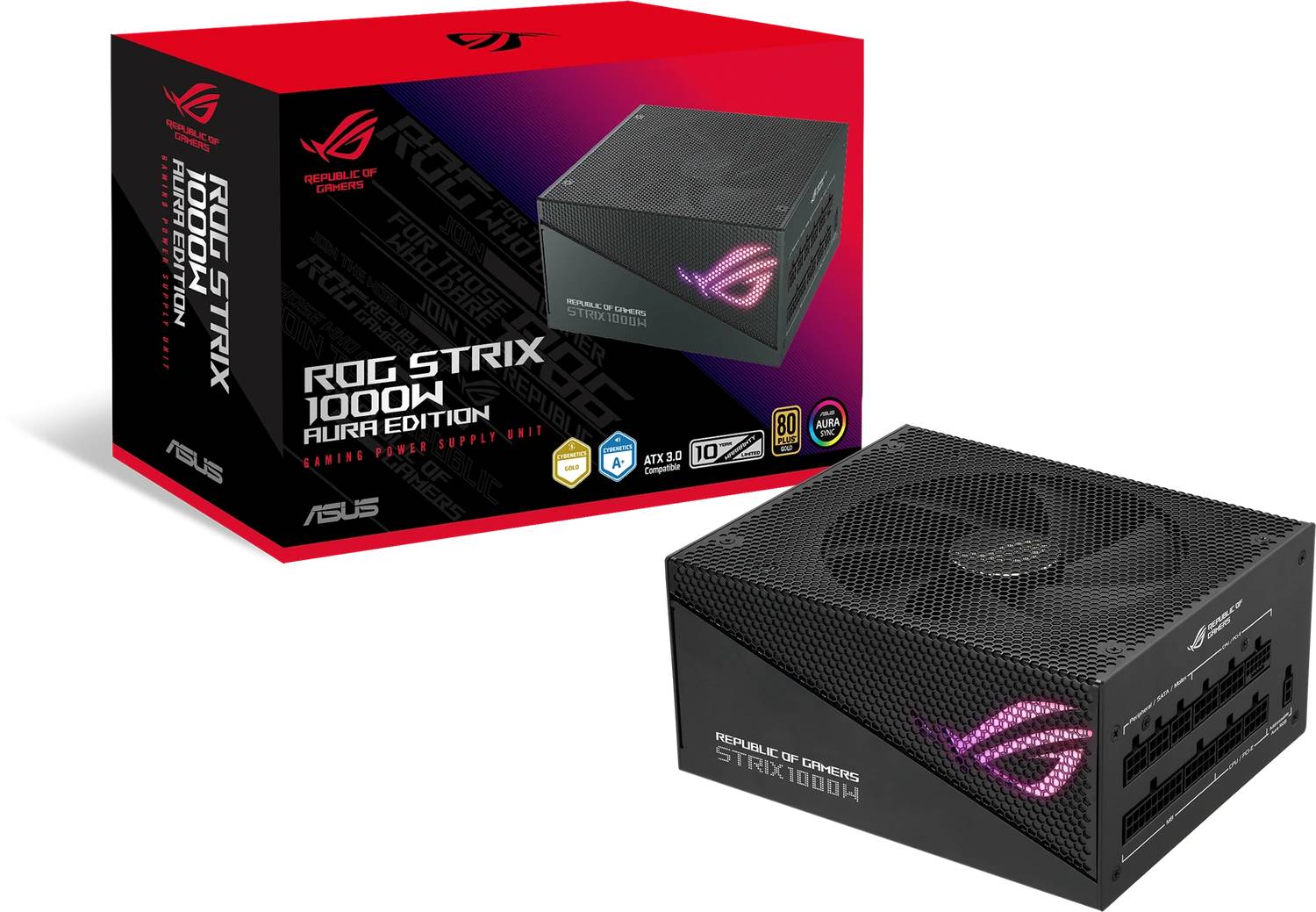

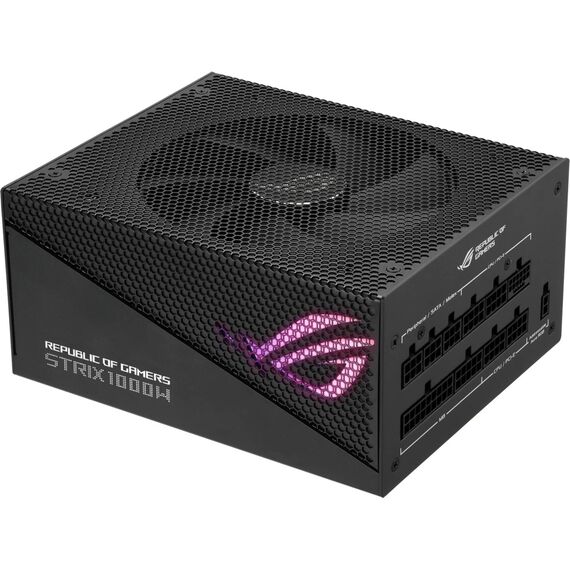

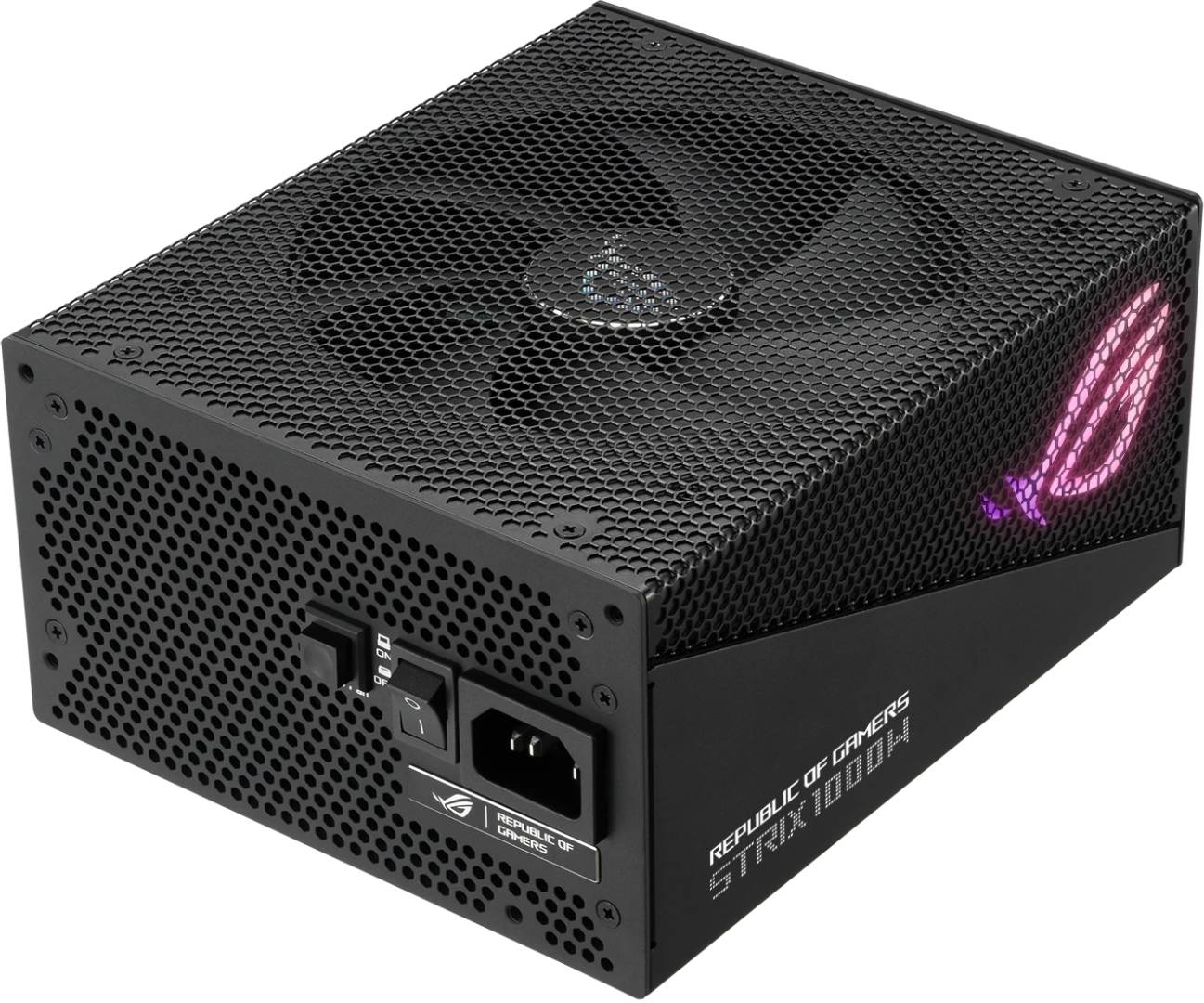

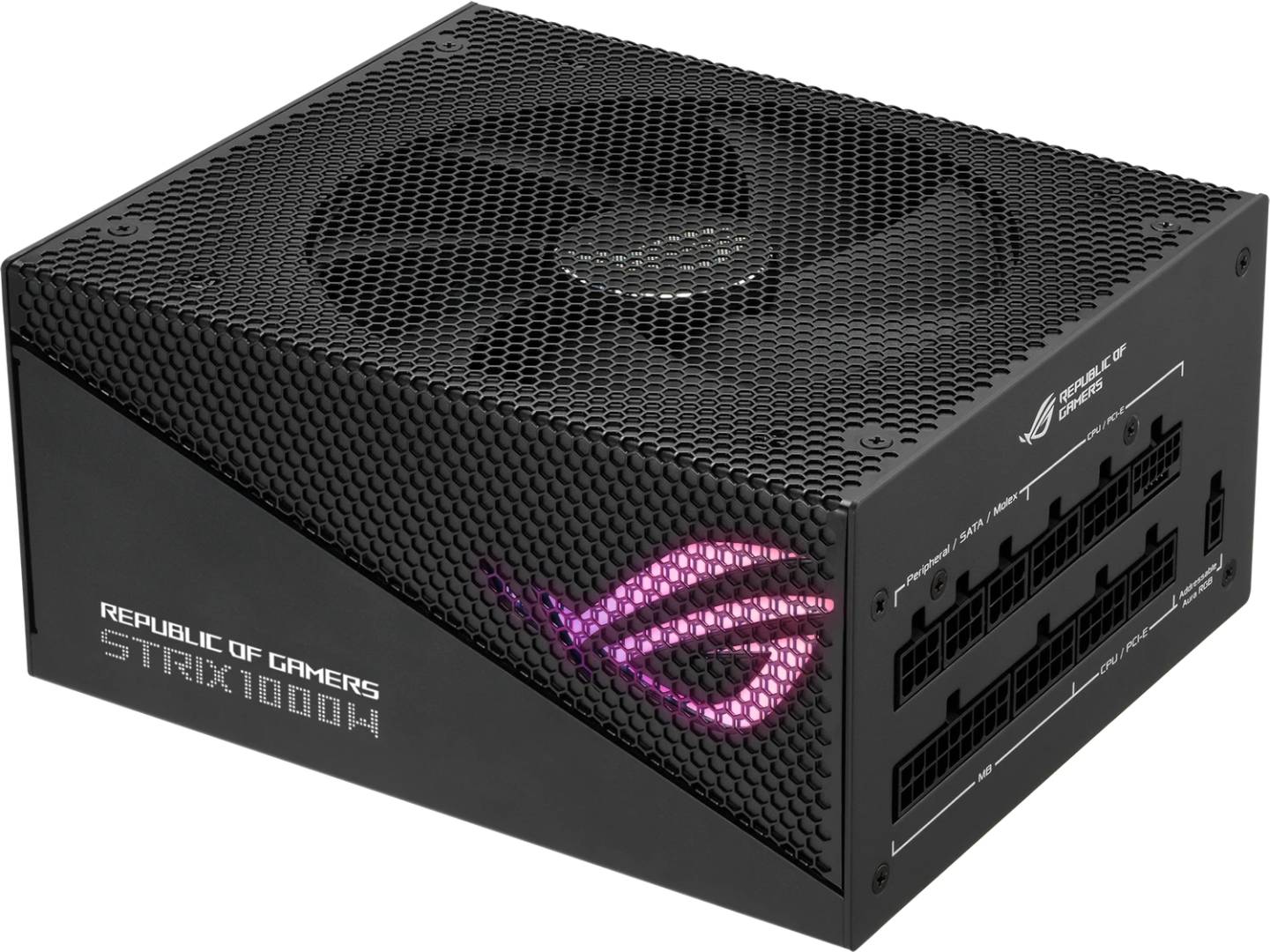

ASUS ROG Strix / Aura Edition / power supply (internal) / ATX12V 3.0/ EPS12V / 80 PLUS Gold / AC 100-240 V / 1000 Watt | 90YE00P1-B0NA00
90YE00P1-B0NA00
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Built to run cool

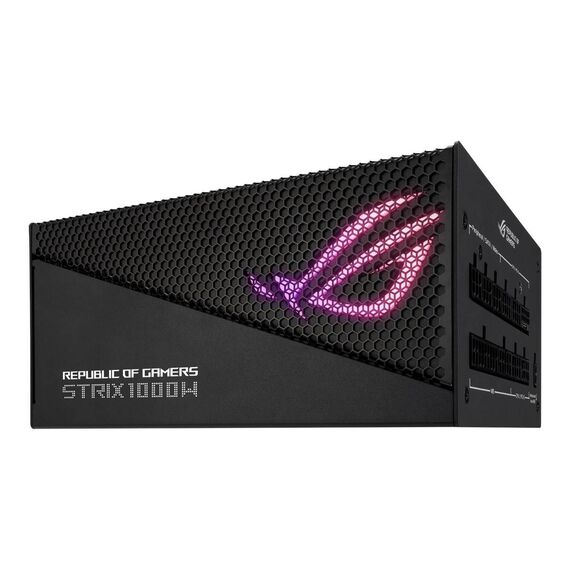

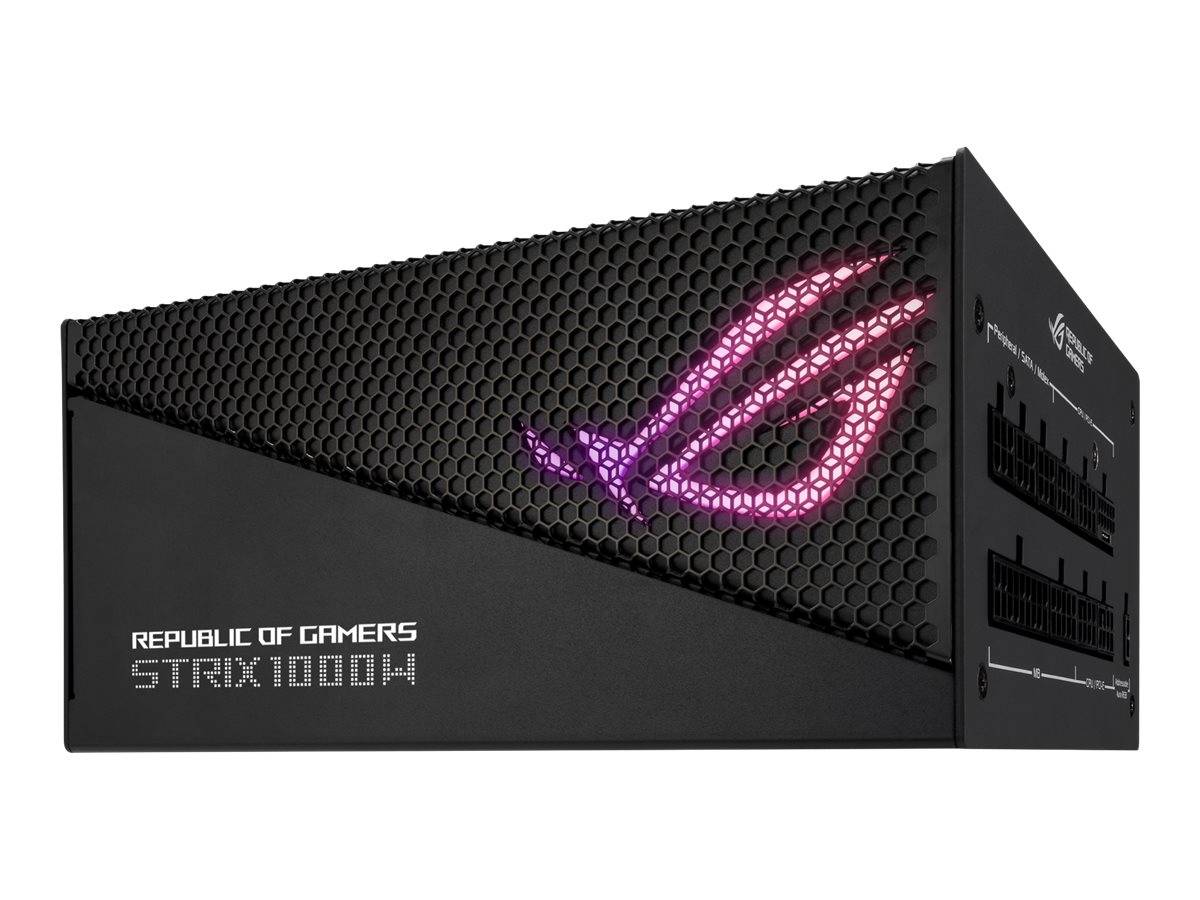

The ROG Strix 1000 W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise. - Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability. - Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 1000 W Gold Aura Edition, so it's all set to integrate with the Aura Sync illumination ecosystem - adding aesthetic style to raw power.
Special Features
- Built to run cool
- Heart of gold
- Outshine the competition
Product Specification
| Device Type | Power supply - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |

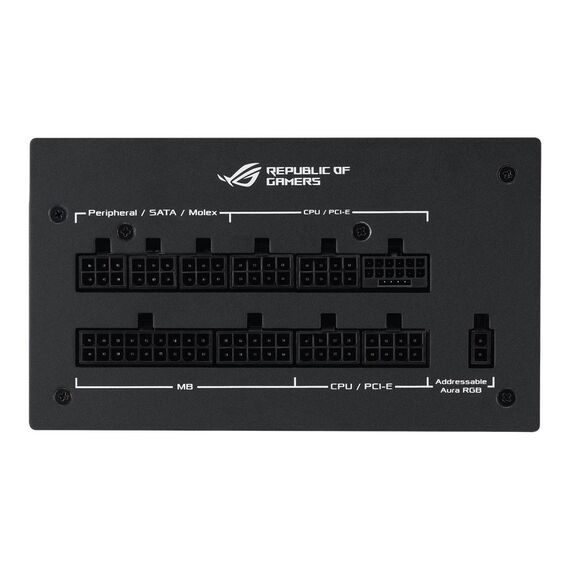

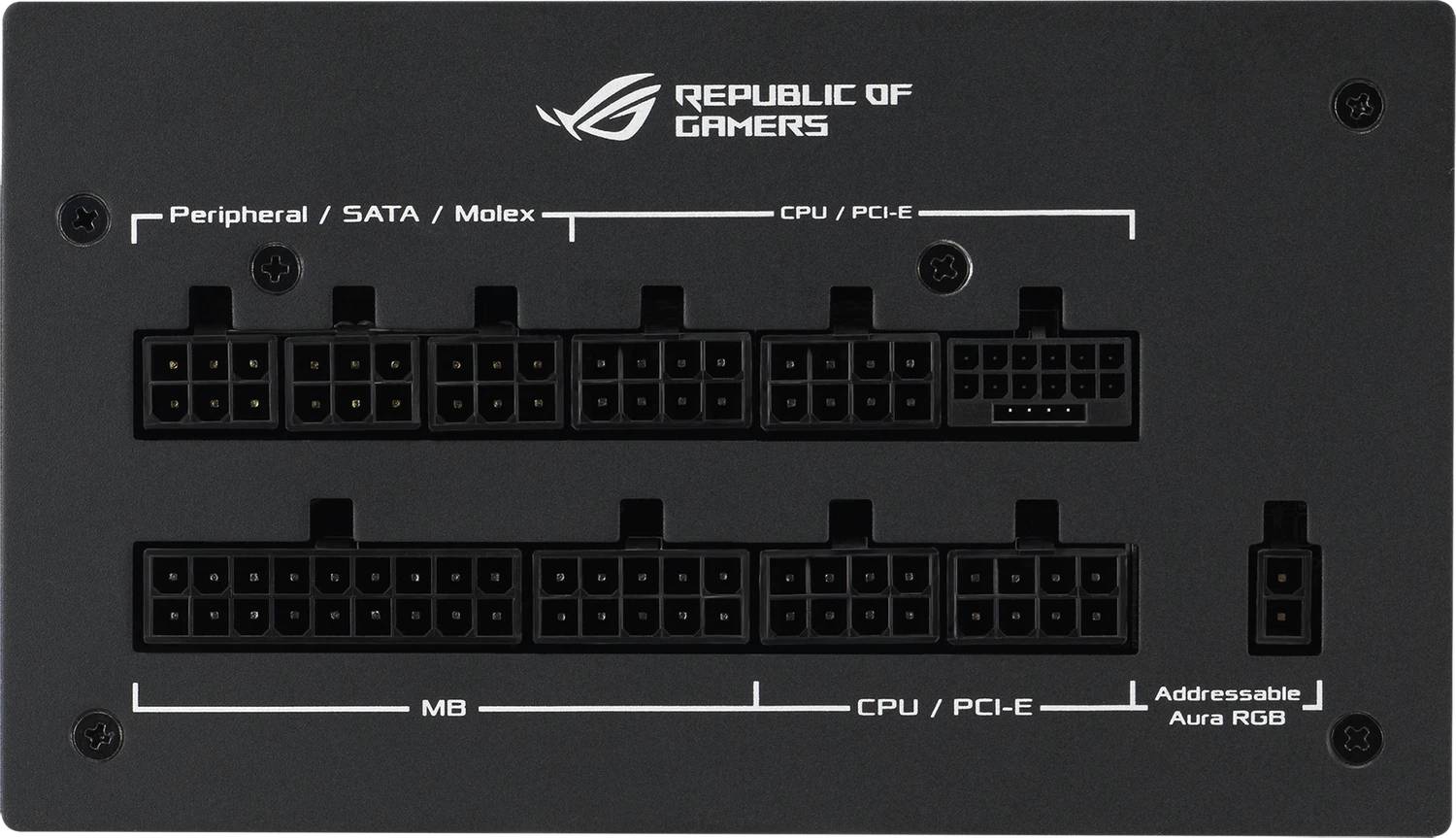

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 83.3 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Cables Included | AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 60 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 16-pin 12VHPWR power cable 70 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 70 cm ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 70 cm ¦ ARGB sync cable 80 cm ¦ 3x Serial ATA modular cable ¦ 2x Serial ATA modular cable ¦ 4 pin internal power cable |

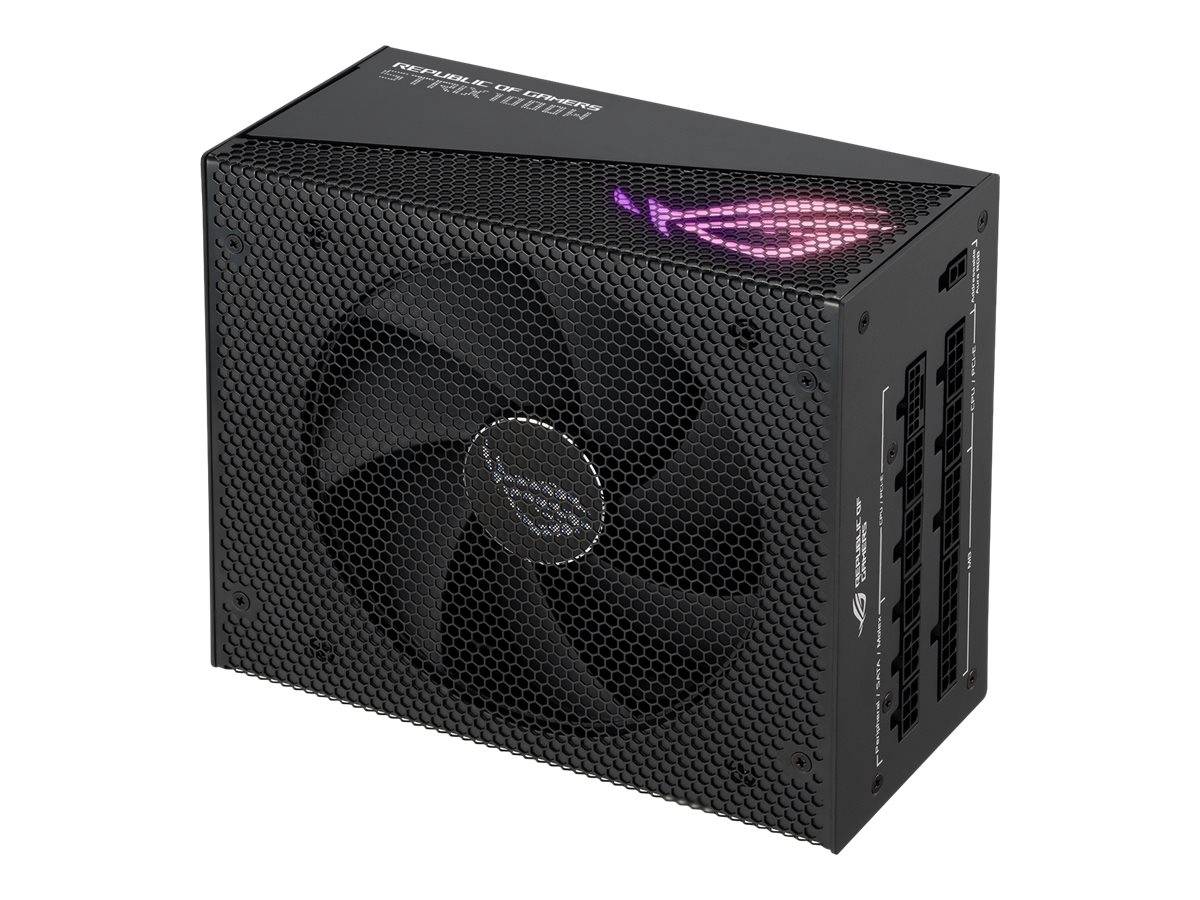

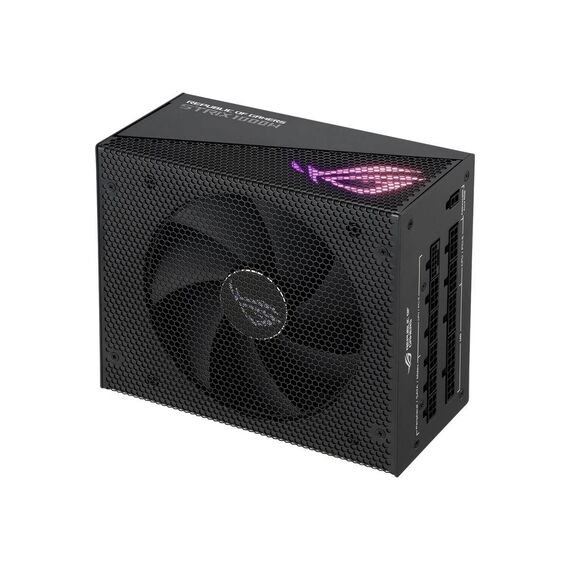

| Cooling System | 135 mm fan |

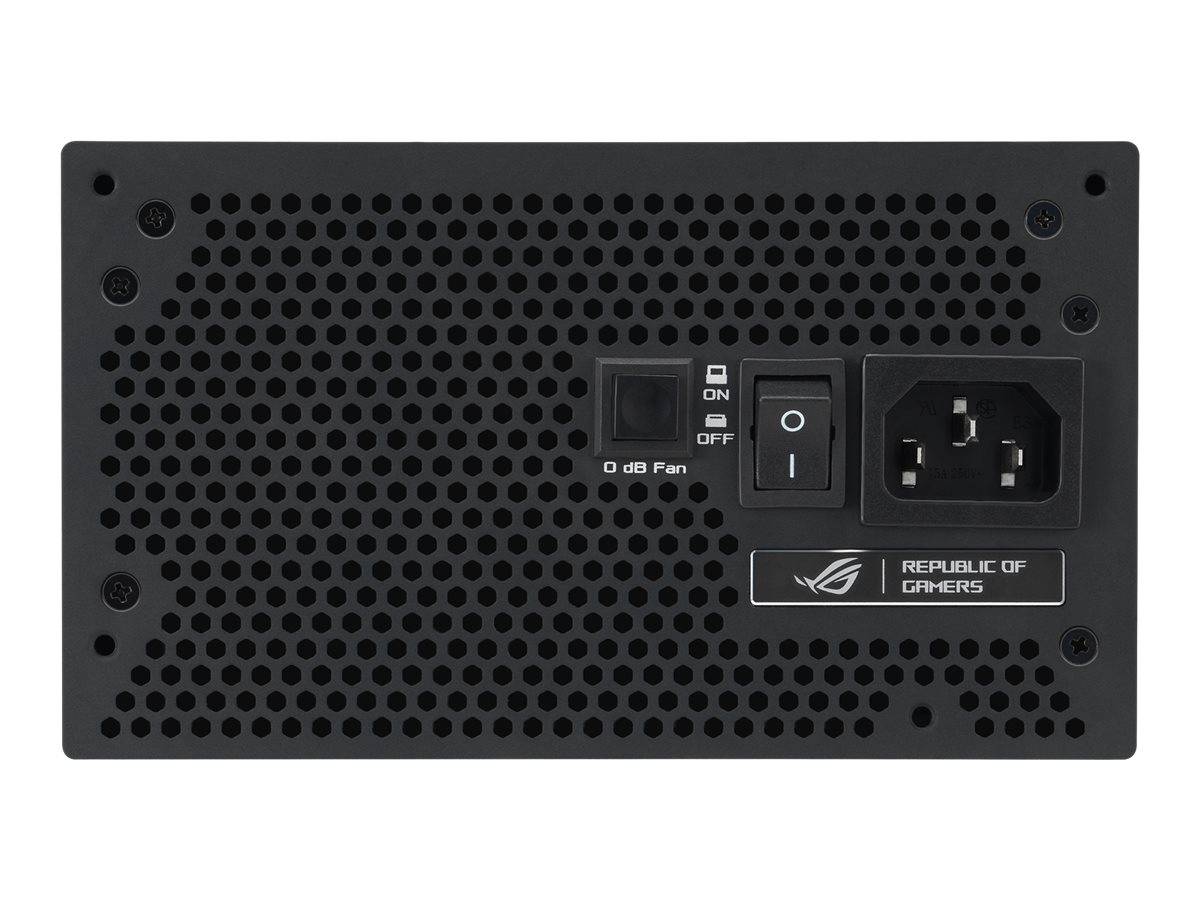

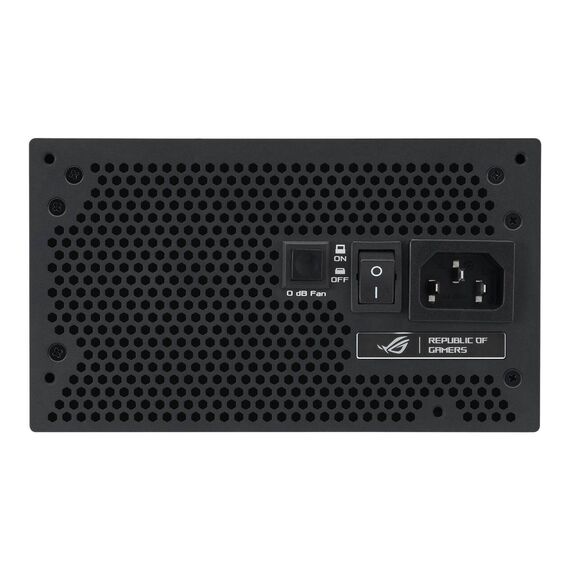

| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, aluminium enclosure, 0dB fan button |
| Compliant Standards | RoHS, PCIe |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 18 cm |
| Height | 8.6 cm |
| Weight | 3.03 kg |
Features - Asus - 90YE00P1-B0NA00
More Details
Product Code
04:422242
EAN Code
4711081721703
Manufacturer
Asus
