ASUS ROG STRIX B550-F GAMING WIFI II / Motherboard / ATX / Socket AM4 / AMD B550 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB19V0-M0EAY0

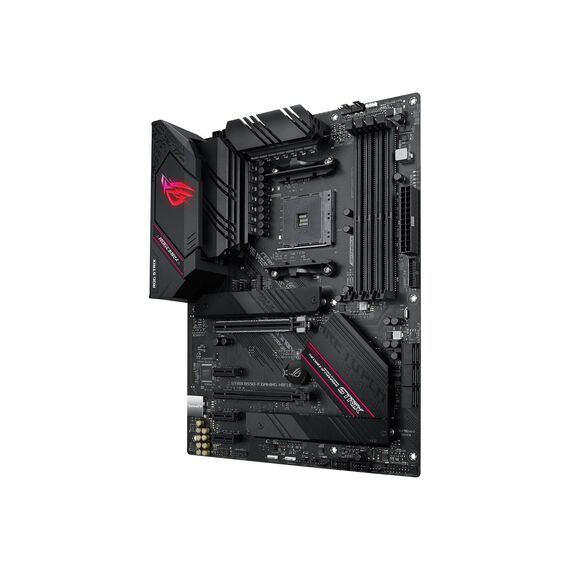

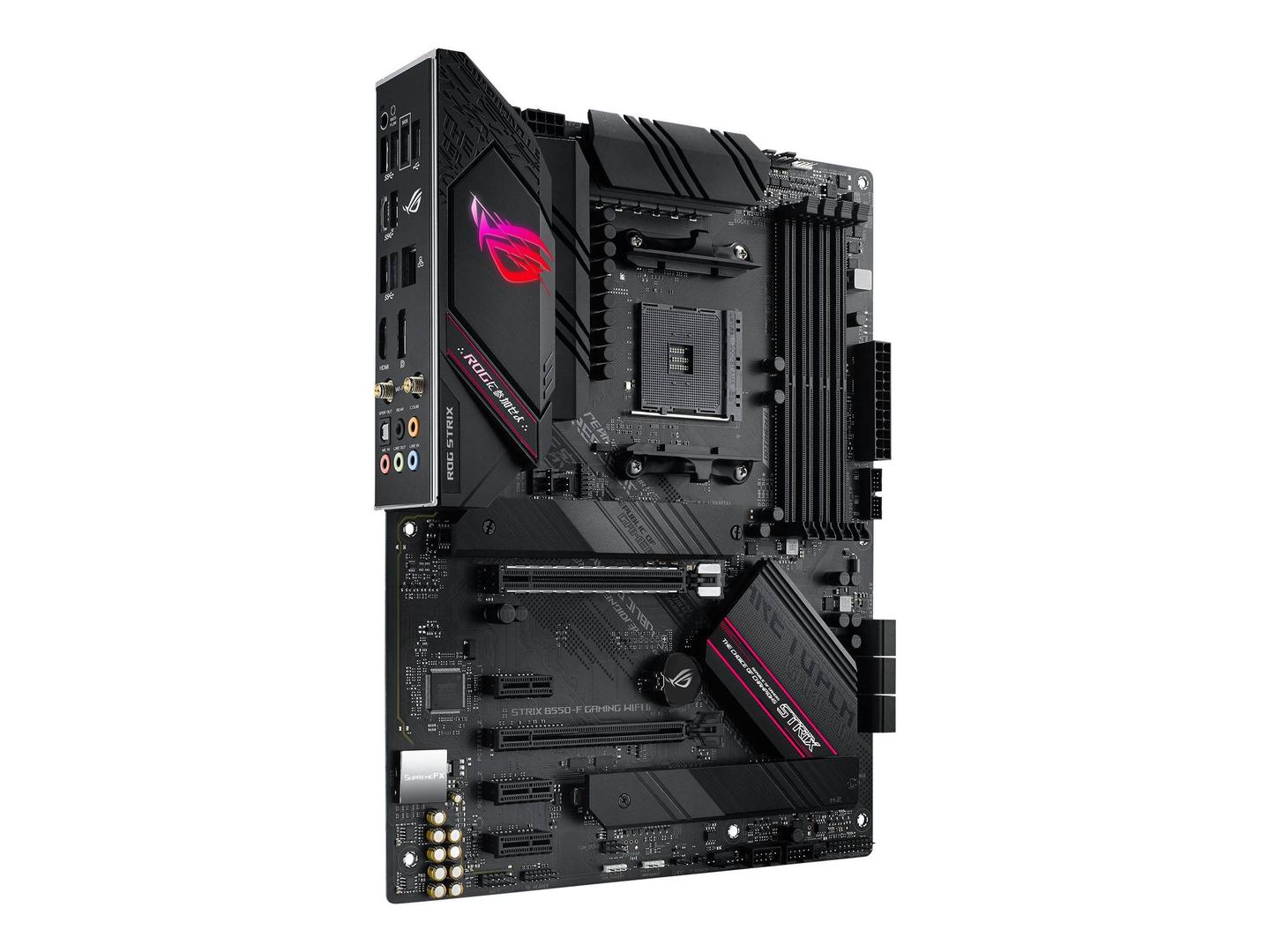

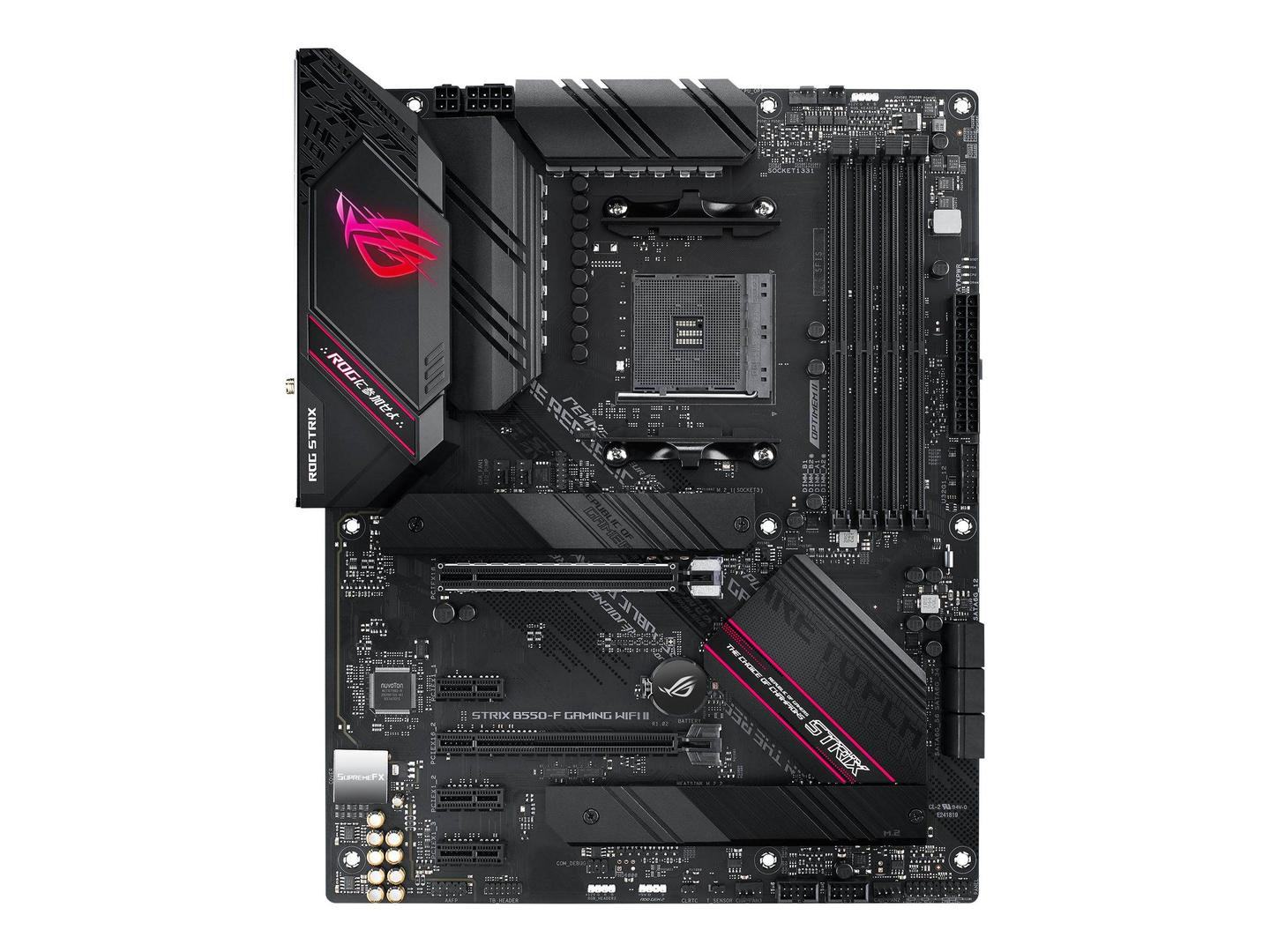

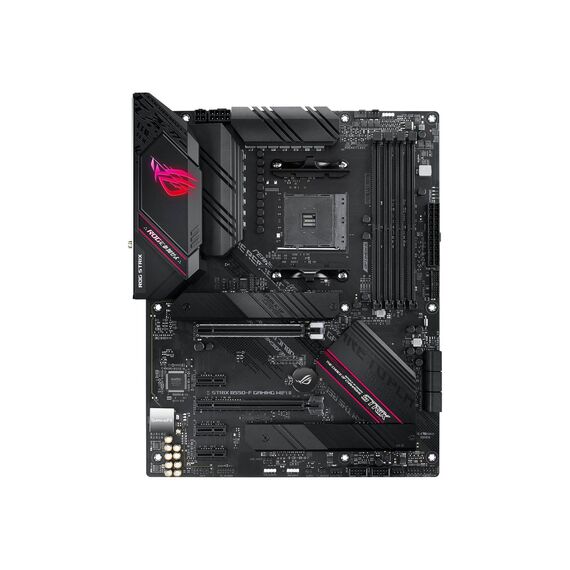

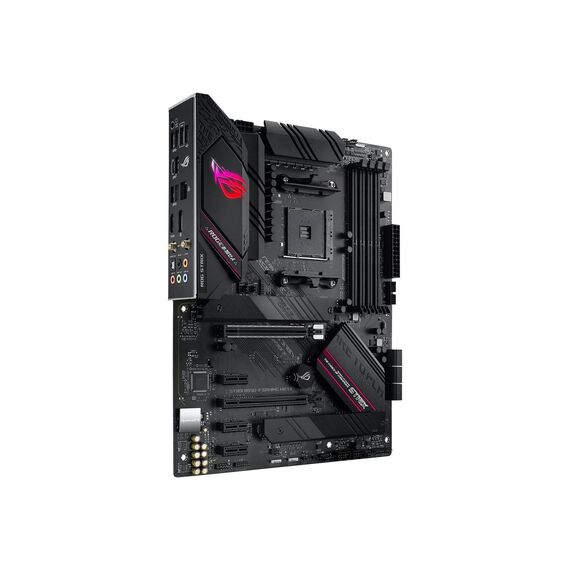

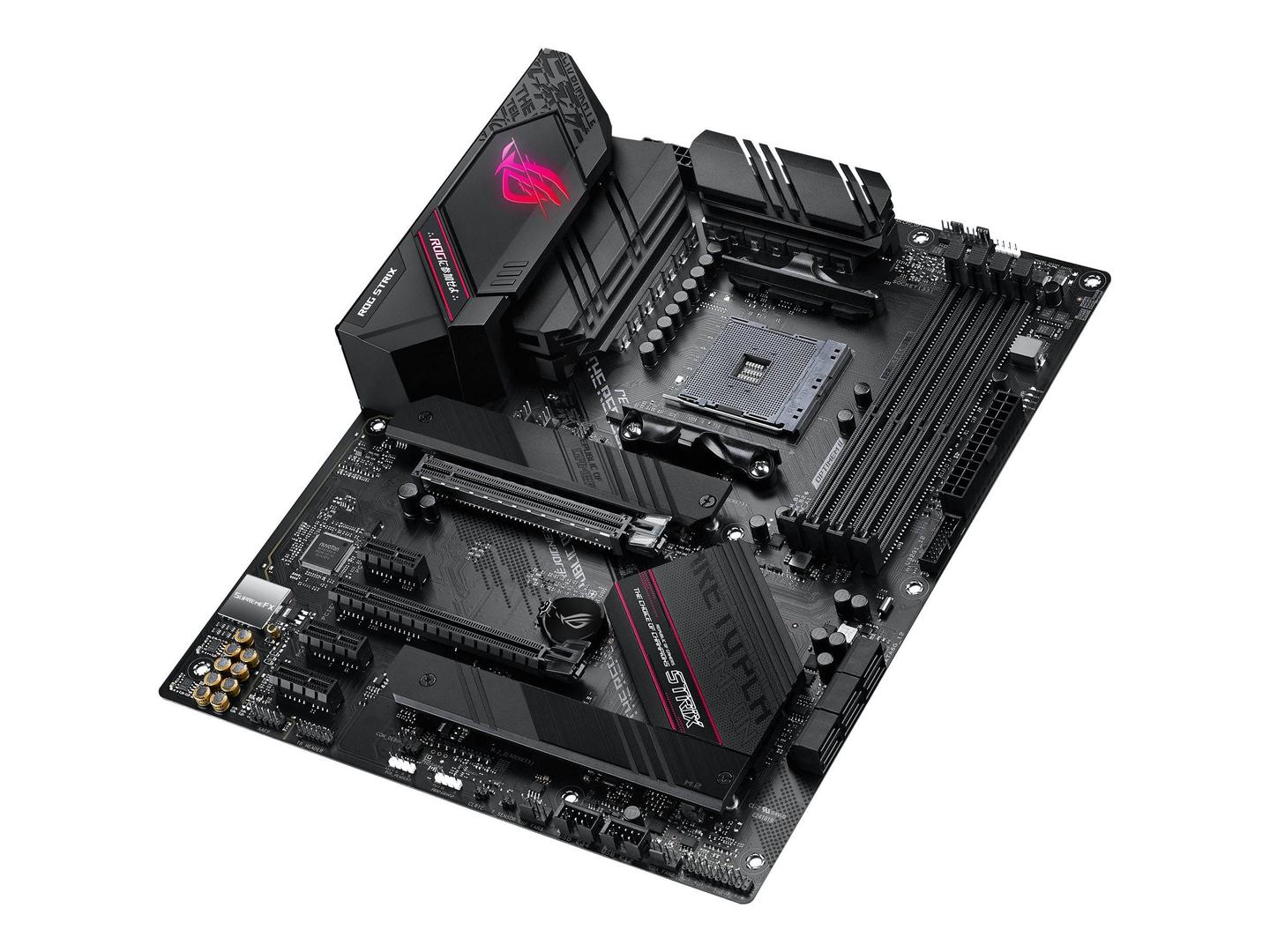

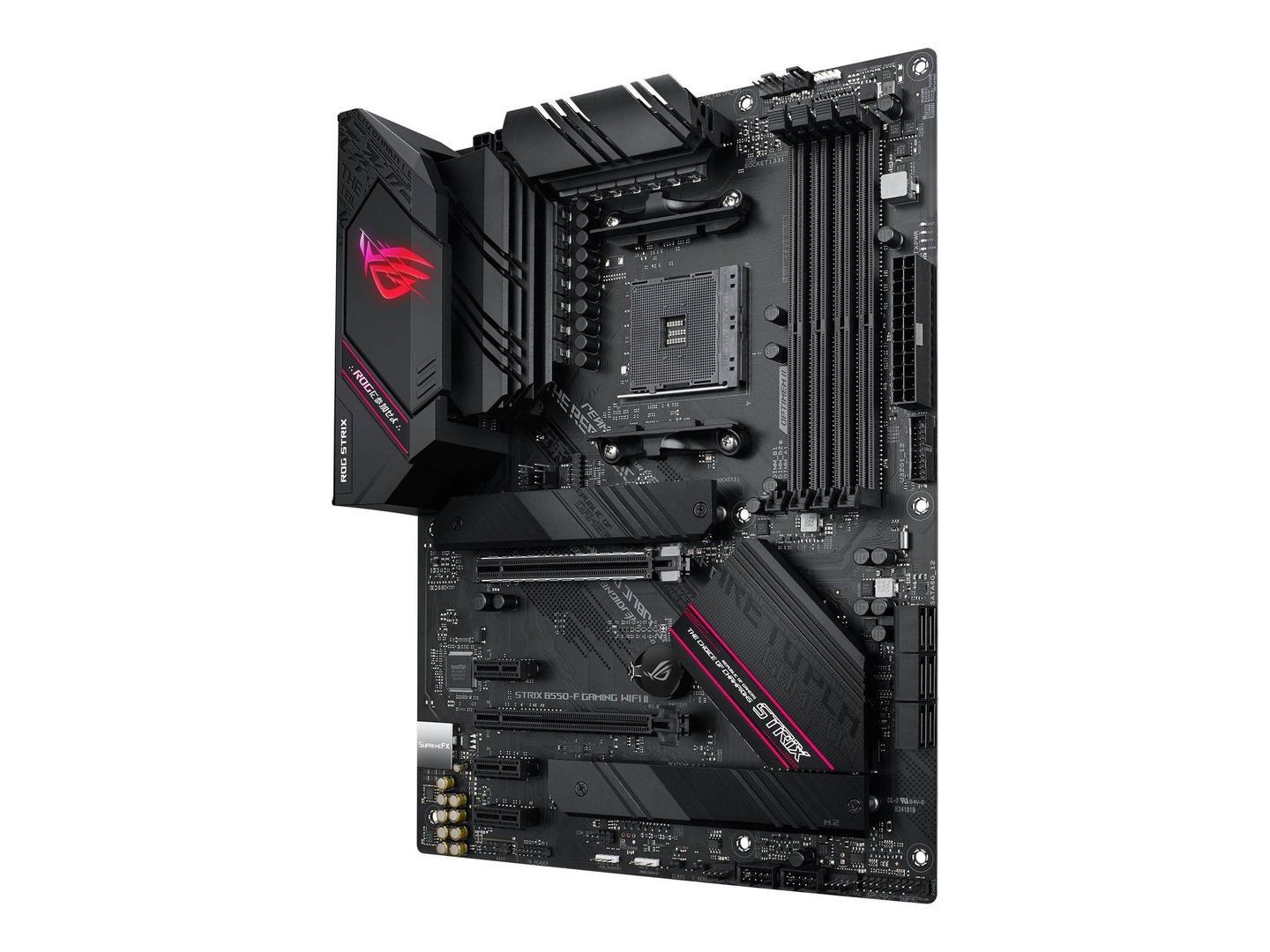

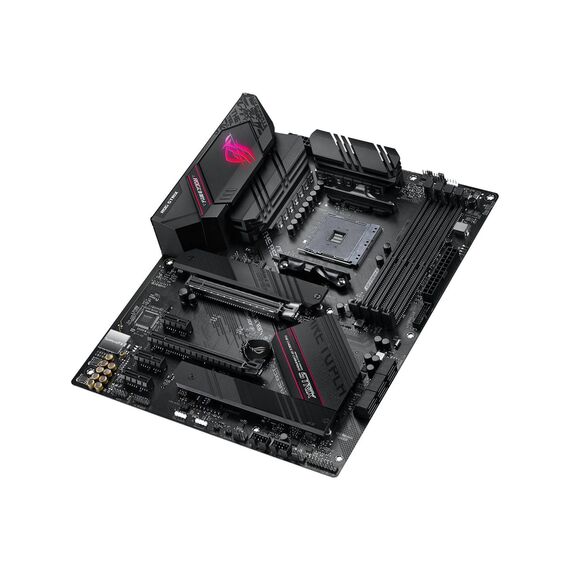

ASUS ROG STRIX B550F GAMING WIFI II 90MB19V0-M0EAY0

Description
Features

Product Features

Advance your gaming immersion
ROG Strix B550-F Gaming Wi-Fi II is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
PCIe 4.0-ready
ROG Strix B550-F Gaming Wi-Fi II features two M.2 slots, one of which supports the PCIe 4.0 standard to provide maximum storage flexibility and the lightning-fast data speeds. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost.
All-round performance
ROG Strix B550-F Gaming Wi-Fi II provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play your own style
The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming Wi-Fi II are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

Special Features

AM4 socket: ready for AMD Ryzen 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
Great gaming connectivity: PCIe 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C, plus HDMI 2.1 and DisplayPort 1.2 output
Smooth networking: On-board Wi-Fi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
DIY-friendly design: includes a pre-mounted I/O shield, BIOS FlashBack, Q-LEDs and SafeSlot
Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III for immersive sound

Product Specification

Product Type	Motherboard - ATX
Chipset Type	AMD B550
Processor Socket	Socket AM4
Max Processors Qty	1
Compatible Processors	Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Supported RAM	Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture
Audio	Audio
Type	HD Audio (8-channel)
Audio Codec	SupremeFX (S1220A)
Compliant Standards	High Definition Audio, DTS Sound Unbound
LAN	LAN
Network Controller	Intel I255-V
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity	Expansion / Connectivity
Expansion Slots	1 x CPU Â¦ 4 x DIMM 288-pin Â¦ 1 x PCIe 4.0 x16 Â¦ 1 x PCIe 3.0 x16 (x4 mode) Â¦ 3 x PCIe 3.0 x1
Storage Interfaces	SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 Â¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2
Interfaces	1 x LAN (2.5Gigabit Ethernet) Â¦ 4 x USB 3.2 Gen 1 Â¦ 1 x audio line-in - mini-jack Â¦ 1 x audio line-out - mini-jack Â¦ 1 x microphone - mini-jack Â¦ 1 x USB-C Gen2 Â¦ 1 x USB 3.2 Gen 2 Â¦ 1 x TOSLINK Â¦ 1 x audio line-out (center/subwoofer) - mini-jack Â¦ 1 x audio line-out (rear) - mini-jack Â¦ 2 x USB 2.0 Â¦ 1 x DisplayPort Â¦ 1 x HDMI
Internal Interfaces	4 x USB 2.0 - header Â¦ 2 x USB 3.2 Gen 1 - header Â¦ 1 x Thunderbolt - header Â¦ 1 x audio - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features	Features
BIOS Type	AMI
BIOS Features	BIOS FlashBack, UEFI BIOS
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, ASUS Aura Sync, GameFirst VI
Miscellaneous	Miscellaneous

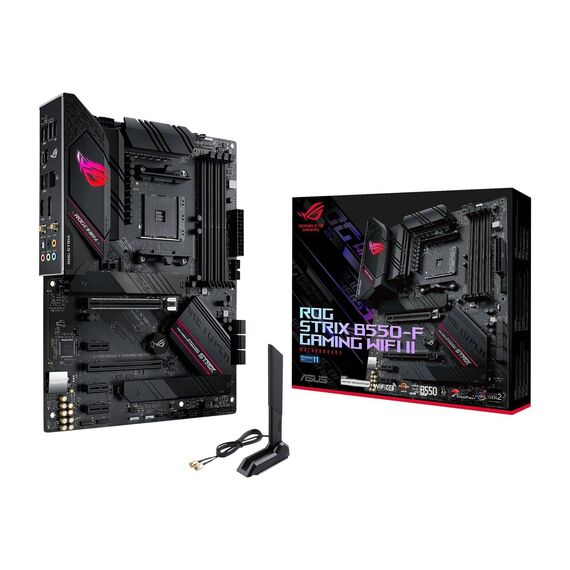

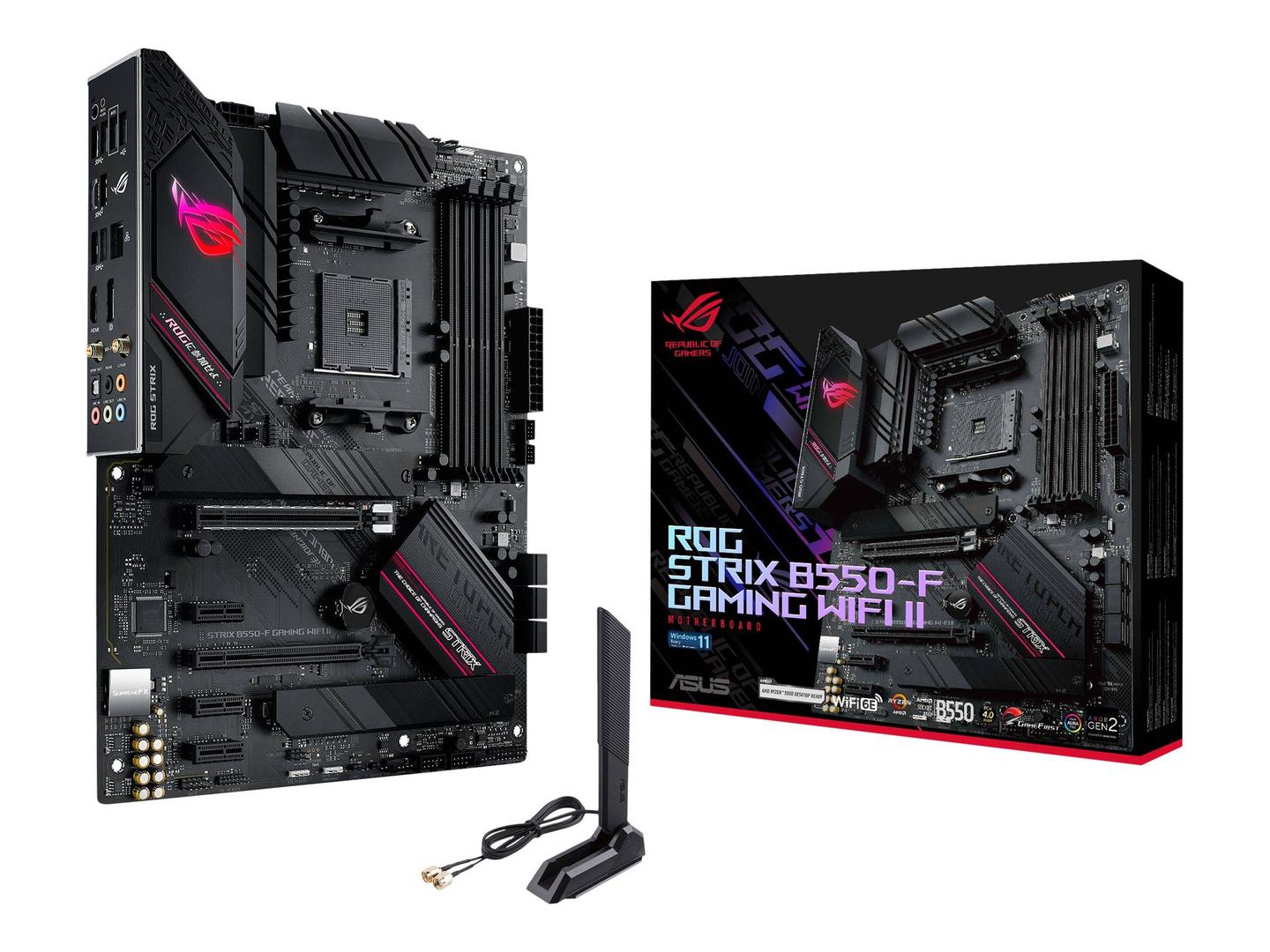

Included Accessories	External antenna, cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain
Cables Included	4 x Serial ATA cable
Software Included	ROG CPU-Z, ASUS AI Suite III, ASUS EZ Update, Overwolf, ASUS EZ Flash 3, DAEMON Tools, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer, Norton AntiVirus (Trial), AIDA64 Extreme (60 days trial)
Width	30.5 cm
Depth	24.4 cm
