ASUS ROG STRIX X870E-E GAMING WIFI7 NEO — AM5 ATX board with PCIe 5.0, two USB4 ports and Wi-Fi 7
AMD X870E · AM5PCIe 5.0 GPU + 2x M.22x USB4 40Gbps5GbE + Wi-Fi 7

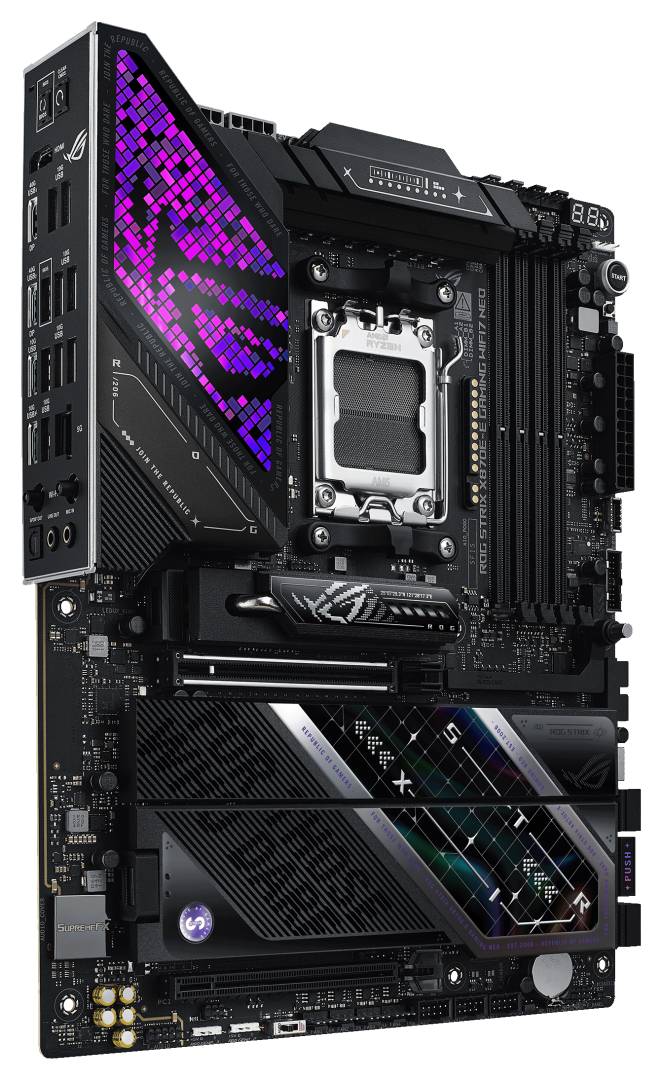

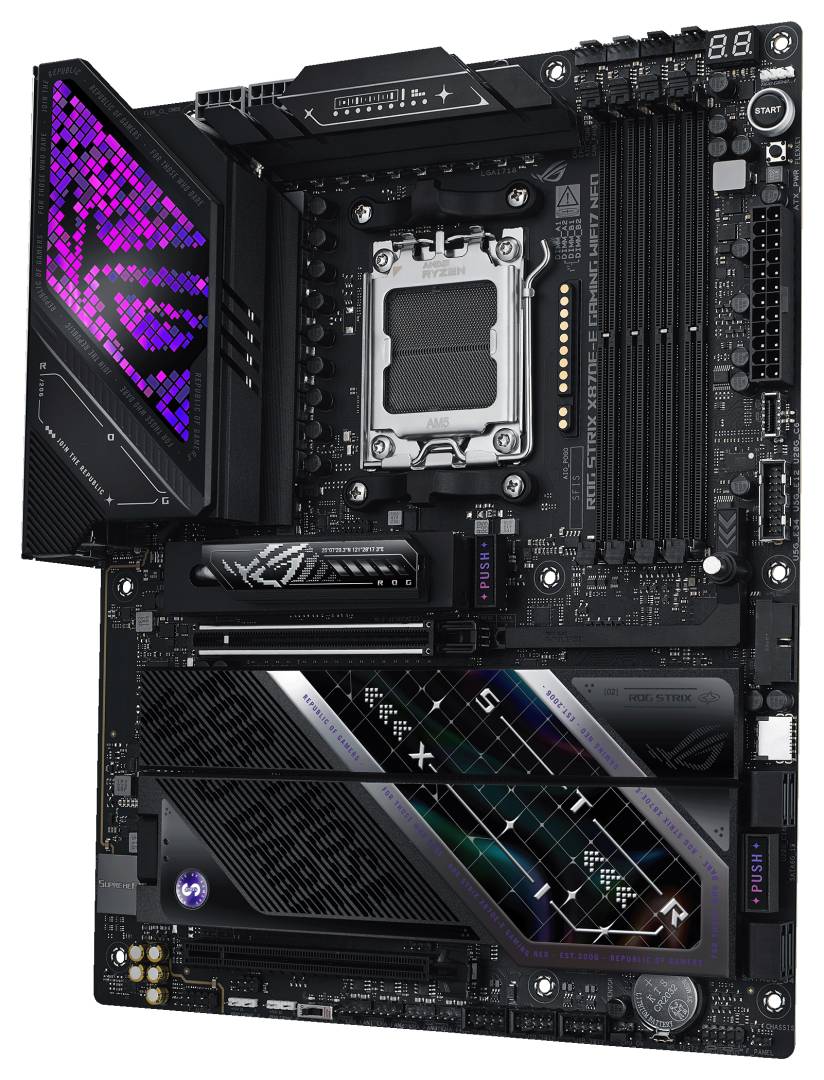

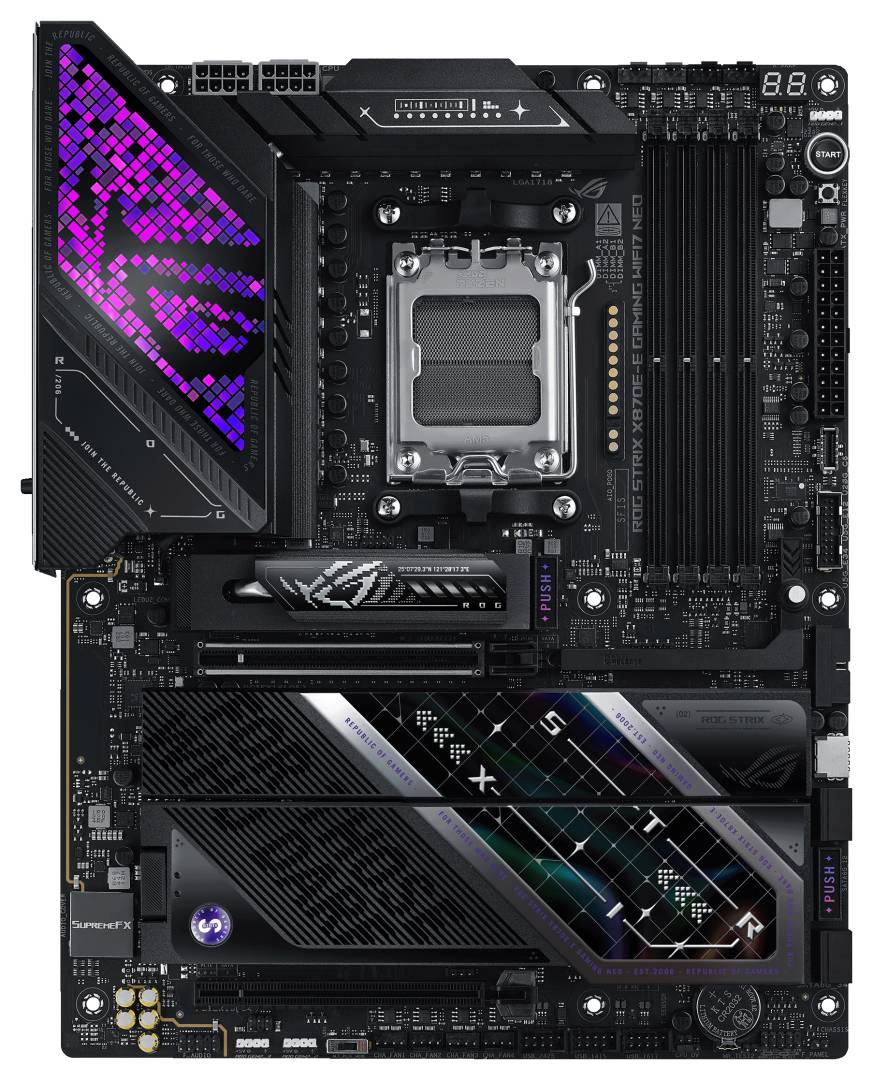

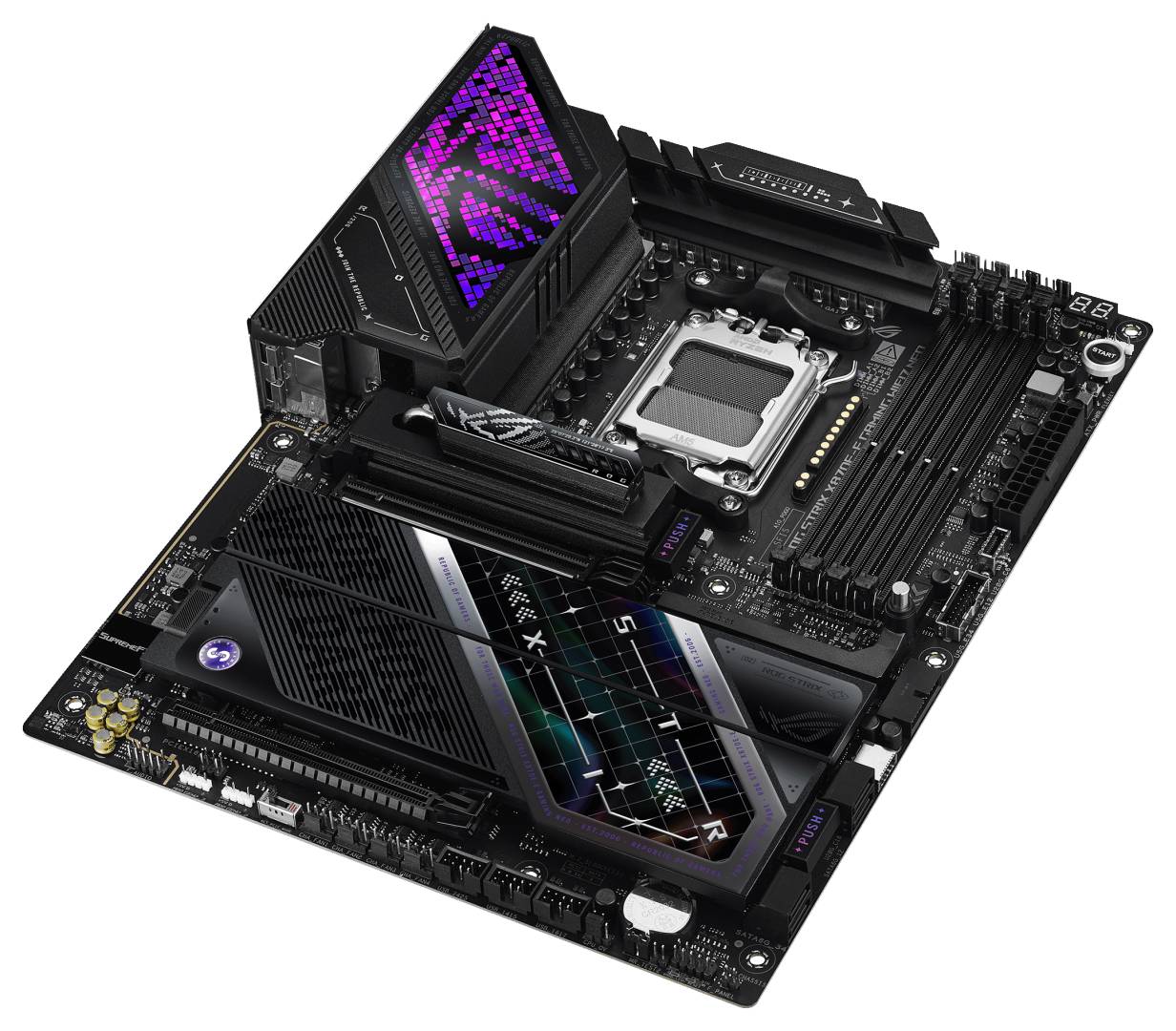

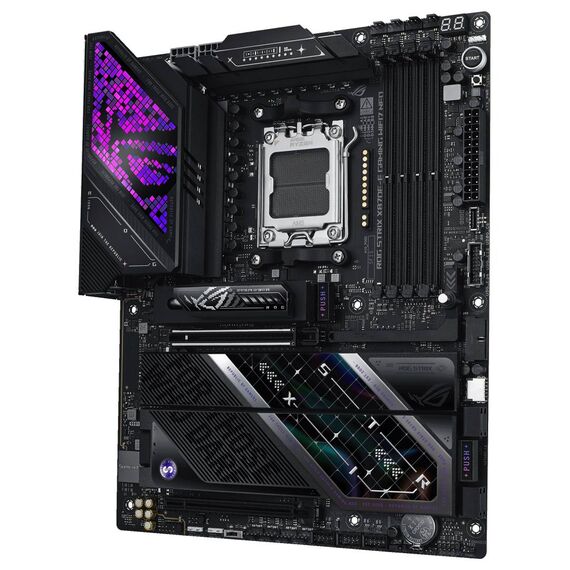

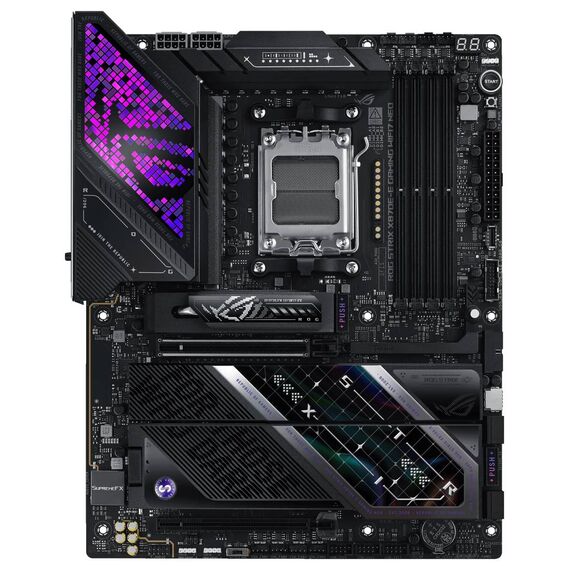

The ASUS ROG STRIX X870E-E GAMING WIFI7 NEO is an AMD X870E ATX motherboard for socket AM5 with a PCIe 5.0 x16 graphics slot, five M.2 slots (two at PCIe 5.0) and two USB4 40Gbps ports, aimed at high-end gaming and creator builds on Ryzen 9000, 8000 and 7000 processors.
It has four DDR5 slots for up to 256GB, an 18+2+2 power stage design (110A stages for the CPU cores), Realtek 5Gb LAN, MediaTek Wi-Fi 7 with 320MHz channels, SupremeFX ALC4080 audio and the ROG Q-design toolset: PCIe Slot Q-Release, M.2 Q-Latch and Q-Slide, BIOS FlashBack and a 2-digit Q-Code display.
Before you order: Memory speeds above JEDEC (up to 8600+ MT/s OC with Ryzen 9000 per ASUS) depend on the CPU and memory kit; check the ASUS QVL or ask us. With some lower-tier Ryzen processors the x16 slot and CPU M.2 slots run at reduced PCIe generation or lanes.

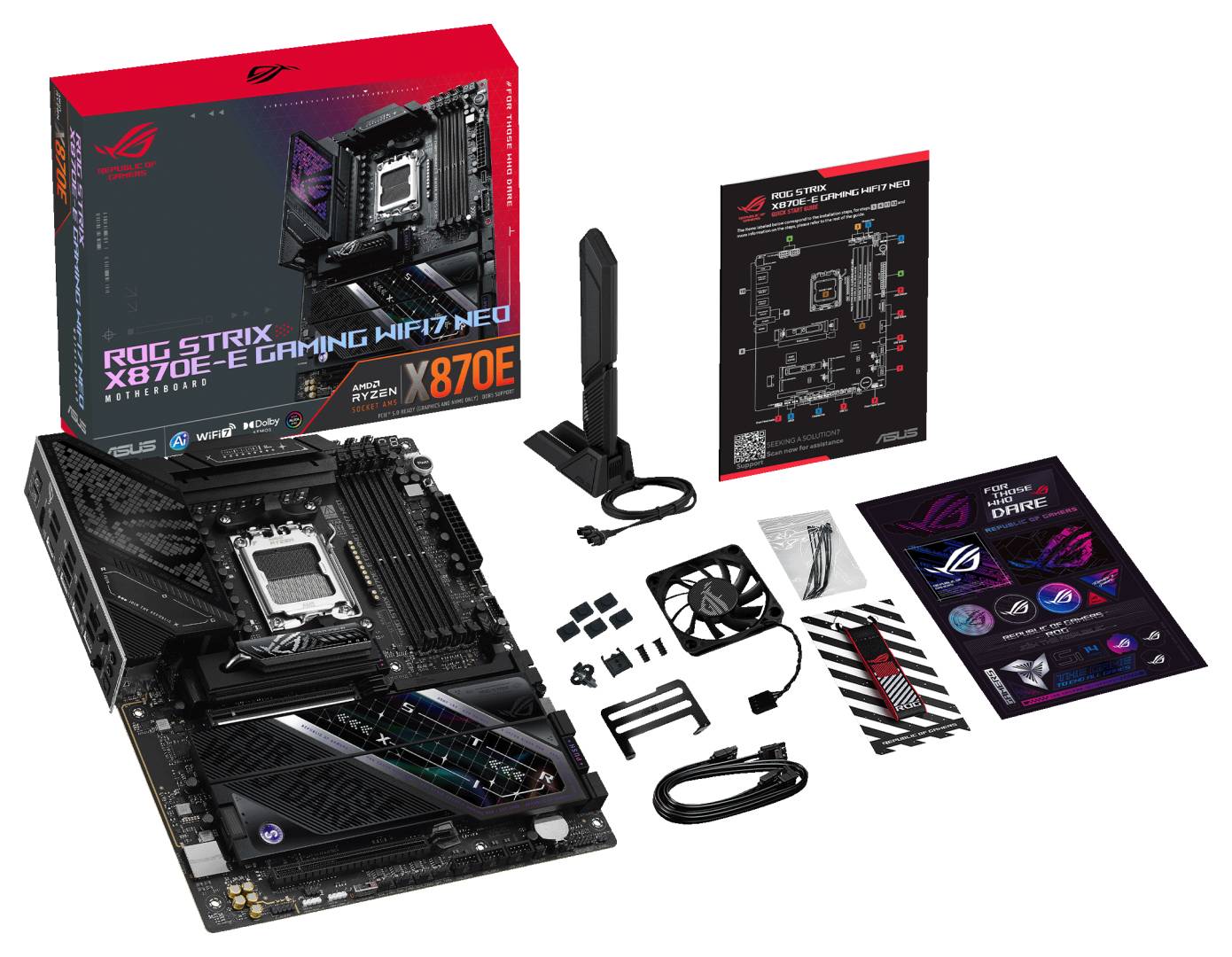

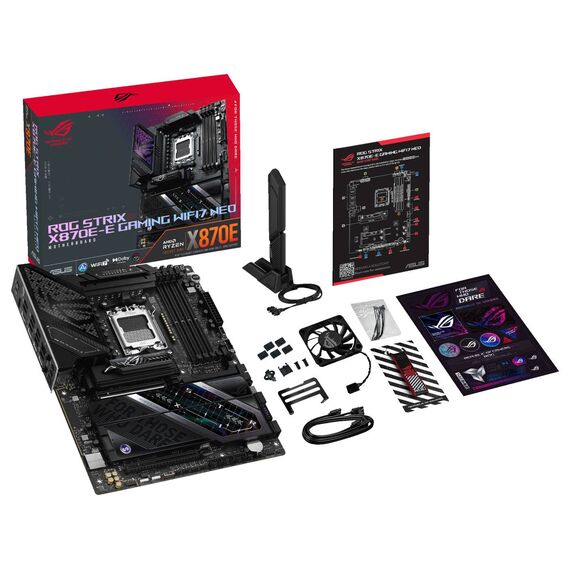

What's in the Box
- ROG STRIX X870E-E GAMING WIFI7 NEO motherboard (I/O shield pre-mounted)
- ROG Wi-Fi Q-Antenna
- 2x SATA 6Gb/s cables
- DDR5 fan holder, 60 mm ROG assistant fan and cooling-kit screws
- M.2 Q-Latch and Q-Slide packages, 5x M.2 rubber pads
- Cable ties, ROG key chain, stickers, thank-you card, quick start guide
What It Means in Practice
- PCIe 5.0 for the graphics card and two NVMe SSDs gives headroom for current and next-generation hardware.
- Two rear USB4 ports run at 40Gbps and output video (DP Alt mode), useful for fast external SSDs and docks.
- 5GbE wired plus Wi-Fi 7 means no add-in network card is needed even for a fast NAS.
- Tool-less Q-designs make GPU and M.2 swaps quick, and BIOS FlashBack updates firmware without a CPU installed.
What Will Not Work
- It does not support AM4 processors or DDR4 memory.
- The front-panel case headers need USB 20Gbps Type-C support on the case to use the full front speed.
- The board has one HDMI output; display through USB4 or HDMI needs a Ryzen CPU with integrated graphics.
- The third M.2 slot shares bandwidth with the second x16-size slot, so you cannot use both at full speed.
Key Features
PCIe 5.0 ready
PCIe 5.0 x16 SafeSlot plus two PCIe 5.0 x4 M.2 slots from the CPU.
USB4 and fast USB

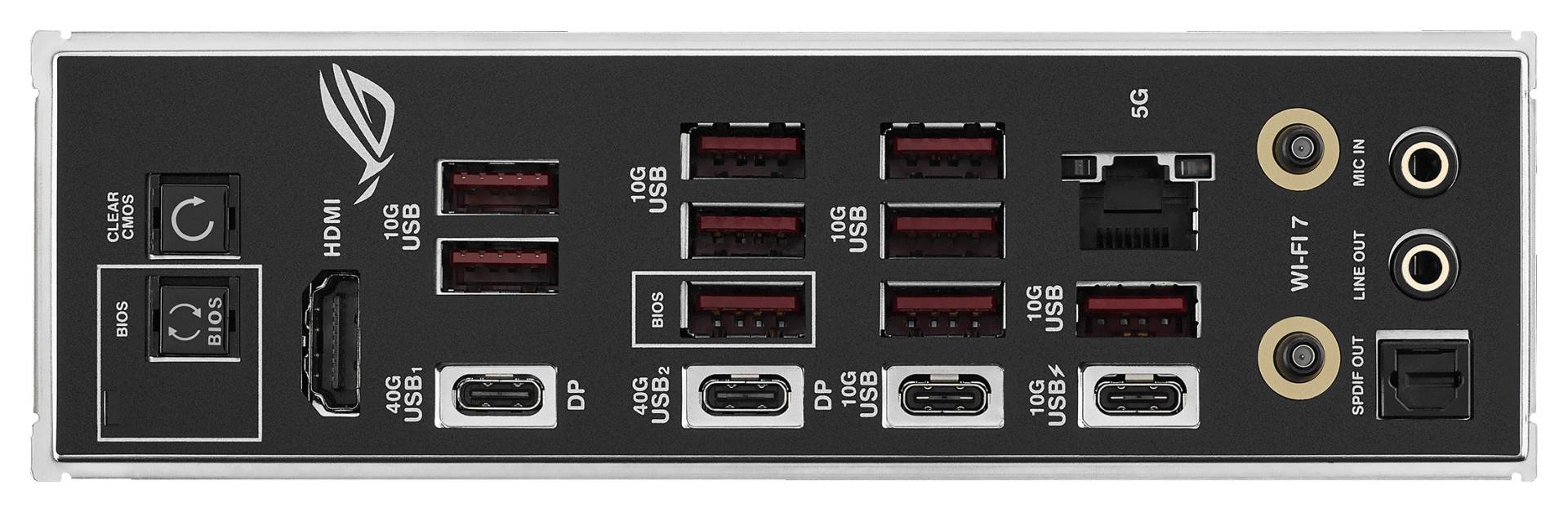

2x USB4 40Gbps, 1x USB-C 10Gbps with 30W PD, 10x more USB 10Gbps ports on the rear.
Networking
Realtek 5Gb LAN with LANGuard and MediaTek MT7927 Wi-Fi 7 (2x2, 320MHz, MLO).
DIY friendly
Q-Release, M.2 Q-Latch/Q-Slide, Q-Antenna, Q-Code, BIOS FlashBack, 64MB BIOS ROM.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is a top-end AM5 board for builders who want PCIe 5.0 storage, USB4 and fast networking without add-in cards. Pair it with a fast DDR5 kit from our memory range and plan airflow over the M.2 area if you use two PCIe 5.0 SSDs.
✓ Buy it if you are building a high-end Ryzen 9000 or 7000 system and want PCIe 5.0, USB4 and 5GbE.
✕ Skip it if you are on AM4/DDR4 or do not need PCIe 5.0 and USB4 (a B850 board costs less).
→ Also consider a DDR5 EXPO kit and a PCIe 5.0 NVMe SSD to use the board fully.
Not sure it fits your build? Send us your CPU, memory and case and we will check compatibility before you order.
Features - ASUS - 90MB1P20-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
04:590445
EAN Code
4711636407946
