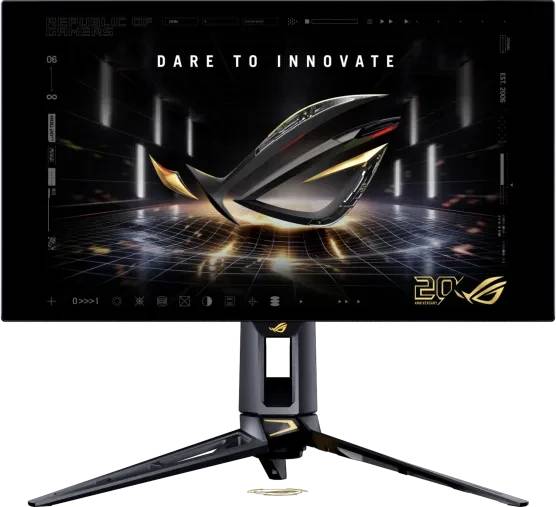

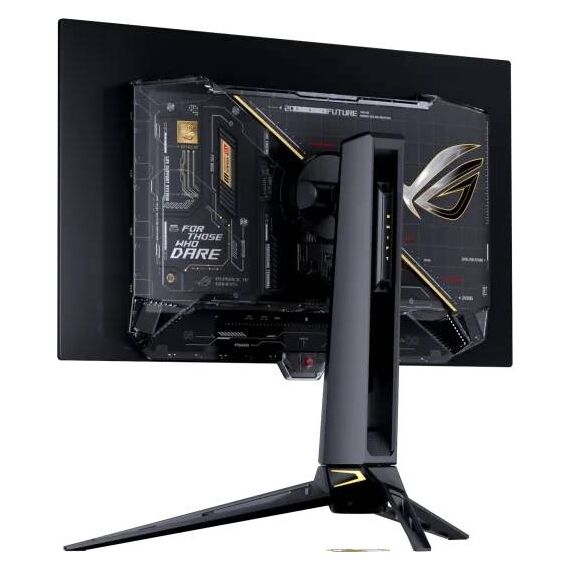

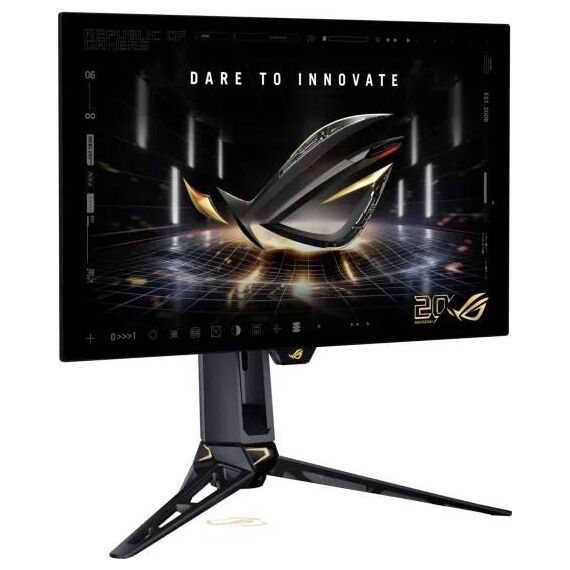

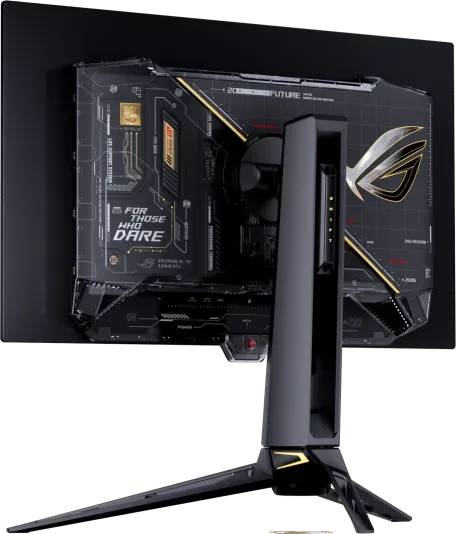

ASUS ROG Swift OLED PG27AQWP-G EDITION 20 — QHD OLED at 540Hz
QHD Tandem WOLED540Hz · 720Hz HD0.02ms GtGDisplayHDR 500 True Black

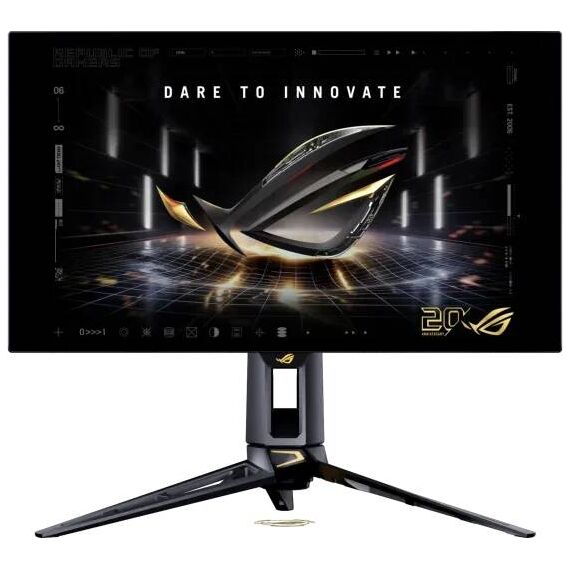

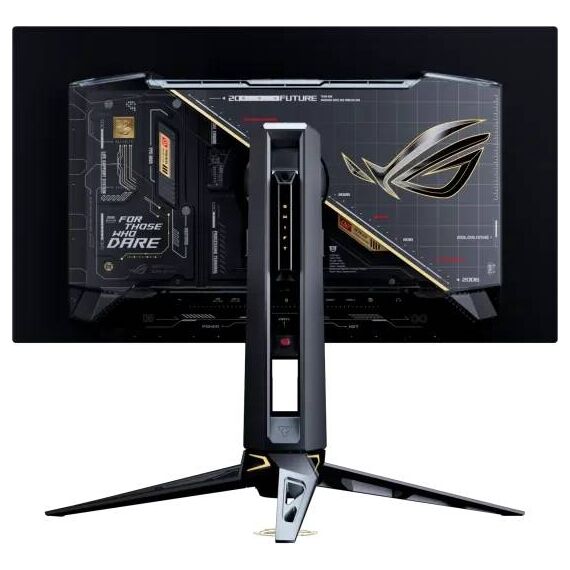

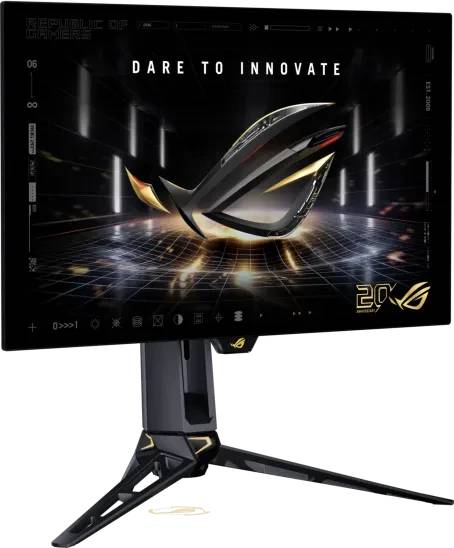

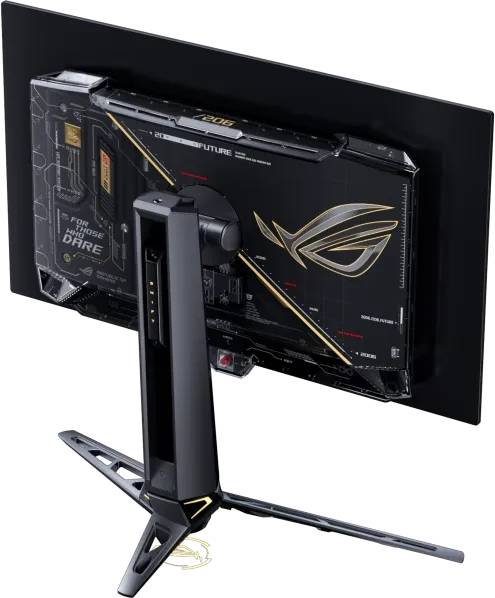

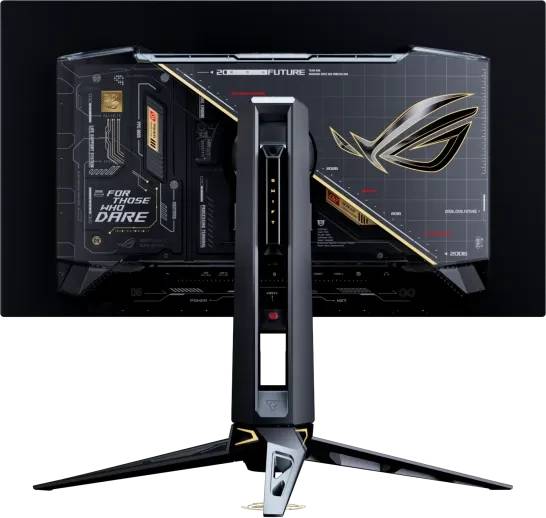

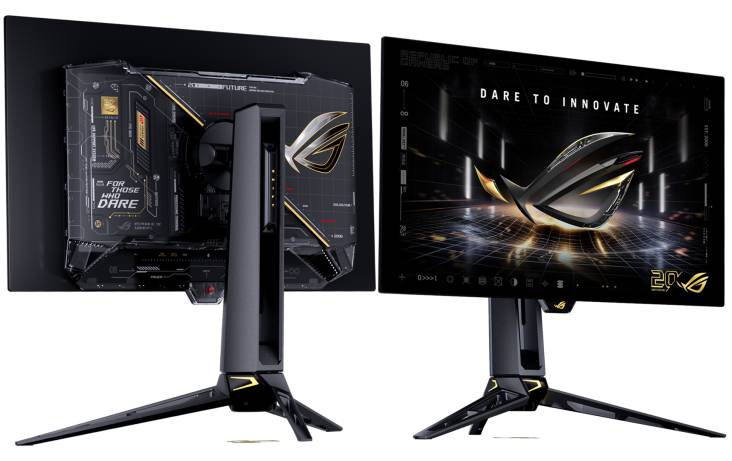

The ASUS ROG Swift OLED PG27AQWP-G EDITION 20 is a 27-inch class (26.5") QHD gaming monitor with a Tandem WOLED panel running at 540Hz — or 720Hz in HD dual mode — with 0.02ms GtG response, built for top-level competitive play.
At 540Hz on an OLED panel, motion clarity reaches a level LCDs cannot match: each frame appears almost instantly and is gone before the next. The tandem WOLED structure reaches 1500 nits HDR peak with VESA DisplayHDR 500 True Black certification, and colour covers 99.5% DCI-P3 in 10-bit. FreeSync Premium Pro and G-SYNC Compatible keep frame delivery smooth, and DisplayPort 2.1 provides the bandwidth for QHD at 540Hz.
Before you order: To reach 540Hz you need a top-tier graphics card and esports titles running at matching frame rates; use DisplayPort 2.1 from a supported card. The glossy surface reflects bright light sources, and there are no built-in speakers or USB-C input.
What's in the Box
- ASUS ROG Swift OLED PG27AQWP-G EDITION 20 monitor with stand
- DisplayPort 2.1 (DP80) cable
- HDMI Ultra High Speed cable
- USB 3.2 cable
- Power cord
- VESA mount kit
- Microfiber cloth
- ROG pouch and sticker
- Pre-calibration report
- Quick start guide and warranty card
What It Means in Practice
- Use the supplied DP80 cable for full 540Hz QHD from a DisplayPort 2.1 graphics card.
- HD dual mode raises refresh to 720Hz for players who prefer maximum speed over resolution.
- Two HDMI 2.1 inputs serve consoles at up to their own refresh limits.
- A tripod socket on the stand lets you mount a streaming camera directly.
What Will Not Work
- No USB-C video input or power delivery.
- No built-in speakers — earphone jack only.
- 540Hz is not reachable in demanding AAA games; the benefit is in esports titles.
- Glossy panel — avoid placing it opposite windows.
Key Features
540Hz QHD OLED
Tandem WOLED at 540Hz, 720Hz in HD mode, 0.02ms GtG.
DisplayHDR 500 True Black
1500 nits HDR peak, 1,500,000:1 contrast, 99.5% DCI-P3.
DP 2.1 & HDMI 2.1
DisplayPort 2.1 plus two HDMI 2.1 (FRL) and a 3-port USB hub.
Full ergonomics
110mm height, swivel, pivot and a tripod socket.
Technical Specifications
| Identification |
| Part Number |
90LM0CF0-B02971 |
| EAN / GTIN |
4711636464758 |
| Brand |
ASUS |
| Model |
ROG Swift OLED PG27AQWP-G EDITION 20 |
| Display |
| Screen size |
26.5" (27" class), 16:9 |
| Panel |
Tandem WOLED, TrueBlack Glossy |
| Resolution |
2560 x 1440 (QHD) |
| Refresh rate |
540Hz · 720Hz in HD dual mode |
| Response time |
0.02ms GtG |
| Brightness |
1500 cd/m² HDR peak |
| Contrast |
1,500,000:1 |
| Colour gamut |
99.5% DCI-P3 · 135% sRGB · 10-bit |
| HDR |
VESA DisplayHDR 500 True Black · HDR10 |
| Adaptive sync |
FreeSync Premium Pro · G-SYNC Compatible |
| Eye care |
TÜV Flicker-free · TÜV Low Blue Light (hardware) |
| Connectivity |
| Video inputs |
1x DisplayPort 2.1 · 2x HDMI 2.1 (FRL) |
| USB hub |
3x USB 3.2 Gen1 Type-A |
| Audio |
Earphone jack (no speakers) |
| Ergonomics & mounting |
| Height adjustment |
0–110 mm |
| Tilt / swivel / pivot |
+20° / -5° · ±30° · ±90° |
| VESA |
100 x 100 mm · tripod socket |
| Power & physical |
| Power consumption |
< 55W |
| Dimensions with stand |
606 x 548 x 274 mm |
| Weight |
7.04 kg with stand |
| Warranty |
| Warranty |
1-Year Warranty (Singular) |
| Manufacturer Term |
3 years including panel burn-in per ASUS — claims handled through Singular |
Frequently Asked Questions
What do I need for 540Hz?
A DisplayPort 2.1 capable high-end graphics card and games that reach 500+ fps, typically esports titles at competitive settings.
What is the 720Hz mode?
An HD dual mode that lowers resolution to raise refresh to 720Hz for maximum responsiveness.
Is burn-in covered?
ASUS lists a 3-year warranty including panel burn-in for this model.
Singular Expert Insight · Buyer's Guide
The PG27AQWP-G EDITION 20 is built for one purpose — the fastest possible motion clarity — and tandem OLED at 540Hz delivers it. It only makes sense paired with a top-tier GPU and esports games; for mixed AAA play, a 4K 240Hz OLED is the better buy. Check our
graphics cards to match it.
✓ Buy it if you play competitive esports and want the fastest OLED refresh available at QHD.
✕ Skip it if you mostly play AAA titles, need USB-C, or your graphics card cannot exceed 240 fps.
→ Also consider the ASUS ROG Swift OLED PG27UCWM for 4K 240Hz with a 480Hz FHD mode.
Not sure your PC can feed 540Hz? Send us your graphics card and CPU and we will advise before you order.
