ASUS ProArt Switch PQG-U1080 Unmanaged Desktop Switch · 8x 2.5G RJ45 + 2x 10G SFP+ · 80Gbps · Plug-and-Play · Black
Brand:
ASUS
ASUS ProArt Switch PQG-U1080 Unmanaged Desktop Switch · 8x 2.5G RJ45 + 2x 10G SFP+ · 80Gbps · Plug-and-Play · Black
€183.63 inc. VAT
90IG0AF0-MO9B00
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
ASUS ProArt Switch PQG-U1080 — 8x 2.5G + 2x 10G SFP+, plug-and-play
8x 2.5G RJ452x 10G SFP+ uplinks80 Gbps capacityUnmanaged · plug-and-play

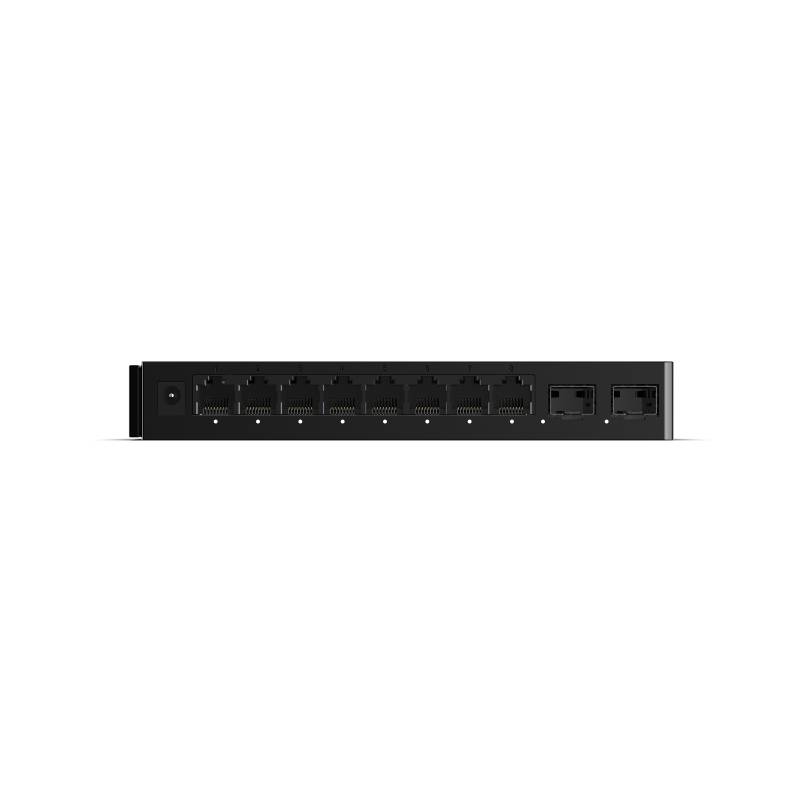

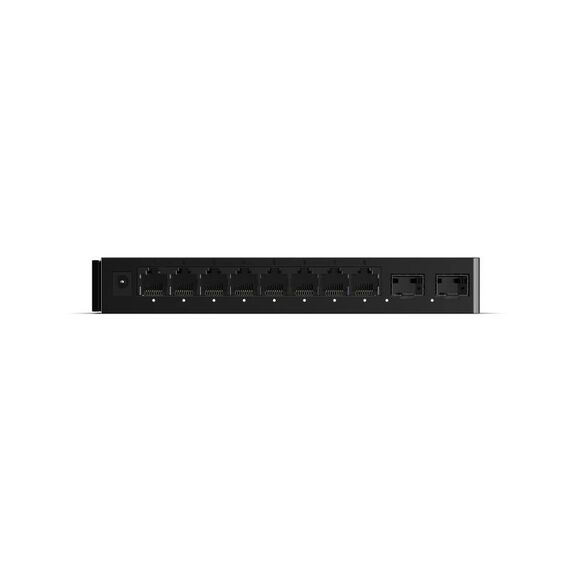

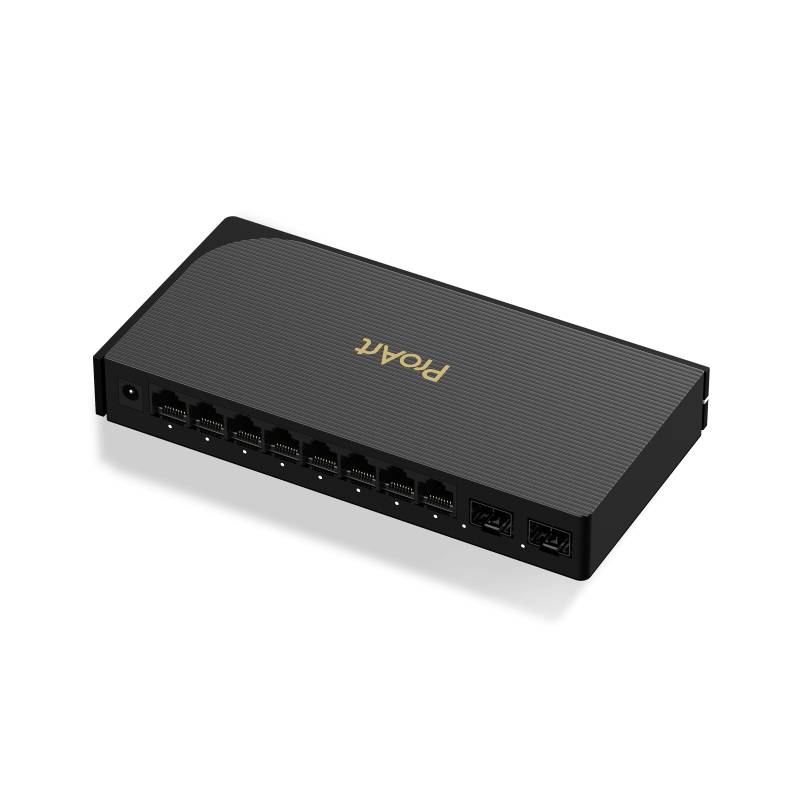

The ASUS ProArt Switch PQG-U1080 is an unmanaged desktop switch with eight 2.5G RJ45 ports and two 10G SFP+ ports, built for creator studios and small offices that want multi-gigabit speed between PCs, a NAS and a fast router without any configuration.
Plug it in and every port negotiates automatically: 2.5G devices run at 2.5 Gbps, older Gigabit devices still work at 1 Gbps, and the two SFP+ slots give 10G links to a NAS, workstation or 10G router through modules or DAC cables you choose.
Before you order: The SFP+ ports need SFP+ transceiver modules or DAC cables, which are not included, and ASUS publishes no compatibility list for them. This is an unmanaged switch: there are no VLANs, QoS settings or web interface.
What's in the Box
- ASUS ProArt Switch PQG-U1080
- Power adapter (12V / 1A)
- Zip tie
- Quick start guide and warranty card
- No SFP+ modules or DAC cables
What It Means in Practice
- Connect 2.5G NICs and a 2.5G router port to get roughly 2.5x Gigabit speed for file transfers
- Use an SFP+ port with a DAC cable or 10G module for a NAS or editing workstation
- Gigabit devices (printers, TVs, older PCs) work on the same switch at 1 Gbps
- Mount it on a desk, a table leg or a magnetic surface
- No setup: there is no software or web page to configure
What Will Not Work
- No PoE — it cannot power access points, IP cameras or VoIP phones
- No management features: no VLAN, QoS, link aggregation or monitoring
- No 10G RJ45 ports: 10G copper needs an SFP+ to RJ45 module
- Not designed for 19-inch rack mounting
Key Features
8x 2.5G Ports
Multi-gigabit RJ45 ports that also support 10/100/1000 devices.
2x 10G SFP+
Fibre or DAC uplinks to a NAS, workstation or 10G router.
80 Gbps Non-Blocking
80 Gbps switching capacity and 59.52 Mpps forwarding rate.
Flexible Mounting
Desktop, table-leg or magnetic mounting in a compact 180mm chassis.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The PQG-U1080 is a neat way to move a small studio from Gigabit to multi-gig without learning switch management: 2.5G to the desktops and 10G to the NAS. If you need PoE for access points or cameras, or VLANs for separating networks, choose a managed PoE switch instead from our network switch range.
✓ Buy it if you want 2.5G speed for several PCs and a 10G link to a NAS with zero configuration.
✕ Skip it if you need PoE, VLANs or rack mounting.
→ Also consider a managed multi-gig switch if you need VLANs or monitoring.
Not sure which SFP+ module or DAC cable fits? Send us the model of your NAS, router or network card and we will check compatibility before you order.
Features - ASUS - 90IG0AF0-MO9B00
More Details
Product Code
04:595315
EAN Code
4711636273176
Manufacturer
ASUS
