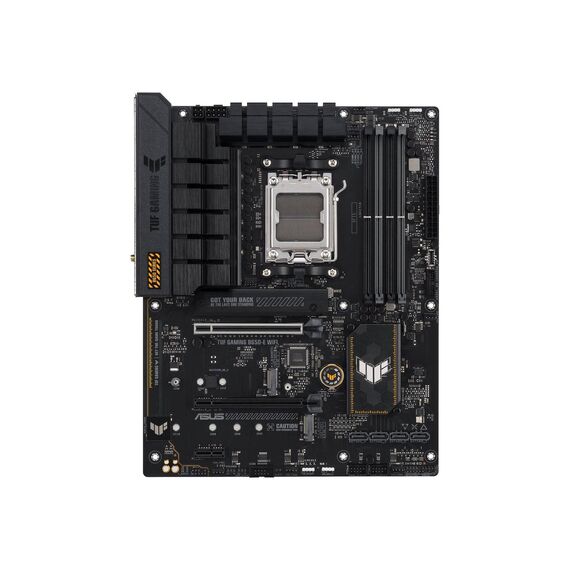

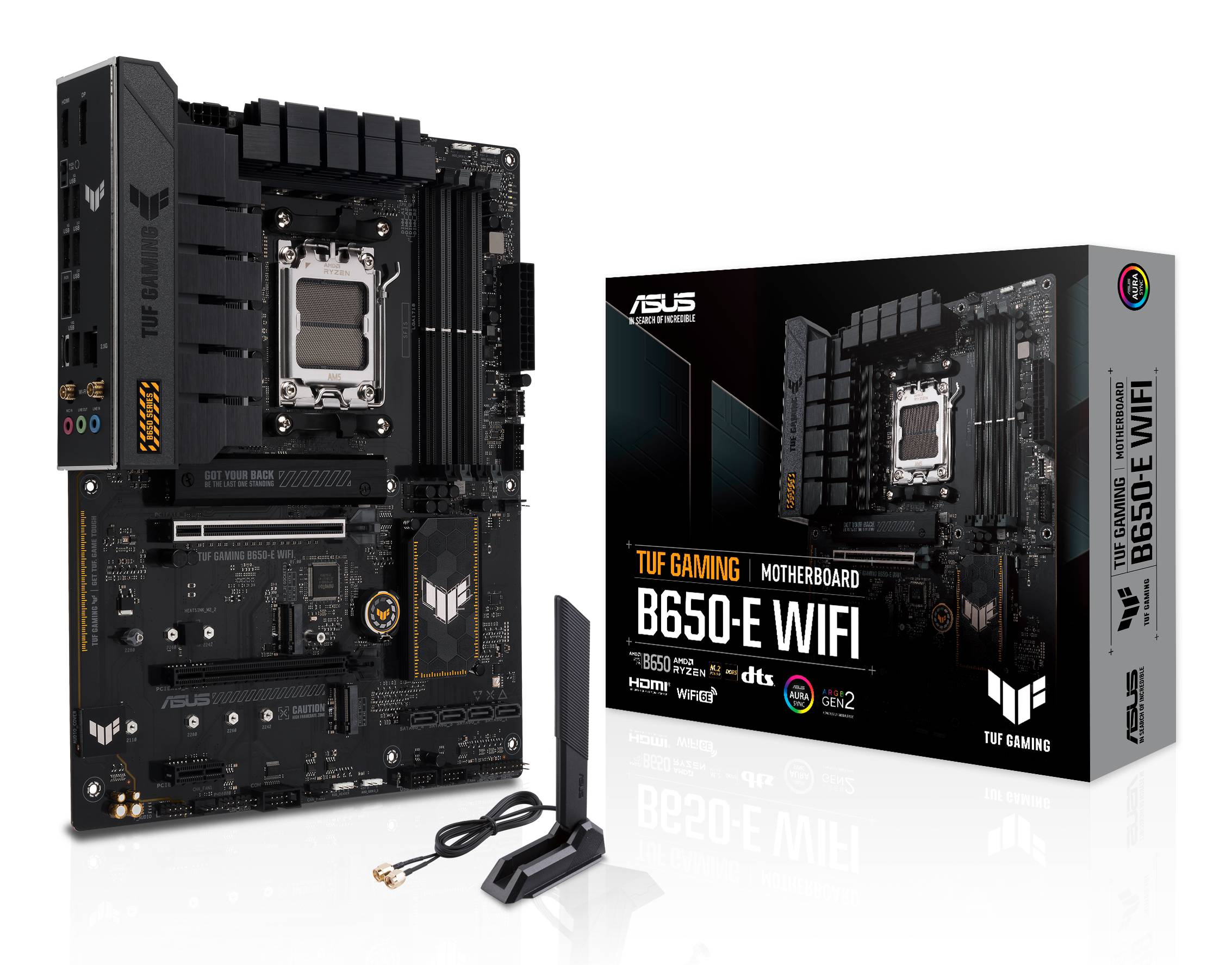

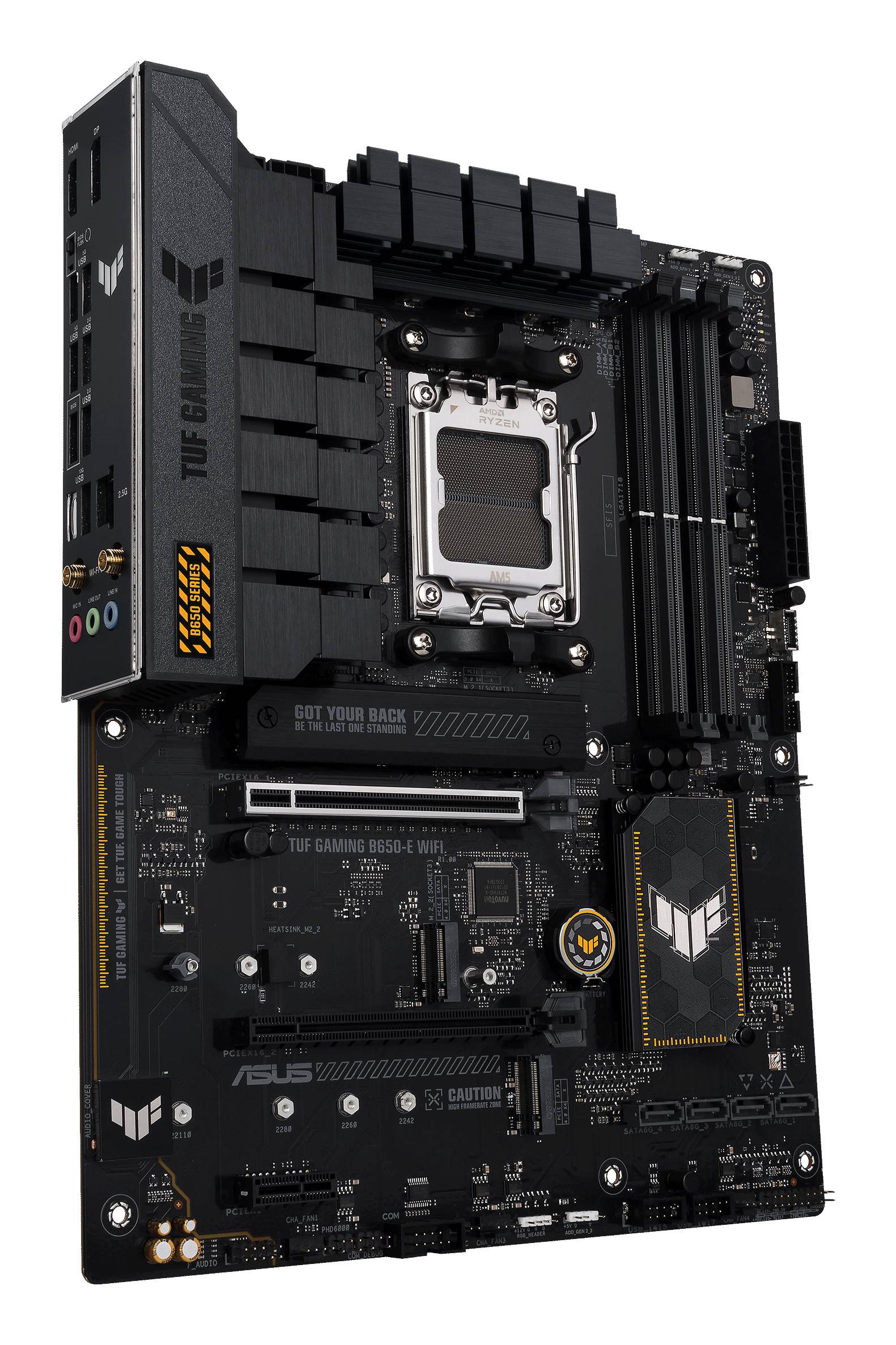

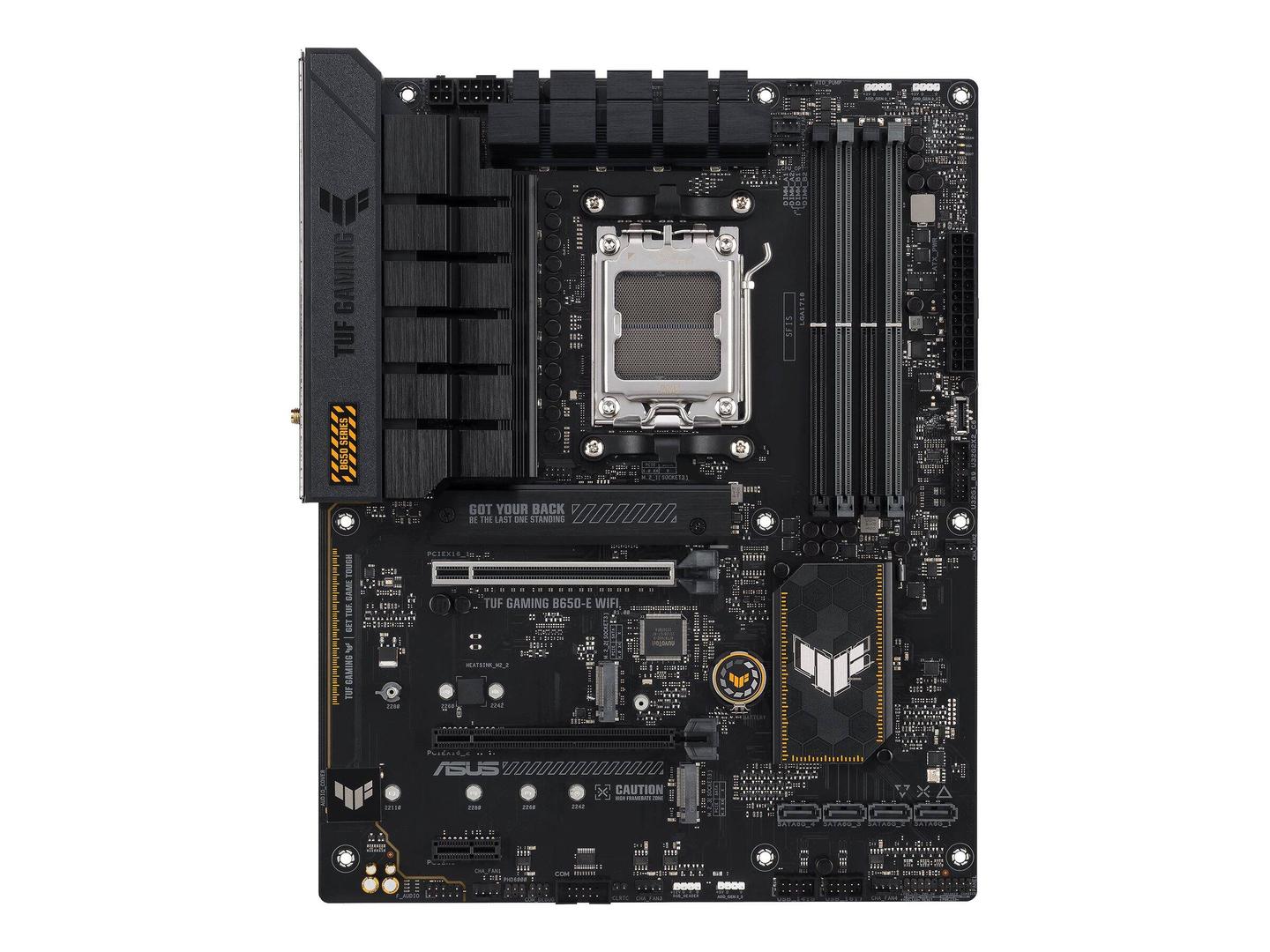

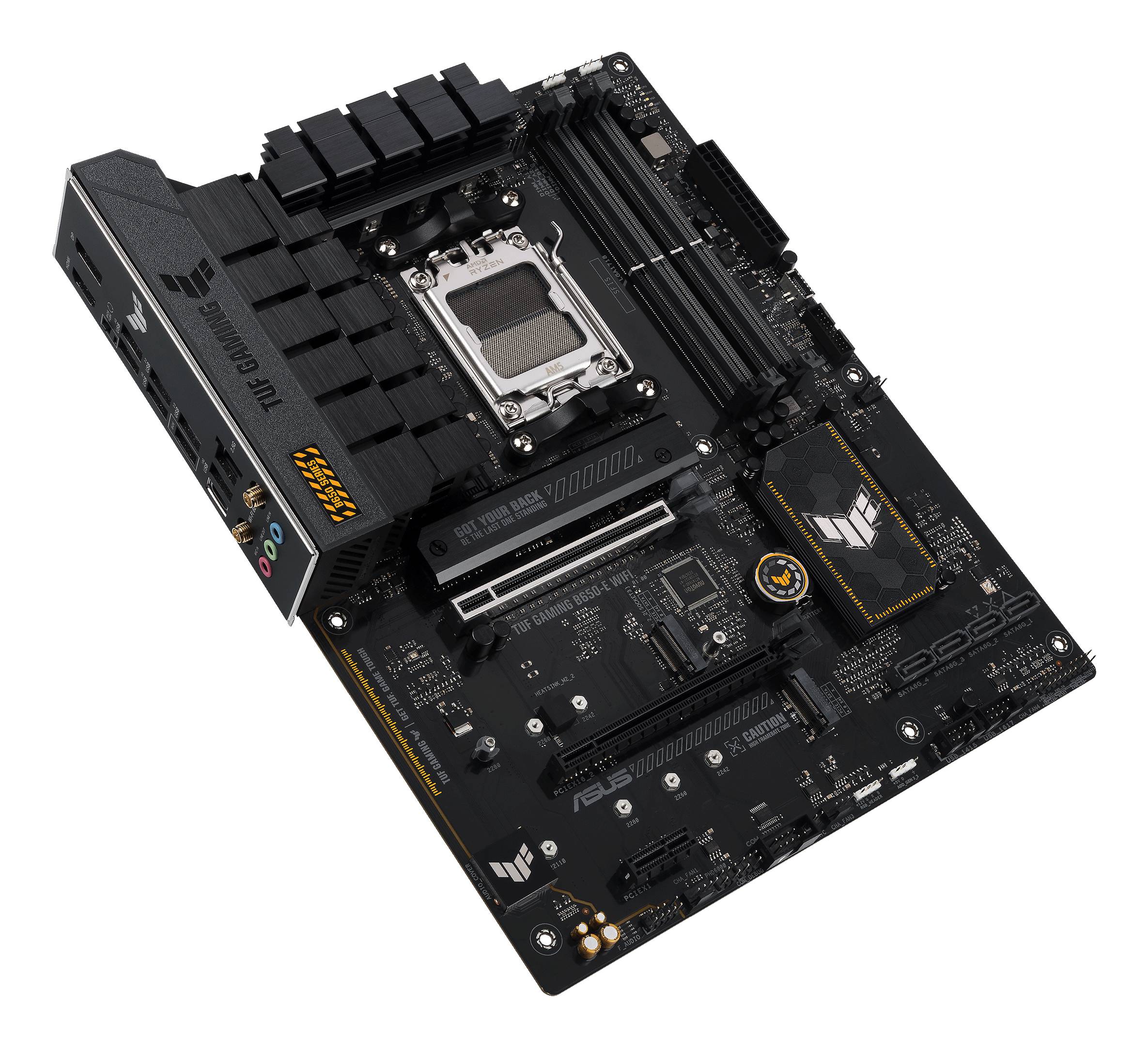

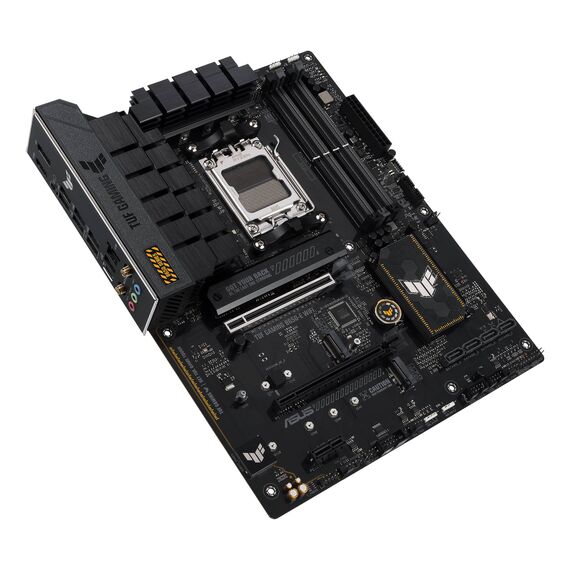

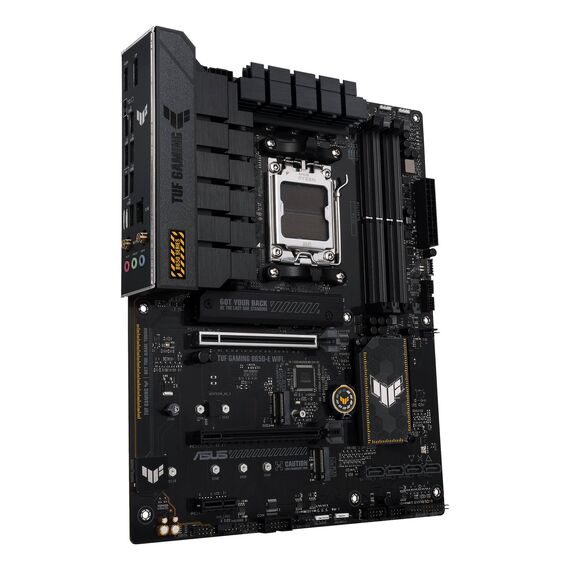

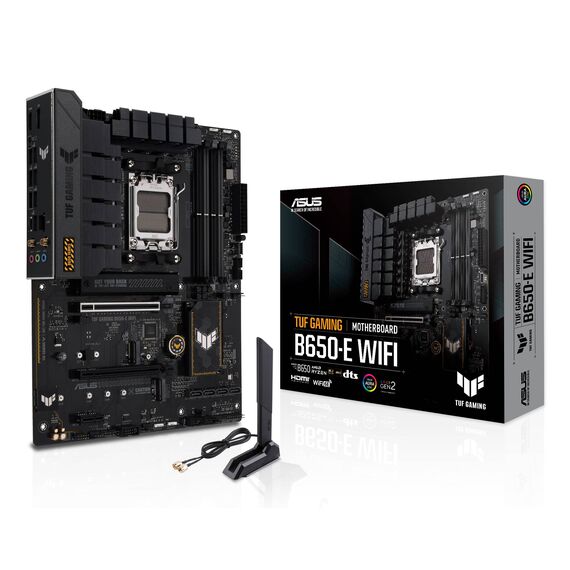

ASUS TUF GAMING B650-E WIFI - Motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C Gen2, USB 3.1 Gen 2 - Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel) | 90MB1GT0-M0EAY0
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000 Series) |
| Supported RAM | |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x8/x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 1 x PCIe 4.0 x1 ¦ 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 4 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.1 Gen 2 ¦ 3 x USB 3.0 ¦ 3 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 3.1 Gen 2 - header ¦ 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS, ASUS UEFI BIOS EZ Mode |
| Hardware Features | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, 60A Power Stage |
| Miscellaneous | |
| Included Accessories | 1 x M.2 rubber package, Wi-Fi aerial, 2 x M.2 screw package, TUF certification card |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASUS TurboV EVO Utility, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, ASUS Fan Xpert 4, DTS Audio Processing |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1GT0-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
04:460391
EAN Code
4711387423073
Manufacturer
Asus
