ASUS TUF GAMING B760M-PLUS II Intel B760 LGA1700 Micro ATX DDR5 PCIe 5.0 Motherboard

Brand:
ASUS
ASUS TUF GAMING B760M-PLUS II mATX – LGA1700, DDR5
ASUS TUF GAMING B760M-PLUS II Intel B760 LGA1700 Micro ATX DDR5 PCIe 5.0 Motherboard
€227.83 inc. VAT
Buy
90MB1HD0-M0EAY0
€191.45 €212.72
€227.83 inc. VAT
Ships from EU stock: 159 item(s)
+ −
Add to wish list Ask a question
Product Code
04:460387
EAN Code
4711387469798
Manufacturer
ASUS

Quick Specs

Chipset
Intel B760
Socket
LGA1700
Memory
4 x DDR5 up to 7800 OC
Graphics Slot
PCIe 5.0 x16
M.2 Slots
3 x PCIe 4.0
USB Rear
USB-C 20Gbps + 10Gbps
LAN
2.5GbE TUF LANGuard
Form Factor
Micro ATX
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

ASUS TUF GAMING B760M-PLUS II

A military-grade Micro ATX gaming motherboard built around Intel B760 with DIGI+ VRM, three M.2 slots, PCIe 5.0 graphics support, USB-C 20Gbps and DDR5 up to 7800 MT/s — engineered for 14th/13th/12th Gen Intel Core builds that demand long-term durability.
PCIe 5.0 x16 DDR5 7800 OC USB-C 20Gbps Aura Sync RGB
The ASUS TUF GAMING B760M-PLUS II combines essential gaming features with proven TUF-series military-grade durability. Built around Intel's B760 chipset and LGA1700 socket, it pairs a DIGI+ VRM with DrMOS power delivery, four DDR5 DIMM slots reaching 7800 MT/s, a CPU-direct PCIe 5.0 x16 slot with PCIe SafeSlot Core+ reinforcement, three M.2 PCIe 4.0 slots with heatsinks, and four SATA ports. Connectivity stands out at this tier: a rear USB 3.2 Gen 2x2 Type-C at 20Gbps plus a USB 10Gbps Type-A, 2.5GbE Realtek LAN with TUF LANGuard surge protection, HDMI 2.1 and DisplayPort outputs, plus a stainless-steel back I/O and pre-mounted I/O shield. Q-DIMM, M.2 Q-Latch, PCIe Slot Q-Release and Q-LED diagnostic LEDs make installation and troubleshooting easier. A reliable foundation for compact 14th/13th/12th Gen Intel Core gaming and productivity builds.
Compatibility Note: Confirm your CPU is Intel 14th, 13th or 12th Gen Core (LGA1700) — newer Core Ultra Series 2 LGA1851 CPUs are not compatible. This is the non-WiFi variant; built-in wireless is not included. Also verify your case supports Micro ATX form factor.
Best For
✓ 14th/13th Gen Intel Core gaming builds
✓ Compact wired gaming PCs
✓ Multi-NVMe storage configurations
✓ Users wanting USB-C 20Gbps + Micro ATX

Key Features


DIGI+ VRM with DrMOS
Digital power design with DrMOS components and military-grade TUF capacitors delivers stable, reliable power for 14th Gen Intel Core CPUs under extended load.

PCIe 5.0 + Triple M.2
CPU-direct PCIe 5.0 x16 slot with reinforced SafeSlot Core+ for next-gen GPUs, plus three PCIe 4.0 M.2 sockets with heatsinks for fast NVMe storage.

USB 20Gbps Type-C
Rear USB 3.2 Gen 2x2 Type-C at 20Gbps plus a USB 10Gbps Type-A — exceptional rear connectivity for the B760M class, ideal for fast external storage.

TUF Protection + Q-Design
TUF LANGuard surge protection, ESD Guards, stainless-steel I/O, plus ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LED diagnostics) for easy installation.

Technical Specifications

Part Number 90MB1HD0-M0EAY0
EAN 4711387469798
Chipset Intel B760
CPU Socket LGA1700 (Intel 14th, 13th, 12th Gen Core)
Form Factor Micro ATX (24.4cm x 24.4cm)
VRM DIGI+ VRM digital power design with DrMOS, military-grade TUF components
Memory 4 x DDR5 DIMM, Dual Channel, up to 7800 MT/s (OC), max 192GB, XMP support
PCIe Slots 1 x PCIe 5.0 x16 (CPU, SafeSlot Core+) + 1 x PCIe 4.0 x4 + 1 x PCIe 3.0 x1
M.2 Storage 3 x M.2: M.2_1 PCIe 4.0 x4 (CPU) + M.2_2 PCIe 4.0 x4 + M.2_3 PCIe 4.0 x2
SATA 4 x SATA 6Gb/s, Intel Rapid Storage RAID 0/1/5/10

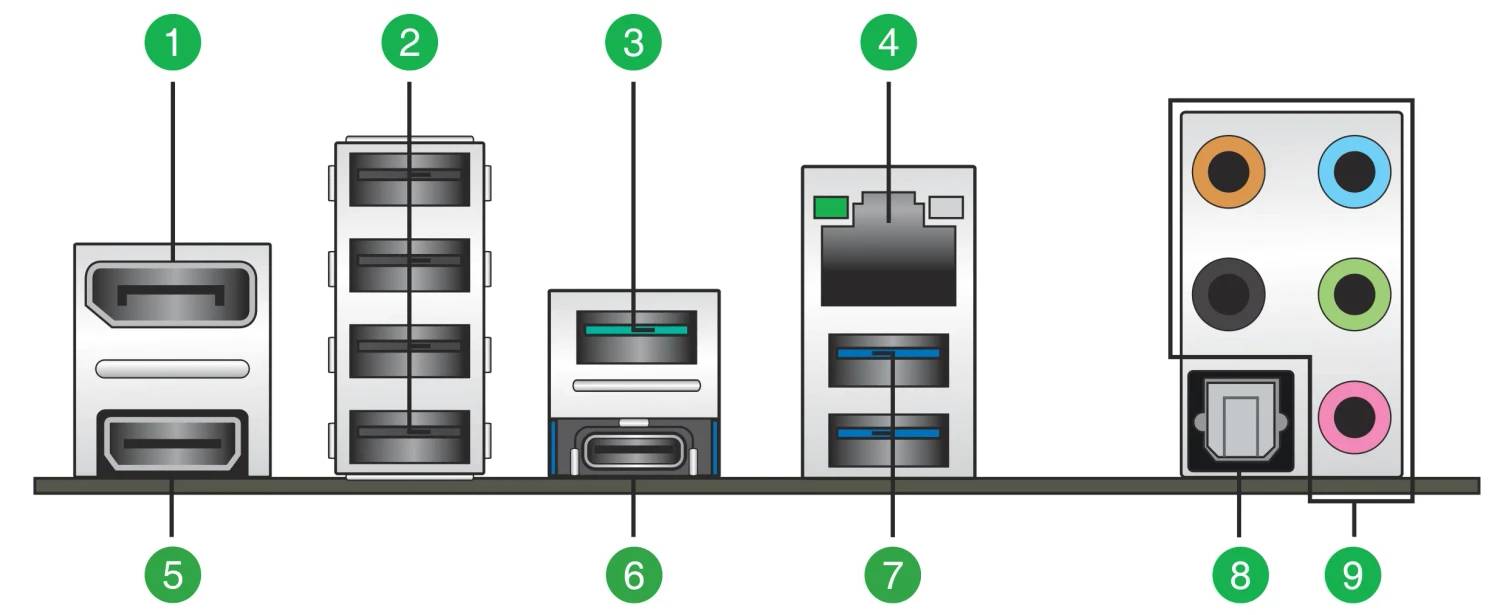

USB Rear 1 x USB 3.2 Gen 2x2 Type-C 20Gbps + 1 x USB 3.2 Gen 2 Type-A 10Gbps + 2 x USB 3.2 Gen 1 Type-A 5Gbps + 4 x USB 2.0
USB Front 1 x USB 3.2 Gen 2 Type-C connector + 1 x USB 5Gbps header (2 ports) + USB 2.0 headers
LAN Realtek 2.5GbE with TUF LANGuard
Wireless Not included (NON-WiFi variant)
Audio Realtek HD Audio with DTS Audio Processing
Display Outputs 1 x HDMI + 1 x DisplayPort (requires CPU iGPU)
Features TUF Protection (DIGI+ VRM, ESD Guards, LANGuard, SafeSlot Core+, Stainless-steel I/O), ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-DIMM, Q-LED), pre-mounted I/O shield, Aura Sync ARGB Gen 2 headers

Frequently Asked Questions

Which CPUs does this motherboard support?
Intel 14th, 13th and 12th Gen Core processors using the LGA1700 socket. Newer Core Ultra Series 2 LGA1851 CPUs are not compatible.
Does this model include built-in Wi-Fi?
No. The TUF GAMING B760M-PLUS II is the non-WiFi variant. If you need built-in WiFi, look for the WiFi version of the same board or add a USB/PCIe WiFi adapter.
Does it support PCIe Gen5 SSDs?
The PCIe 5.0 x16 slot is dedicated to graphics. All three M.2 slots run at PCIe 4.0, so M.2 SSDs operate at Gen4 speeds.
What does TUF Protection include?
TUF Protection bundles DIGI+ VRM digital power, ESD Guards, TUF LANGuard for surge protection, overvoltage protection, SafeSlot Core+ reinforced PCIe slot and a stainless-steel back I/O for long-term durability.
Singular Expert Insight
Choose the TUF GAMING B760M-PLUS II if you want a wired Micro ATX gaming board for 14th/13th/12th Gen Intel Core with strong rear connectivity (USB-C 20Gbps), three M.2 slots and proven ASUS TUF durability — at a competitive price. If you need built-in WiFi, look at the TUF GAMING B760M-PLUS WIFI II variant. For higher-tier VRM, more PCIe slots or DDR5 OC headroom above 7800 MT/s, step up to a Z790 board. If you're on a tighter budget without need for USB-C 20Gbps, the standard PRIME B760M-A boards offer essentials for less.

Buyer's Guide

Buy it if
You are building a wired 14th/13th/12th Gen Intel Core gaming or productivity PC and want PCIe 5.0 GPU support, three M.2 slots, USB-C 20Gbps and proven TUF military-grade durability.
Skip it if
You need built-in Wi-Fi, M.2 PCIe Gen5 storage, full unlocked-CPU overclocking with DDR5 OC above 7800 MT/s, or you plan to use a newer Core Ultra LGA1851 CPU.
Also consider
TUF GAMING B760M-PLUS WIFI II for built-in wireless, ASUS PRIME B760M-A for cheaper essentials, or a Z790 board for unlocked overclocking and richer connectivity.
