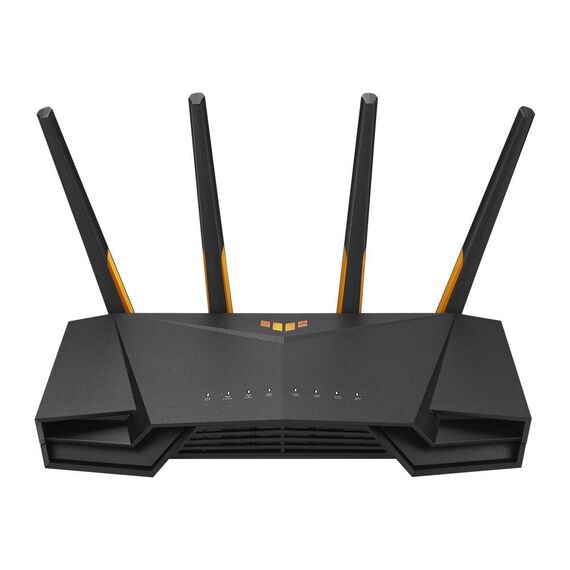

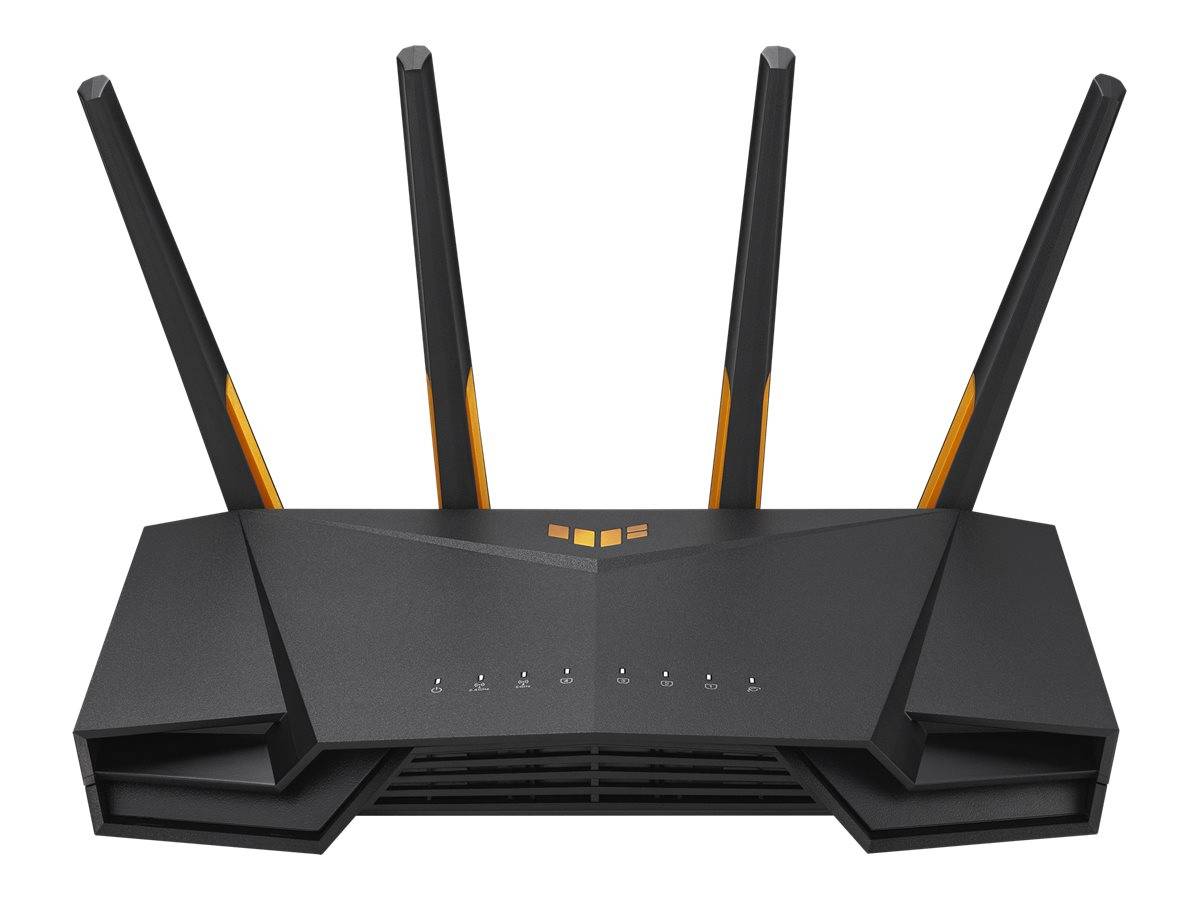

ASUS TUF Gaming AX3000 V2 / Wireless router / 4-port switch / GigE / 802.11a/b/g/n/ac/ax / Dual Band | 90IG0790-MO3B00
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Wireless router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz / 5 GHz |
| Network / Transport Protocol | PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DDNS |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Encryption Algorithm | MPPE, WPA-Enterprise, WPA2-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal |
| Wi-Fi Rating | AX3000 |
| Features | NAT support, VPN support, Stateful Packet Inspection (SPI), DoS attack prevention, IPv6 support, URL filtering, parental control, Access Point operational mode, event log, Wi-Fi Protected Setup (WPS), IPSec passthrough, static IP mode, DNS proxy, port forwarding, ASUS AiDisk, reset button, IPv4 support, port triggering, 3G/4G USB Dongle Support, VPN Server, ASUS AiCloud, PPTP passthrough, L2TP passthrough, MU-MIMO technology, port filtering, Roaming Assist technology, beamforming technology, Adaptive QoS, VPN client, ASUS Router App, NTP client, Smart Connect, ASUS Guest Network, DMZ support, Traffic Analyser, ASUS AiMesh, bridge mode, ASUS AiProtection Pro, L2TP client, PPTP client, PPTP server, OpenVPN client, Orthogonal Frequency Division Multiple Access (OFDMA), OpenVPN server, IPTV support, WPS button, Gaming Port, NAT passthrough, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax |
| Processor | 1 x 1.7 GHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Power, WAN, LAN, 5 GHz, 2.4 GHz |
| Line Properties | Line Properties |
| Line Coding Format | 1024 QAM, OFDMA |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.1 Gen 1: 1 x |
| Aerial | Aerial |
| Aerial | External |
| Antenna Qty | 4 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | (50/60 Hz) |
| Software / System Requirements | Software / System Requirements |
| OS Required | Windows 11 |
| Dimensions & Weight | Dimensions & Weight |
| Weight | 547 g |
Features - Asus - 90IG0790-MO3B00
More Details
Product Code
03:197161
EAN Code
4711081760344
Manufacturer
Asus
