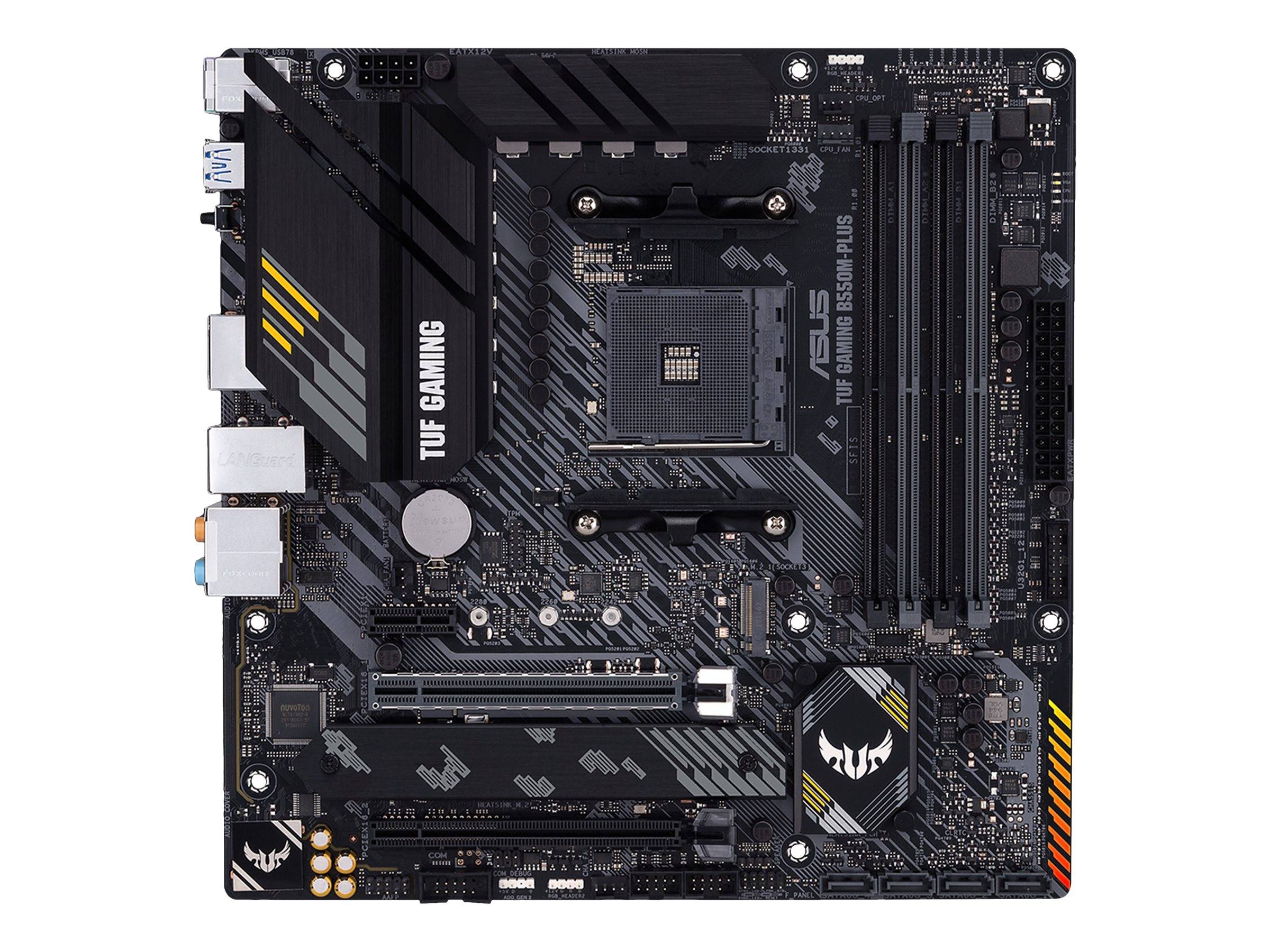

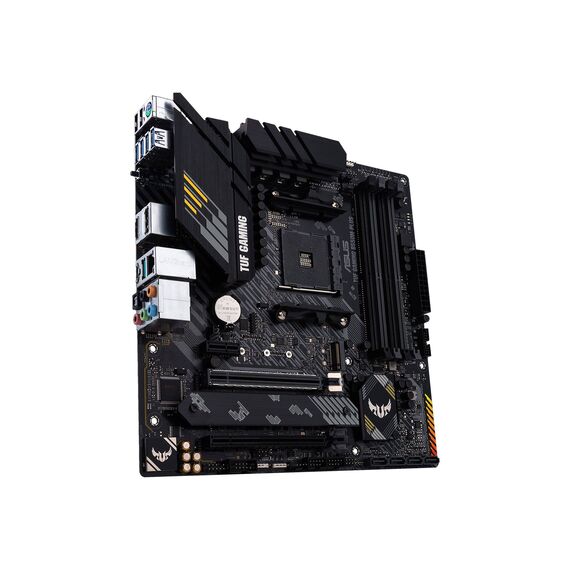

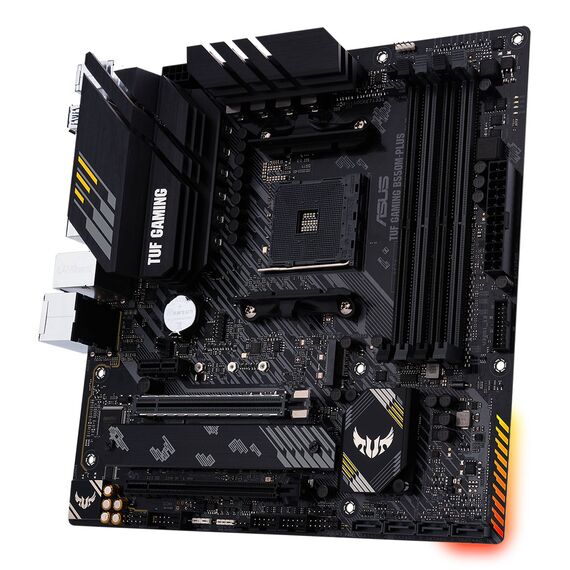

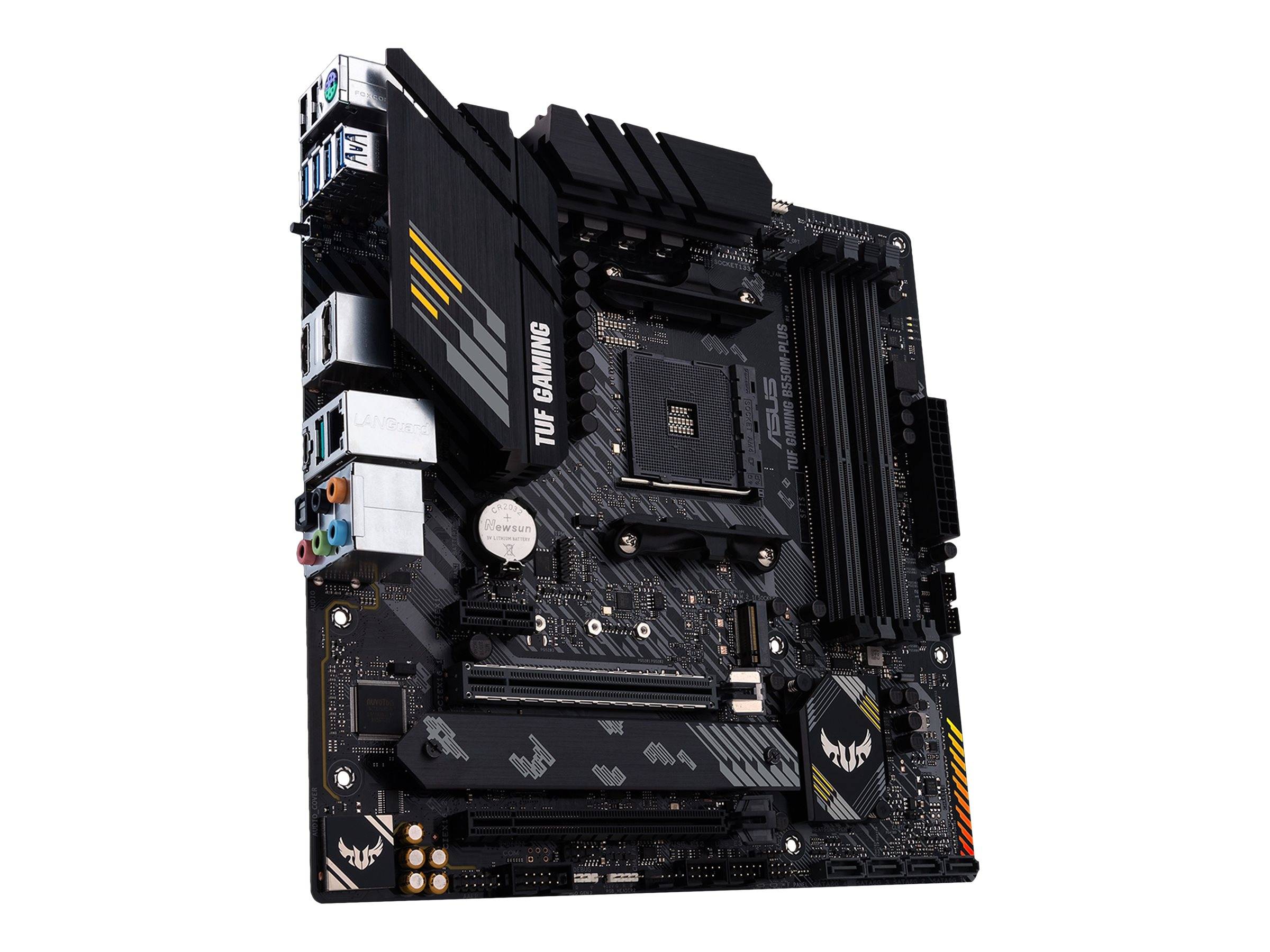

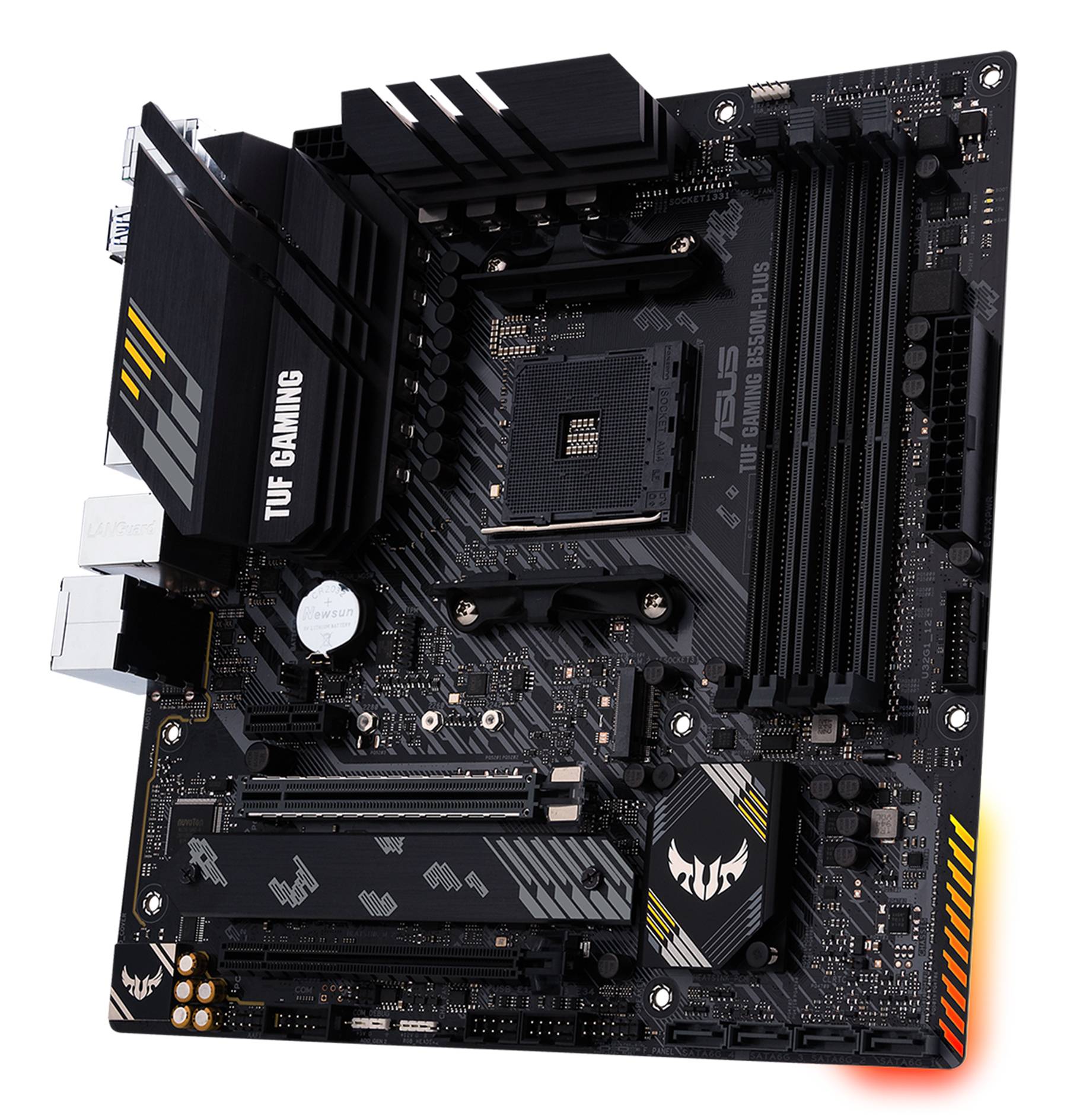

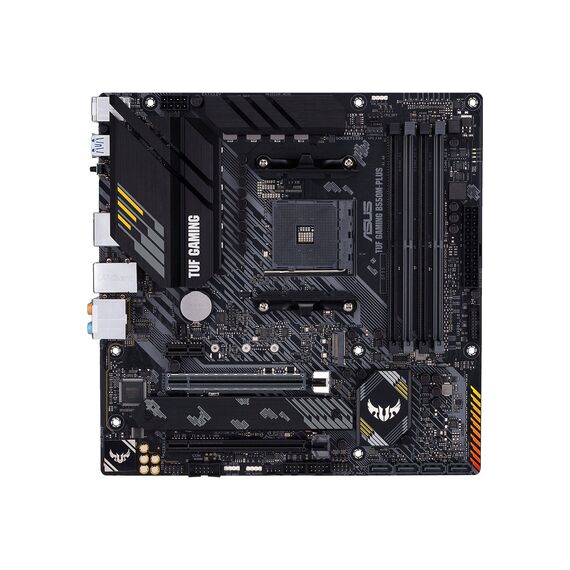

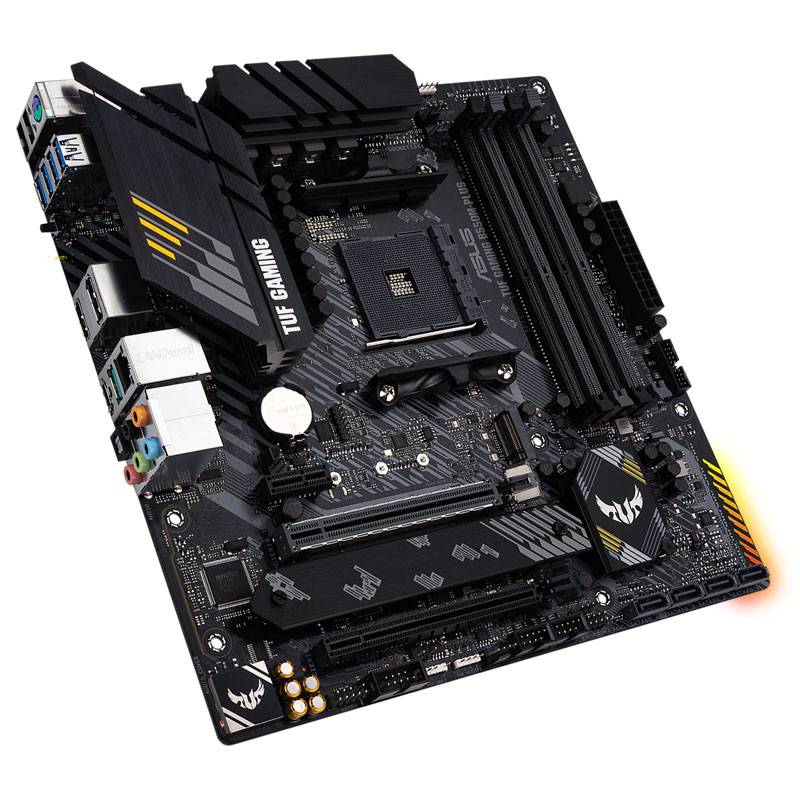

ASUS TUF GAMING B550M-PLUS / Motherboard / micro ATX / Socket AM4 / AMD B550 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB14A0-M0EAY0
ASUS TUF GAMING B550M-PLUS / Motherboard / micro ATX / Socket AM4 / AMD B550 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB14A0-M0EAY0
Description
TUF GAMING B550M-PLUS offers game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
ASUS TUF GAMING B550M-PLUS / Motherboard | 90MB14A0-M0EAY0
Special Features
- Rock-solid performance
- Effective cooling
- TUF chokes
- Easy PC DIY
- Immersive gaming
- HD audio
- Audio shielding
- Outshine the competition
Product features
- Rock-solid performance
With upgraded power delivery and comprehensive cooling options to fuel modern CPUs, plus support for faster memory and storage, TUF GAMING B550M-PLUS is the perfect foundation for your next battle rig. - Effective cooling
Copper layers draw heat away from critical components to keep them at their optimal operating temperatures and provide more headroom to push CPUs beyond stock speeds. - TUF chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, improving system stability. - Easy PC DIY
TUF motherboards are designed to be easy to set up and configure just the way you want - even for first-time builders. They give you everything you need to build your dream gaming rig without adding complexity. - Immersive gaming
TUF GAMING B550M-PLUS provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. - HD audio
Premium audio capacitors provide warm, natural, and immersive sound. - Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference. - Outshine the competition
A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. - Thermal pad
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. - M.2 heatsink
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | AMD B550 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
Max Size | 128 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3200 MHz |
Supported RAM Integrity Check | ECC |
Registered or Buffered | Unbuffered |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALCS1200A |
Compliant Standards | High Definition Audio, DTS Custom |
Network Controller | Realtek RTL8125B |
Network Interfaces | 2.5 Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode) |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

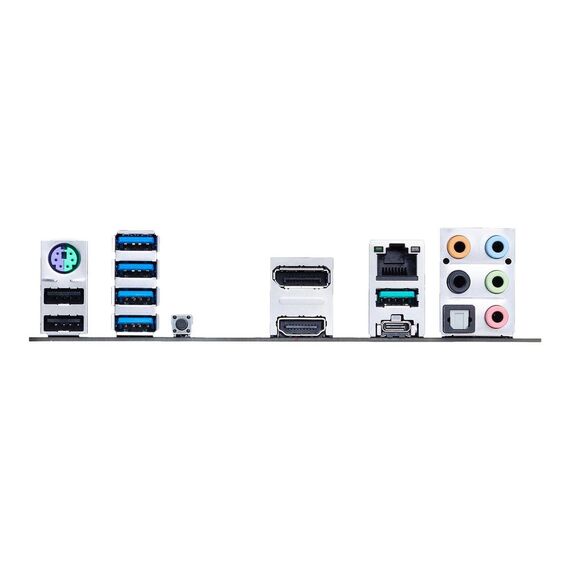

Interfaces | 1 x DisplayPort ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, TUF ESD Guards, ProCool Power Connector, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, M.2 heatsink, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, 8+2 DrMOS power stages |

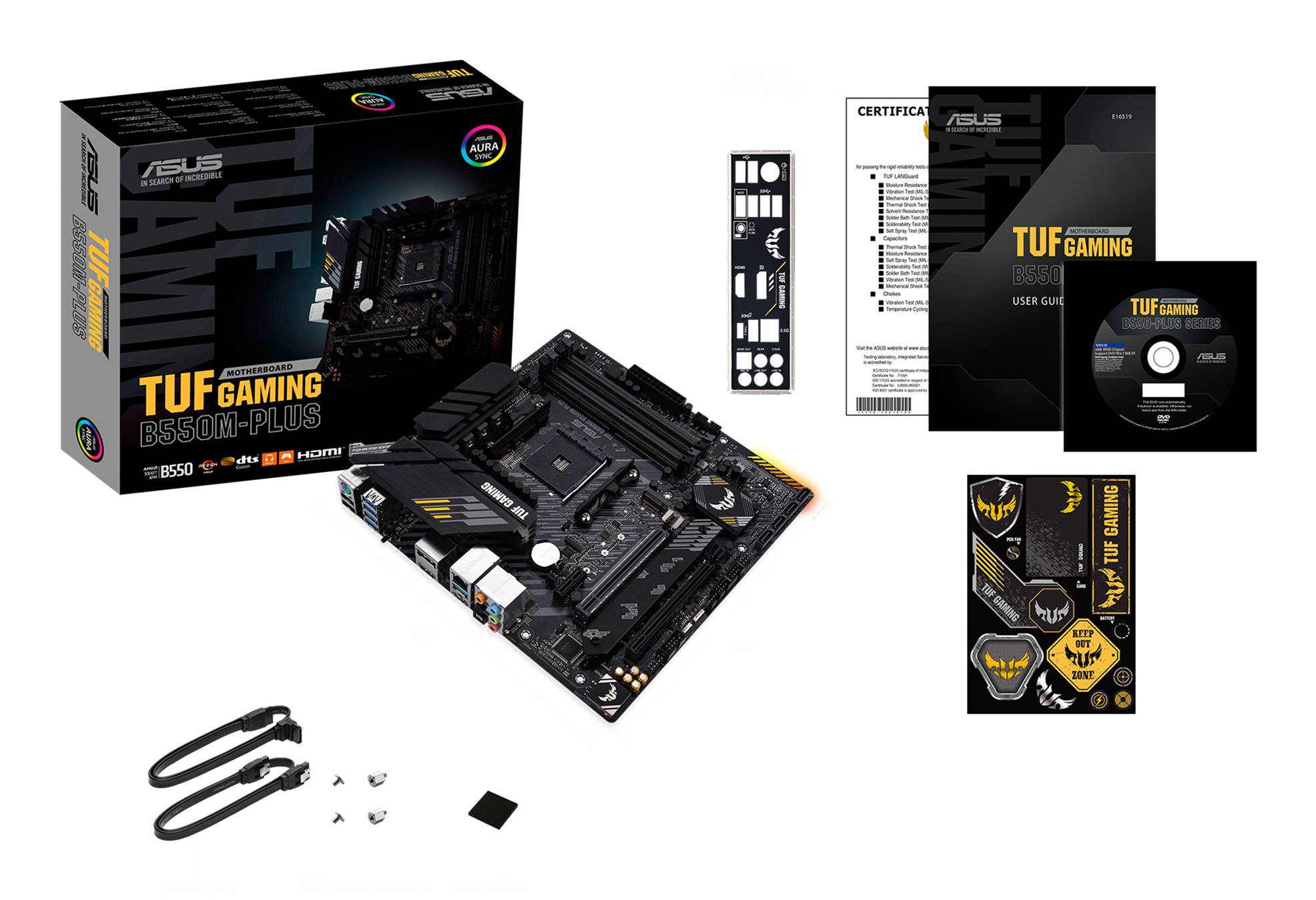

Included Accessories | 1 x M.2 screw, I/O back cover, TUF stickers |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
Width | 24.4 cm |
Depth | 24.4 cm |
Features - Asus - 90MB14A0-M0EAY0
- Socket AM4
