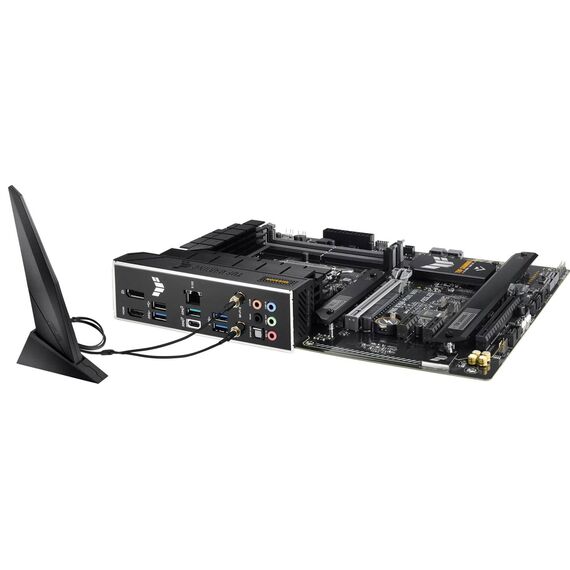

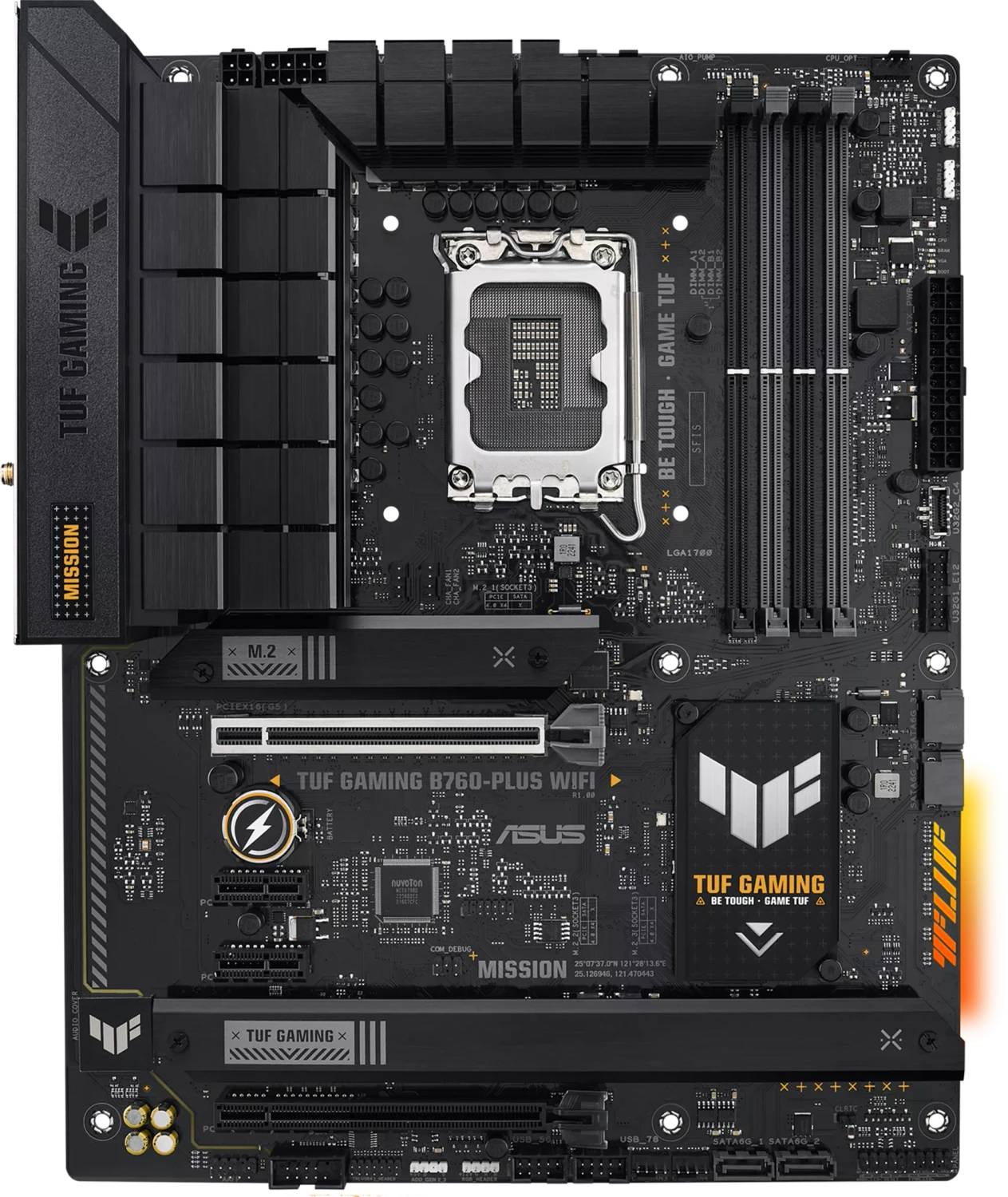

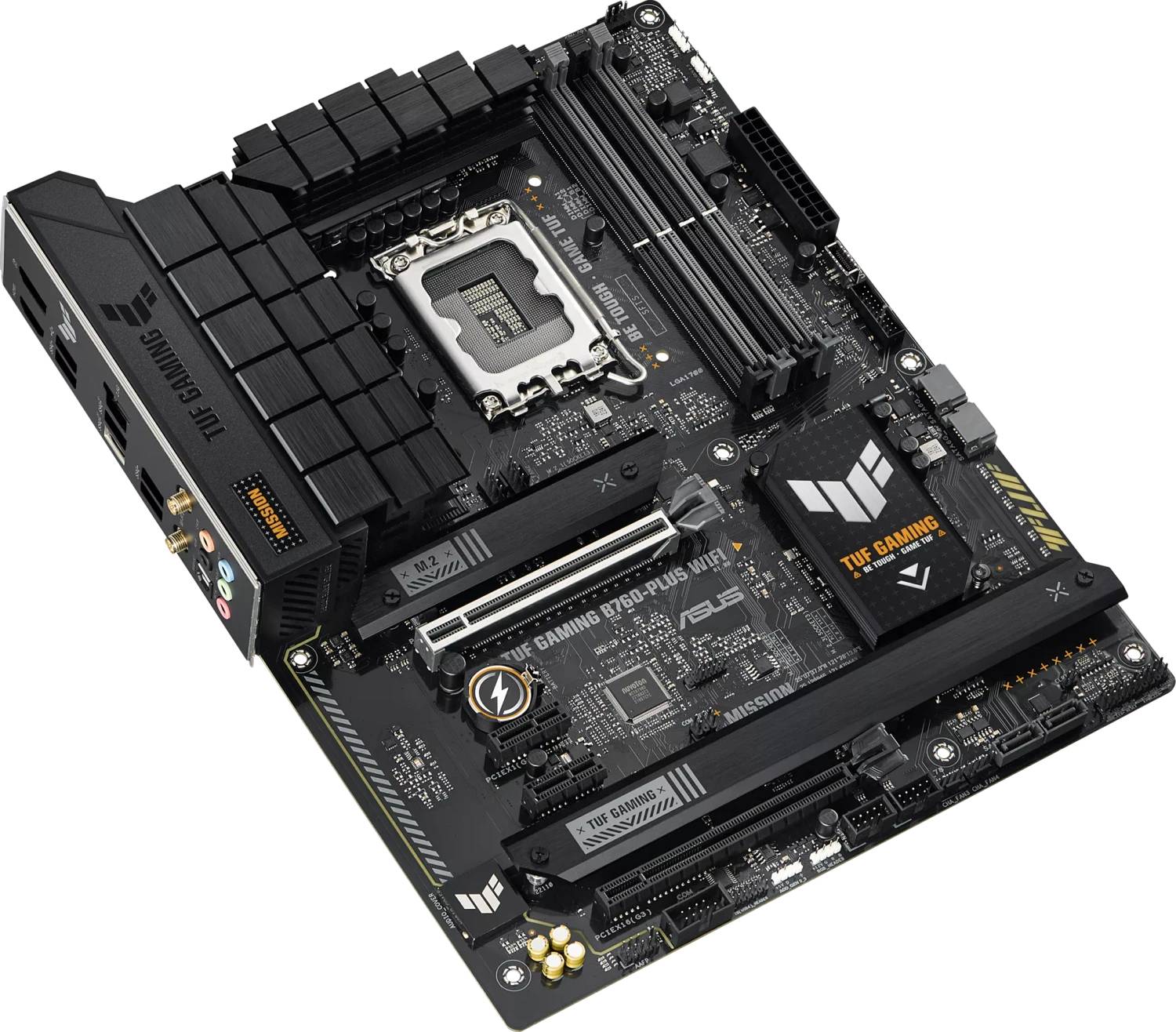

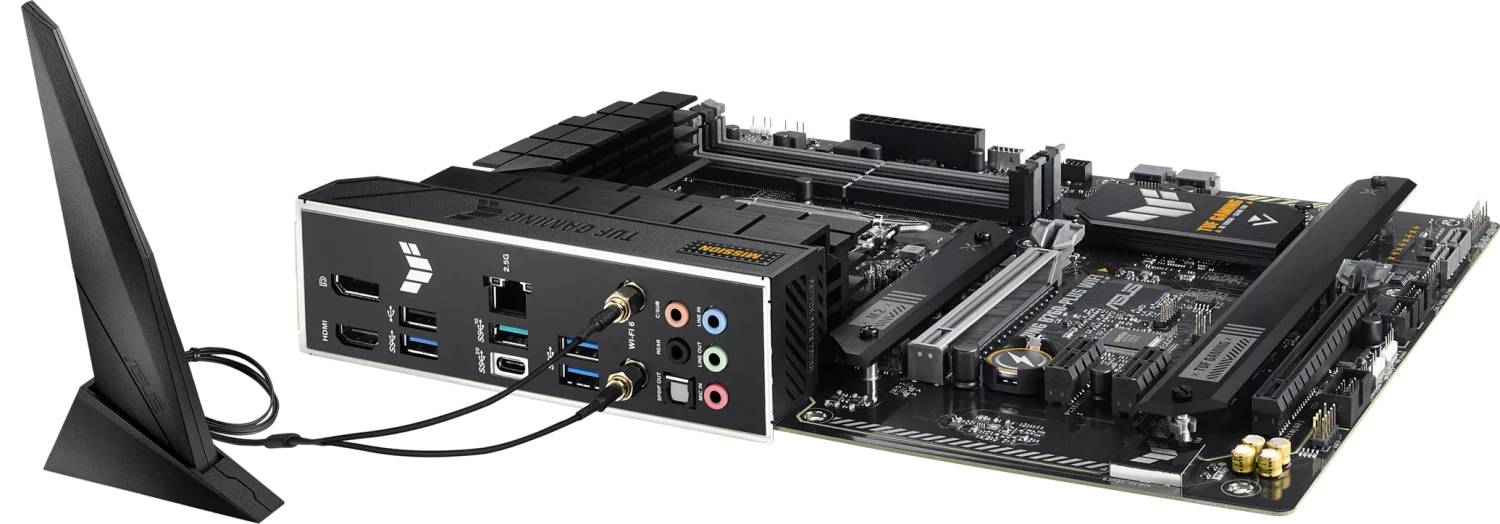

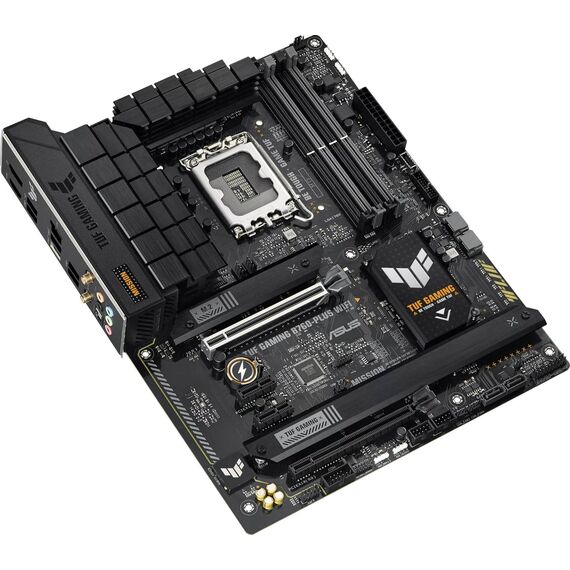

ASUS TUF GAMING B760-PLUS WIFI / Motherboard / ATX / LGA1700 Socket / B760 Chipset / USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 90MB1ER0-M0EAY0

Product Features

• Overall energy efficiency
  The Power Saving function contains several settings that make it easy to optimize energy consumption and maximize savings. You can activate a CPU power limit, dim the Aura lighting and set the fan profile to an energy-saving mode. You can also activate Microsoft Windows' built-in energy-saving plan.
• UEFI BIOS
  The ASUS UEFI BIOS offers everything you need to configure and adjust your system settings. It also offers simplified options for PC assembly novices and advanced features for experienced overclockers.
• DrMOS power supply phases
  12+1 power phases combine high-side and low-side MOSFETs and drivers in a single package to deliver power, efficiency and stable performance to all compatible Intel processors.
• Six-layer printed circuit board
  The multi-layer PCB quickly dissipates heat around the voltage regulator to improve overall system stability, while giving the processor more room for overclocking.
• 8+4-pin ProCool power connectors
  Compared to most power inputs, ProCool connectors overcome placement constraints to ensure ideal contact between different power cables. This technique reduces impedance to prevent the appearance of any sensitive zones or connector failures.
• TUF coils
  Military-grade TUF coils provide your CPU with powerful energy to enhance system stability.
• TUF capacitors
  TUF 5K black metal capacitors offer 52% higher temperature tolerance and 2.5 times longer life than standard motherboard capacitors.
• VRM Digi+
  The Digi+ voltage regulator (VRM), one of the finest in the industry, is optimized to ensure smooth, stable power supply to the processor.
• Free DDR5 via AEMP II
  ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on the ability of a CPU and memory module to drive your kit's memory chips, and features an optimized clock speed for effortless performance release. Thanks to a flexible learning method, AEMP II not only makes it possible to tune memory beyond the basic parameters, but also to maintain system stability, whether making the most of an entry-level module or priming a high-speed kit for ultimate performance.
• PCIe 4.0 compatible
  The three PCIe 4.0 M.2 slots support up to one 22110 device, and data transfer speeds of up to 64 Gb/s via PCIe 4.0, enabling faster start-up and application loading times with operating system or application drives.
• Ideal design for cooling
  The TUF GAMING B760-PLUS WIFI is equipped with an enlarged VRM heatsink, while the three M.2 slots and the PCH feature heatsinks that offer a perfect balance between mass and surface area for heat dissipation.
• Connectivity
  The TUF GAMING B760-PLUS WIFI reaches new heights in performance potential thanks to PCI Express, while the arsenal of USB ports includes two Type-C and Thunderbolt 4 connections to further extend compatibility and bandwidth.
• SafeSlot Core+ and SafeDIMM
  SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to hold the card firmly in place. As PCIe 5.0 is twice as fast as PCIe 4.0, ASUS has improved SMT manufacturing processes for the faster SafeSlot Core+, to guarantee users the highest possible data rates. What's more, the ASUS SafeDIMM sleeve is added to support and protect memory modules, allowing you to insert modules with speed, precision and confidence.
• ESD Guards
  ASUS ESD Guards prevent electrostatic discharges from damaging the circuit. The circuit can withstand air discharges of up to +/- 10 kV and up to +/- 6 kV in direct contact (far exceeding market standards of +/- 6 kV and +/- 4 kV). Surface-mounted Transil diodes (TVS) in a double in-line housing help protect your PC from voltage spikes.
• TUF LANGuard
  The military-grade innovation TUF LANGuard integrates signal coupling technology and surface-mounted capacitors to improve throughput and protect the board from lightning and electrostatic discharge.

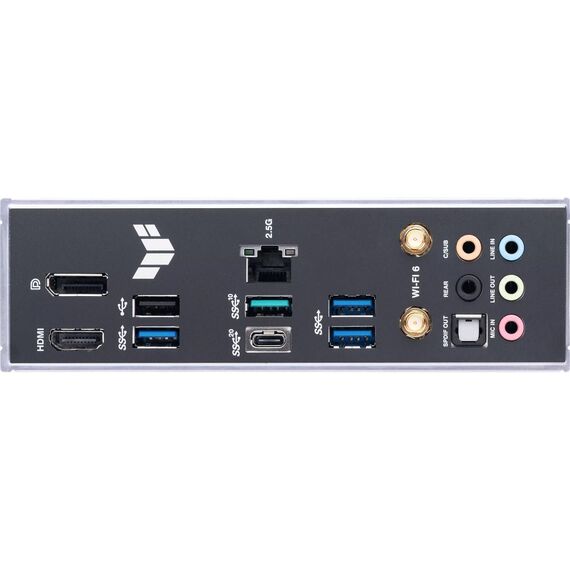

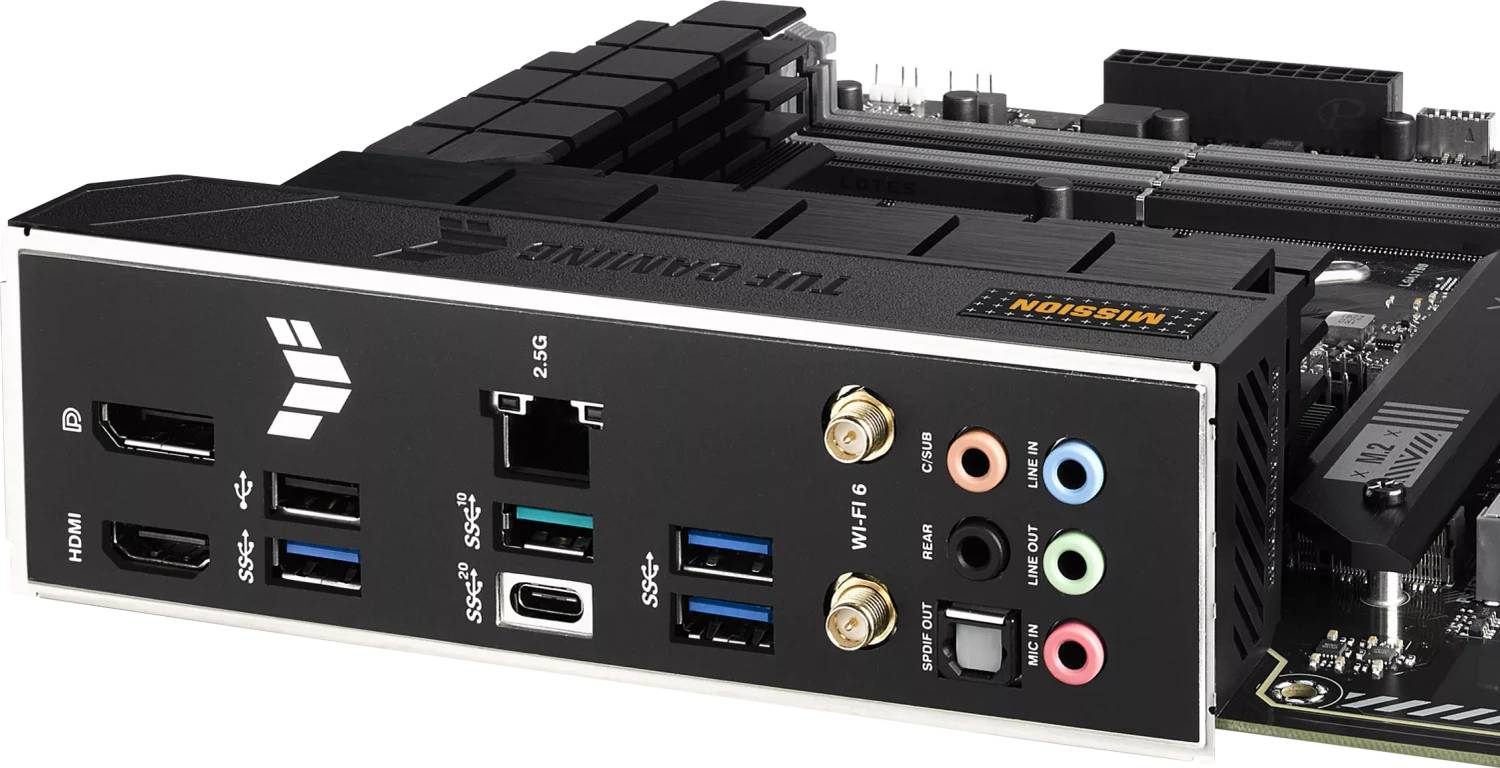

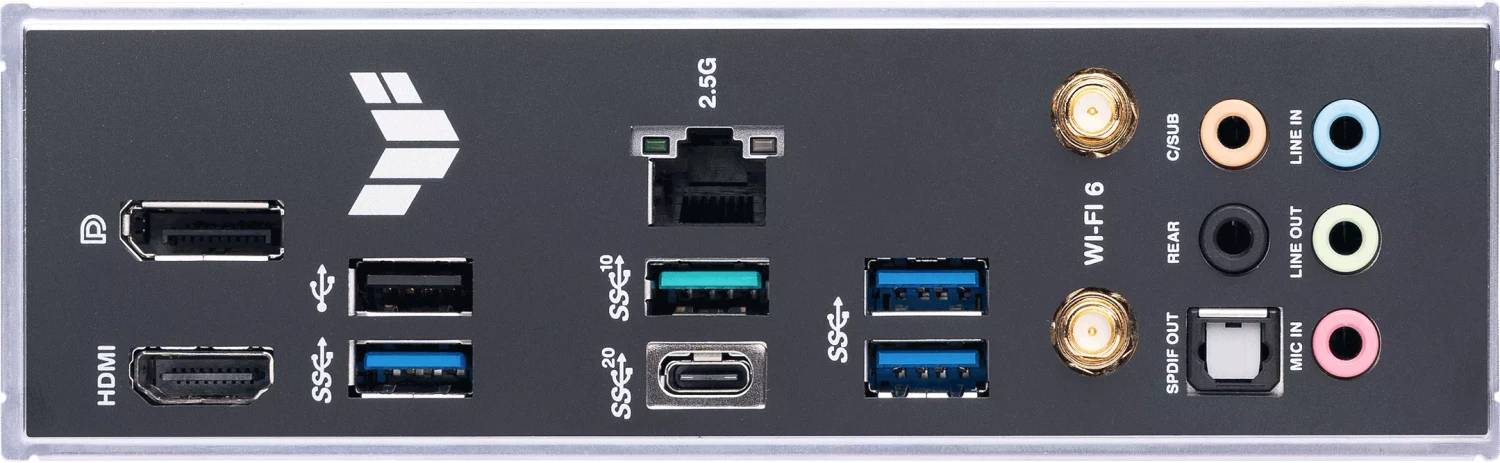

• Stainless steel I/O panel
  The stainless-steel I/O interface on TUF GAMING motherboards is coated with chromium oxide, providing a service life three times longer than conventional interfaces. TUF Gaming motherboards passed the 72-hour salt spray test, while components from other brands lasted just 24 hours.
• M.2 Q-Latch
  The innovative Q-Latch system makes it easy to install or replace an M.2 SSD without the use of tools. In fact, this design uses a simple locking mechanism to secure your drive, eliminating the need for screws.
• Removable captive screws
  Specialized screws for M.2 slots reduce the risk of dropping or losing a screw somewhere in your case when removing the M.2 heatsink.
• Q-LED
  Integrated Q-LED troubleshooting lights quickly tell PC assemblers whether key components such as CPU, RAM, graphics card and storage devices are functioning normally during start-up.
• Wi-Fi 6
  Compatible with the 802.11ax standard, the Intel Wi-Fi 6 module increases maximum bandwidth to achieve phenomenal connection speeds of up to 2.4 Gb/s. More importantly for users requiring colossal power, the module is optimized for more efficient operation on congested networks with heavy traffic.
• 2.5 Gb Ethernet connection
  On-board 2.5 Gb Ethernet takes your LAN connection up a notch with 2.5 times the bandwidth. Using your usual LAN cable, connect to the Ethernet and take advantage of this network optimization for a smoother, lag-free gaming experience, high-resolution video and faster file transfers.
• Realtek 7.1 surround sound
  The exclusive codec on TUF GAMING B760 motherboards has been designed in collaboration with Realtek. It boasts a signal-to-noise ratio of 98 dB at stereo output, for perfect audio quality.
• DTS sound processing
  DTS sound processing enhances the audio experience of gaming headsets and speakers by reducing distortion and providing deeper bass, so games, movies and music sound better. You can also customize your audio settings.
• Outshine your opponents
  The ultimate PC deserves a look to match. The TUF GAMING B760 series features perimeter lighting to enhance its rugged appearance, while ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. All this can be synchronized with a growing number of Aura Sync-compatible ASUS devices.
• RGB Gen 2 addressable connector
  Three addressable RGB Gen 2 connectors support up to 500 LEDs on RGB Gen 2 devices, enabling Aura Sync to automatically customize lighting effects across your entire system. The new headers also offer full backward compatibility with existing Aura Sync equipment.

Special Features

• 12+1-phase DrMOS power supply with extended VRM heat sinks
• PCIe 5.0 for graphics cards
• Compatible with DDR5 memory module
• USB 3.2 Gen 2x2 Type-C and USB 3.2 Gen 2 Type-C front connector
• 2.5 Gb Ethernet connection
• Wi-Fi 6
• Two-Way AI Noise Cancelation

Product Specification
