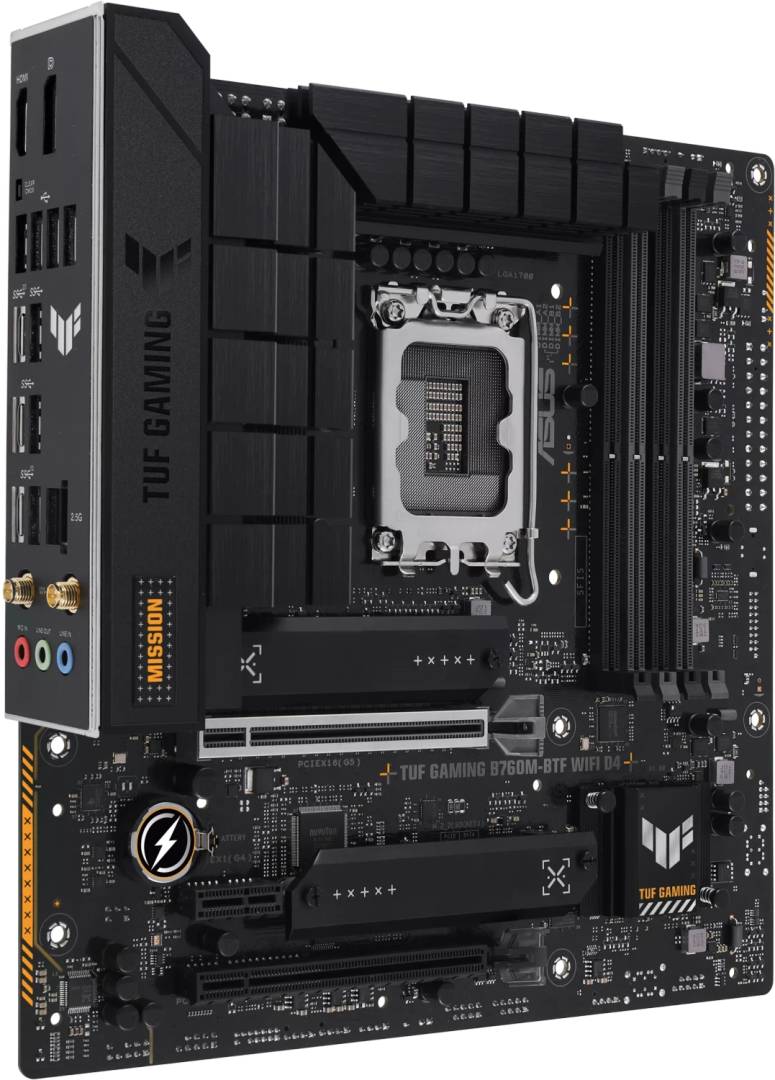

ASUS TUF Gaming B760M-BTF WiFi D4 Micro-ATX Motherboard LGA 1700 Intel B760 DDR4 PCIe 5.0 Triple M.2 Wi-Fi 6 Black
Brand:
ASUS
ASUS TUF Gaming B760M-BTF WiFi D4 Micro-ATX Motherboard LGA 1700 Intel B760 DDR4 PCIe 5.0 Triple M.2 Wi-Fi 6 Black
€266.98 inc. VAT
90MB1E50-M1EAY0
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

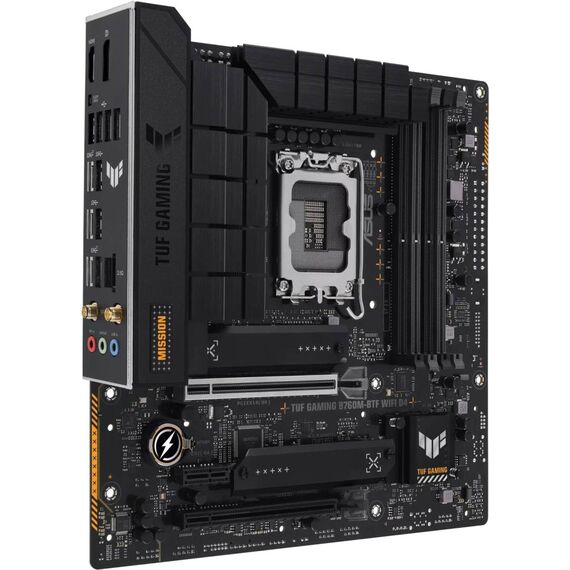

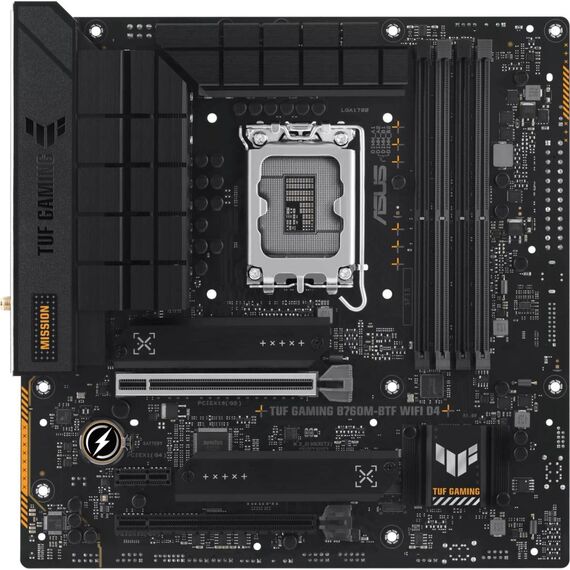

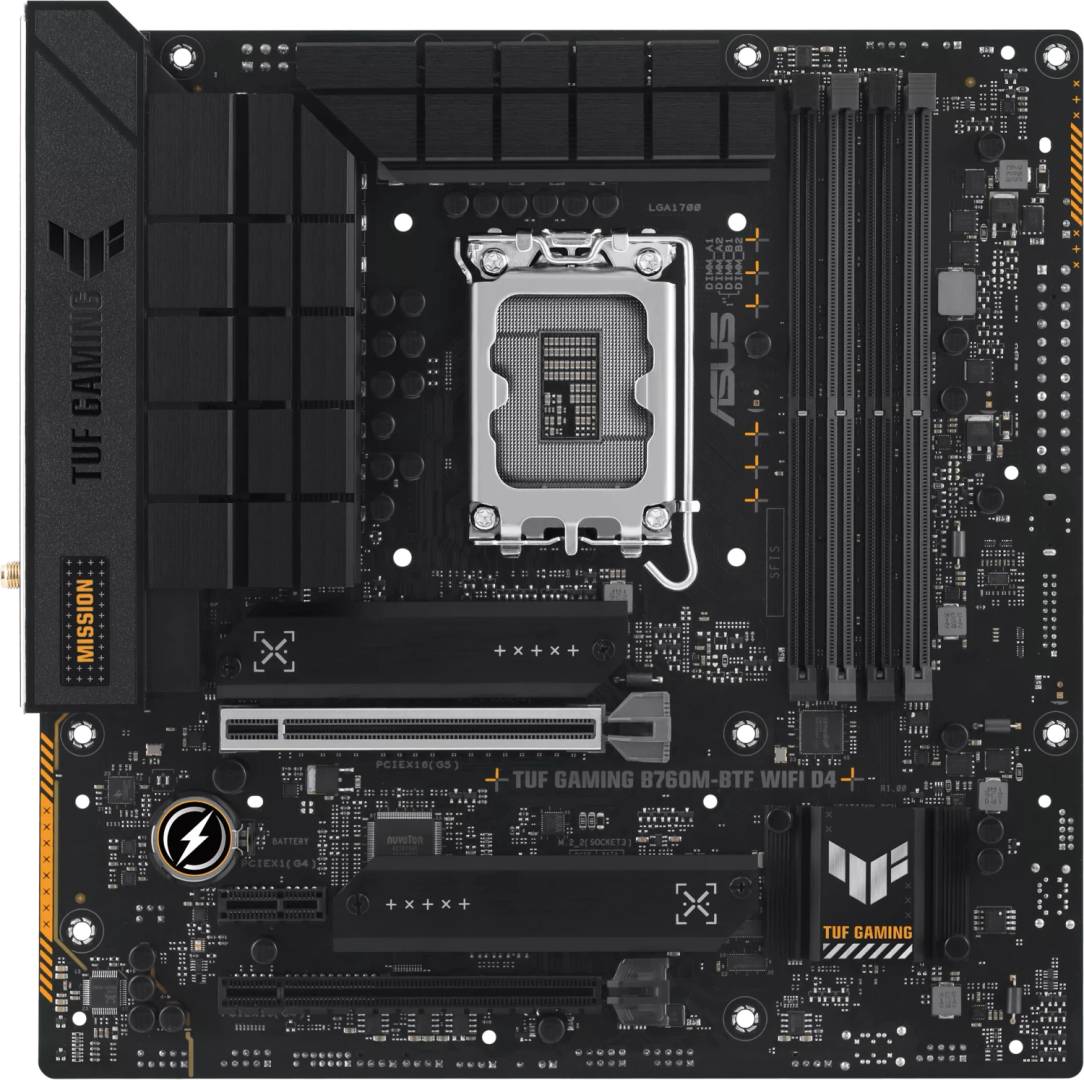

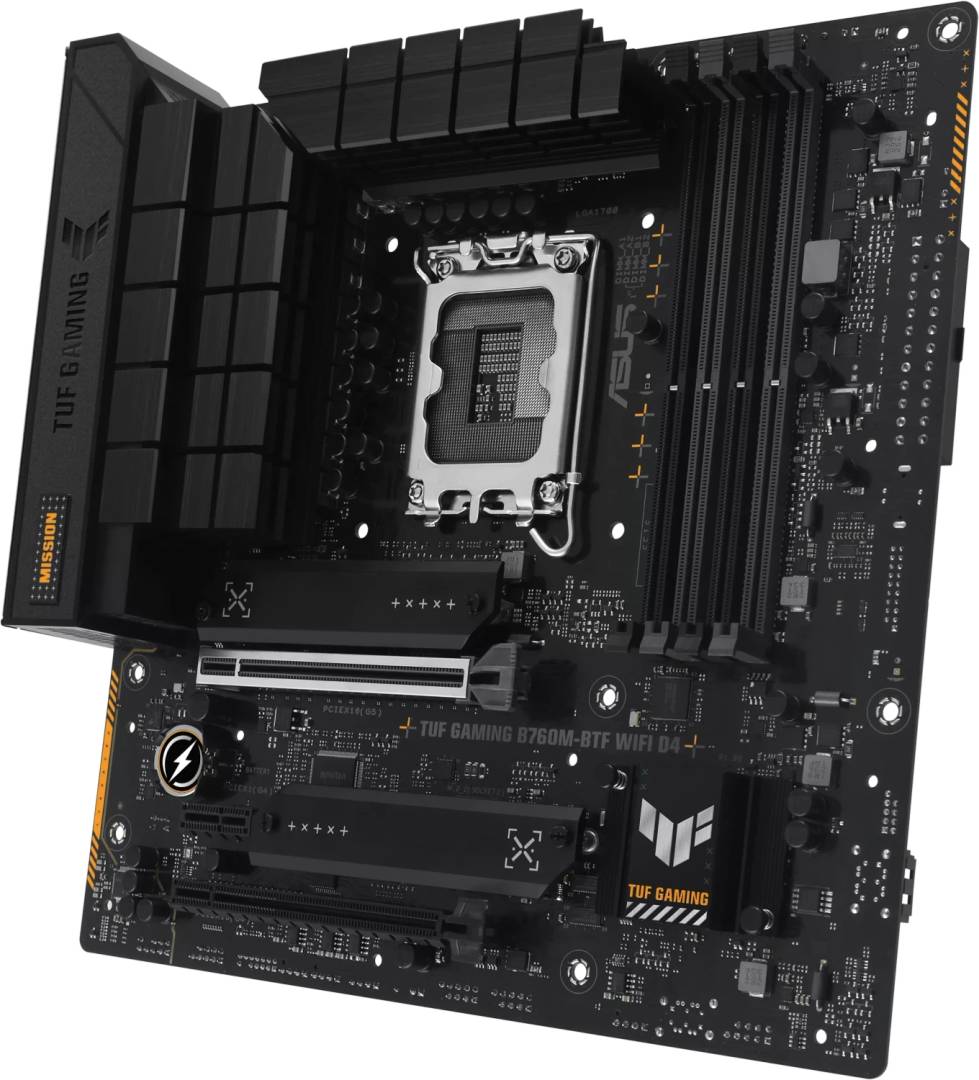

ASUS TUF Gaming B760M-BTF WiFi D4 — Hidden-Connector Micro-ATX
LGA 1700 · Intel B760DDR4 up to 128GBPCIe 5.0 x16 + Triple M.2Wi-Fi 6 · 2.5GbE · BTF
The ASUS TUF Gaming B760M-BTF WiFi D4 is a micro-ATX gaming motherboard built on the Intel B760 chipset and the LGA 1700 socket, supporting 12th, 13th and 14th Generation Intel Core processors. Sold under ASUS part number 90MB1E50-M1EAY0 (EAN 4711387132029), it features a BTF hidden-connector design for clean cable management, plus a PCIe 5.0 x16 slot, DDR4 memory, three M.2 slots, Wi-Fi 6 and 2.5GbE networking — a great base for tidy, value-focused gaming builds. Typically in stock with fast delivery across Cyprus.
Compatibility — read before buying
This is an LGA 1700 board supporting 12th/13th/14th Gen Intel Core CPUs — not the newer LGA 1851 Core Ultra. It is the D4 (DDR4) version, so it uses DDR4 memory only (not DDR5). The BTF hidden-connector layout routes connectors to the rear, so to hide cables fully you need a BTF-compatible case; it also works in standard cases.
Best For
✓Clean, cable-hidden BTF gaming builds
✓Value 12th–14th Gen Intel Core systems
✓Reusing existing DDR4 memory
✓PCIe 5.0 graphics with triple-NVMe storage
✓Wi-Fi 6 and 2.5GbE connectivity
✓Compact Micro-ATX showcase PCs
Key Features
BTF hidden-connector design
Power and data connectors are relocated to the underside/rear of the board for a clean, cable-free front — paired with a BTF case for a minimalist look.
PCIe 5.0 + triple M.2
A PCIe 5.0 x16 slot for next-gen graphics, plus three PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports for generous, fast storage.
Cost-saving DDR4
Four DDR4 DIMM slots (up to 128GB) let you reuse existing memory and keep build costs down while still using a modern Intel platform.
TUF gaming connectivity

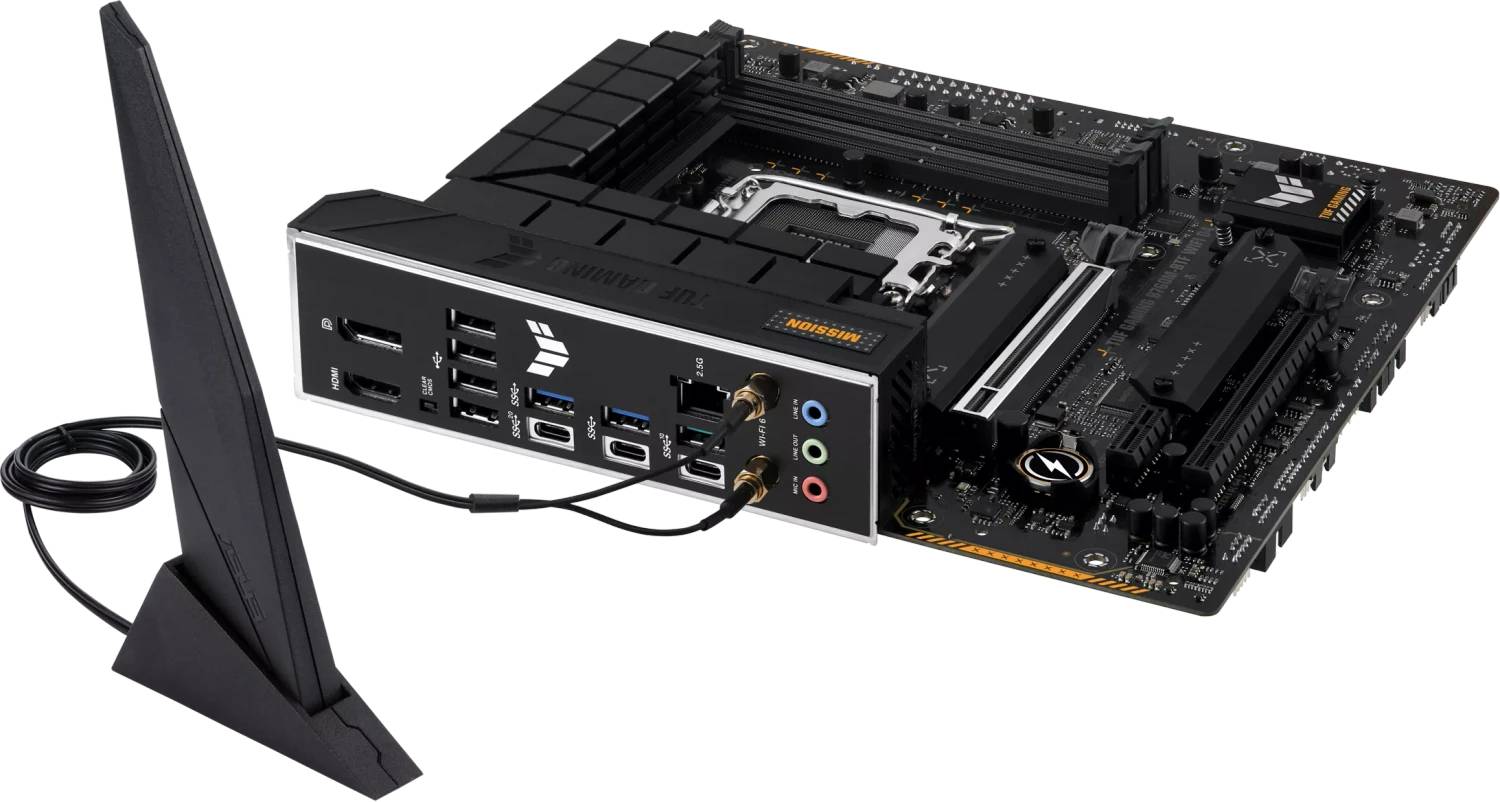

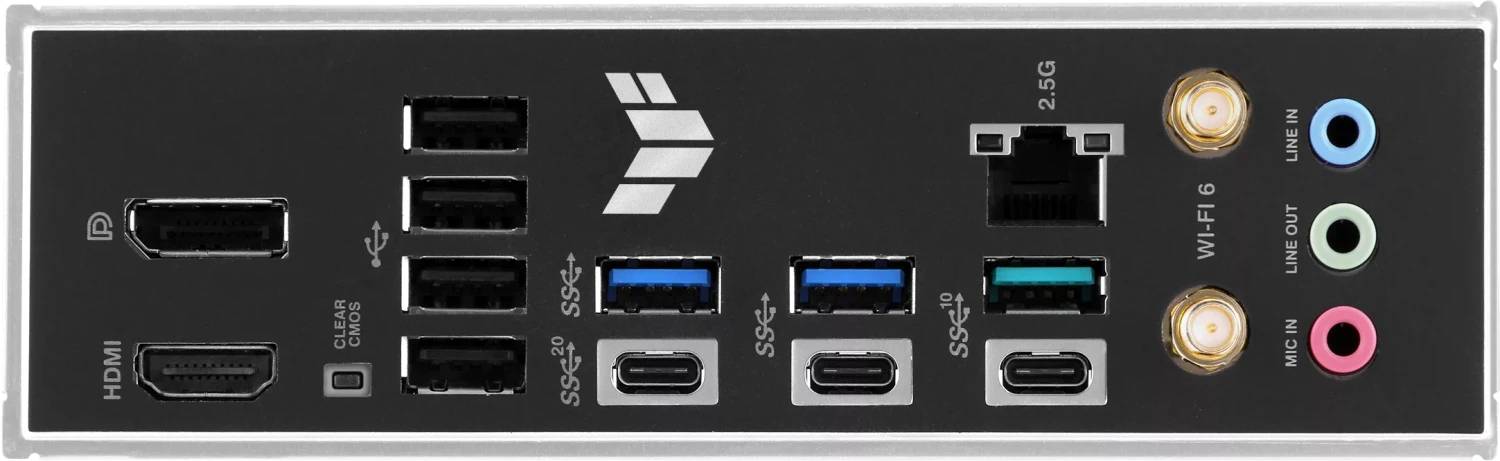

Intel Wi-Fi 6 with Bluetooth, Realtek 2.5GbE LAN, rear and front USB 3.2 Gen 2x2 Type-C, plus TUF military-grade components and Aura Sync.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The TUF Gaming B760M-BTF WiFi D4 is the budget-friendly way into ASUS’s clean-look BTF ecosystem — it keeps costs down with DDR4 while still offering a PCIe 5.0 x16 slot, triple M.2 and Wi-Fi 6. If you want DDR5, choose the DDR5 BTF variant; if you don’t care about hidden connectors, a standard TUF B760M-PLUS is an option; and for the latest platform, an LGA 1851 B860 board moves you to Core Ultra. Pair it with a fast PCIe Gen4 internal SSD for snappy storage.
Buyer's Guide
Buy it if
You want a clean, cable-hidden BTF gaming build on a budget, reusing DDR4 memory, with PCIe 5.0 graphics, triple M.2 and Wi-Fi 6.
Skip it if
You want DDR5, a standard (non-BTF) layout, or the latest Core Ultra platform — choose a DDR5/standard model or an LGA 1851 board.
Also consider
A DDR5 BTF variant for newer memory, or an LGA 1851 B860 board for the Core Ultra platform.
Features - ASUS - 90MB1E50-M1EAY0
CPU Socket
- Socket 1700
Colour
black
Interface
- USB Type-C,
- M.2,
- Ethernet,
- Bluetooth,
- WIFI
More Details
Product Code
04:437537
EAN Code
4711387132029
