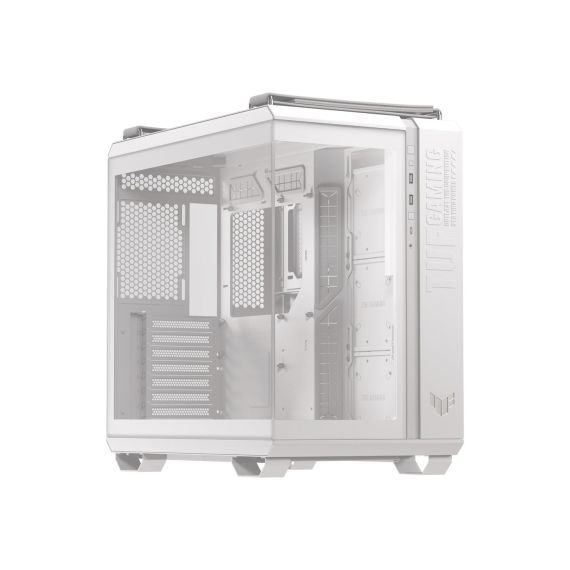

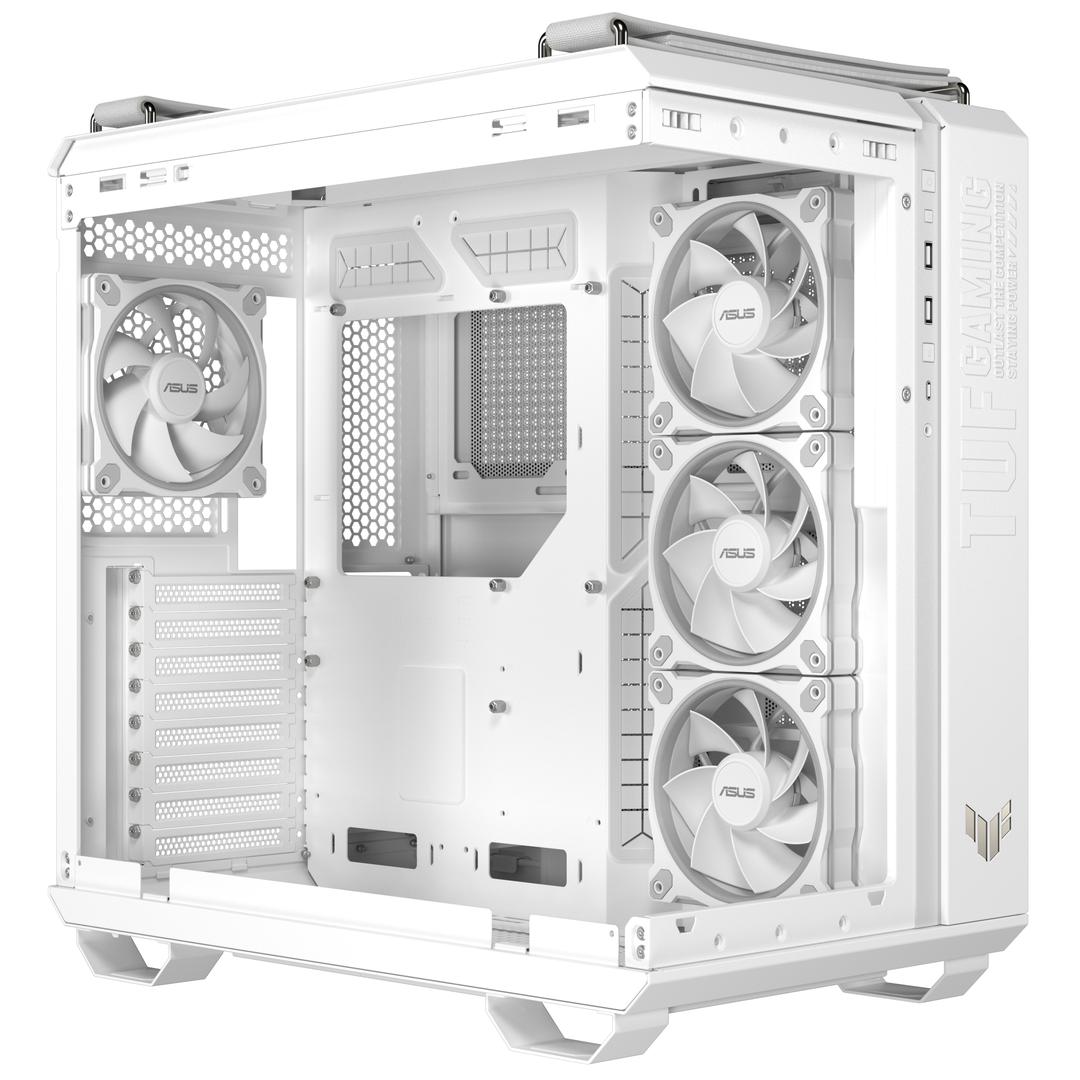

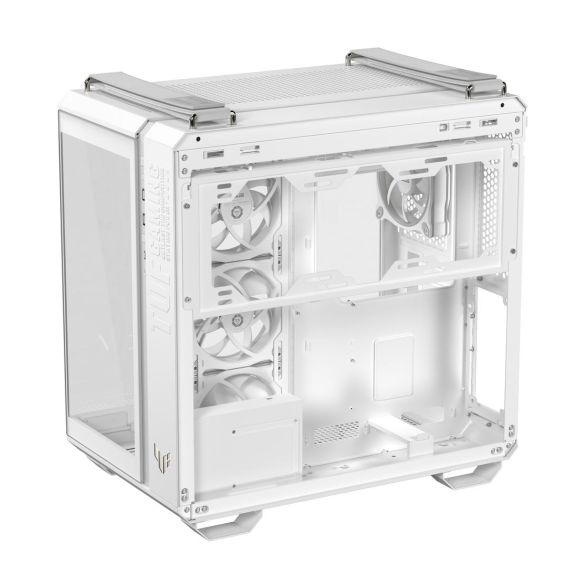

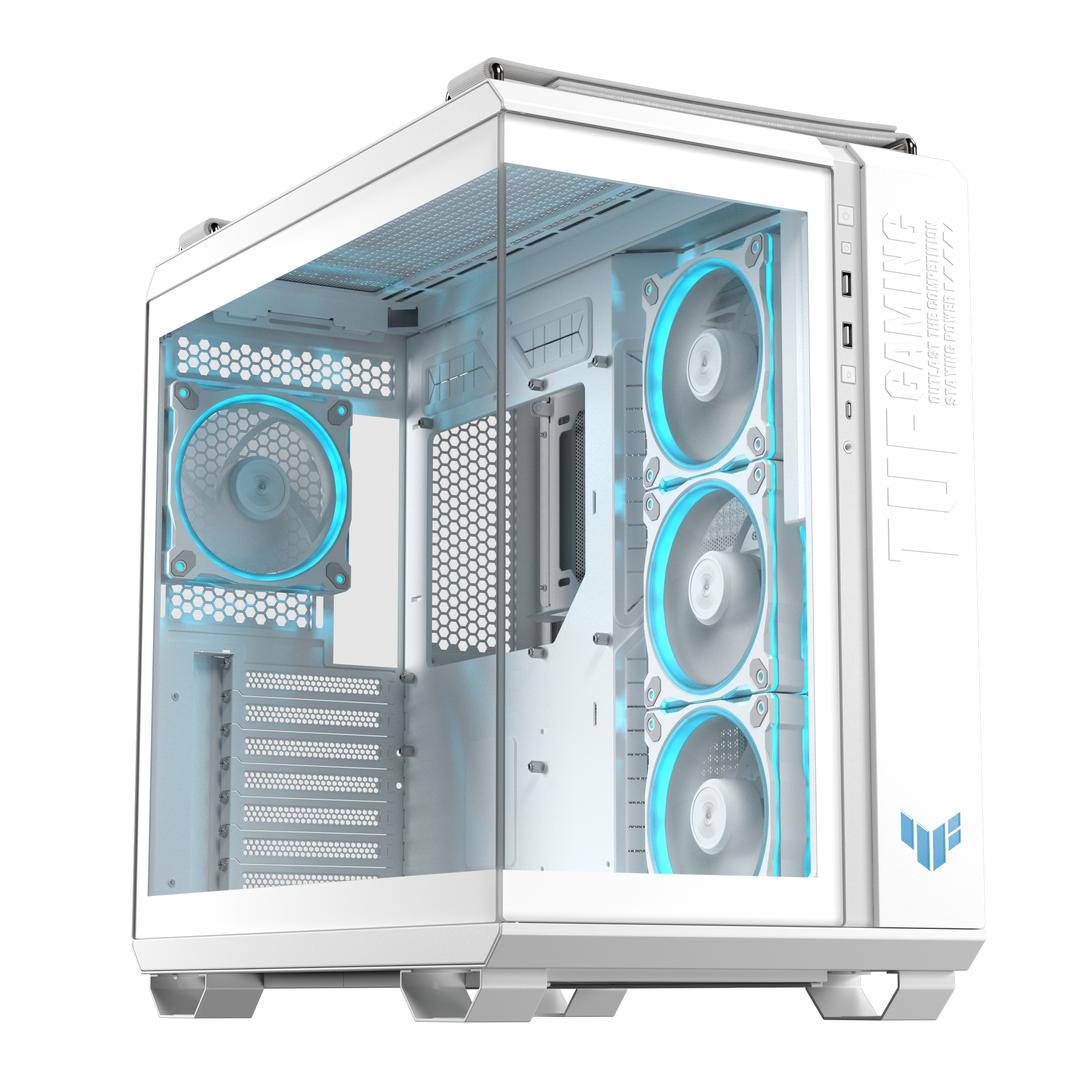

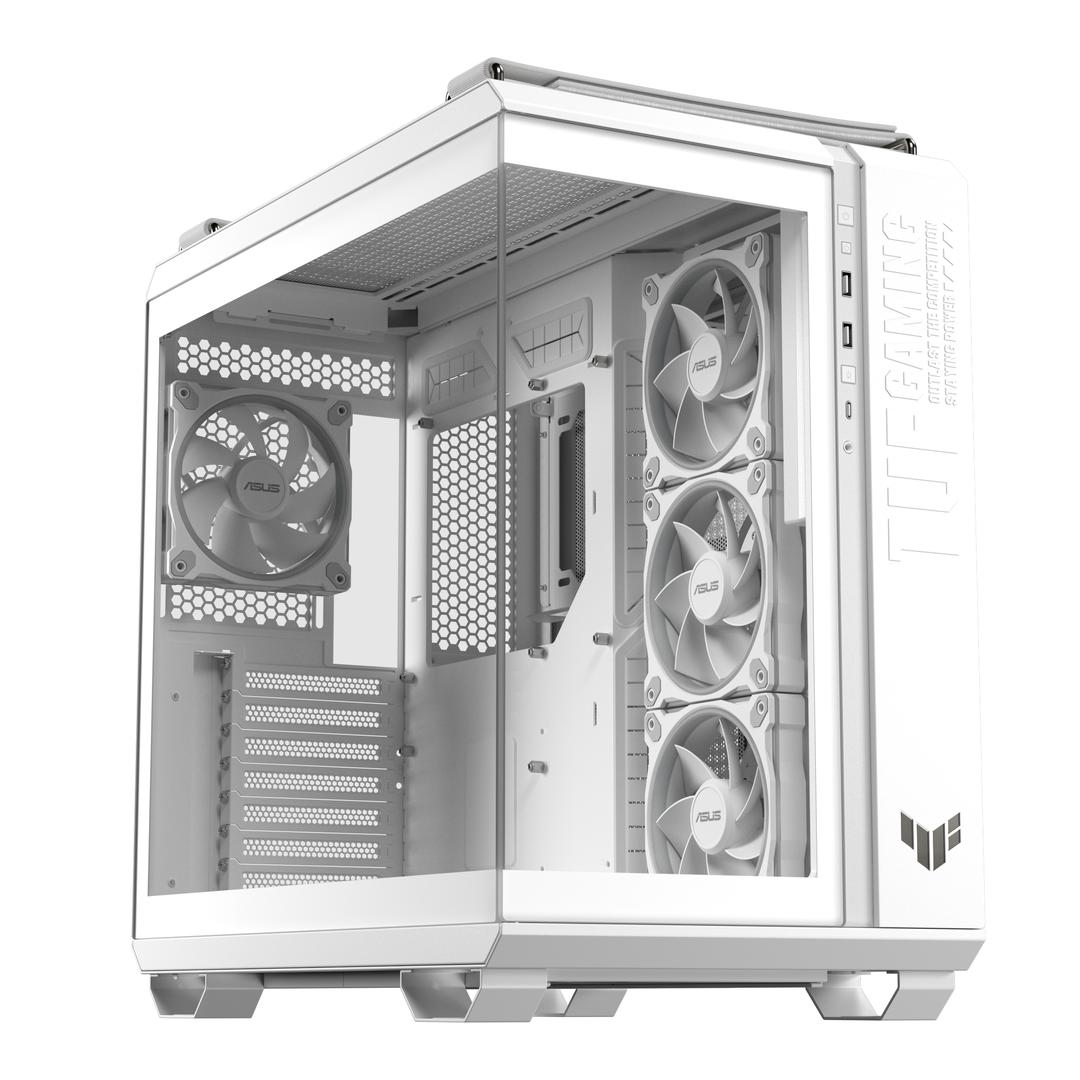

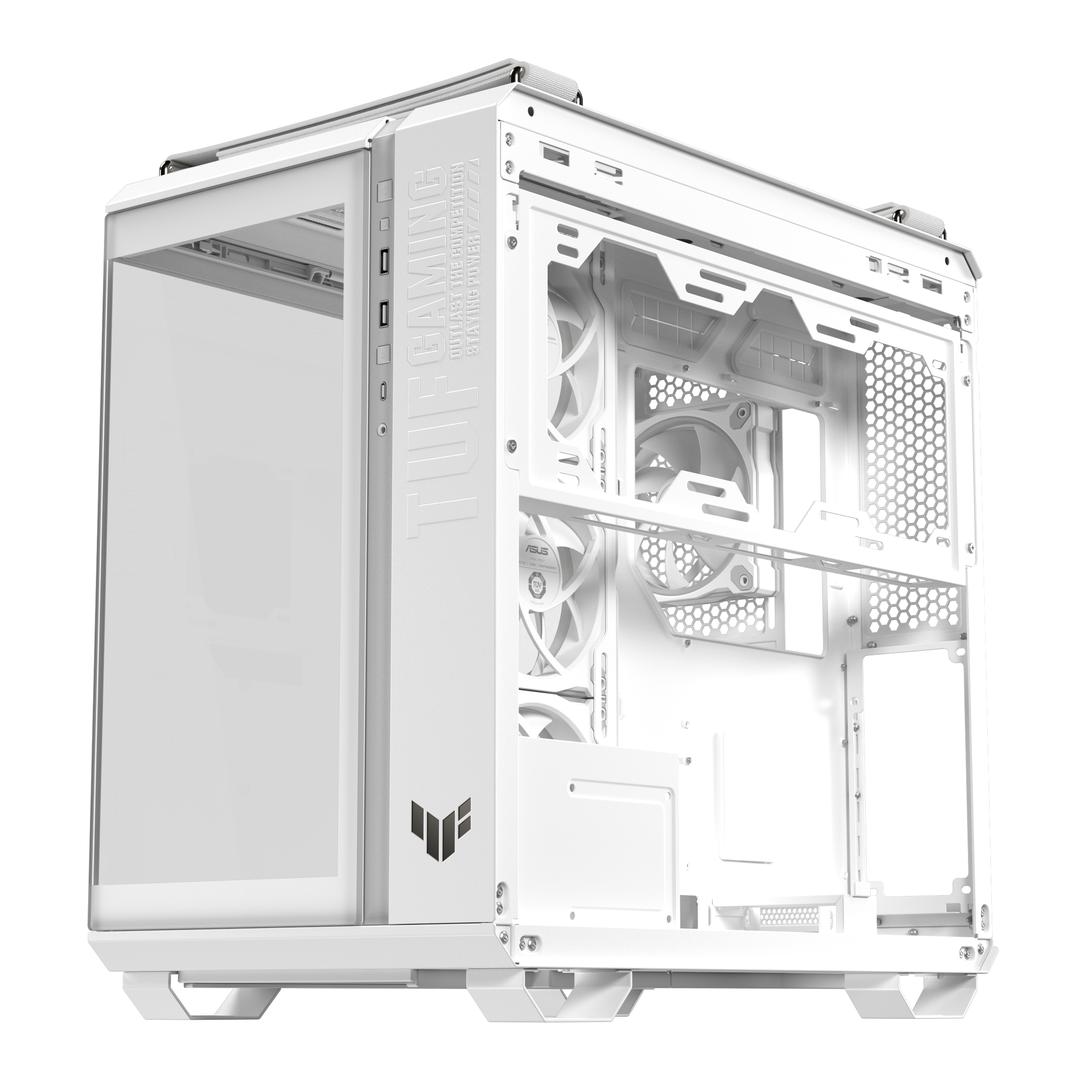

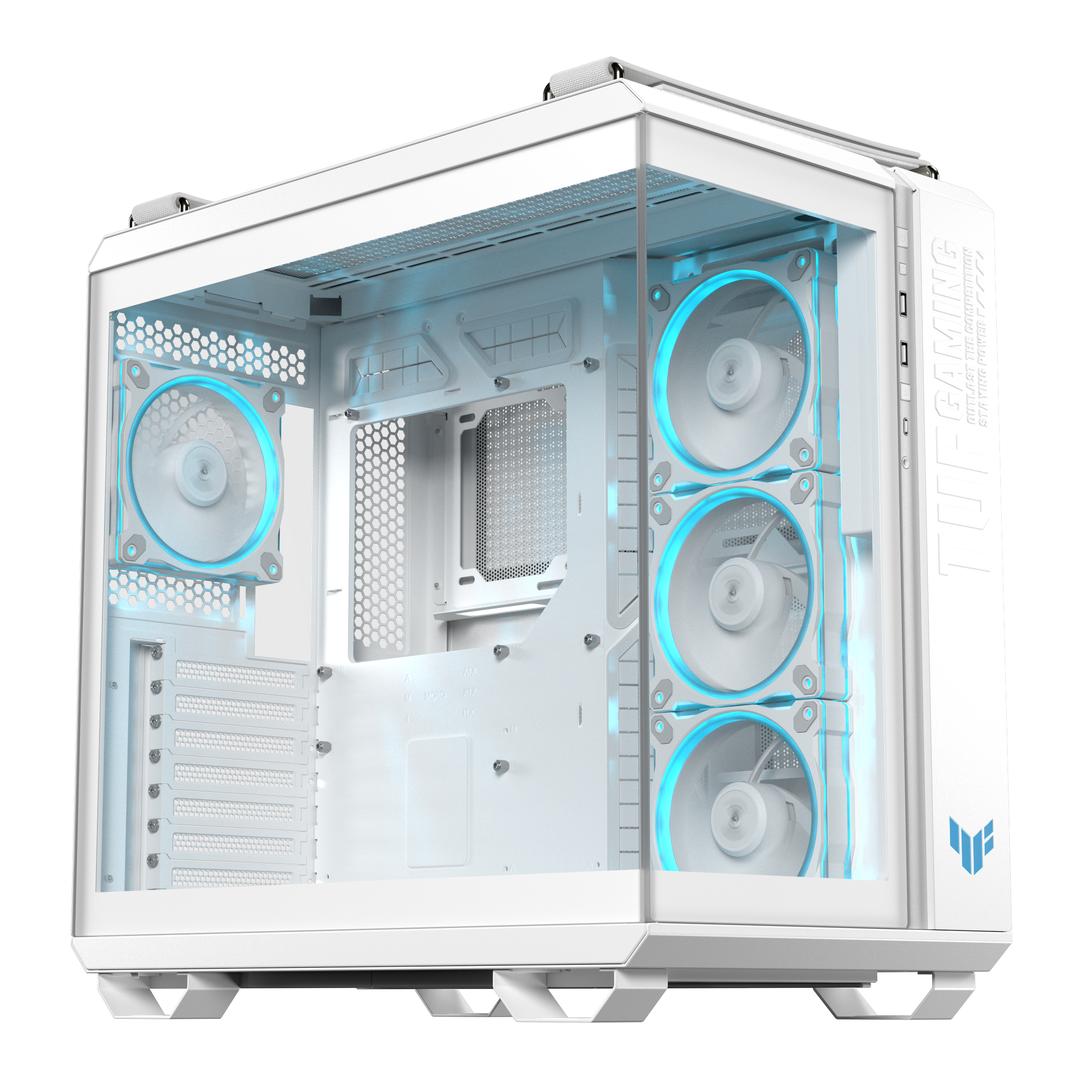

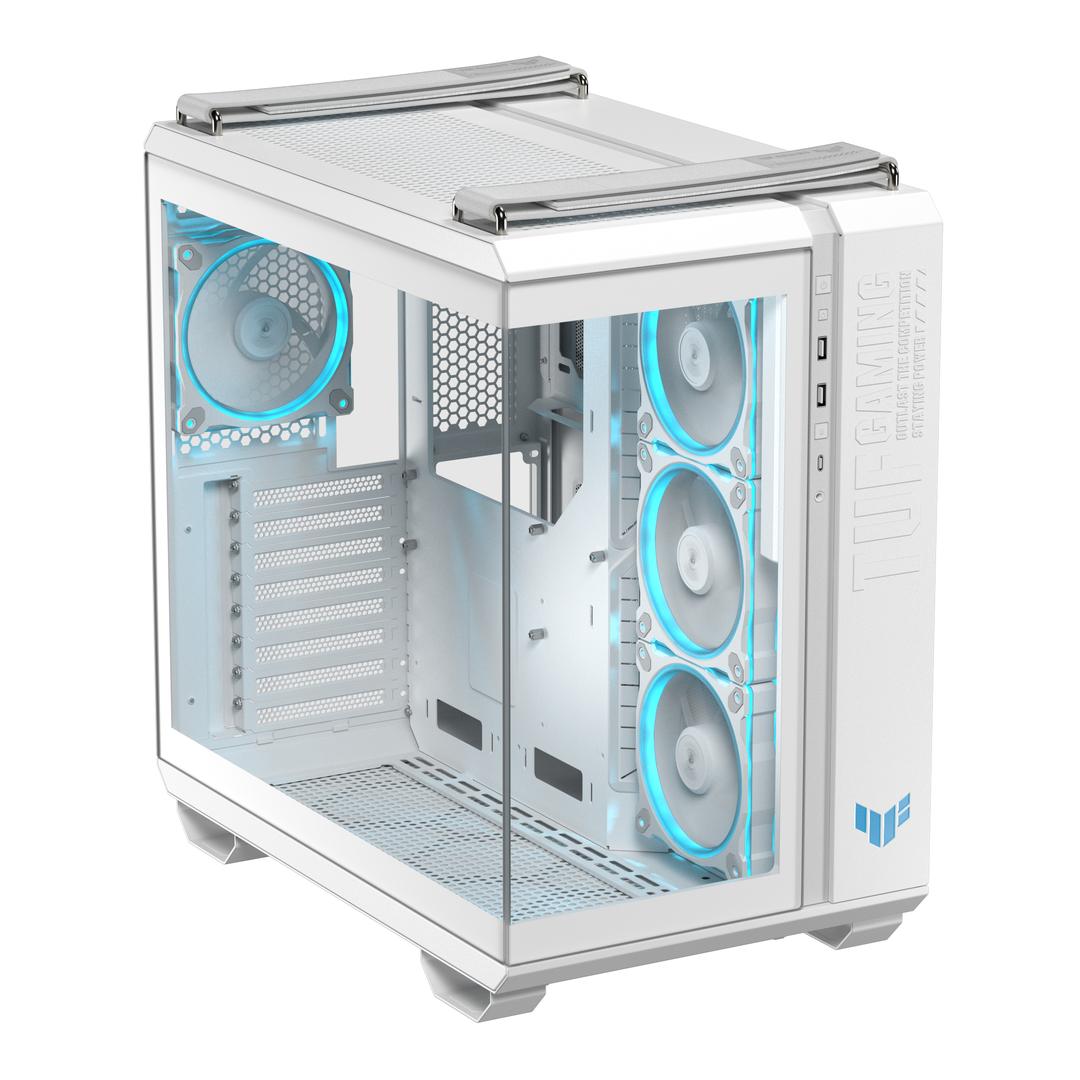

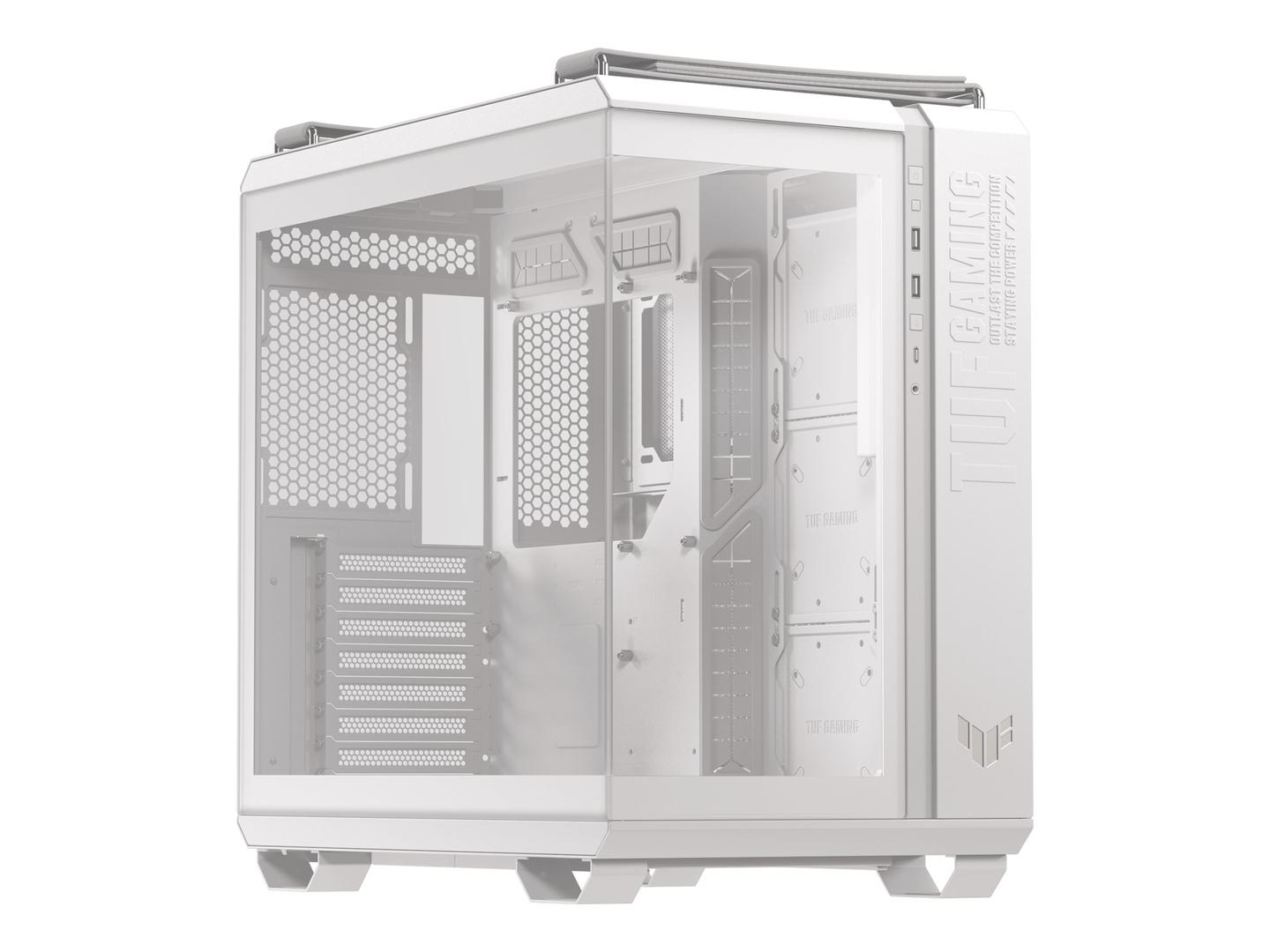

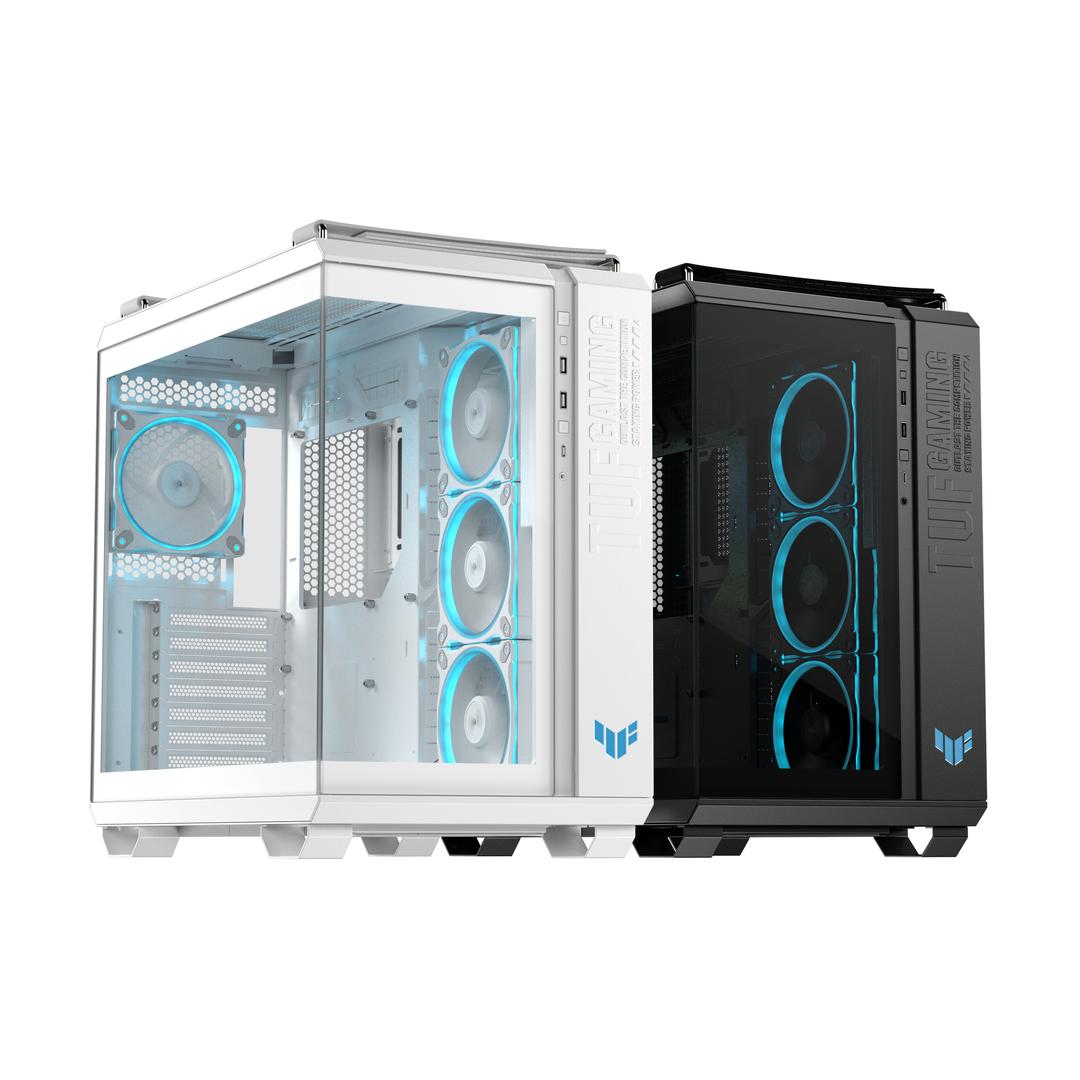

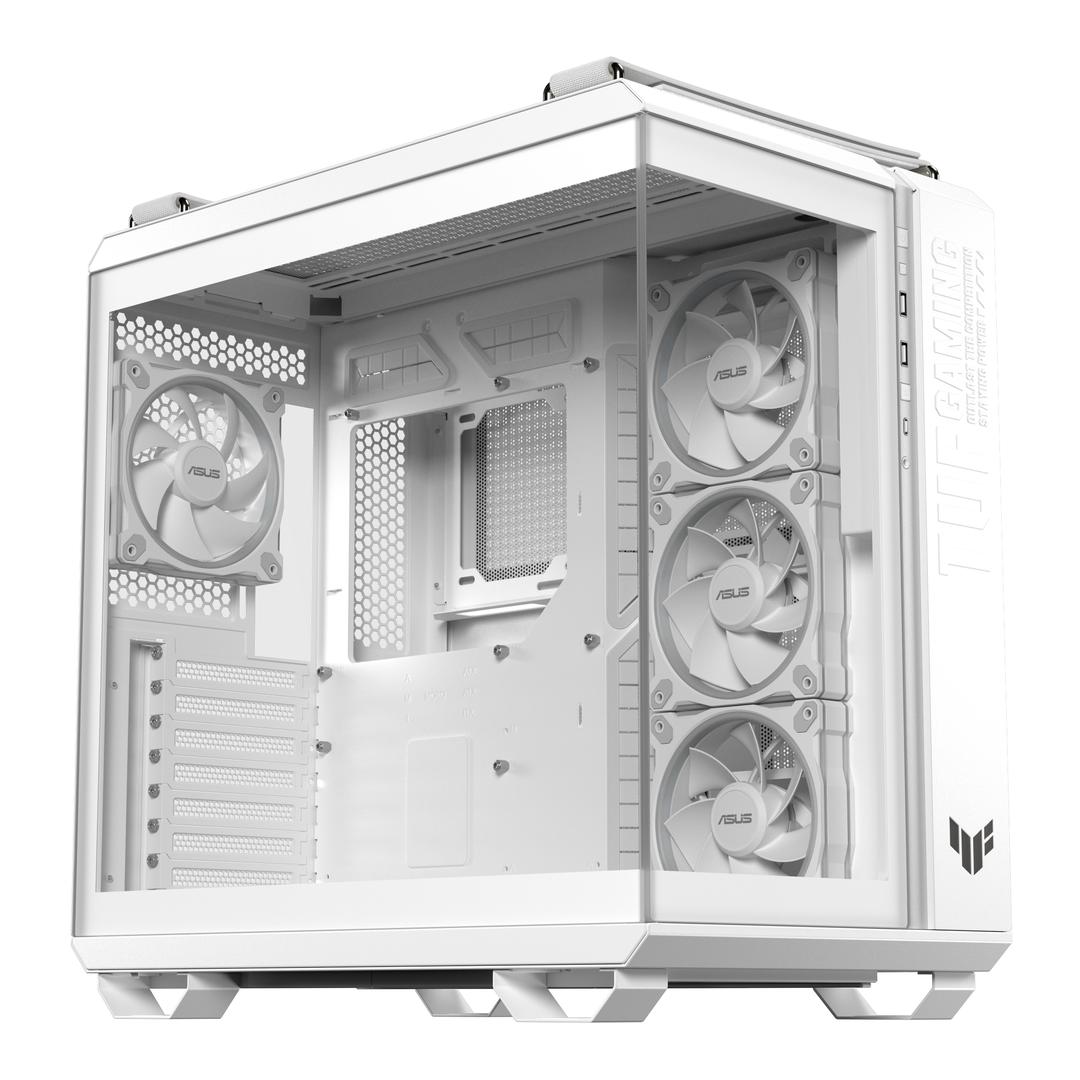

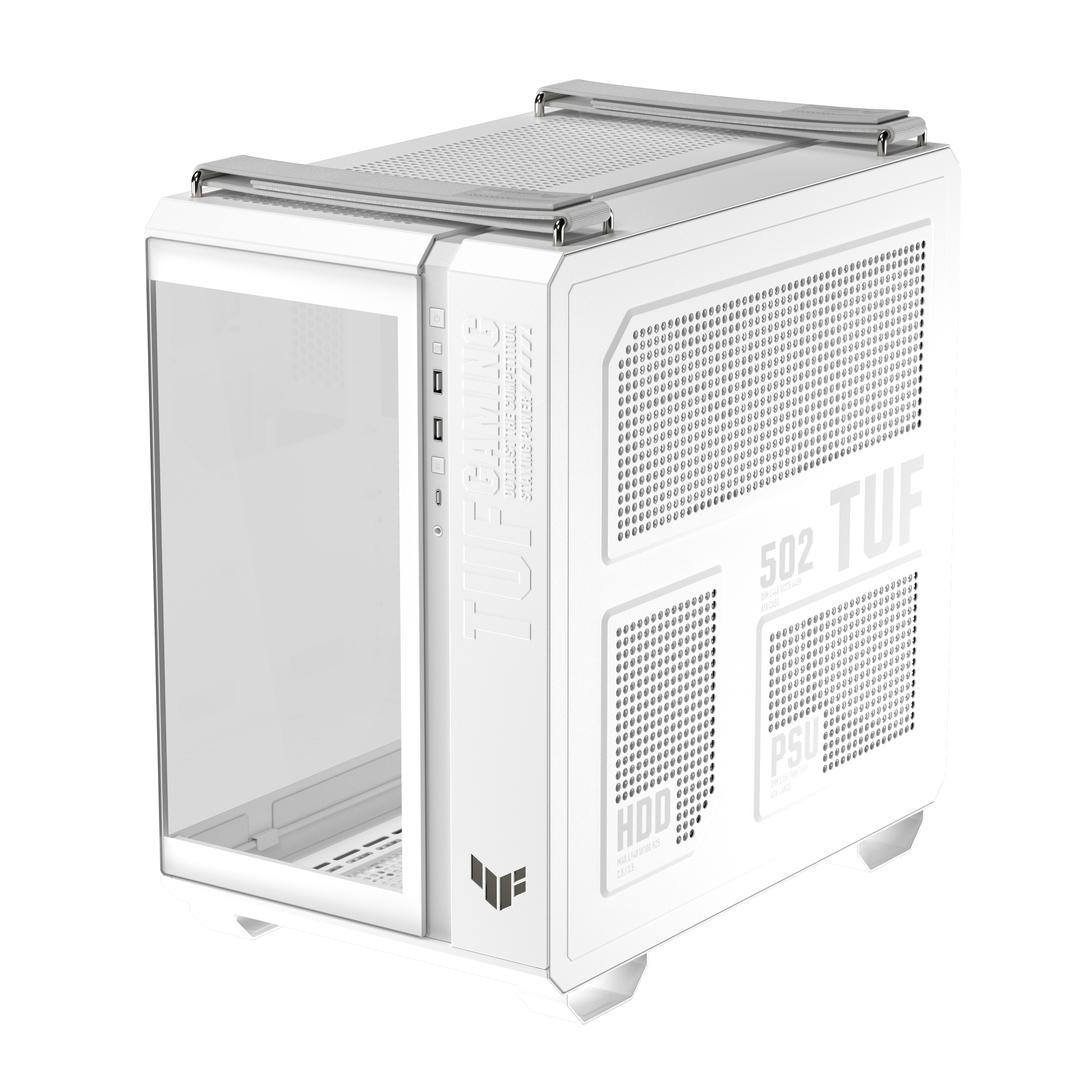

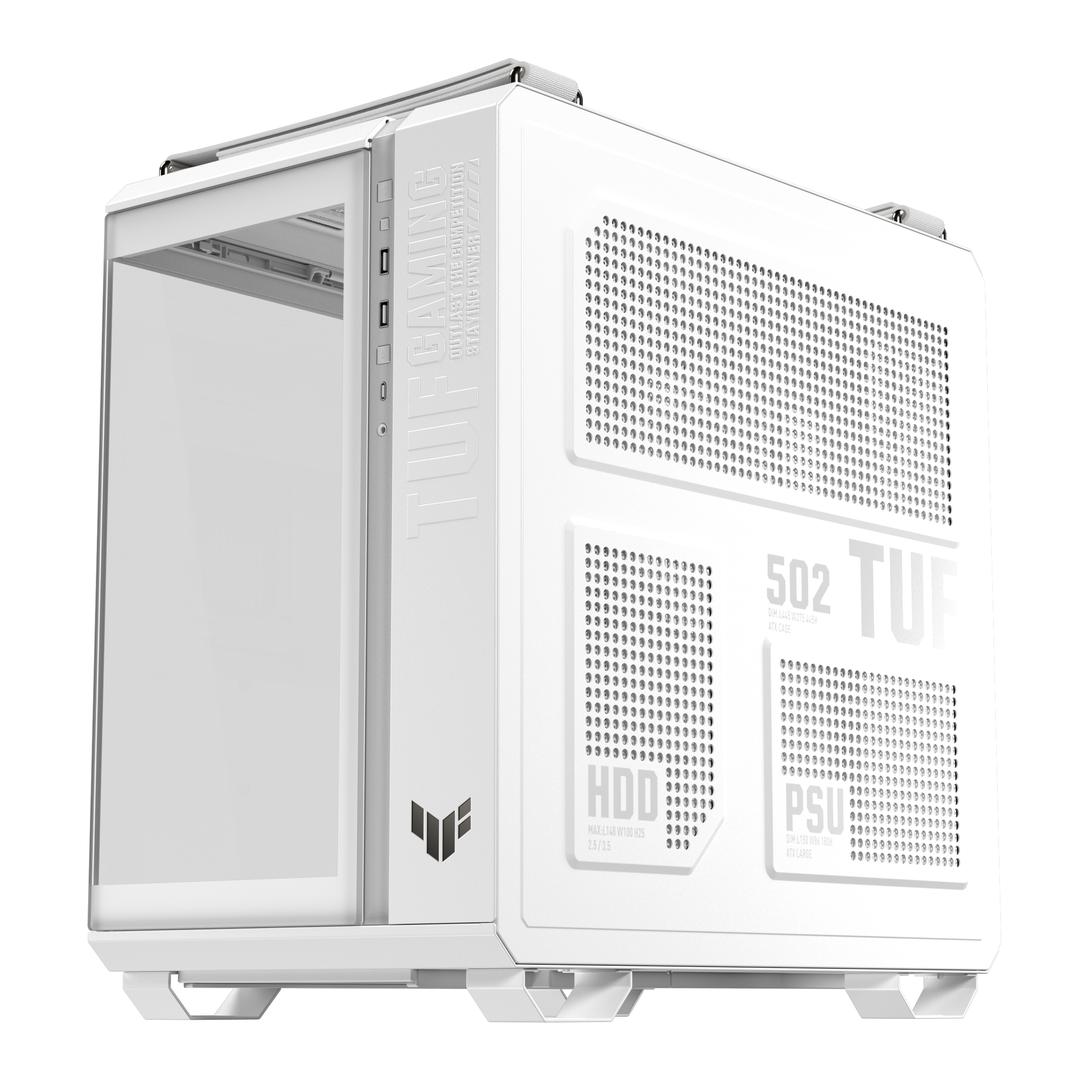

ASUS TUF Gaming GT502 Horizon / Mid tower gaming / ATX / windowed side panel (tempered glass) / no power supply / snowy white / USB/Audio | 90DC0093-B19010
90DC0093-B19010
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Spacious internal layout
The GT502 Horizon accommodates multiple components with its four internal bays, supporting both 2.5" and 3.5" drives, ensuring sufficient storage versatility. - Excellent cooling potential
This chassis supports a variety of cooling options, including mounting for a 360 mm radiator, providing extensive capabilities to keep high-performance setups cool. - Convenient design

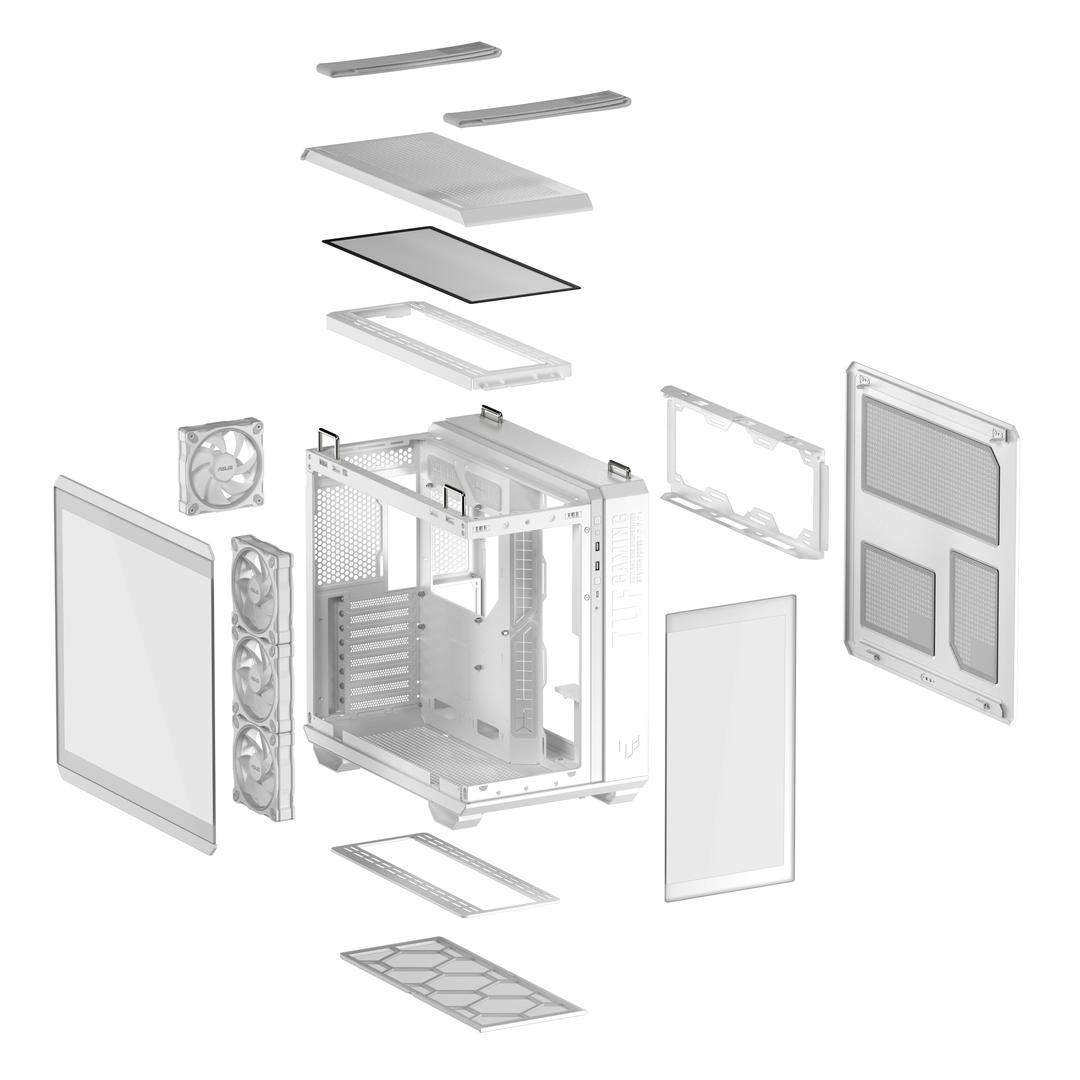

Featuring a fully modular design with tool-less access, upgrades and modifications can be performed quickly, without the need for additional tools. - Enhanced visibility

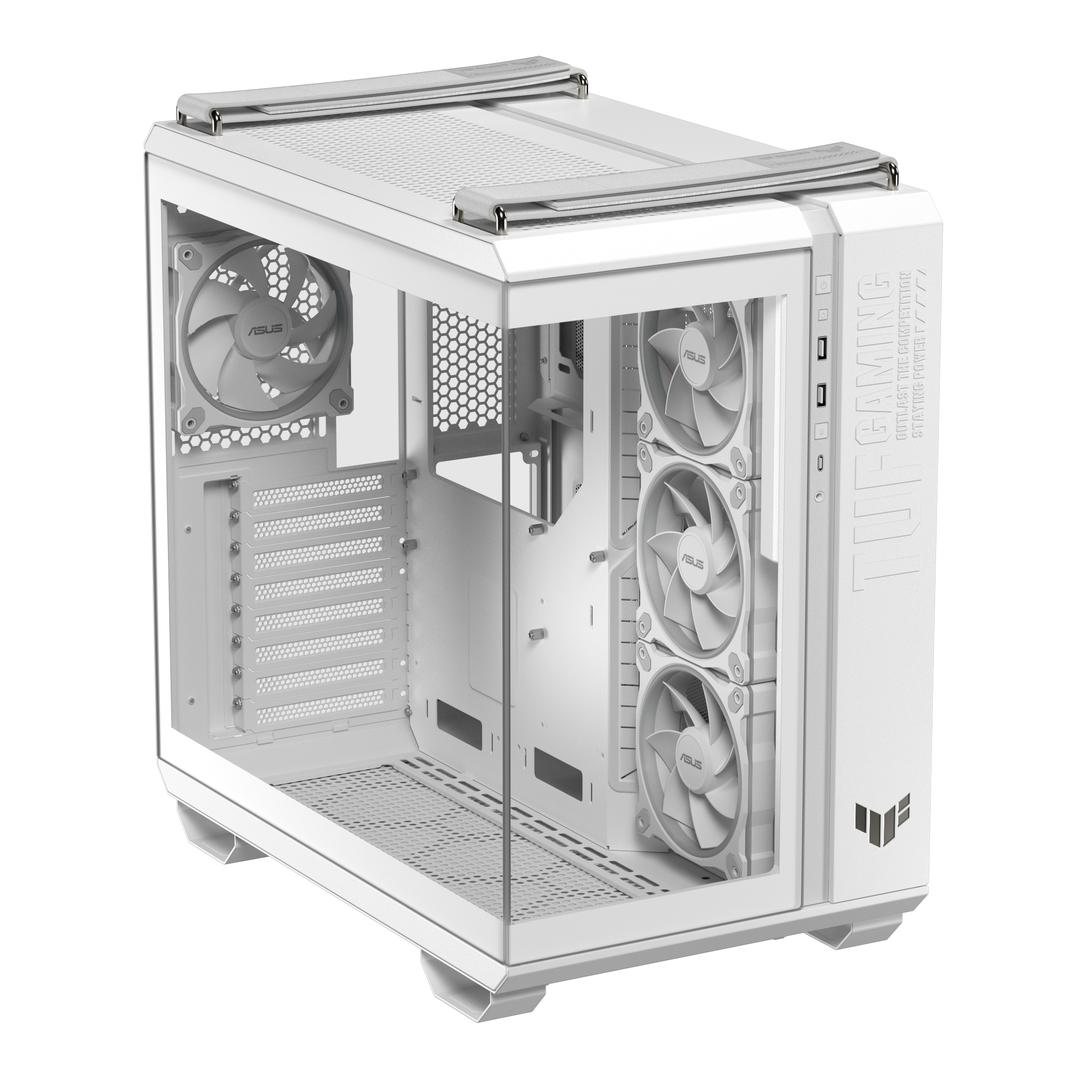

The tempered-glass panels allow users to showcase their custom builds while easily monitoring the system's components. - Multiple connectivity options
Equipped with USB-C 3.2 Gen 2x2 and USB 3.2 Gen 1 interfaces, the front panel offers modern connectivity for peripherals and devices.
Special Fetures

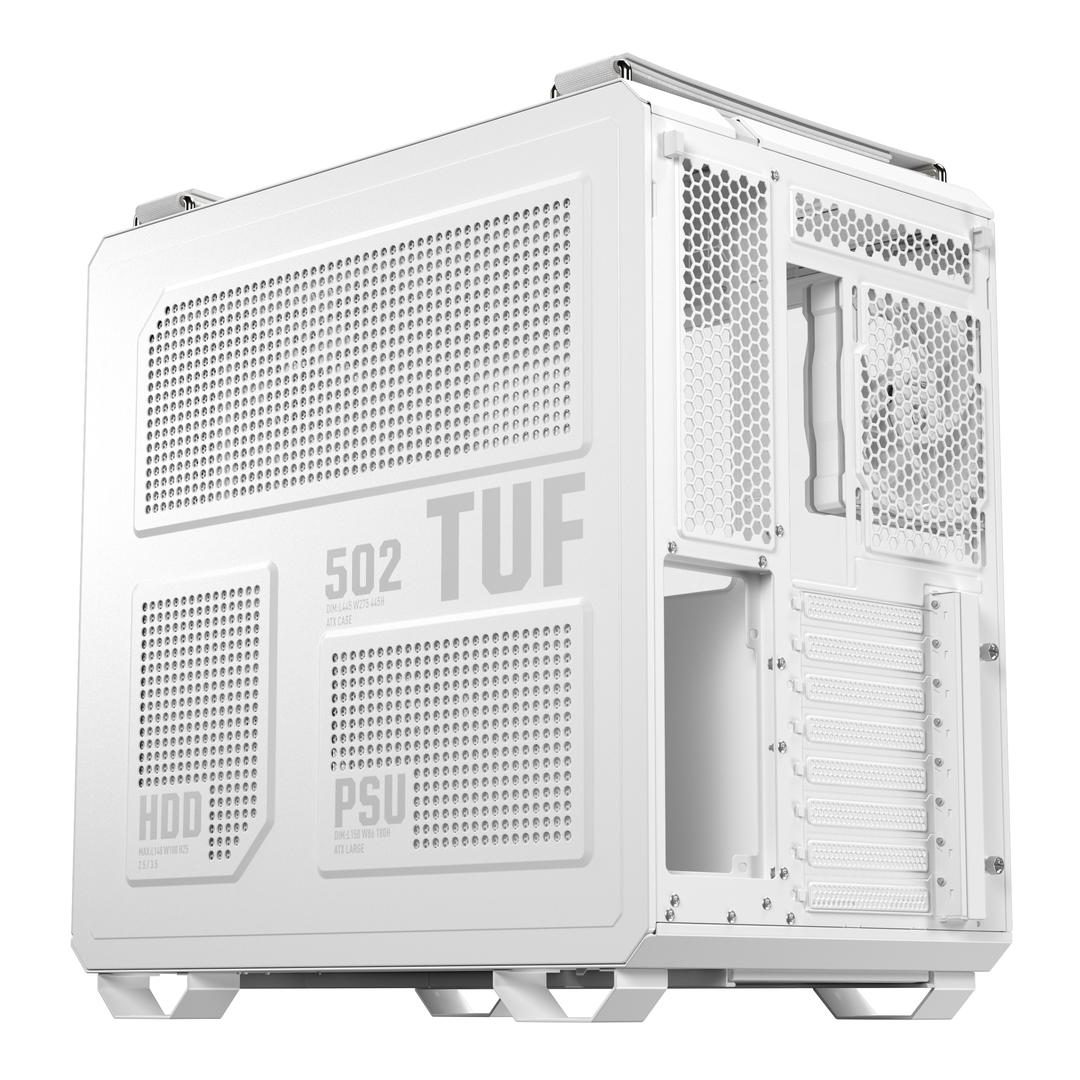

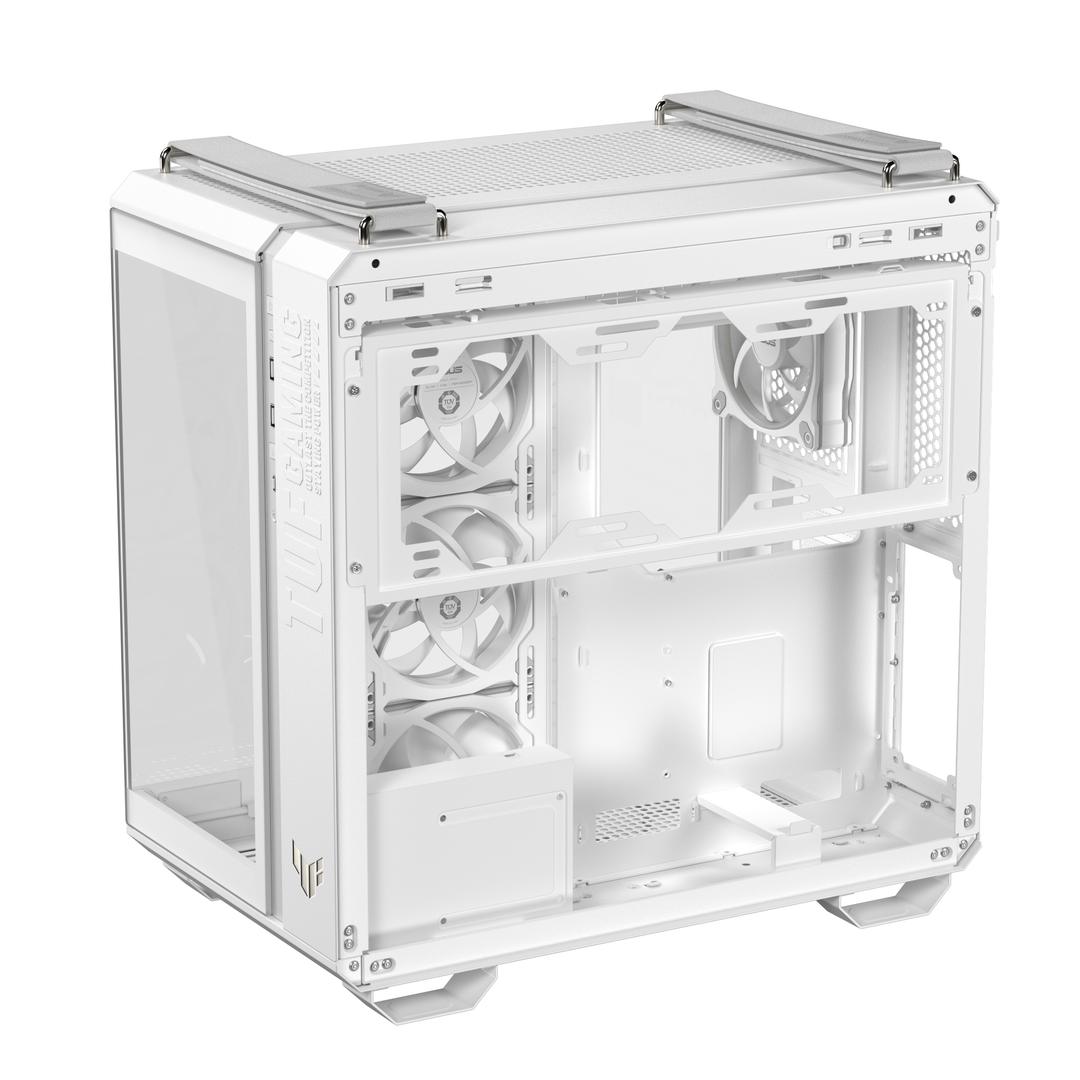

- Dual chamber layout enhances airflow and organization
- Multiple dust filters ensure easy maintenance
- Tempered-glass panels provide visibility for internal components
- Supports ample cooling options for efficient thermal management
- Tool-less side panels allow for easy upgrades
Product Specification
| Form Factor | Mid tower |
| Gaming | Yes |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 4 |
| Colour | Snowy white |

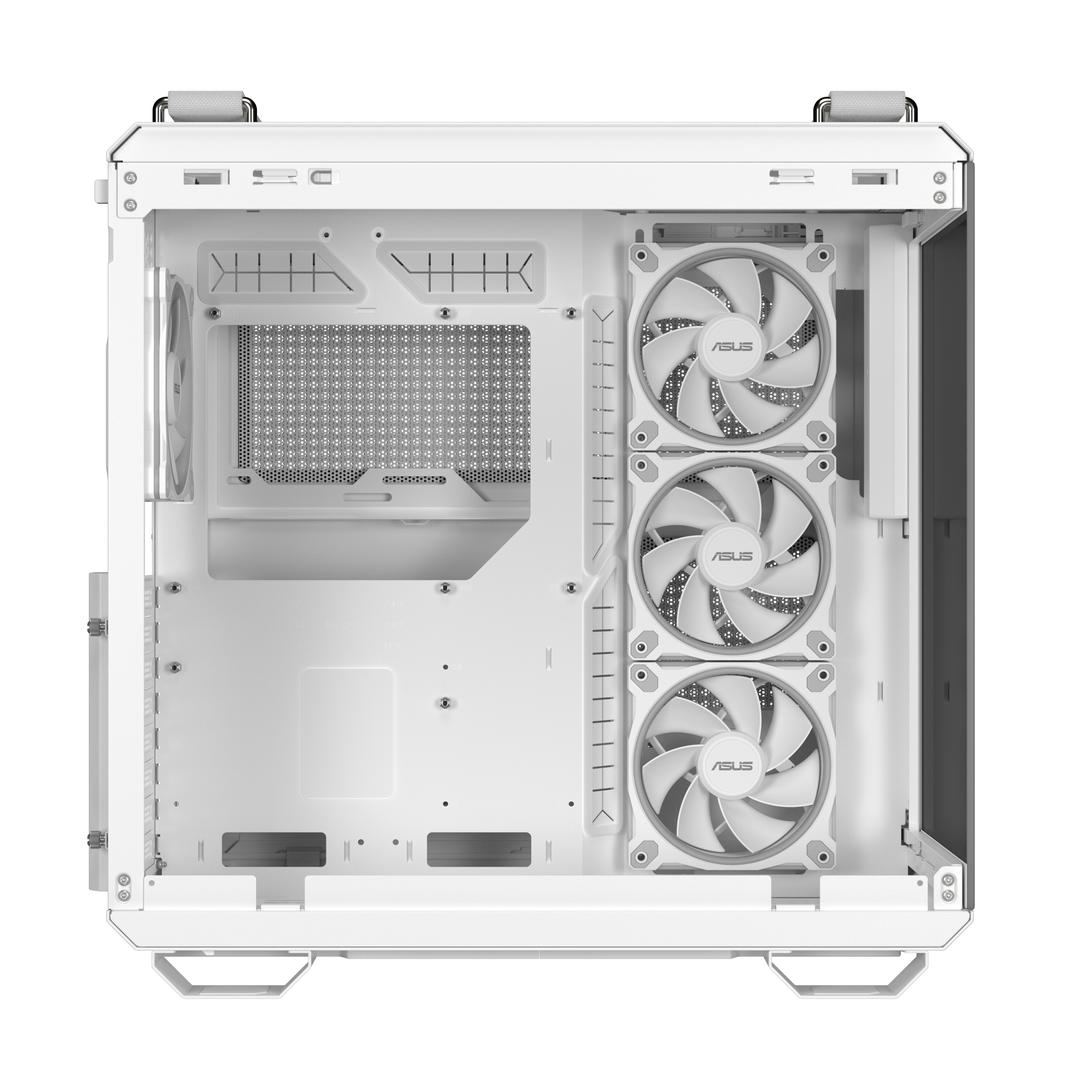

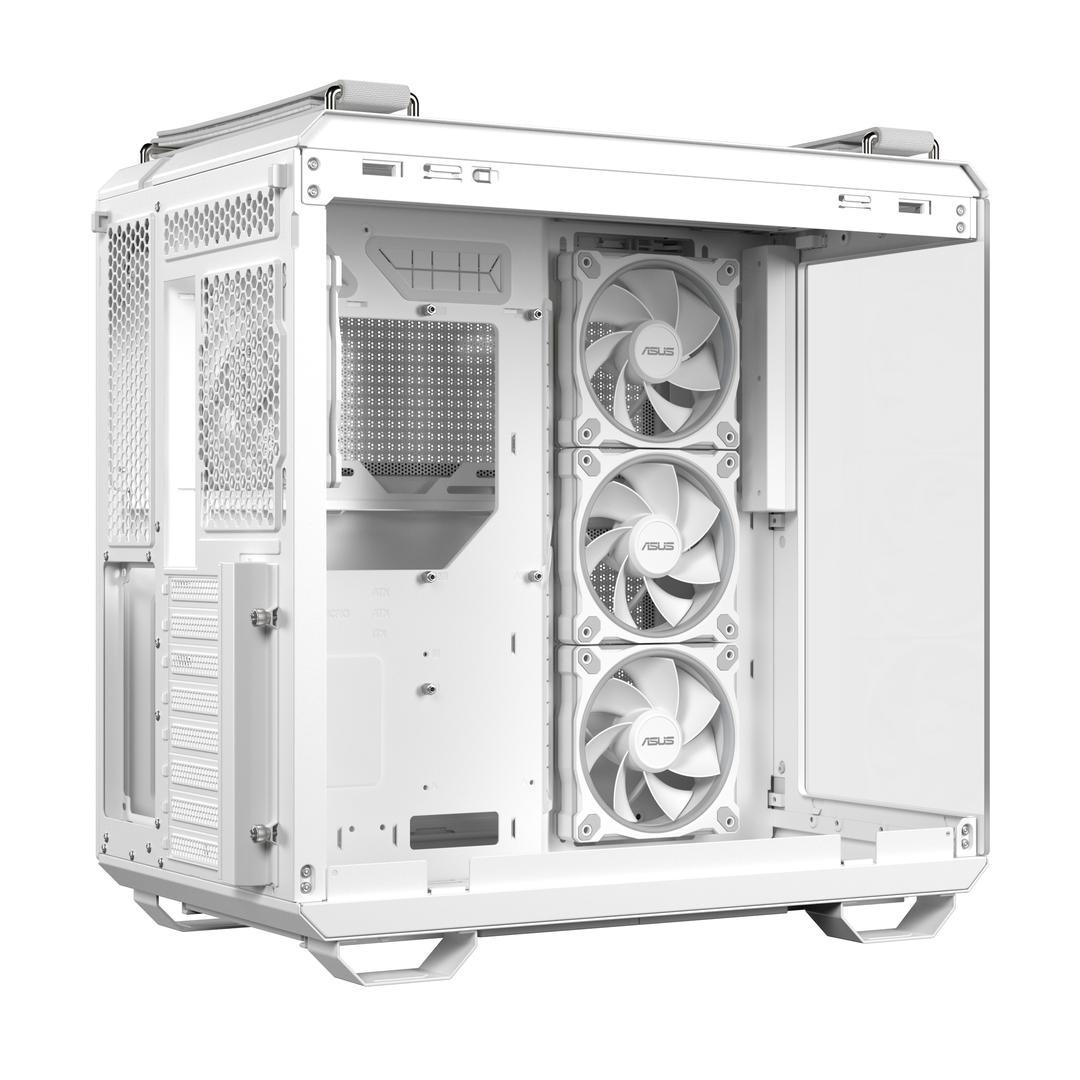

| Cooling System | Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported or 120/140/240/280/360mm radiator supported <br /> Rear: fan mount / 1 x 120 mm fan or 1 x 120 mm radiator supported <br /> Rear chamber: fan mount / 3 x 120 mm or 120/240/360mm radiator supported (standard layout) or 3 x 120/140 mm fan <br /> Left side: fan mount / 3 x 120 mm or 2 x 140 mm fan supported or 120/140/240/280/360mm radiator supported |
| CPU Cooler Max Height | 163 mm |
| Video Card Max Length | 400 mm |
| Power Supply Max Length | 200 mm |

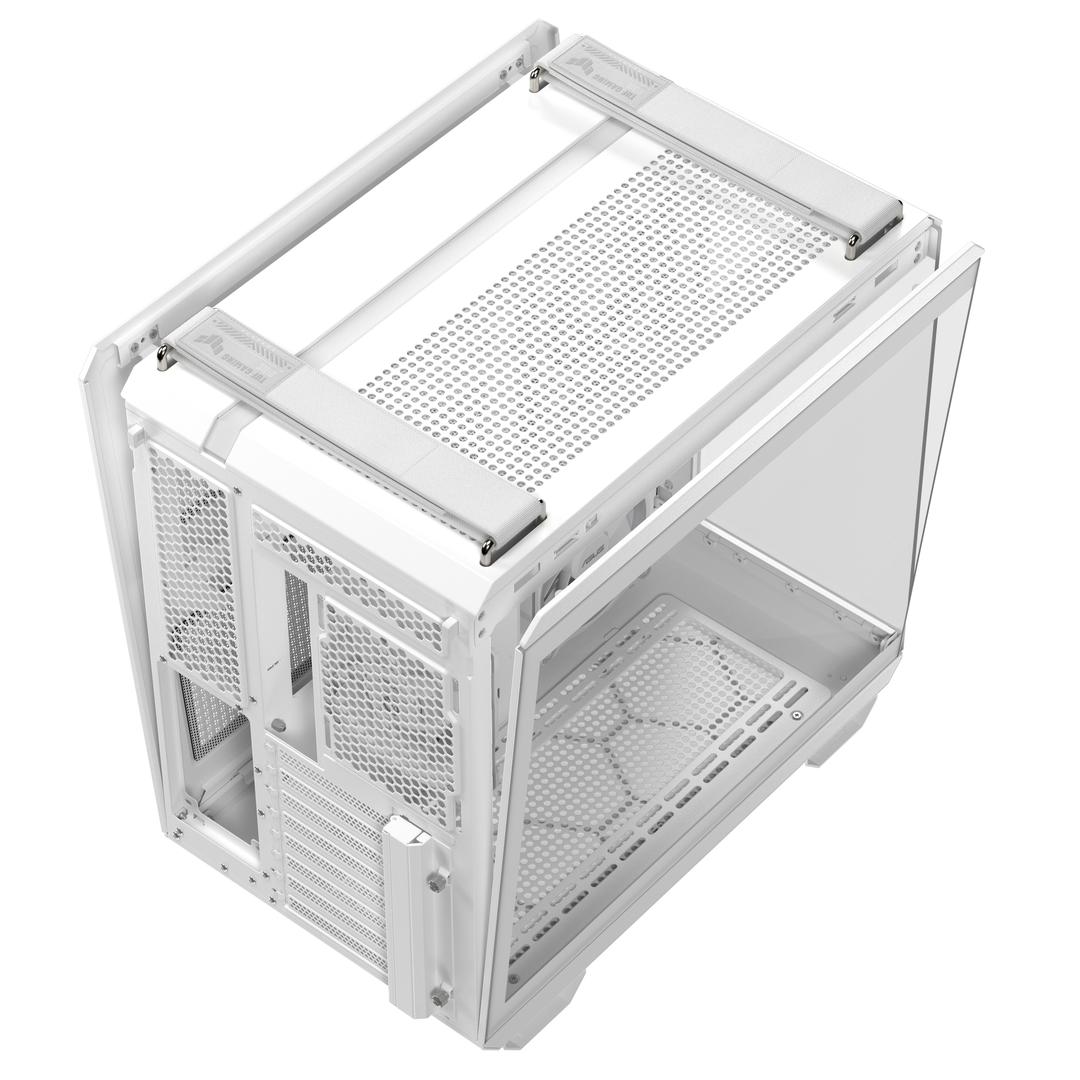

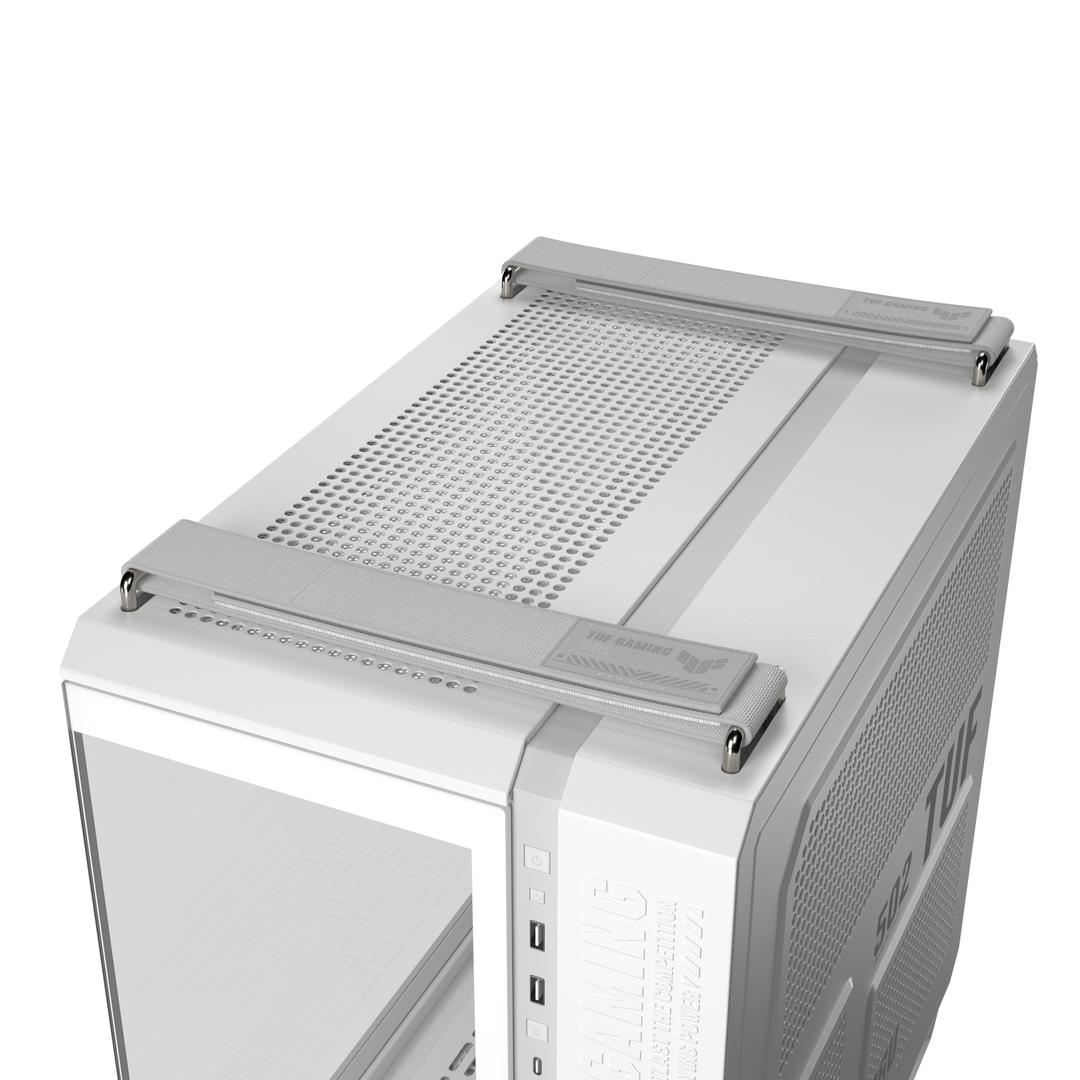

| System Cabinet Features | Bottom dust filter, top panel dust filter, side panel dust filter, dual chamber layout, tool-less side panels, 2 detachable straps, tempered glass left panel, tempered glass front panel, fully modular |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 4 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 8 <br /> 3 x vertical |

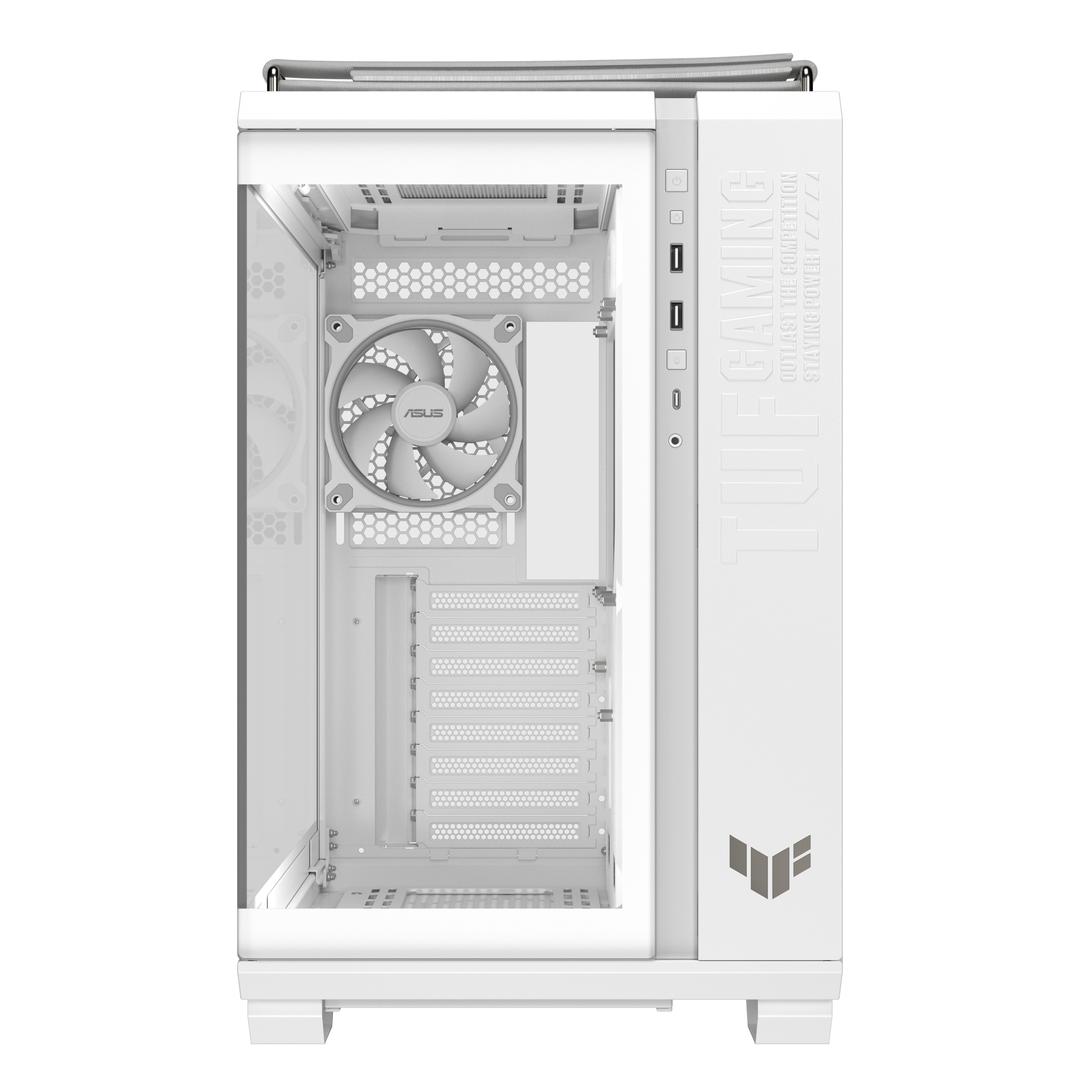

| Interfaces | 2 x USB 3.2 Gen 1 <br /> 1 x USB-C 3.2 Gen 2x2 <br /> 1 x headphone/microphone |
| Miscellaneous | |
| Included Accessories | Graphic card holder, vertical GPU mount |
| Power | |
| Power Device | No power supply |
| Dimensions & Weight | |
| Width | 28.5 cm |
| Depth | 45 cm |
| Height | 44.6 cm |
| Weight | 11 kg |
