ATEN 2L-7D02UD USB DVI-D Dual Link KVM Cable with Audio 1.8 m
Brand:
Aten
2L-7D02UD
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Singular Selected
ATEN 2L-7D02UD 1.8 m USB DVI-D Dual Link KVM Cable
Dual-link DVI video, USB and audio leads for ATEN DVI KVM switches and KVM-over-IP extenders.
1.8 mDVI-D dual linkUSB + audio

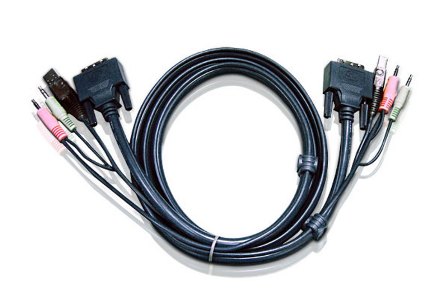

The ATEN 2L-7D02UD is a 1.8 m KVM cable that carries DVI-D dual-link video, USB keyboard/mouse and analogue audio between a computer and an ATEN DVI KVM switch or extender. Both ends have DVI-D dual-link plugs and 3.5 mm microphone and speaker plugs, with USB Type-B at the switch and USB Type-A at the computer.
Compatibility Note: The video lead is DVI-D (digital only). Computers with only VGA outputs will not work with it, and HDMI or DisplayPort sources need an adapter or a different ATEN cable. ATEN lists it for the CS1642A, CS1644A, CS1782A, CS1784A, CS1788, CN9600, KE6910, KE6912R, KE6920/6922 series and RCMDVI101.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
This is ATEN's matched cable for its DVI KVM switches and DVI KVM-over-IP extenders, useful as a spare or when adding a computer. Because both ends are dual-link DVI-D, it will not lower image quality on high-resolution DVI monitors. If your sources output HDMI or DisplayPort, a native HDMI/DP switch from our KVM switches range avoids adapters.
✓ Buy it if you run an ATEN DVI KVM or KE69xx extender and need a USB + DVI + audio link per computer.
✕ Skip it if your computers only output VGA, or the KVM uses HDMI or DisplayPort.
→ Also consider ATEN 2L-5302U (1.8 m) for ATEN SPHD-port VGA switches.
Features - Aten - 2L-7D02UD
Length
1.8m
More Details
Product Code
03:505233
EAN Code
4710423776043
Manufacturer
Aten
