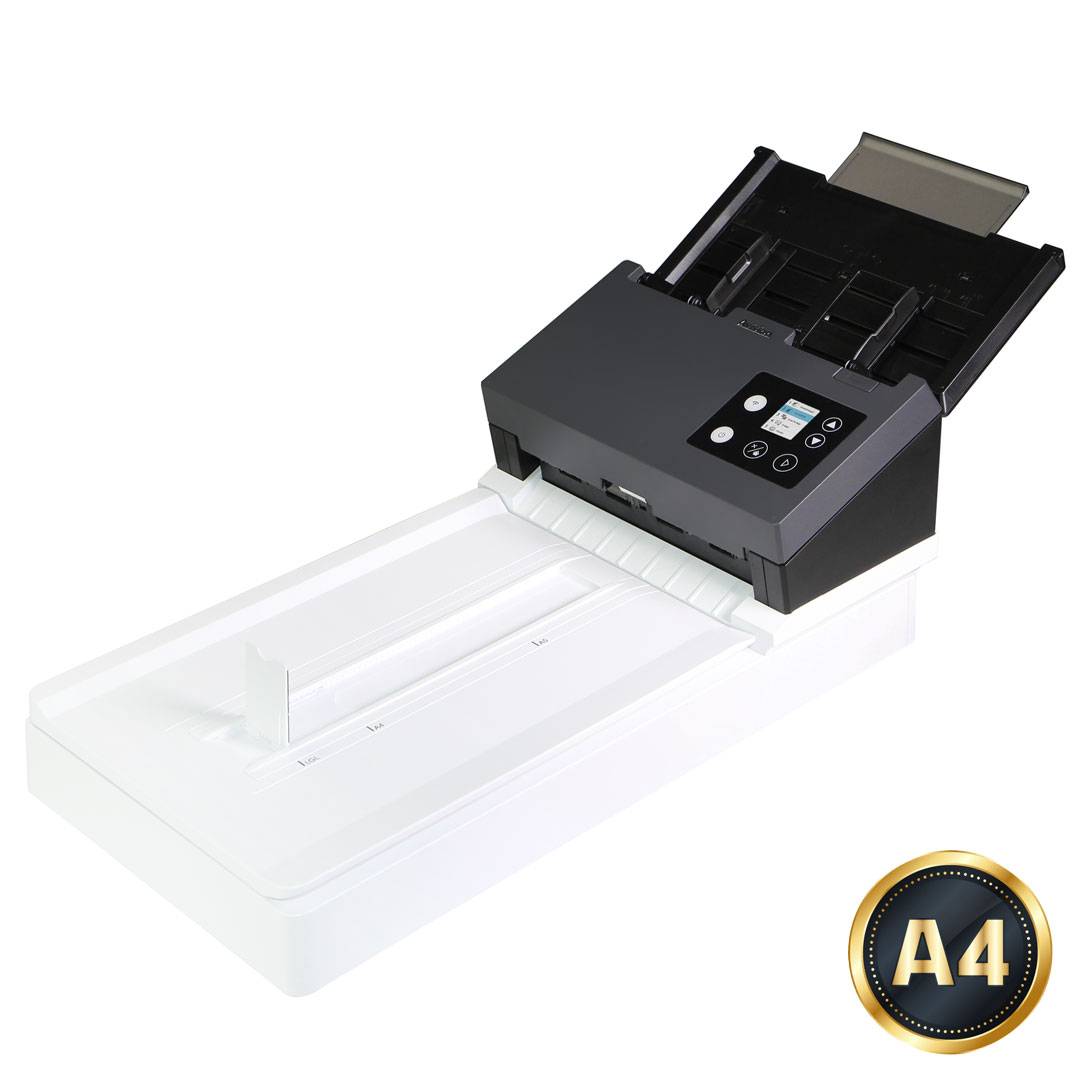

Avision AD3100F A4 Legal Flatbed and Duplex ADF Scanner 100ppm
Brand:
Avision
000-1074-07G
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Fast duplex batches and Legal flatbed capture in one scanner
100ppm / 200ipm100-sheet duplex ADFLegal flatbedUSB 3.2 Gen 1
The Avision AD3100F combines a high-speed duplex ADF with a flatbed for originals that are unsuitable for automatic feeding. Its 100-sheet feeder reaches up to 100ppm or 200ipm for colour A4 documents at 300dpi. The ADF provides 600dpi optical resolution, while the Legal-size flatbed offers 1200dpi optical capture. USB 3.2 Gen 1 connects the scanner to a compatible computer.
Best For: Offices handling frequent document batches alongside photographs, fragile originals and other suitable items better placed on flatbed glass.
Before you order: Release the scanner transport lock before scanning and use the supplied external power adapter. Check the full footprint with trays extended. The ADF and flatbed both scan up to 216 × 356mm; 242mm paper support width does not mean a 242mm optical scan area. Host software destinations require a compatible configured computer. This exact AD3100F is not the FN/FWN network variant.
What's in the Box
- Avision AD3100F scanner main unit and ADF paper tray.
- USB cable, external power adapter and power cord.
- Quick guide and manufacturer driver/software resources.
- Computer, sample originals and optional accessories separate.
What It Means in Practice
- Use the 100-sheet ADF at its 80g/m² capacity condition for suitable prepared batches.
- Place delicate or irregular originals on the flatbed instead of forcing them through the feeder.
- Choose appropriate resolution: 600dpi optical through ADF or 1200dpi optical on flatbed.
- Configure Button Manager V2, AVScan X or compatible scanning software for the intended host workflow.
What Will Not Work
- No Ethernet or Wi-Fi is specified for this exact non-network model.
- The 100ppm/200ipm speed rating applies to the ADF, not flatbed throughput.
- Physical paper support width and optical capture width are different.
- Long-page limits depend on resolution and supported mode.
- Check current operating-system drivers and applications; no identical Windows/Mac/Linux software entitlement is promised.
Key Features
High-speed feeder
Automatic duplex capture up to 100ppm/200ipm for colour A4 at 300dpi.
Flatbed flexibility
Legal flatbed glass supports suitable originals that cannot pass safely through the ADF.
Separate optical capabilities
600dpi ADF and 1200dpi flatbed optical resolution serve different capture needs.
Controlled paper handling
Reverse roller, ultrasonic multifeed detection, skew protection, crop and deskew support document workflows.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Choose the paper path before choosing speed. Prepared loose sheets suit the ADF, while delicate or irregular originals may belong on the flatbed. Keep the 216mm optical width limit separate from the wider physical paper support and allow sufficient desk space for extended trays.
Buyer’s Guide
✓ Buy it if You need fast USB-connected duplex batches and integrated Legal flatbed capture.
✕ Skip it if You need standalone network scanning, Wi-Fi or a compact travel scanner.
→ Also consider Transport lock, extended footprint, original suitability and current host software support.
