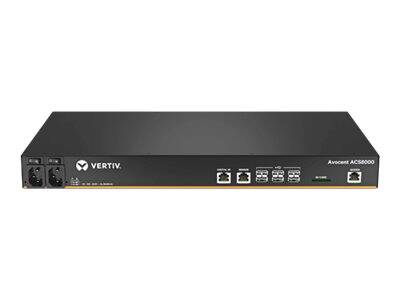

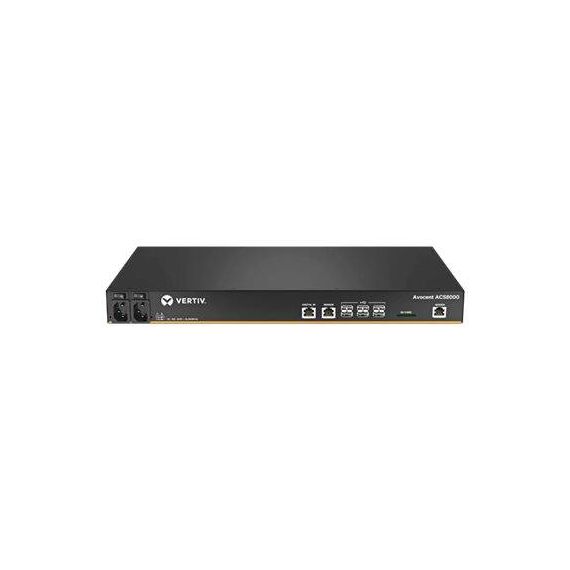

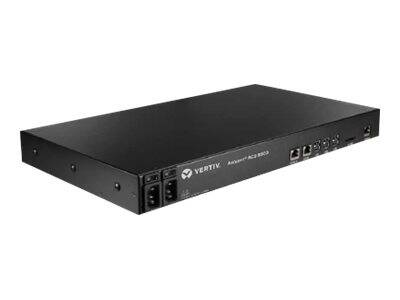

Avocent ACS 8000 Serial Console ACS8048MDAC / Console server / 48 ports / GigE, RS-232, RS-422, RS-485 / analogue ports: 1 / 1U / rack-mountable | ACS8048MDAC-404
Please sign in so that we can notify you about a reply
Special Features
- Secure in-band and out-of-band network remote management
- Compliance with data center access and security policies
- Strong dial-up and secure dial-back using optional built-in modem
- Regulatory compliance and easy troubleshooting
Product Specification
| Device Type | Console server |
| Height (Rack Units) | 1U |
| Built-in Devices | Temperature sensor |
| Width | 43.82 cm |
| Depth | 24.13 cm |
| Height | 4.45 cm |
| Weight | 3.4 kg |
| Localisation | United States |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x ARM A9 766 MHz |
| RAM | 1 GB DDR3L SDRAM |
| Flash Memory | 16 GB |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Ports Qty | 48 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS, TFTP, SSH, CLI |
| Status Indicators | Status |
| Features | Auto-sensing per device, Syslog support, packet filtering, IPv6 support, IP address filtering, IPSec NAT-Traversal (NAT-T), IPv4 support, SNMP trap, failover protection, Zero-touch provisioning (ZTP), One-Time Password (OTP), IP forwarding support, break-over SSH support, 4G USB Dongle Support |
| Encryption Algorithm | RSA |
| Authentication Method | Kerberos, SecurID, Secure Shell (SSH), RADIUS, PAP, CHAP, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory, Extensible Authentication Protocol (EAP) |
| Communications | Communications |
| Protocols & Specifications | ITU V.92 |
| Analogue Ports Qty | 1 |
| Supported Flash Memory Cards | SD Memory Card |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x 1000Base-X - SFP (mini-GBIC) ¦ 2 x 1000Base-T - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 2 x RS-232/422/485 - RJ-45 ¦ 46 x RS-232 - RJ-45 ¦ 8 x USB 2.0 - Type A ¦ 1 x sensor - RJ-45 ¦ 1 x digital input - RJ-45 ¦ 1 x modem |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class A certified, UL, VCCI, cUL, EN 60950, ICES-003, CB, KCC, RCM, CU |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 6.2 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | Linux |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Vertiv - ACS8048MDAC-404
More Details
Product Code
W894571
EAN Code
0636430086453
Manufacturer
Vertiv
