AXIS A9801 Security Relay 5801-141 Tamper-Protected Door Lock Relay for AXIS Network Intercoms 12V Input 30V 1.2A Relay

Brand:
AXIS
AXIS A9801 Security Relay for Intercoms 5801-141
AXIS A9801 Security Relay 5801-141 Tamper-Protected Door Lock Relay for AXIS Network Intercoms 12V Input 30V 1.2A Relay
€205.11 inc. VAT
Buy
5801-141
€172.36
€205.11 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
B092404
EAN Code
7331021049352
Manufacturer
AXIS

Quick Specs

Function
Tamper-protected lock relay
Relay
Max. 30 V DC, 1.2 A
Input
11–13 V, max. 750 mA
Wiring
Terminal blocks, max. 15 m
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS A9801 Security Relay

Intercom security30 V / 1.2 A relayInstallation box15 m wiring

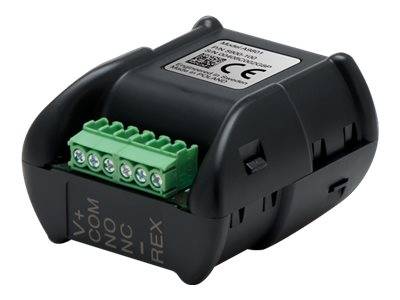

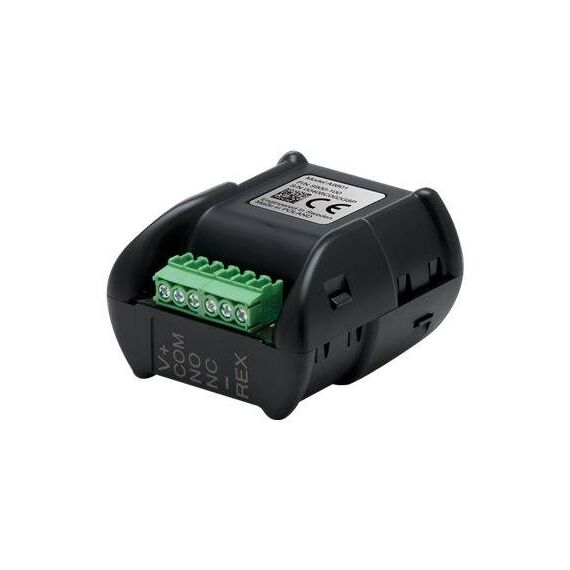

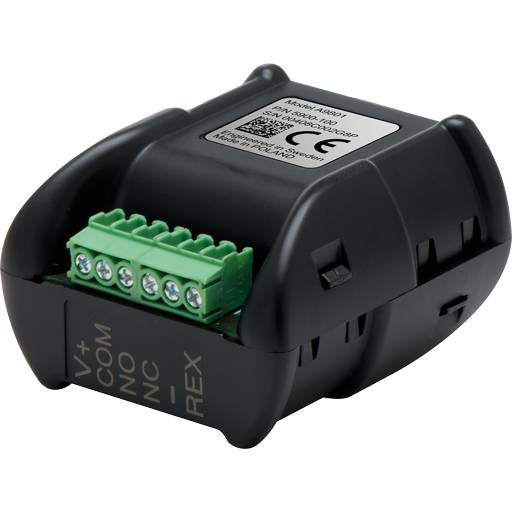

The AXIS A9801 Security Relay (part number 5801-141) protects the door-lock connection of an AXIS network intercom. It is installed on the secure side of the door, between the intercom and the electric strike. If someone tampers with the intercom outside, the relay cuts the connection to the door strike, so the door stays locked instead of opening. The small plastic unit measures 48 × 45 × 30 mm, weighs 100 g and fits standard installation boxes. It takes 11–13 V input, switches up to 30 V DC at 1.2 A, and can also supply 12 V or 24 V to the lock. In practice it closes the most common weak point of an outdoor door station.

Compatibility — check before buying:
For AXIS network intercoms only. AXIS lists the A8207-VE Mk II, I7010-VE (and Safety version), I7020, I8016-LVE, I8116-E and I8307-VE, plus the discontinued A8004-VE and A8105-E. It is not a general-purpose relay module. The wires between intercom and relay may be at most 15 m long, so plan the relay inside the building close to the door. Check that your lock works within 30 V DC and 1.2 A. Not sure? Tell us your model and we check it for you.

Best For

✓ AXIS door stations and intercoms
✓ Entrances with electric strikes
✓ Offices and apartment buildings
✓ Tamper protection on outdoor units
✓ Retrofitting existing intercoms
✓ Access-control installers

Key Features


Tamper protection
Cuts the lock line if the intercom is attacked.

Lock power
Can supply 12 V at 730 mA or 24 V at 300 mA.

Compact
48 × 45 × 30 mm, fits installation boxes.

Secure side
Installed indoors, away from the door station.

Technical Specifications

Identification
Brand AXIS
Product AXIS A9801 Security Relay
Part Number 5801-141
EAN / GTIN 7331021049352
Model AXIS A9801
Product Type Security relay for AXIS network intercoms
Electrical
Input 11–13 V, max. 750 mA
Relay Max. 30 V DC, max. 1.2 A
Output (12 V / 750 mA input) 12 V / 730 mA or 24 V / 300 mA
Connectors Terminal blocks, AWG 16–20
Max. cable length 15 m
Physical
Dimensions 48 × 45 × 30 mm
Weight 100 g
Casing Plastic
Mounting Shelf mount; fits US single-gang and EU 60 mm installation boxes
Environment & Approvals
Operating conditions −20 to 50 °C, 10–100% RH (condensing)
Approvals EN 55022 Class A, EN 55024, EN 61000-6-1/-2, IEC/EN/UL 60950-1, UL 294, FCC, VCCI
Compatibility
AXIS intercoms A8207-VE Mk II, I7010-VE, I7010-VE Safety, I7020, I8016-LVE, I8116-E, I8307-VE
Discontinued models A8004-VE, A8105-E
Before You Order
Your intercom One of the listed AXIS models
Your lock Within 30 V DC, 1.2 A
Location Inside, max. 15 m wiring from the intercom
In the Box
Included AXIS A9801 Security Relay (AXIS does not list further box contents)
Not Included Intercom; door strike or lock; wiring; installation box
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 3-year warranty for this product on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

What does the security relay do?
It keeps the door locked if the intercom outside is tampered with.
Where is it installed?
On the secure side of the door, max. 15 m of wiring from the intercom.
Can it power my door strike?
Yes, with 12 V at 730 mA or 24 V at 300 mA.
Does it work with other brands?
AXIS lists only its own intercoms.
Singular Expert Insight
An intercom that switches the lock directly can be opened by anyone who removes it from the wall. With the A9801 inside the building that attack no longer works. Order it together with the intercom. For the network side, see our PoE switches.

Buyer’s Guide

Buy it if

You install an AXIS network intercom that controls a door lock.

Skip it if

Your intercom is not on the AXIS list.

Also consider

AXIS network intercoms such as the I8016-LVE.
