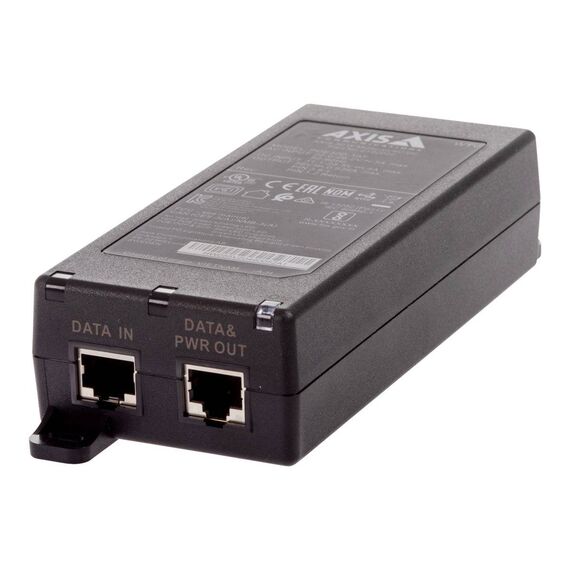

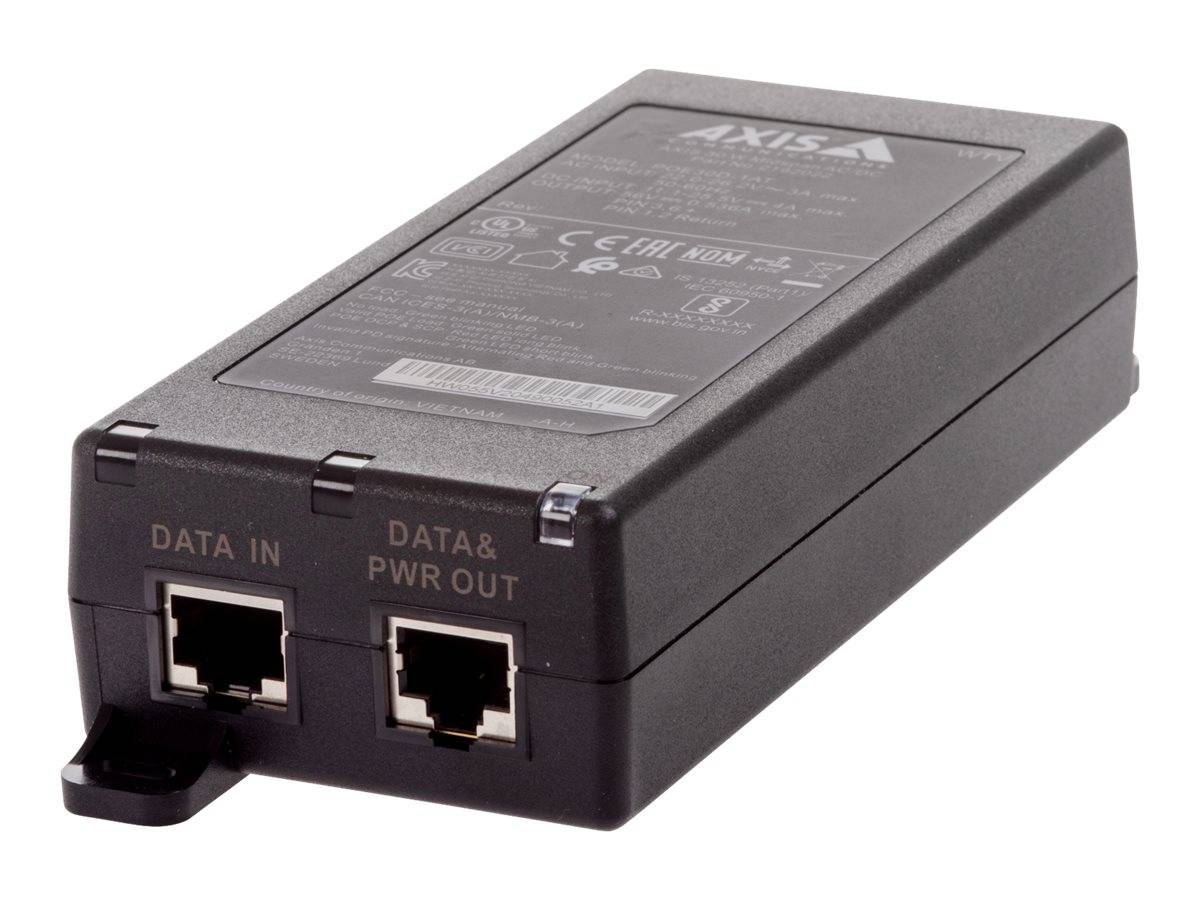

AXIS 30 W Midspan AC/DC 02208-001 PoE+ Injector 10–28V DC / 24V AC Gigabit Ethernet

Brand:
AXIS
AXIS 30 W Midspan AC/DC 02208-001 Black PoE+ Injector
AXIS 30 W Midspan AC/DC 02208-001 PoE+ Injector 10–28V DC / 24V AC Gigabit Ethernet
€174.99 inc. VAT
Buy
02208-001
€147.05
€174.99 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
CA89386
EAN Code
7331021074712
Manufacturer
AXIS

Quick Specs

PoE Output
Up to 30 W PoE+
Power Input
10–28 V DC / 24 V AC
Ethernet
10/100/1000 Mbps
Mounting
Wall / Shelf / DIN Rail
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS 30 W Midspan AC/DC — PoE+ Power Where Mains Is Not Available

Up to 30 W PoE+10–28 V DC input24 V AC inputGigabit Ethernet

The AXIS 30 W Midspan AC/DC (02208-001) is a single-port Power over Ethernet midspan designed for installations where normal mains power is not available at the injector location. It accepts either 10–28 V DC or 24 V AC and can supply compatible network devices with up to 30 W through IEEE 802.3at PoE+.

Compatibility — check before buying:
This model does not accept standard 100–240 V AC mains directly. It requires a 10–28 V DC or 24 V AC source. It automatically detects PoE and PoE+ devices and is intended for Axis equipment requiring up to 30 W. For a device without built-in PoE support, Axis specifies using the midspan together with a suitable PoE splitter.

Best For

✓ Battery-backed network installations
✓ Solar-powered surveillance systems
✓ Camera retrofits with 24 V AC infrastructure
✓ Embedded equipment using a DC supply

Key Features


PoE and PoE+ support
The midspan supports IEEE 802.3af at 15 W and IEEE 802.3at at up to 30 W, automatically detecting a compatible powered device before supplying inline power.

AC or DC low-voltage input
It operates from 10–28 V DC or 24 V AC, making it useful where batteries, solar power or existing low-voltage AC cabling are available instead of mains power.

Gigabit data passthrough
The midspan passes Ethernet traffic at 10, 100 and 1000 Mbps through shielded RJ45 connectors, allowing power to be added without reducing a Gigabit Ethernet link to Fast Ethernet.

Flexible installation
Axis supports wall, shelf and DIN-rail mounting, allowing the compact injector to fit into cabinets, equipment spaces and retrofit installations.

Technical Specifications

Identification
Brand Axis Communications
Model AXIS 30 W Midspan AC/DC
Part Number 02208-001
EAN / GTIN 7331021074712
Product Type Single-port PoE / PoE+ midspan
Power
DC Input 10–28 V DC
AC Input 24 V AC, +20%
PoE Output Voltage 56 V DC
Maximum PoE Output 30 W
PoE Standards IEEE 802.3af at 15 W; IEEE 802.3at at 30 W
Network & Connectivity
Data Rate 10/100/1000 Mbps
Ethernet Connectors Shielded RJ45, EIA 568A / 568B
Power Connector 3-pin AC/DC connector
Detection Automatic PoE / PoE+ detection
Indicator PoE LED
Physical Specifications
Dimensions 164 x 65 x 37 mm
Weight 233 g
Casing Plastic
Colour Black
Mounting Wall, shelf or DIN rail
Environmental
Operating at 15 W -20 to 70 °C
Operating at 22.5 W -20 to 60 °C
Operating at 30 W -20 to 50 °C
Humidity Maximum 95% RH, non-condensing
Storage Temperature -40 to 75 °C
Package & Warranty
Included Accessory Installation guide
Manufacturer Warranty 3 years

Frequently Asked Questions

Can I connect this directly to a normal wall socket?
No. This specific AC/DC midspan uses a low-voltage 10–28 V DC or 24 V AC input. It is intended for applications where mains power is unavailable or where an existing low-voltage supply is already present.
How much PoE power can it deliver?
It supports IEEE 802.3af devices at 15 W and IEEE 802.3at PoE+ devices at up to 30 W.
Does it support Gigabit Ethernet?
Yes. The specified data rate is 10/100/1000 Mbps, so it can pass Gigabit Ethernet while adding PoE power.
Can it be mounted on a DIN rail?
Yes. Axis specifies wall, shelf and DIN-rail mounting options for this midspan.
Singular Expert Insight
The important distinction with part number 02208-001 is its power input. Unlike a conventional mains-powered PoE injector, this model is built specifically around 10–28 V DC or 24 V AC. That makes it particularly useful for solar, battery-backed and legacy 24 V AC camera installations. It can still provide a full 30 W IEEE 802.3at PoE+ output and pass Gigabit Ethernet, but the available operating temperature depends on output load: Axis specifies up to 70 °C at 15 W, 60 °C at 22.5 W and 50 °C when delivering the full 30 W.

Buyer’s Guide

Buy it if

You need to power an Axis PoE or PoE+ device from an existing 10–28 V DC or 24 V AC supply, including battery, solar or legacy camera infrastructure.

Skip it if

You need an injector that plugs directly into 100–240 V AC mains, or your powered device requires more than 30 W.

Check first

Confirm the available low-voltage input, your device’s PoE power requirement and the installation temperature, especially when operating near the full 30 W output.
