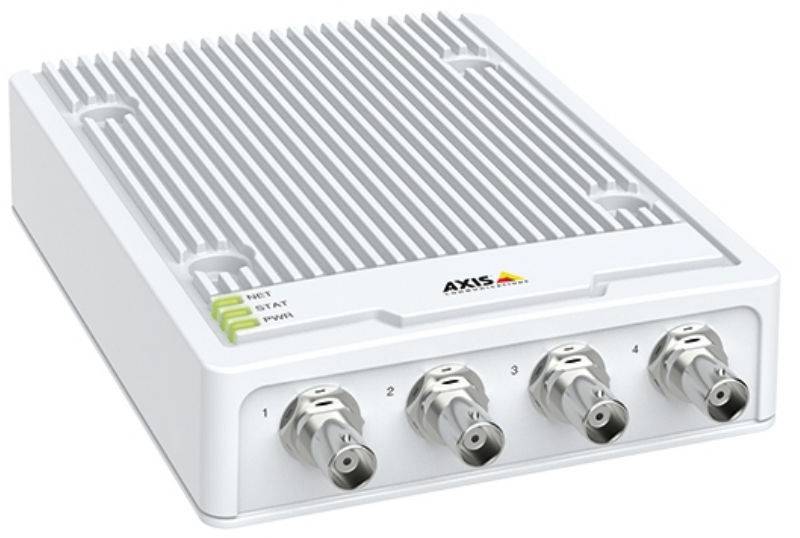

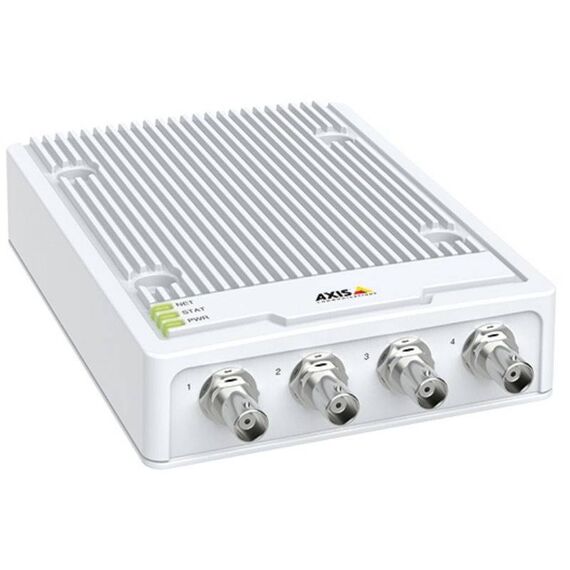

AXIS M7104 Video Encoder / Video server / 4 channels | 01679-001

Ask a question
01679-001
Product CodeB093696 EAN Code7331021066397 ManufacturerAXIS
AXIS M7104 Video Encoder / Video server / 4 channels | 01679-001 Description With AXIS M7104 you can migrate to IP surveillance at your own pace. Including the latest generation of Axis chip, it provides a high level of defense to protect your system. Plus, Zipstream and support...
379.23
(451.28  incl.Vat)
Out of stock

We (Singular Computer Systems LTD) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to panto@singular.com.cy.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to wish list
Find similar

AXIS M7104 Video Encoder / Video server / 4 channels | 01679-001

Description

With AXIS M7104 you can migrate to IP surveillance at your own pace. Including the latest generation of Axis chip, it provides a high level of defense to protect your system. Plus, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.

AXIS M7104 Video Encoder / Video server | 01679-001

Special Features

  • Full frame rate in all resolutions
  • Zipstream with support for H.264/H.265
  • Signed firmware and secure boot
  • Extended capacity for analytics
  • PoE and PTZ support

Product features

  • Great value for money
    AXIS M7104 is a cost-effective, 4-channel video encoder that supports all types of standard resolution analog cameras including PTZ (pan/tilt/zoom) cameras. It offers support for intelligent analytics such as motion detection and active tampering alarm. It features RS-485/422 for controlling analog PTZ (pan/tilt/zoom) cameras. Additionally, it provides edge storage through a microSD card slot.
  • Seamless migration to IP surveillance
    Axis video encoders allows you to migrate to the world of IP surveillance while protecting your investment in analog equipment, so you get to keep all your existing cameras and cabling. And, thanks to support for Power over Ethernet (PoE) you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, this flexible solution lets you choose between saving the recordings on a server, on the edge or in the cloud.
  • First-class Axis quality
    Like all Axis products, AXIS M7104 is built on an open platform, so you're free to use open-standard IT hardware or video management software from the supplier of your choice. Signed firmware and secure boot guarantees that the firmware hasn't been altered and only authorized firmware is installed. And thanks to on-going firmware upgrades, you can depend on Axis first-class quality and support all the way. Plus, Zipstream with support for H.264/H.265 video compression drastically reduces bandwidth and storage requirements without compromising image quality.


Product Specification

Device Type Video server
Video Channels 4
TV System NTSC/PAL
Image Resolution 176x120 (NTSC), 720x480 (NTSC), 720x576 (PAL), 176x144 (PAL)
Compression Format MPEG-4, H.264, H.265, HEVC, AVC
Package Content Input plug, 6-pin I/O plug, 2 x 2-pin RS485/RS422 plugs
Software Included (Y) Windows decoder 1-user license
Compliant Standards EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, ICES-003 Class A, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, IP30, VCCI Class A, RCM, NIST, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x, NIST SP500-267
Warranty 3 years
Frame Rate 30 fps
RAM 1 GB
Flash Memory 512 MB
Features microSD/SDHC/SDXC memory card slot, Zipstream
DDNS Support Yes
Web Server Yes
Network Interfaces Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, SSL, QOS, CIFS, SRTP, SFTP, USGv6
Features DiffServ support
Video Input Ports BNC x 4
Camera Control Interface (PTZ) RS-422/485
Network Port 10/100/1000Base-T (PoE+)
Voltage 8 - 28 V
Power Consumption 4.7 Watt
Width 18.7 cm
Depth 3.7 cm
Weight 650 g
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 85% (non-condensing)
