AXIS T91A23 Tile Grid Ceiling Mount 4-Pack for Axis Indoor Cameras, Tool-less, No Drilling, White
Brand:
AXIS
AXIS T91A23 Tile Grid Ceiling Mount 4-Pack for Axis Indoor Cameras, Tool-less, No Drilling, White
€144.51 inc. VAT
01612-001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS T91A23 Tile Grid Ceiling Mount — 4-Pack
4 mounts per packNo drilling15 / 24 / 35 mm T-barMax load 2 kg

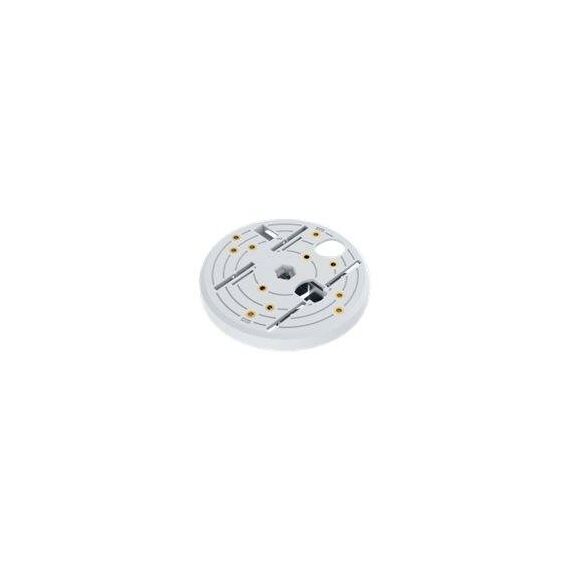

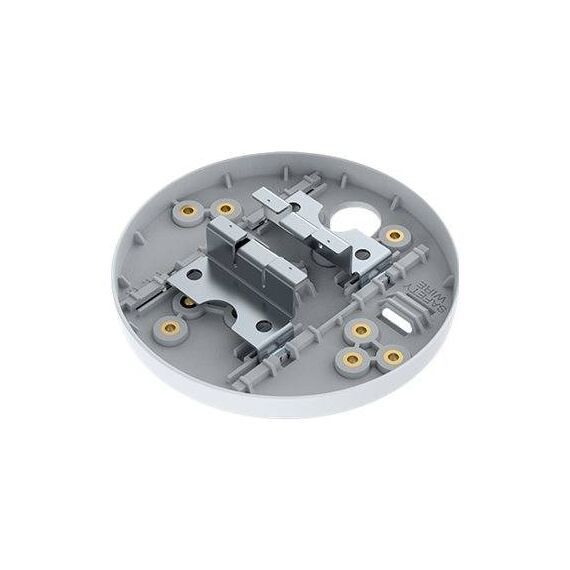

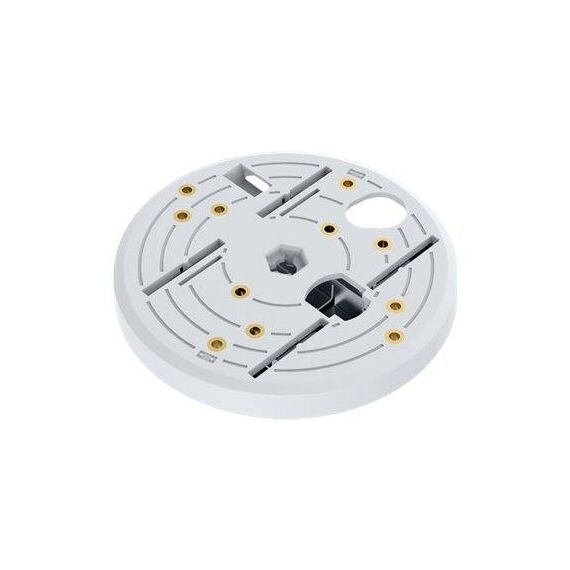

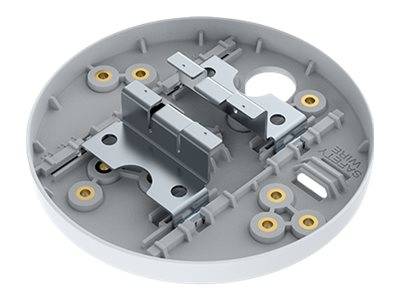

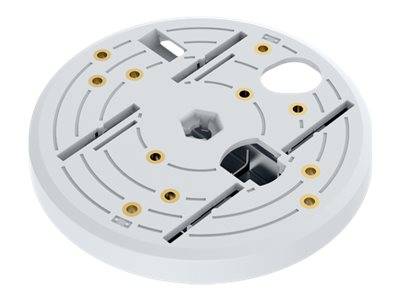

The AXIS T91A23 Tile Grid Ceiling Mount (part 01612-001) is a pack of four plastic mounts that let you install Axis indoor cameras directly on a suspended ceiling grid — offices, shops, schools and corridors with tile ceilings. The mount grips the T-bar rail, so there is no drilling, no damage to the tile and minimal work routing the Ethernet cable through the ceiling.
It fits 15, 24 and 35 mm T-bar rails with square-edge tiles, or tegular tiles up to 10 mm deep, and carries cameras up to 2 kg. The white PVC-free plastic (NCS S 1002-B) matches standard ceiling tiles and white Axis domes.
Before you order: Many Axis indoor cameras fit directly (e.g. M30xx/M31xx/M32xx/M42xx domes, M20xx and P14xx bullets, P32xx/P33xx, M50xx PTZ, M43xx panoramic). Some need an extra part: M1045-LW/M1065 and F8205/F8215 need the AXIS T91A10 Mounting Kit, M10/M11 series need the AXIS T91A11 Stand, P13/Q16 series need the AXIS T91B21 Stand. Send us your camera model to confirm.
What's in the Box
- 4 × AXIS T91A23 Tile Grid Ceiling Mount
- Mounting screws, UNC mounting screw and locking screws
- Installation guide
What It Means in Practice
- One pack covers four camera positions — order by the number of cameras, not by mounts per camera.
- Installation is tool-less on the grid: lift the tile, clamp the mount to the rail, fix the camera and drop the cable through.
- Moving a camera later is easy because nothing is drilled or glued.
- Rated for indoor use from -10 to 40 °C.
What Will Not Work
- It only works on suspended tile-grid ceilings with 15, 24 or 35 mm T-bar rails — not on plasterboard, concrete or wooden ceilings.
- It is not for outdoor use.
- It does not carry cameras heavier than 2 kg.
- Some camera series need an additional Axis stand or mounting kit (see above).
Key Features
No drilling
Clamps to the existing T-bar ceiling grid.
Pack of four
Four mounts per part number for multi-camera rooms.
Wide fit
15, 24 and 35 mm rails; square-edge or tegular tiles up to 10 mm.
Discreet
White PVC-free plastic, Ø111.5 mm, 23.5 mm high.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Tile-grid mounts save hours on office and retail installs and leave no damage when layouts change. Check the stand or kit your camera series needs, then order one pack per four cameras; for the cameras themselves see our IP cameras.
✓ Buy it if you are installing up to four Axis indoor cameras on a suspended tile ceiling and want no drilling.
✕ Skip it if your ceiling is plasterboard, concrete or wood, or the camera weighs more than 2 kg.
→ Also consider AXIS T91A10 Mounting Kit, T91A11 Stand or T91B21 Stand if your camera series needs one.
Not sure your cameras fit? Send us the camera models and we will confirm the mount and any extra stand before you order.
Features - AXIS - 01612-001
Colour
white
More Details
Product Code
B093562
EAN Code
7331021065840
Manufacturer
AXIS
