AXIS T91D61 Wall Mount 1.5 inch NPS 5504-821 Aluminium IK10 15 kg Load for AXIS P32 P33 Q35 Q36 Domes with Pendant Kit

Brand:
AXIS
AXIS T91D61 Wall Mount 1.5in NPS 5504-821
AXIS T91D61 Wall Mount 1.5 inch NPS 5504-821 Aluminium IK10 15 kg Load for AXIS P32 P33 Q35 Q36 Domes with Pendant Kit
€167.39 inc. VAT
Buy
5504-821
€140.66
€167.39 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
B091572
EAN Code
7331021040564
Manufacturer
AXIS

Quick Specs

Thread
1.5″ NPS
Max. load
15 kg
Rating
IK10, indoor/outdoor
Material
Aluminium, 1.4 kg
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS T91D61 Wall Mount — 1.5″ NPS

1.5″ NPS15 kgIK10Indoor/outdoor

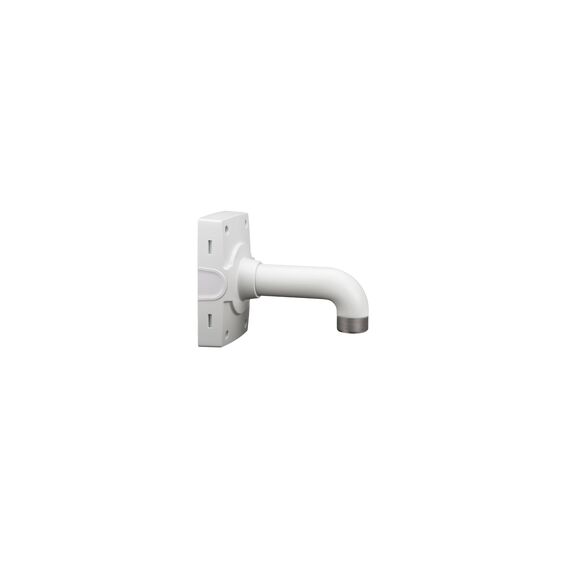

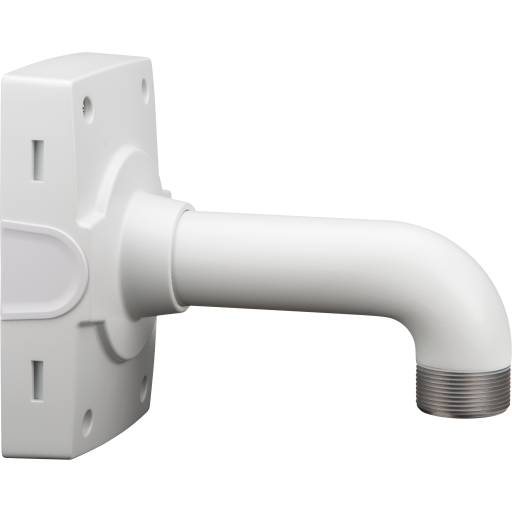

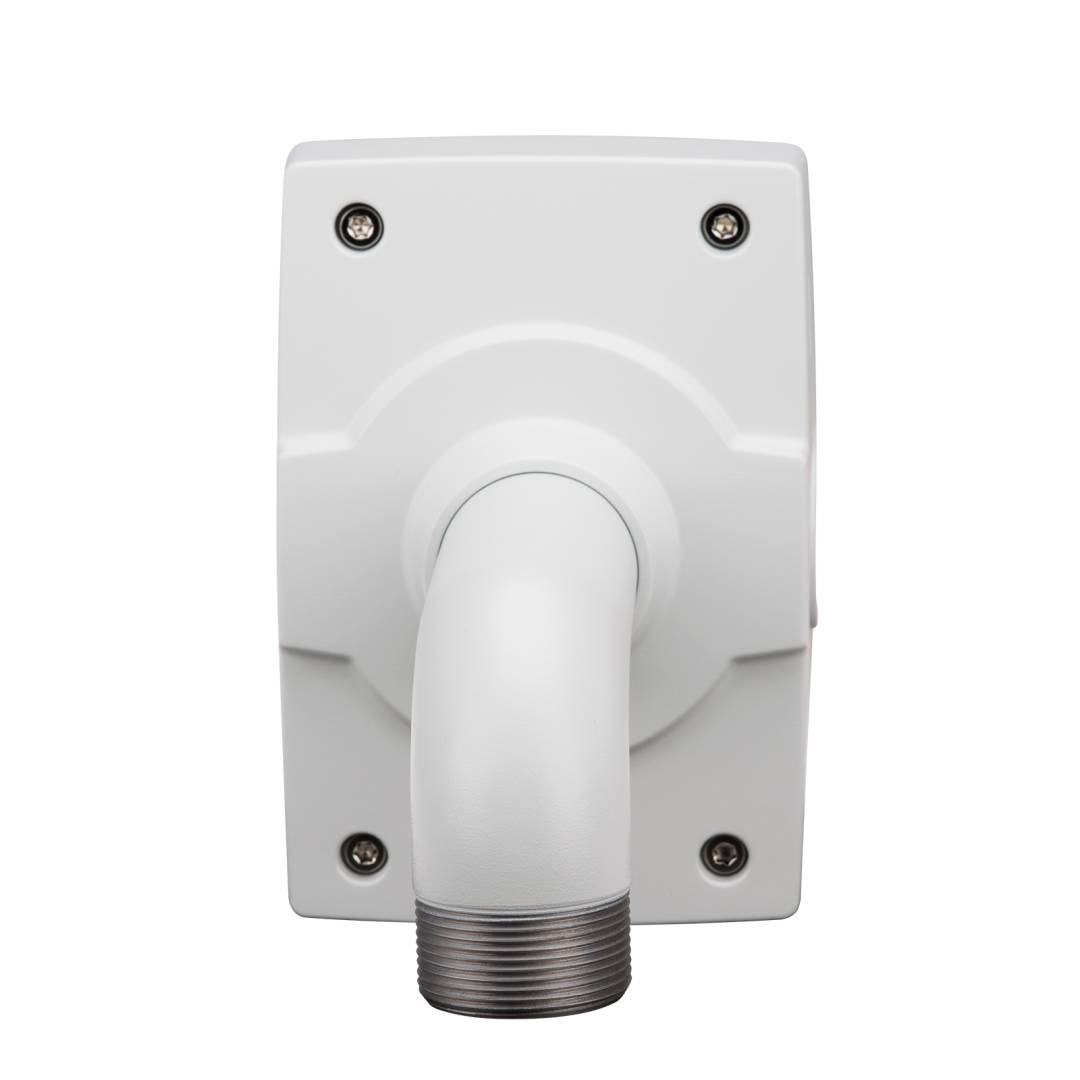

The AXIS T91D61 Wall Mount 1.5″ NPS (part number 5504-821) is an aluminium wall bracket for AXIS dome cameras. The camera does not screw on directly: it hangs from a camera-specific AXIS pendant kit, which threads into the 1.5″ NPS end of the arm. AXIS lists it for the P32, P33 and Q35 series, the P3707-PE and the Q36 series. It carries up to 15 kg, is IK10 rated for indoor and outdoor use, and cables can pass through the back hole or the side M20 conduit holes. It measures 140 × 268 × 196 mm and weighs 1.4 kg.

Compatibility — check before buying:
Needs a pendant kit for your camera — for example T94A01D, T94F01D, T94K01D, T94M01D, T94T02D, TP3103-E to TP3108-E or T94N01D, depending on the camera series. The pendant kit and wall fixings are not included. AXIS also offers a parapet version (T91D62) and other wall mounts with different interfaces (T91E61, T91H61). Not sure? Tell us your model and we check it for you.

Best For

✓ AXIS P32 and P33 domes
✓ AXIS Q35 and Q36 domes
✓ Outdoor building walls
✓ Entrances and car parks
✓ Cable routing through conduit
✓ Replacing older wall brackets

Key Features


1.5″ NPS thread
Standard AXIS interface for pendant kits.

15 kg load
Carries heavy PTZ and dome cameras.

IK10
Vandal-resistant aluminium bracket.

Hidden cabling
Back hole or side M20 conduit holes.

Technical Specifications

Identification
Brand AXIS
Product AXIS T91D61 Wall Mount 1.5″ NPS
Part Number 5504-821
EAN / GTIN 7331021040564
Model AXIS T91D61
Product Type Wall mount, 1.5″ NPS thread
Mount
Thread 1.5″ NPS
Max. load 15 kg
Impact rating IK10
Environment Indoor and outdoor
Cable entry Back hole or side M20 (¾″) conduit holes
Physical
Dimensions 140 × 268 × 196 mm
Weight 1.4 kg
Material Aluminium
Compatibility
Camera series AXIS P32, P33, Q35, P3707-PE, Q36 (all with pendant kit)
Pendant kits T94A01D, T94F01D, T94K01D, T94M01D, T94T02D, TM4101, TP3103-E, TP3105-E, TP3106-E, TP3107, TP3108-E
Accessories TP3908-E extension pipes, T91A64 corner bracket, T91A05 camera holder
Before You Order
Pendant kit Order the one for your camera series
Wall Fixings for your wall type not included
Cabling Plan back or conduit entry
In the Box
Included Wall mount, AXIS T91A6 pipe seal, installation guide
Not Included Pendant kit; camera; wall screws and anchors; conduit adapters
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 3-year warranty for this product on its product page. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I screw my dome straight onto it?
No. The camera needs its AXIS pendant kit, which threads onto the mount.
How much weight can it carry?
Up to 15 kg.
Can cables run inside?
Yes, through the back hole or the side M20 conduit holes.
Is it for outdoor use?
Yes, indoor and outdoor, IK10.
Singular Expert Insight
With AXIS domes on walls the order is always: wall mount + pendant kit + camera. Tell us the camera model and we put together the right three parts. For cameras, see our IP cameras.

Buyer’s Guide

Buy it if

You wall-mount an AXIS dome that uses a 1.5″ NPS pendant kit.

Skip it if

Your camera has its own direct-fix wall bracket.

Also consider

AXIS T91D62 Parapet Mount for roof edges.
