AXIS T91E61 Wall Mount 5506-481 White Aluminium Bracket for AXIS Pendant Kits 1.5 inch NPS 10 kg IK10 NEMA 4X Indoor Outdoor

Brand:
AXIS
AXIS T91E61 Wall Mount 5506-481 White
AXIS T91E61 Wall Mount 5506-481 White Aluminium Bracket for AXIS Pendant Kits 1.5 inch NPS 10 kg IK10 NEMA 4X Indoor Outdoor
€82.47 inc. VAT
Buy
5506-481
€69.30
€82.47 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
B092170
EAN Code
7331021047693
Manufacturer
AXIS

Quick Specs

Max. load
10 kg
Thread
1.5″ NPS
Rating
IK10, NEMA 4X
Material
Aluminium, white
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS T91E61 Wall Mount — for pendant kits

10 kg load1.5″ NPSIK10 / NEMA 4XWhite

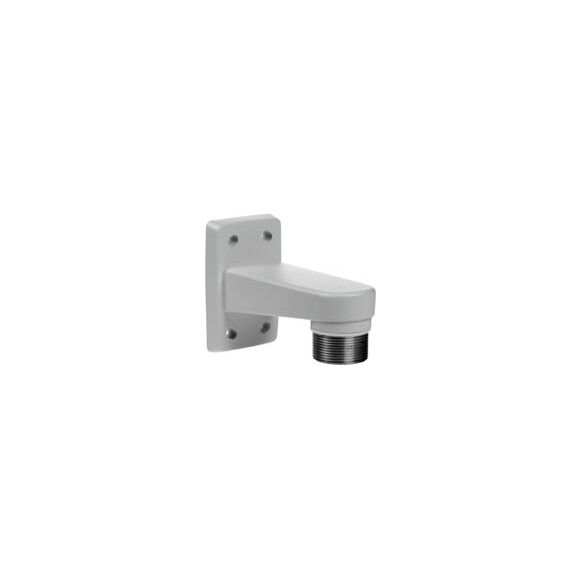

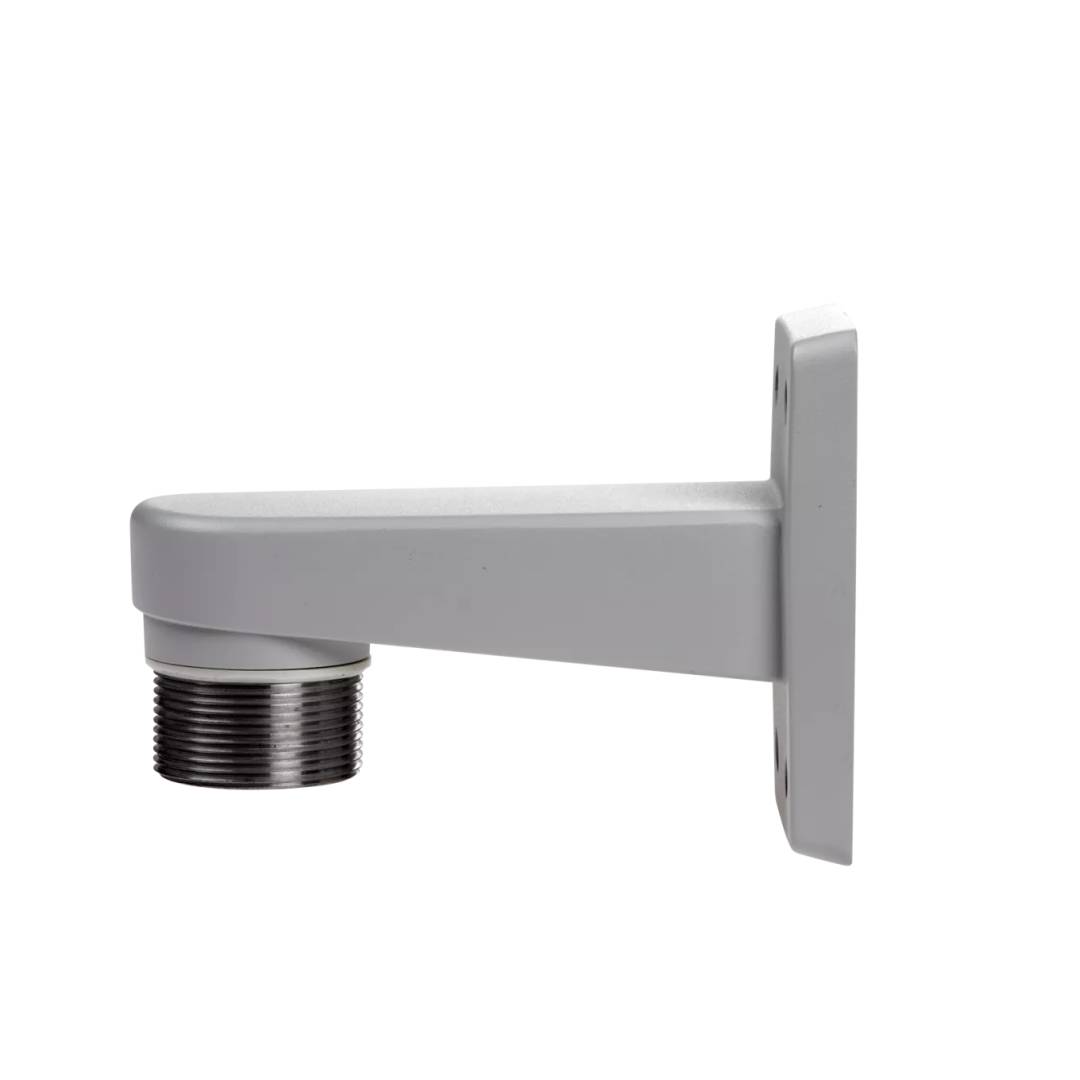

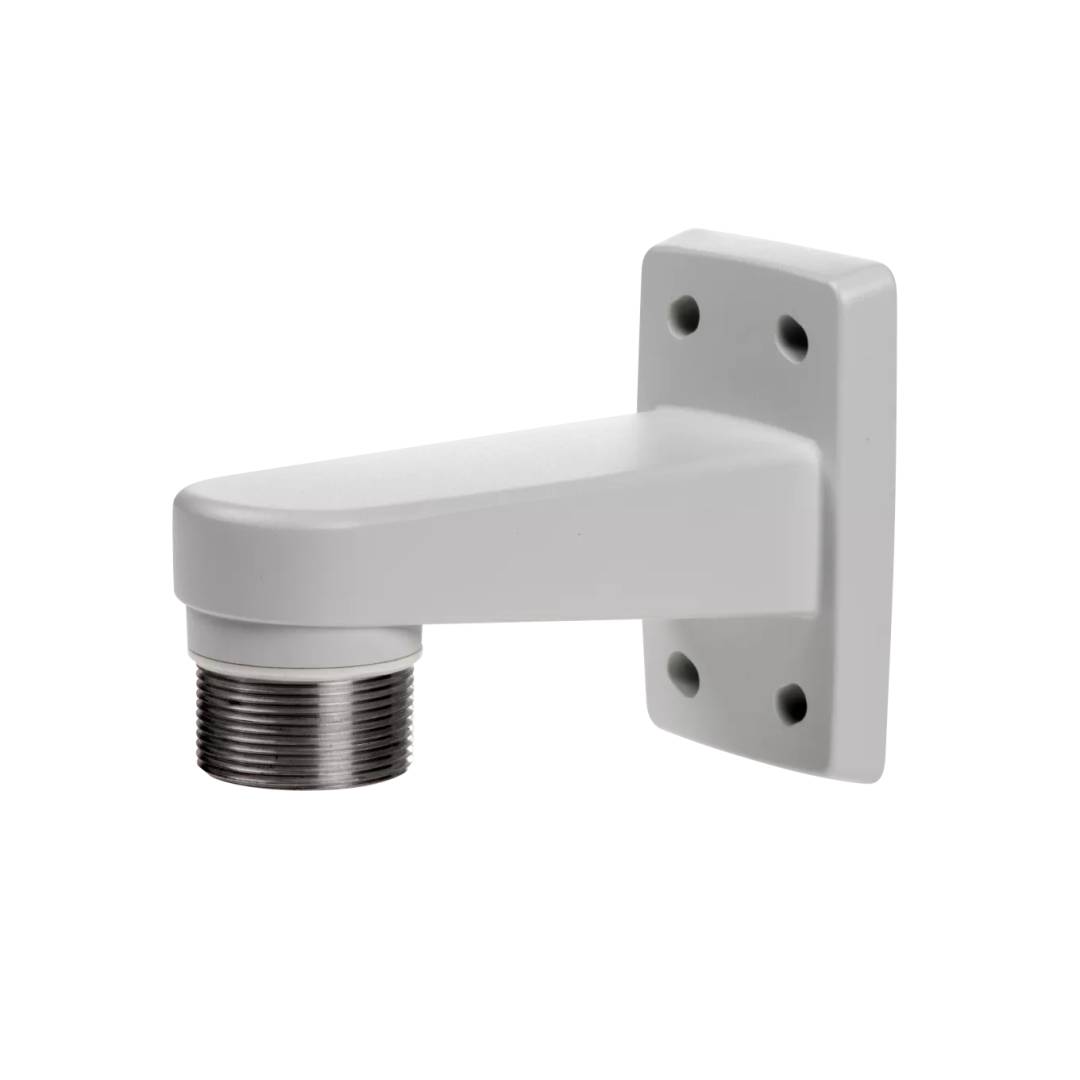

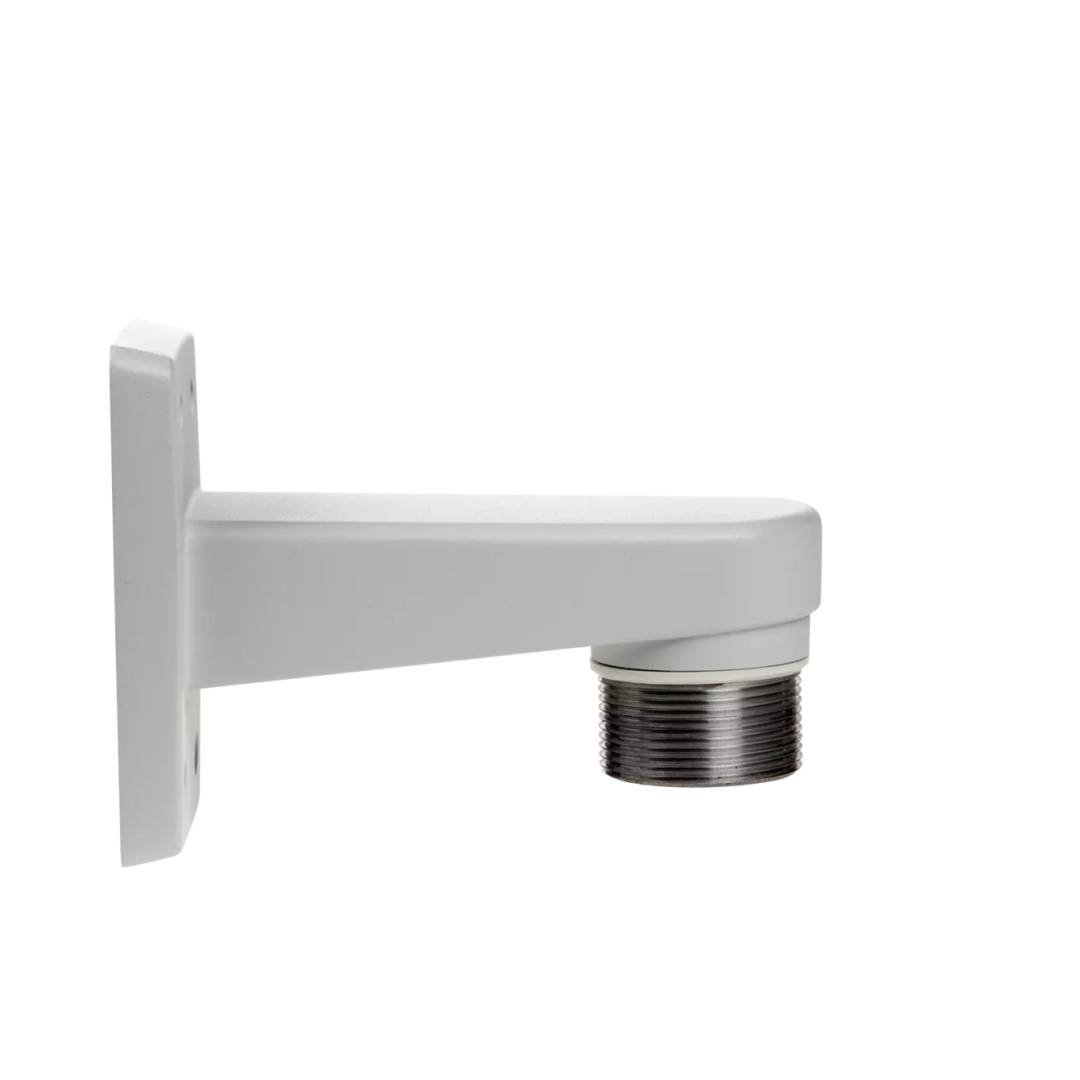

The AXIS T91E61 Wall Mount, part number 5506-481, is a white powder-coated aluminium wall bracket for AXIS dome and bullet cameras that use a pendant kit. It carries up to 10 kg, has a 1.5″ NPS thread, is rated IK10 for impact and NEMA 250 Type 4X for outdoor use, and routes the cable internally through the back or externally through cut-outs at the base. It measures 80 × 161 × 120 mm and weighs 525 g. In practice it is the standard AXIS wall arm for indoor and outdoor pendant installations.

Compatibility — check before buying:
The camera does not attach directly. It needs the pendant kit of that camera (AXIS T94 series or a TP/TM pendant kit), sold separately. AXIS lists the T91A05 Camera Holder and pendant kits T94A01D, T94B02D, T94F01D, T94K01D, T94M01D, T94N01D, T94N02D, T94T02D, TP3103-E, TP3105-E, TP3106-E and TM4101. Corner and pole adapters (T94R01B, T91B47) are optional. Send us the camera and we list the parts.

Best For

✓ Outdoor dome cameras
✓ AXIS P14 bullets with T94F01D
✓ Building facades
✓ Corridors and entrances
✓ Car parks
✓ Replacing corroded arms

Key Features


10 kg load
Carries heavy domes and housings.

Rugged
IK10 impact, NEMA 4X, powder-coated chromated aluminium.

Clean cabling
Internal routing through the back or external through base cut-outs.

AXIS ecosystem
Works with AXIS pendant kits and corner or pole adapters.

Technical Specifications

Identification
Brand AXIS
Product AXIS T91E61 Wall Mount
Part Number 5506-481
EAN / GTIN 7331021047693
Product Type Wall mount for AXIS pendant kits
Mechanical
Material Powder-coated, chromated aluminium
Colour White NCS S 1002-B
Dimensions 80 × 161 × 120 mm
Weight 525 g
Max. load 10 kg
Thread 1.5″ NPS
Ratings
Impact IK10 (IEC 62262)
Enclosure NEMA 250 Type 4X
Use Indoor and outdoor
Compatibility
Pendant kits AXIS T94A01D, T94B02D, T94F01D, T94K01D, T94M01D, T94N01D, T94N02D, T94T02D, TP3103-E, TP3105-E, TP3106-E, TM4101
Other AXIS T91A05 Camera Holder
Optional AXIS T94R01B Corner Bracket, T91B47 Pole Mount
Installation Planning
Check first Camera model and its pendant kit
Cable Internal through the back, or external via base cut-outs
Corner or pole Add T94R01B or T91B47
Need help? Send us the camera model
In the Box
Included Wall mount, installation guide
Not Included Pendant kit; camera; wall anchors
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term AXIS publishes a 3-year warranty for this mount in its datasheet; terms vary by region. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I screw my camera straight onto it?
No. Each camera needs its own pendant kit.
Can it go outdoors?
Yes. It is IK10 and NEMA 4X rated.
How much weight does it hold?
Up to 10 kg.
Can I mount it on a pole or a corner?
Yes, with the AXIS T91B47 Pole Mount or T94R01B Corner Bracket.
Singular Expert Insight
The T91E61 is the wall arm we fit most for AXIS domes and bullets. Always order it together with the camera’s pendant kit. For cameras, see our IP cameras. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Buyer’s Guide

Buy it if

You mount an AXIS camera with a pendant kit on a wall.

Skip it if

Your camera has its own wall mount in the box.

Also consider

AXIS T94F01D Pendant Kit (5503-881).
