AXIS T91G61 Wall Mount — Protected Camera Installation
IP66IK1030 kg maximum loadIndoor / outdoor

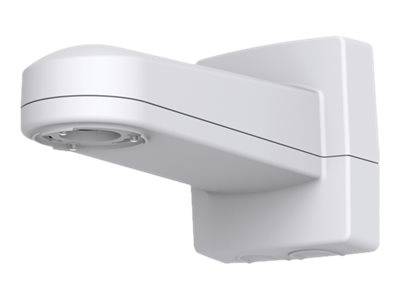

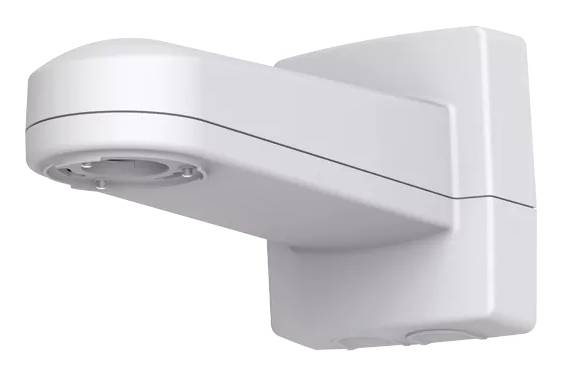

The AXIS T91G61 Wall Mount (5506-951) is a white, powder-coated aluminium wall mount designed for compatible Axis PTZ and multi-sensor cameras. Its enclosed compartment provides room for connectivity equipment and a service loop, while the pre-mounted Ethernet cable with an IP66 RJ45 connector simplifies protected power and data connection.
Compatibility — check before buying:
This mount is intended for supported Axis cameras and is not intended for inverted installations. Axis documentation lists compatibility with camera families including AXIS P56, Q60 and Q61 Series, as well as AXIS Q3709-PVE and Q6000-E Series. Check the exact camera model before ordering. Midspans are not included.
Best For
✓ Wall mounting compatible Axis PTZ cameras
✓ Indoor and outdoor surveillance installations
✓ Installations requiring protected connectivity space
✓ Retrofit projects using existing Axis or Pelco mounting holes
Key Features
Protected connectivity compartment
The mount provides internal room for connectivity devices, compatible midspans and a service loop while helping protect equipment from water ingress.
Pre-mounted IP66 RJ45 connection
A pre-installed Ethernet cable with an IP66 RJ45 connector and gasket supports a clean, protected connection for power and network data.
IP66 and IK10 rated
The mount is rated IP66 for protection against dust and water ingress and IK10 for impact resistance, supporting demanding indoor and outdoor installations.
Retrofit-friendly mounting pattern
The hole pattern matches the standard Axis PTZ wall mount and also matches the Pelco PTZ camera mount pattern, which can reduce additional drilling during replacement projects.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The T91G61 is more than a simple camera arm. Its enclosed body gives installers protected space for cabling, a service loop and compatible connectivity hardware while the pre-mounted IP66 RJ45 cable reduces the work needed at the camera connection. The combination of a 30 kg maximum load, aluminium construction and IP66/IK10 ratings makes it particularly suitable for substantial Axis PTZ installations. Before ordering, verify that your exact camera is supported and remember that this mount is not designed for inverted mounting.
Buyer’s Guide
Buy it if
You need the official Axis T91G61 wall mount for a compatible PTZ or multi-sensor camera and want protected cable routing, connectivity space and outdoor-ready construction.
Check first
Confirm the exact Axis camera model and mounting orientation. This mount is not intended for inverted installation, and a PoE midspan is not supplied.
Installation options
Axis lists optional pole, corner and conduit accessories for installations where direct wall mounting is not the required configuration.
Features - AXIS - 5506-951
More Details
Product Code
B092515
EAN Code
7331021049932
Manufacturer
AXIS
