AXIS T91G61 Wall Mount Grey for AXIS Q6225-LE PTZ Cameras, IP66 Aluminium, Built-in RJ45 Cable, 30 kg Load
Brand:
AXIS
AXIS T91G61 Wall Mount Grey for AXIS Q6225-LE PTZ Cameras, IP66 Aluminium, Built-in RJ45 Cable, 30 kg Load
€422.53 inc. VAT
01444-001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS T91G61 Wall Mount Grey — for AXIS Q62-LE PTZ Cameras
GreyIP66 · IK10 · NEMA 4XPre-mounted RJ45 cableMax load 30 kg

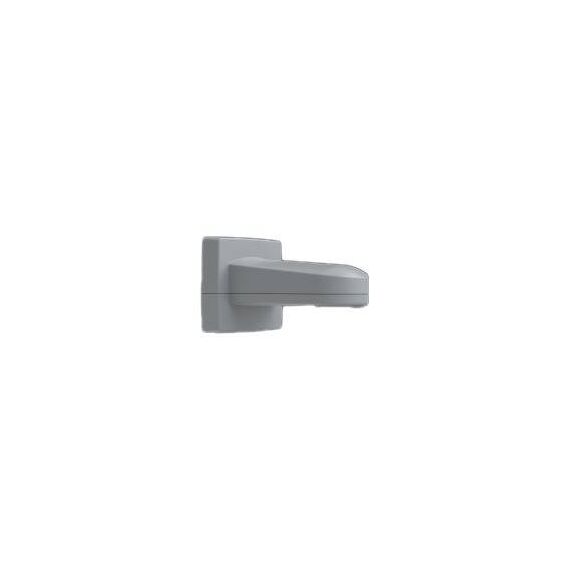

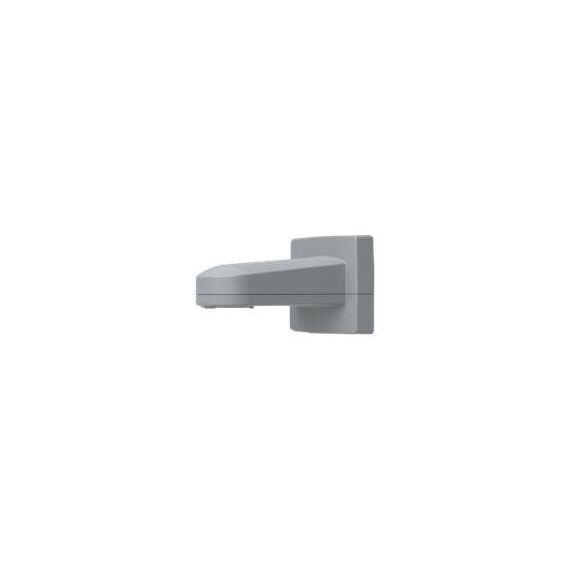

The AXIS T91G61 Wall Mount Grey (part 01444-001) is a powder-coated aluminium wall mount for heavy outdoor PTZ cameras, listed by Axis for the AXIS Q6225-LE and Q6215-LE in grey. It has a weatherproof inner compartment where you can install a midspan or media converter, and a pre-mounted Ethernet cable with an IP66-rated RJ45 connector and gasket, so the camera's network and power connection stays sealed inside the mount.
The grey version matches the colour of the grey Q62-LE cameras and pole mount. The arm carries up to 30 kg, and cables can enter from the back or through two 3/4" conduit entries.
Before you order: The grey T91G61 is for AXIS Q6225-LE and Q6215-LE (grey), the AXIS TM5806-E housing and the AXIS T91B57 Pole Mount Grey. For other Axis PTZ cameras, check the mount on axis.com or ask us — the white T91G61 (5506-951) is a different part.
What's in the Box
- AXIS T91G61 Wall Mount Grey with pre-mounted Ethernet cable (IP66 RJ45 connector and gasket)
- Installation guide
What It Means in Practice
- Mount it on a solid wall and fit a midspan inside the compartment: mains goes in, PoE++ goes to the camera without an external box.
- Pull the cable in from behind through the wall or use the 3/4" conduit entries for surface conduit.
- For a pole installation, combine it with the AXIS T91B57 Pole Mount Grey.
- It is designed for the camera to hang down — it is not for inverted (upside-down) installation.
What Will Not Work
- It does not include a midspan or power supply — the compartment is empty.
- It is not for fixed dome or bullet cameras that need a pendant kit; use the AXIS T91H61 for those.
- It is not for inverted mounting.
- The white T91G61 version is a separate part; this one is grey.
Key Features
Hidden power
Weatherproof compartment for a midspan or media converter.
Sealed connection
Pre-mounted Ethernet cable with IP66 RJ45 connector and gasket.
Heavy-duty
Powder-coated aluminium, IP66, IK10, NEMA 4X, up to 30 kg.
Flexible cabling
Back cable hole and 2 × 3/4" conduit entries.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The mount is where an outdoor PTZ installation succeeds or leaks: a sealed RJ45 and a midspan inside the arm remove the two most common failure points. If you are still choosing the camera, see our IP cameras.
✓ Buy it if you are installing a grey AXIS Q6225-LE or Q6215-LE on a wall and want the midspan hidden inside the mount.
✕ Skip it if your camera is a fixed dome or bullet, or you need the white version.
→ Also consider AXIS T91B57 Pole Mount Grey for pole installations.
Not sure which Axis mount fits your camera? Send us the camera model and the wall or pole type and we will check before you order.
Features - AXIS - 01444-001
Colour
grey
More Details
Product Code
B093652
EAN Code
7331021063426
Manufacturer
AXIS
