AXIS T98A15-VE Surveillance Cabinet — IP66 Outdoor Enclosure
IP66 · NEMA 4X · IK10PolycarbonatePre-mounted DIN rail-40 to 75 °C

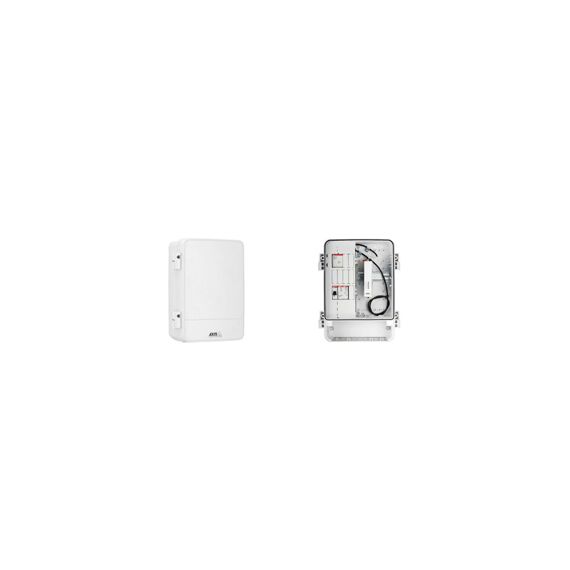

The AXIS T98A15-VE Surveillance Cabinet (part 5900-151) is a vandal-resistant polycarbonate enclosure for outdoor camera sites, where you install the midspan, switch, media converter or power supply right next to the camera instead of in a separate box. It is rated IP66, NEMA 4X and IK10, protecting the equipment against dust, high-pressure water, salt spray, ice and impact.
Inside there is a stainless-steel mounting plate with a pre-mounted DIN rail, pre-mounted cable gaskets and cable clamps, and a device mounting bracket. The supplied door lets you attach an Axis camera directly to the cabinet, so camera and electronics form one weatherproof unit on a wall, pole or corner.
Before you order: The cabinet comes empty: power supply, electrical safety kit, pole/corner brackets and alternative camera doors are sold separately. Axis lists DIN power supplies (CP-D 12 V 25 W or 24 V 100 W), Electrical Safety Kits A (120 V) / B (230 V) and doors T98A06/T98A07/T98A08 for specific camera types.
What's in the Box
- AXIS T98A15-VE cabinet with T98A mounting plate
- AXIS T98A05 Cabinet Door
- Pre-mounted DIN rail and pre-mounted cable gaskets
- Gasket A Cable 3.5 mm ×10 and Gasket C M25 Cable 8–17 mm ×10
- Cable clamps, cable straps, power cover and device mounting bracket
- Installation guide
What It Means in Practice
- Put a midspan or small industrial PoE switch on the DIN rail and feed several cameras from one cabinet on the pole.
- For a 230 V installation in Cyprus, add the Axis Electrical Safety Kit B and a DIN power supply.
- Use the supplied gaskets for each cable to keep the IP66 rating.
- Operating range is -40 to 75 °C, but the real limit depends on the equipment you install inside.
What Will Not Work
- It does not include a power supply, midspan, switch or electrical safety kit.
- It is not a heated or cooled cabinet — no heater or fan is included.
- Pole and corner mounting need separate Axis brackets.
- It does not include a lock or door switch; these are optional accessories.
Key Features
Rugged
Polycarbonate, IP66, NEMA 4X, IK10, vibration class 4M4.
Ready to fit
Stainless-steel mounting plate with pre-mounted DIN rail.
Sealed cabling
Pre-mounted gaskets plus 20 additional cable gaskets.
Expandable
Optional doors, sunshield, lock, door switch and pole mounts.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
An outdoor cabinet at the pole turns a messy camera install into one sealed unit and keeps PoE runs short. Plan the contents first — power, safety kit, midspan — then the cabinet; for the cameras see our IP cameras.
✓ Buy it if you need to house a midspan, switch or power supply outdoors next to one or more Axis cameras.
✕ Skip it if you need a heated/cooled cabinet or a ready-powered solution in one box.
→ Also consider Axis Electrical Safety Kit B and a DIN power supply to complete the cabinet.
Planning an outdoor camera point? Send us the cameras and what goes in the cabinet and we will put the full kit list together before you order.
