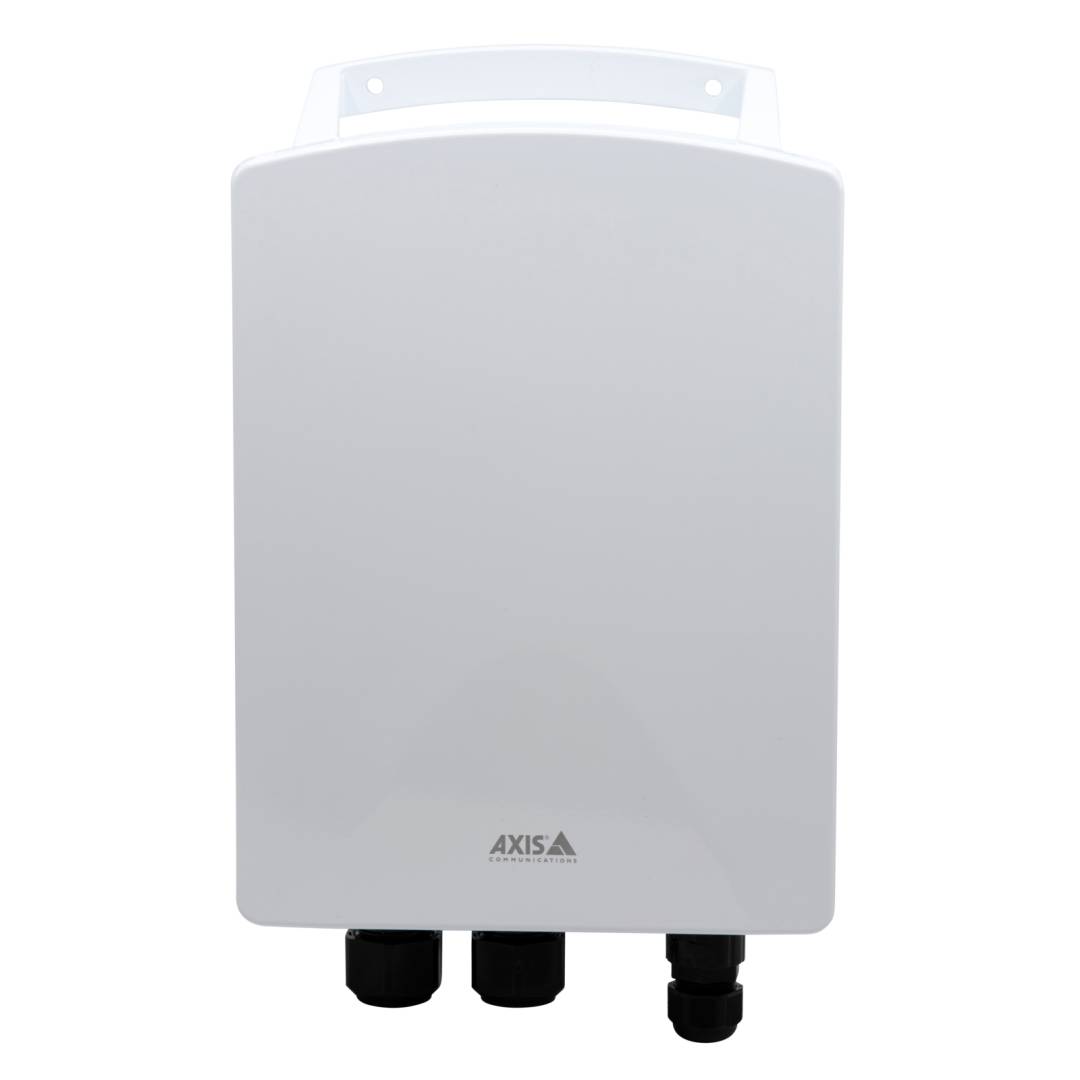

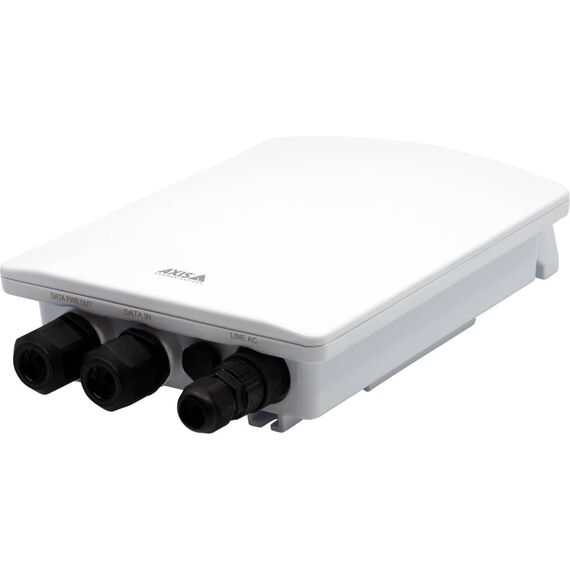

AXIS TU8002-E 90 W Midspan, Outdoor 1-Port PoE Injector, 802.3bt, 100–240 V AC, IP66/IP67, NEMA 4X, up to 10 Gbps
Brand:
AXIS
AXIS TU8002-E 90 W Midspan, Outdoor 1-Port PoE Injector, 802.3bt, 100–240 V AC, IP66/IP67, NEMA 4X, up to 10 Gbps
€597.51 inc. VAT
02453-001
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
AXIS TU8002-E 90 W Midspan — Outdoor 802.3bt PoE Injector, IP66/IP67
Up to 90 WIP66/IP67 · NEMA 4X100–240 V ACUp to 10 Gbps
The AXIS TU8002-E 90 W Midspan is an outdoor-ready single-channel PoE injector that adds up to 90 W of 802.3bt power to one network link from 100–240 V AC, in an IP66/IP67, NEMA 4X aluminium housing — built to sit on a wall or pole next to high-power PTZ cameras, cameras with heaters or IR, and other demanding outdoor devices.
Its IP-rated RJ45 connectors mean the unit never needs to be opened during installation, and data passes at up to 10 Gbps. It supports 802.3af, 802.3at, Axis High PoE (60 W) and 802.3bt (60–90 W) devices.
Before you order: No mains cable or plug is included: the unit has a 3-pin AC connector that the installer wires to the supply, and it must be grounded. Full 90 W output is rated up to 55 °C (75 W up to 65 °C).
What's in the Box
- 1x AXIS TU8002-E 90 W Midspan
- 1x 3-pin AC connector
- 1x drill template
- 1x installation guide
- Mains cable and pole straps not included
What It Means in Practice
- Powers one outdoor device with up to 90 W directly at the installation point.
- IP66/IP67 RJ45 connectors and NEMA 4X enclosure — no cabinet needed.
- Up to 6 kV surge protection on the AC port.
- Wall or pole mounting (pole with optional AXIS Steel Straps TX30).
- Should be installed by a trained installer with a grounded STP cable and ground wire ≥ 0.5 mm².
What Will Not Work
- No plug-in mains cable — requires wiring to the AC supply.
- Powers one device only.
- Not a switch — does not route data.
- Above 55 °C the output is limited to 75 W.
Key Features
90 W 802.3bt
Supports af (15 W), at (30 W), Axis HiPoE (60 W) and bt (60–90 W).
Outdoor-ready
IP66/IP67, NEMA 4X, NEMA TS2, MIL-STD-810G; PVC- and halogen-free.
10 Gbps data
10/100/1000/10000 Mbps pass-through.
Wide temperature
−40 to 55 °C at 90 W, −40 to 65 °C at 75 W.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The TU8002-E is the outdoor answer for 90 W PoE devices where a building switch is too far away or cannot supply 802.3bt. Plan an electrician for the AC and ground connection. For the switch side see our switches.
✓ Buy it if you need up to 90 W PoE outdoors at the pole or wall.
✕ Skip it if you only need 30 W or an indoor plug-in injector.
→ Also consider an indoor 802.3bt injector if the device is inside the building.
Not sure your camera needs 90 W? Send us the model and we will check its power class before you order.
Features - AXIS - 02453-001
More Details
Product Code
CF53079
EAN Code
7331021077553
Manufacturer
AXIS
