AXIS D2110-VE Outdoor Security Radar, 180° Detection, 60 m People Range, PoE+, PoE Output

Brand:
AXIS
AXIS D2110-VE Outdoor Security Radar, 180° Detection, 60 m People Range, PoE+, PoE Output
AXIS D2110-VE Outdoor Security Radar, 180° Detection, 60 m People Range, PoE+, PoE Output
€2912.37 inc. VAT
Buy
01564-001
€2,447.37
€2,912.37 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
B094112
EAN Code
7331021065017
Manufacturer
AXIS

Quick Specs

Detection sector
180° /10 Hz
Area profile
People 60 m / vehicles 85 m
Installation
Recommended height 3.5 m
Power / protection
PoE+ / IP66, IK08
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

AXIS D2110-VE Outdoor Security Radar, 180° Detection, 60 m People Range, PoE+, PoE Output

180° /10 HzPeople 60 m / vehicles 85 mRecommended height 3.5 m

The D2110-VE detects and tracks movement with radar when a visual image alone is not enough for an outdoor area. Its 180° sector reports position, direction, speed and object type. Pair it with a compatible camera for visual verification or a network speaker for an event response. This is a radar sensor: its video stream shows the radar map rather than an optical view of the scene.

Key Features


Detection with scene-specific rules
Set detection/exclusion zones and test people and vehicle routes at the chosen mounting height.

Link detection to visual evidence
Compatible PTZ pairing can follow a radar target. Use an external camera to see and verify what triggered the event.

Check PoE input before using PoE out
Powering a second 30 W PoE device requires the documented higher-power input; ordinary PoE+ input covers the radar alone.

Technical Specifications

Identification
Brand Axis
SKU / part number 01564-001
EAN / GTIN 7331021065017
Radar detection
Sensor / band Phased-array FMCW / 24.05–24.25 GHz
Transmit power Below 100 mW EIRP
Horizontal coverage / refresh 180° / 10 Hz
Recommended mounting 3.5 m height; different height affects detection range
Area profile detection People 3–60 m; vehicles 3–85 m; radial speed up to 55 km/h
Road profile detection 30–60 m at 105 km/h; maximum radial speed 105 km/h; positioning affects coverage
Area coverage references 5600 m² people / 11300 m² vehicles
Measurement accuracy Speed ±2 km/h / distance 0.7 m / angle 1°
Object separation Minimum moving-object separation 3 m
Object data / classes Range, direction, velocity, type: human, vehicle, unknown
Coexistence 24 GHz zone radius 350 m; recommended up to 6 radars
Detection rules Multiple zones; crossing one/two lines; exclusion filters for short-lived objects, speed and object type
Radar controls Transmit on/off, coexistence, grid/zone opacity, colour scheme, trails, sensitivity, swaying-object filter; small-object and stationary-rotating-object filters (beta)
Map / position calibration Reference-map scale/pan/zoom and tilt sensor; object GPS coordinates require manually entered radar GPS location, not a built-in GPS receiver
Visualization and integration
Processor / memory ARTPEC-7 / 1024 MB RAM / 512 MB flash
Visualization output 1920 × 1080 to 640 × 360, up to10 fps; radar map visualization, not optical camera video
Codecs / streaming H.264 baseline/main/high, H.265 main, MJPEG; multiple configurable streams, VBR/ABR/MBR, frame-rate/bandwidth control
Display controls Compression, 0/90/180/270° rotation including corridor format, dynamic text/image overlays
Audio / PTZ pairing Edge-to-edge speaker and compatible PTZ pairing; radar autotracking. External camera/speaker required for visual verification/audio output
API / interoperability VAPIX, metadata, ACAP, one-click cloud connection; ONVIF G/M/S/T
VMS / applications AXIS Camera Station Pro/5 and compatible partner VMS; radar motion detection, radar autotracking, AXIS Speed Monitor, Radar Integration for Microbus, ACAP third-party apps
Events Radar motion; applications; temperature, casing/fan/IP/network/system/radar status, interference/no data/tamper; storage health; digital/manual/virtual inputs; MQTT; schedules
Event actions I/O, status LEDs, MQTT, HTTP/HTTPS/TCP/email notification, text, radar detection/autotracking, SD/NAS recording, configuration erase, SNMP, FTP/SFTP/HTTP/HTTPS/share/email uploads
Protocols IPv4/IPv6, ICMPv4/v6, HTTP/HTTP2/HTTPS/TLS, QoS DiffServ, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP1/2c/3, DNS/DNSv6/DDNS, NTP/PTP/NTS, RTSP/RTP/RTCP, TCP/UDP, IGMP1/2/3, DHCPv4/v6, ARP, SSH, LLDP/CDP, MQTT3.1.1, secure syslog, ZeroConf
Software security Signed OS, brute-force delay, digest/OAuth2/ADFS authentication, password protection
Network security 802.1X EAP-TLS/PEAP-MSCHAPv2, 802.1AE MACsec, HTTPS/HSTS, TLS1.2/1.3, NTS, X.509 PKI, host firewall
Security documentation AXIS OS Hardening Guide, vulnerability policy, security development model, SBOM
Power, ports and housing
Radar PoE input 802.3at Type 2 Class 4; typical 11 W / maximum 15 W
PoE output requirements 30 W 802.3at Type 2 Class 4 output requires 802.3bt Type 3 Class 5 input or Axis 60 W midspan; overall maximum 38 W
DC power 8–28 V DC; typical 10 W / maximum 15 W
Ethernet 2 RJ45 Gigabit ports: PoE input / PoE output
I/O / relay 6-pin 2.5 mm terminal block, 4 configurable inputs/outputs;2-pin relay, 1 formA normally-open, maximum5 A/24 V DC; expected 25000 operations
Storage microSD/SDHC/SDXC; AES-XTS-Plain64 256-bit card encryption; NAS. Card not included; no fixed maximum capacity specified
Housing Aluminium/plastic; white NCS S1002-B; IP66/NEMA4X/IK08; PVC free
Dimensions / weight 285 × 206 × 152 mm / 2.4 kg
Operating conditions −40 to 60 °C;10–100% RH condensing
Storage temperature −40 to 65 °C

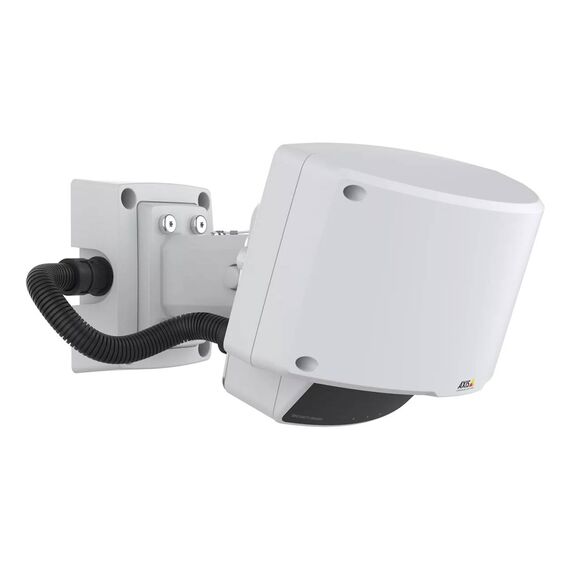

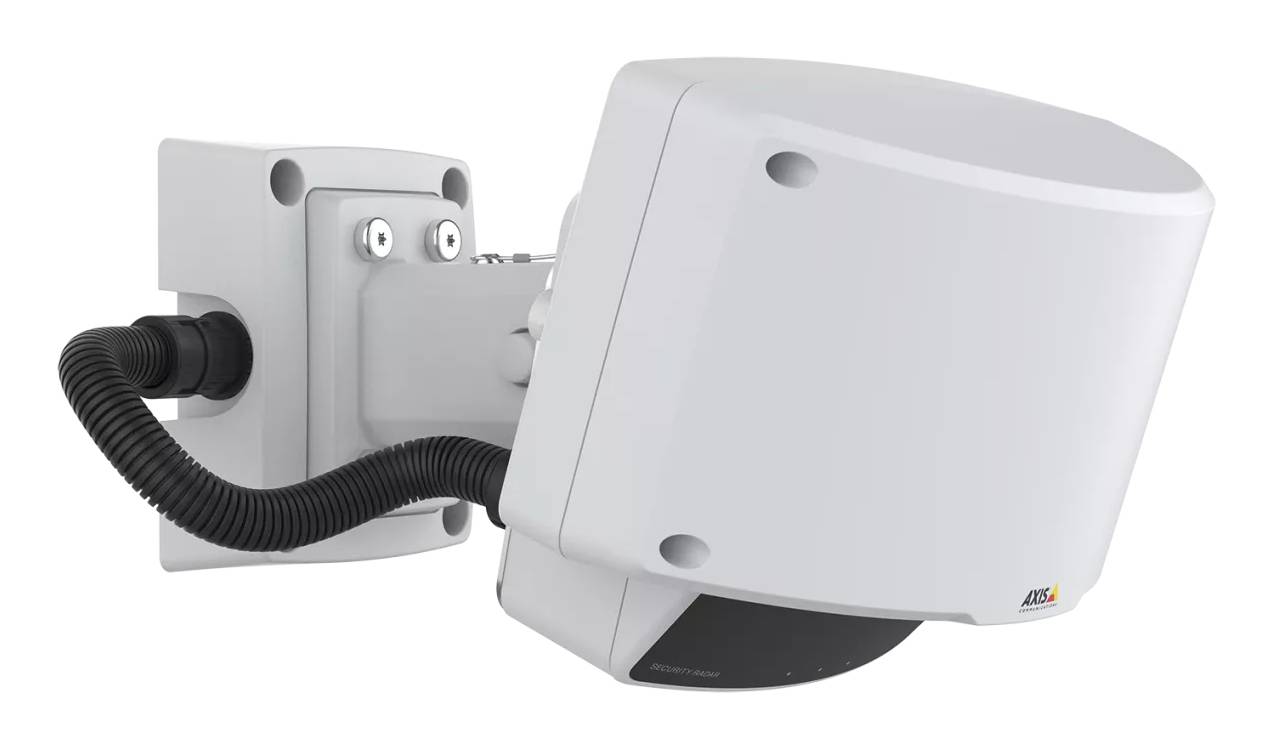

Optional accessories AXIS T91R61 wall, T91B47 pole, T94R01B corner, T8415 installation tool
Compliance and manufacturer warranty
EMC / safety EN55032 ClassA/55024, EN61000-6-1/-2/-4, EAC, RCM, ICES3A, VCCI ClassB, KC KN32 ClassA, FCC Part15B ClassA; IEC/EN/UL62368-1/60950-22
Environment / network / radio IEC60068-2-1/-2/-6/-14/-27/-78, IEC60529/62262, NEMA250; NIST SP500-267; EN300440/301489-1/-51/62311, FCC Part15C
Cybersecurity standards ETSI EN303645, BSI IT Security Label, FIPS140, EN18031-1
Manufacturer warranty Axis 5-year limited hardware warranty for eligible shipments from Axis on/after 1 April 2020; period starts at Axis shipment. Covers design/material/workmanship defects under normal use, repair or replacement subject to terms. Separate from seller terms

What's in the Box

Radar, installation guide, connector kit, pipe adapters, cable gland and cable gaskets
Windows decoder one-user licence

Frequently Asked Questions

Does 1080p mean it includes a camera?
No. That is the radar visualization stream resolution. A separate camera is needed for optical images.
Can I use PoE out with normal PoE+ input?
For 30 W PoE output, use 802.3bt Type 3 Class 5 input or a compatible Axis 60 W midspan.
Does it have a GPS receiver?
Object GPS metadata is calculated after manually entering the radar location. The datasheet does not specify a GPS receiver.
Singular Expert Insight
Use radar detection alongside a verified camera view. Check mounting height, traffic profile and paired-device compatibility before choosing power and placement. Compare IP cameras

Buyer’s Guide

Buy it if

You need outdoor motion tracking with position and speed metadata.

Skip it if

You need a standalone optical security camera.

Also consider

A compatible fixed or PTZ camera for visual verification.
