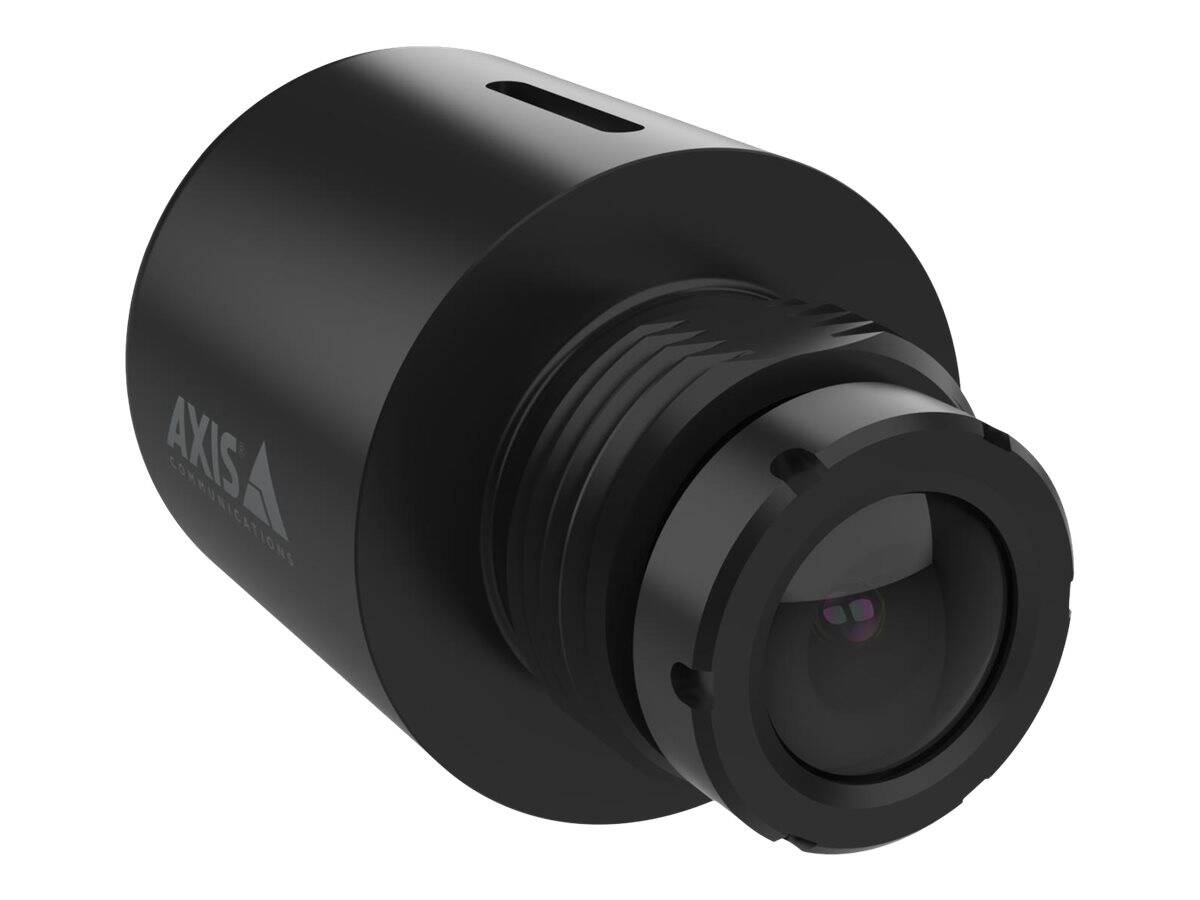

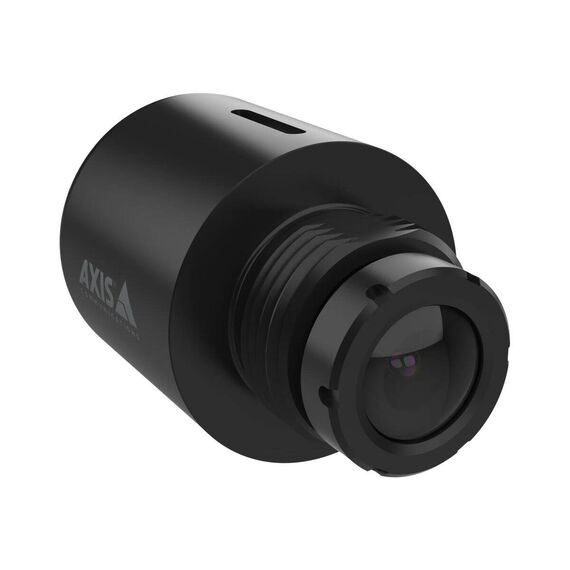

AXIS F2105-RE - Camera sensor unit - black, NCS S 9000-N - for AXIS F9104-B, F9111, F9114, F9114-B | 02640-001

Product Features

Multi-purpose
Ideal for installation indoors and outdoors, in machines, buses, and emergency vehicles, this sensor uses cables from Axis with SMA-FAKRA connectors to withstand vibrations and ensure a ruggedized installation. It can be installed practically anywhere - in tight spaces, behind glass, metal, or even plastic sheeting. Reliable under rough conditions, AXIS F2105-RE can withstand temperatures as low as -40 °C and as high as 70°C intermittently.
High-quality video usability
This sensor delivers high-quality video even in challenging and low light conditions. With a 108° field of view, it's perfect when you need wide-area coverage with great details for identification purposes. It supports HDTV 1080p at 60 fps or 720p at 30 fps on 4-channels. It also supports 720p at 180 fps with AXIS F9111 Main Unit. Forensic WDR provides clarity when there's both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.
Flexible and discreet
AXIS F2105-RE offers discreet installation with only the small sensor visible externally. Based on a divided network camera concept, this sensor allows for maximum flexibility and connects to the main unit using a ruggedized SMA-FAKRA connector. Cable type and length are chosen based on your specific needs. Furthermore, there's a variety of accessories available for mounting options and for flexible installation.

Special Fetures

Product Specification

Product Type	Camera sensor unit
Product Material	Aluminium
Weight	50 g
Colour	Black, NCS S 9000-N
Miscellaneous
Features	Rugged, PVC free, vibration-resistant, 1/2.8" CMOS, RGB lighting, fixed IR-cut filter, 0.1 lux, 108° horizontal viewing, SMA connector, maximum resolution: 1920 x 1080, up to 60 fps at 1080p, up to 180 fps at 720p
Compliant Standards	EN 61000-6-1, EMC, EN 61000-6-2, IEC 60068-2-27, IP67, IEC 60068-2-64, IP66, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, VCCI Class A, EAC, RCM, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, EN 55032 Class A, KCC KN32 Class A, IEC/EN/UL 60950-22, ISO 21207 method B, KCC KN35, CAN/CSA-C22.2 No. 62368-1, EN 55035, IEC/EN/UL 62368-1, IP69, IP6K9K, ICES-3(A)/NMB-3(A), UN ECE R118, IEC/EN 61373 Category 1 Class B, ECE-R10 Rev.5 (E approval), NEMA TS-2 (2.2.7-2.2.9), Safety certification, Environmental Product Declaration, FCC Part 15 Subpart B:2020 Class A, CAN/CSA-C22.2 No. 60950-22
Manufacturer Warranty
Service & Support	Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature	-40 °C
Max Operating Temperature	60 °C
Compatibility Information
Designed For	AXIS F9104-B, F9111, F9114, F9114-B
